TB9-17506A07BTR/C SOAKER

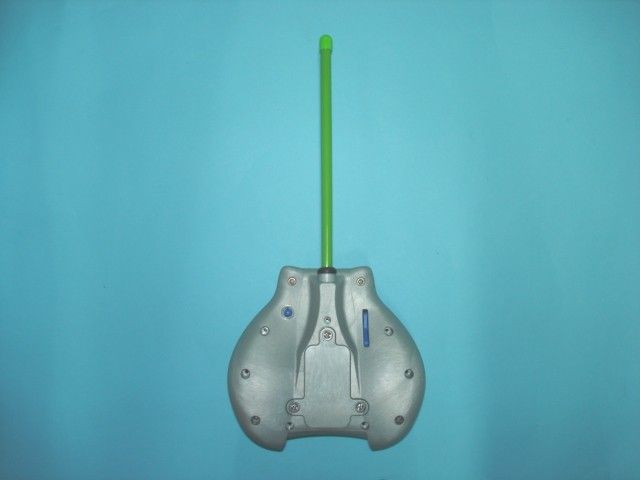

Ages 8 and up Models: 17506, 17507 Available in both Metallic Silver/Green - 49MHz (A) & Metallic Silver/Orange - 49MHz (B) When using 2 R/C Water Soakers together, make sure they are not the same color to prevent crossing signals. R/C Water Soaker has full-function, and its battery operated radio controller navigates movement around the pool, elevates the shooting nozzle, and controls the soaking stream! It has a shooting distance of approximately 20 feet.The controller is water resistant up to 3 feet deep. This allows you to swim along and control your Soaker from below the surface of the water. It has underwater range of approximately 6 feet and a transmitter range of approximately 50 feet above the surface of the water. Transmitter uses: 1-9V alkaline battery (not included) R/C Water Soaker uses: 4-AA alkaline batteries (not included) or rechargeable NiMH battery (included with charger) INSTALLING BATTERIES No assembly is required before first time use. Battery installation is required. HOW TO INSTALL / CHANGE BATTERIES R/C WATER SOAKER CONTROLLER 1.To open use phillips screwdriver to loosen the 3 screws on the battery compartment cover and lift the cover to remove it. 2.Put one 9V alkaline battery in the compartment. Make sure that (+) and (-) poles are positioned properly. 3.Replace the battery cover and secure it with screws. Note: When the transmitter’s range decreases, replace its battery. R/C WATER SOAKER 1. When installing new batteries, make sure that the power is in the off position on the R/C Water Soaker. Turn power off by pressing the button located between the two propellers. The light next to the on/off switch will light up if the power is still on. 2. To open, use Phillips screwdriver and loosen 3 screws on plastic covering, labeled BATTERY COMPARTMENT. Once loosened, lift the plastic cover to remove it. 3. After plastic covering is removed, use Phillips screwdriver to loosen 3 screws on the battery compartment cover and lift cover to remove it. 4. Take out the battery compartment box from the battery compartment. 5. Place 4-AA alkaline batteries or 6.0V rechargeable battery into the battery box. 6. Depending on which battery source you are using: plug either the AA battery box connector or the 6.0V rechargeable battery connector into the R/C Water Soaker connector, as shown. 7. Make sure battery and connector are secure in the battery compartment. 8. Replace battery compartment cover and secure with screws, making sure wires are not pinched by the cover. 9. Replace plastic covering and secure with screws. WARNING: Item can swim into deep water. Always keep children in sight within quick and easy reach when they are in the water. Do not allow children to play where water is too deep for their swimming ability. Do not aim or shoot water at eyes or face. Use of goggles is recommended while playing. NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. INPUT: 120V AC, 60Hz, 6W OUTPUT: 8V DC, 200 mA, 1.6 VA THIS PRODUCT IS DESIGNED FOR SWIMMING POOLS ONLY CAUTION: For safety, children playing with this toy should be supervised by an ADULT, as with any products designed to be used in or around water. To maintain good performance and control, make sure that your R/C Water Soaker is operated at depths that do not exceed 6 feet. CAUTION - ELECTRIC TOY: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Comments or Assistance? Please call 1-800-889-7946 Outside the U.S.A. please call 757-460-1156 SWIMWAYS CORP. 5816 Ward Ct. Virginia Beach, Virginia 23455 www.swimways.com Items #17506, 17507 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. HOW TO CHARGE/RECHARGE NiMH BATTERY 1. Insert charger plug into side of the rechargeable battery. 2. Plug in the power supply into the 115V-120V wall socket. 3. New NiMH battery pack is not charged before shipping. Charge for 12 hours before 1st use. 4 hours, thereafter. Note: Any batteries purchased for use in this toy may pose a hazard to children. Please check safety notice supplied with batteries before use. Make sure the battery is completely dry before recharging. Warning: Dispose of batteries promptly and properly; do not bury or burn them. HELPFUL HINTS • Fragile! Handle with care. Do not drop! Do not drop in water. • Do not pick up R/C Water Soaker by antenna or shooting nozzle. • Do not try to forcefully adjust the shooting nozzle. It is controlled by IC chip. • Do not leave on the floor to avoid stepping or falling on the R/C Water Soaker a…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM FOR 06008 Antenna Forward S1Forward S3Backward S2 ASK Modulator Q3 Backward S4Up(Cannon)S5 49.86MHz Down(Cannon)S6Shoot S7 Trade Name: Radio Control Soaker (Transmitter) Model Number: 06008 RF Filter (C16,L6,C17) Encoder (U1) RF Oscillator (Q2,Y1)

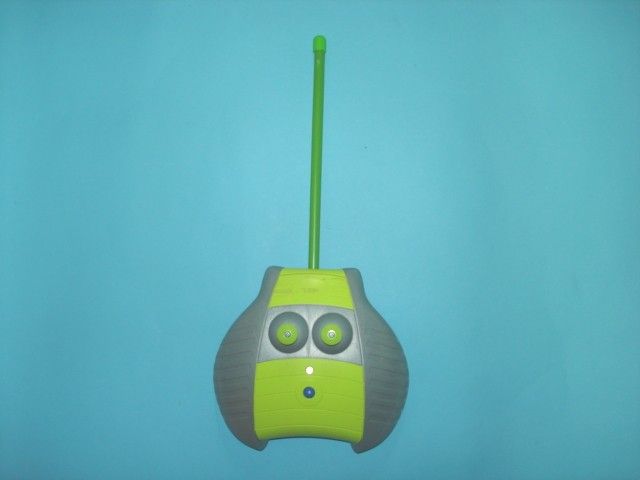

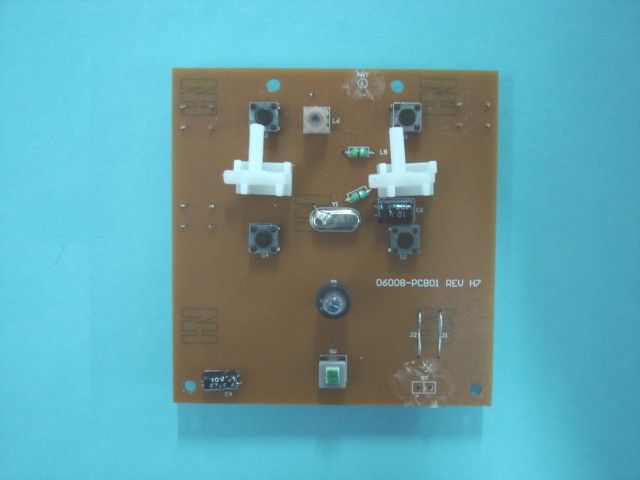

Operation Description R/C soaker The R/C Soaker is powered by 9V battery. There are two forward /backward stick, one cannon up/down and one shooting button on the EUT. When the two forward or backward stick pushed once it will transmit a radio signal for receiver go forward or backward. When the press up or down stick pushed once, it will transmit a radio signal for cannon up or down. When press the shooting button, it will transmit a radio signal for shooting water. Refer to the transmitter circuit design, the circuit description is listed as below:
 U1 and associate circuit act as encoder.
Y1, Q2 and associate circuit act as oscillator.
 Q3 and associate circuit act as amplifier. Refer to the receiver circuit design, the circuit description is listed as below:
 U2 and associate circuit act as encoder.
 Q2 and associate circuit act as self oscillate.
 Q3,Q4 and associate circuit act as amplifier.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA PERPARED BY DATE DETAIL OF CHANGE REV TitleSize Document Number Rev Date Sheet KADER INDUSTRIAL CO., LTD. R/C SOAKER 49.86MHz B H1 2006-11-02 1 of 1 06008-50000.SCH01 ISSUED : CHECKED : APPROVED : C447UF VDD VCC C1104 Q29018 Q39018 R4330K R8NO R1010K R118.2K R12100 C8103 C9103 C1127PF C1227PF C1568PF C1656PF C1718PF L30.82UH L50.47UH L43.3UH L61UH Y149.86MHZ ANT C7NO C14NO VCC D1LED R31K Z25V6 Q4NO R7NO R9220 C1327PF BT9V Q18550 R518K L10 C6100UF L20 C10472 R1330 S1S2S3S4S5S6S7 Z13V6 ID D3LL4148D2LL4148 C18102 SW VDD D4LL4148 R6 100K VCC 12 VDD 16 VO1 15 OSCI 11 VSSD 10 VSSC 14 VO 13 NC 9 P2.0 8 P2.1 7 P2.2 6 P2.3 5 P3.0 4 P3.1 3 P3.2 2 P3.3 1 U1EST004 S1=FORWARD1S2=BACKWARD1S3=FORWARD2S4=BACKWARD2S5=UP(CANNON)S6=DOWN(CANNON)S7=SHOOT WATER

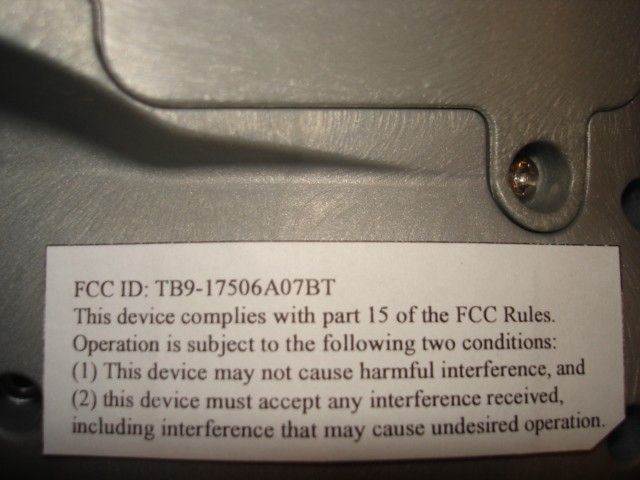

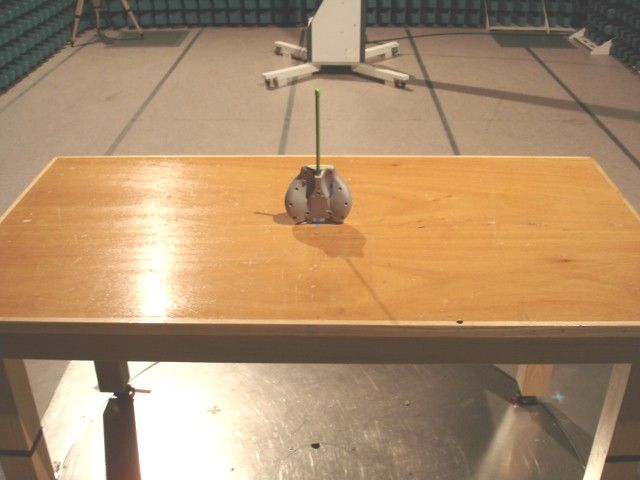

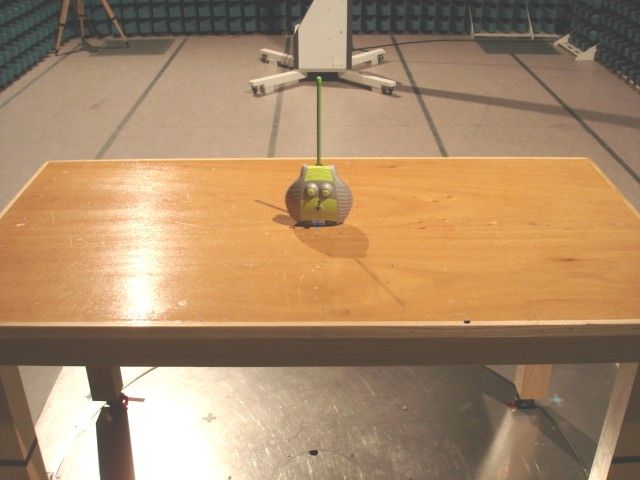

TEST REPORT Report No. : AG029627-001 Date : 2006 December 12 Page 1 of 11 FCC ID: TB9-17506A07BT This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG225042(4) Client : Swimways Corp. 5816 Ward Court, Virginia Beach, VA23455 Sample Description : One(1) submitted sample(s) stated to be R/C Soaker of Model No. 06008 Radio Frequency : 49.860MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece(s) *** Date Received : 2006 November 06 Test Period : 2006 November 06 ñ 2006 November 14 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG029627-001 Date : 2006 December 12 Page 2 of 11 FCC ID: TB9-17506A07BT This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AG029627-001 Date : 2006 December 12 Page 3 of 11 FCC ID: TB9-17506A07BT This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for R/C Soaker. It operates at 49.860MHz which is controlled by a crystal. The EUT is powered by 1 x 9V size battery and it has two control sticks in the EUT. When the control stick is pressed once, it will transmit the radio control signal to receiver. The brief circuit description is listed as follows: - Q1 and associated circuit act as a voltage regulator. - U1 and associated circuit act as an encoder. - Y1, Q2, Q4 and associated circuit act as an oscillator. - Q3 and associated circuit act as a RF amplifier. TEST REPORT Report No. : AG029627-001 Date : 2006 December 12 Page 4 of 11 FCC ID: TB9-17506A07BT This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissions measurements are inv…

Text truncated - open the document above for the full version.

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle 3 Duty Cycle 4 Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle 5
