TBGAW400UHF-FM Transceiver

ArWest Communications Corp.
UHF-FM Transceiver - FCC ID TBGAW400 - ArWest Communications Corp.
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Jul 19, 2005
Application Purpose
Original Equipment
Date of Application
Jul 19, 2005
Equipment Note
UHF-FM Transceiver
Frequency Range
430.00000000 - 470.00000000
Company
ArWest Communications Corp.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗

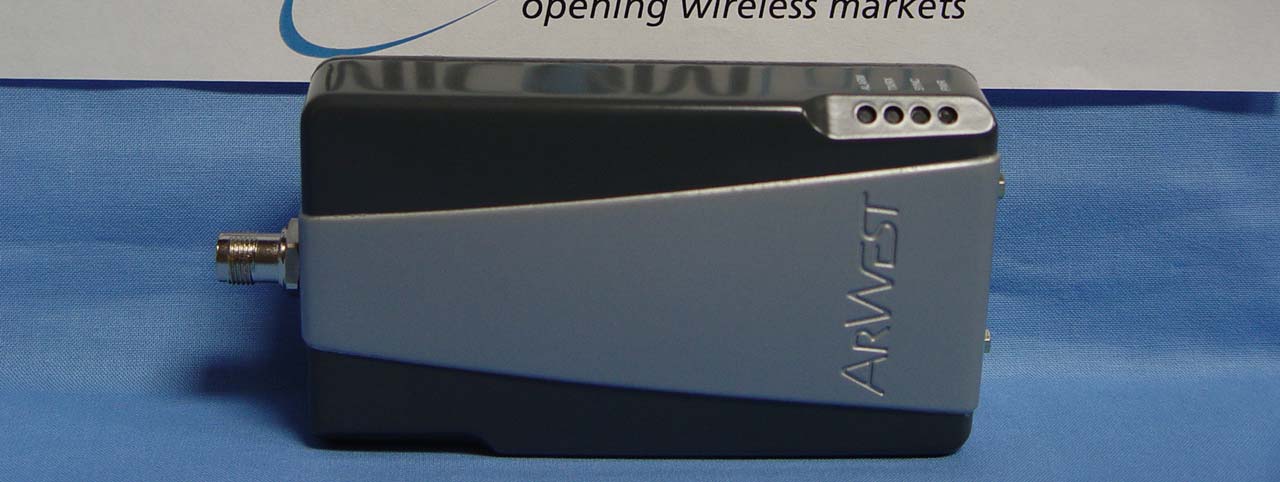

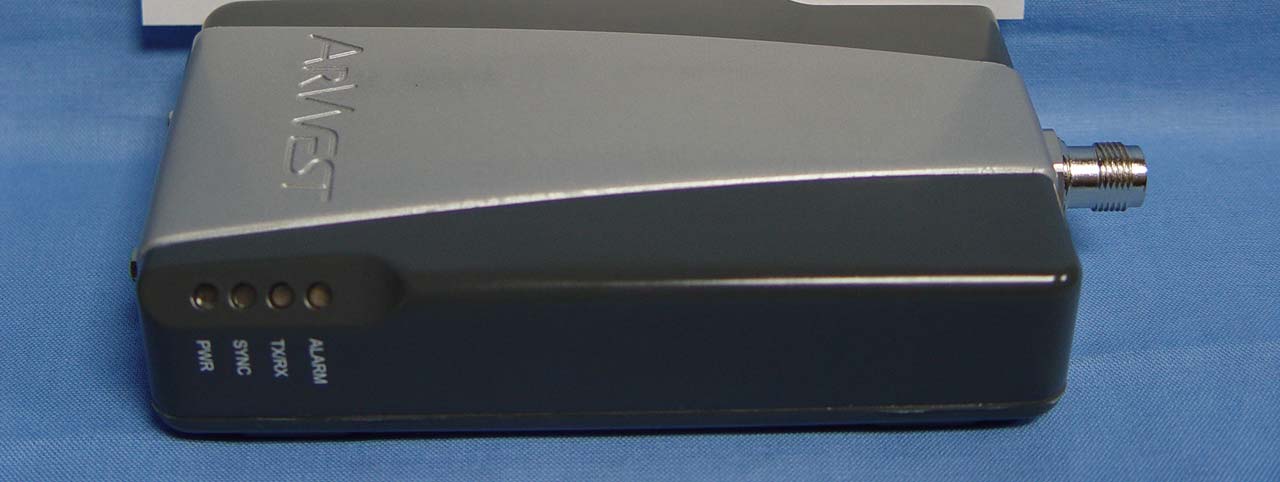

External Photos

↗
↗

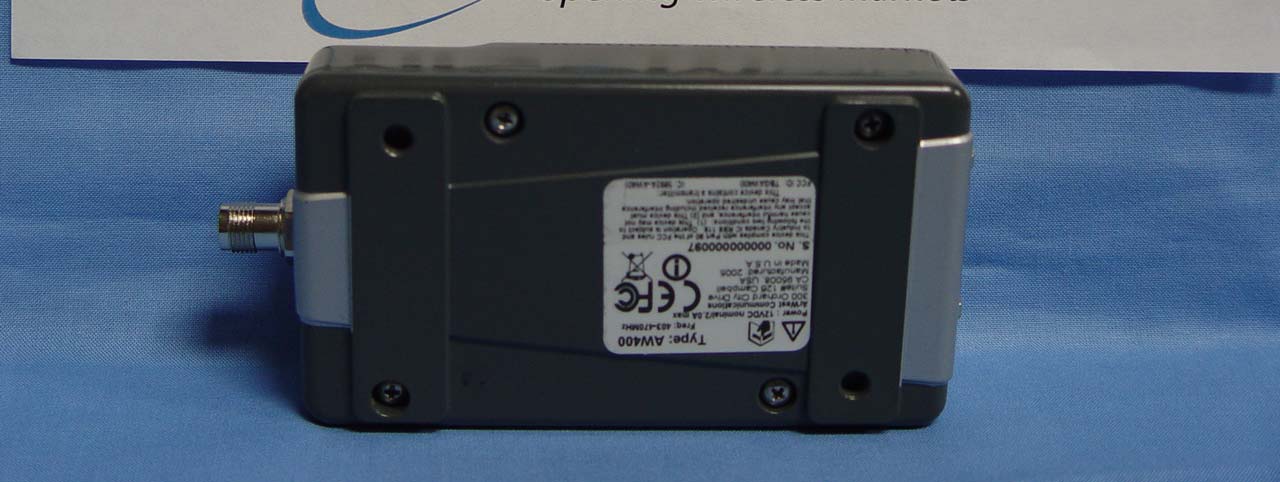

ID Label/Location Info

↗
↗
↗
↗

Internal Photos

↗
↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AlphaWave Users Manual AlphaWave Users Manual 3/21/2005 COPYRIGHT NOTICE Copyright 2004 ArWest Communications Corp. All rights reserved. No part of this publication or the computer programs described herein may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise, without prior written permis- sion of ArWest Communications Corp. Your rights with regard to this publication and the computer programs are subject to the restric- tions and limitations imposed by the copyright laws of the United States of America (“U.S.A.”) and/or the jurisdiction in which you are located. For information on translations and distribution outside the U.S.A., please contact ArWest Communications. Printed in the United States of America Part Number: UF-00001-100 March 05 T RADEMARK NOTICE ArWest is the registered trademark of ArWest Communications Corp. AlphaWave, AW and AWare are trademarks of ArWest Communica- tions Corp. All other product and brand names are trademarks or registered trademarks of their respective holders. S OFTWARE LICENSING AGREEMENT IMPORTANT: BY OPENING THE SEALED DISK PACKAGE CONTAINING THE SOFT- WARE MEDIA OR INSTALLING THE SOFTWARE YOU ARE AGREEING TO BE BOUND BY THE TERMS AND CONDITIONS OF THE LICENSE AGREEMENT (‘AGREEMENT’). THIS AGREEMENT CONSTITUTES THE COMPLETE AGREEMENT BETWEEN YOU (‘ LICENSEE’) AND ARWEST (‘LICENSOR’). CAREFULLY READ THE AGREEMENT AND IF YOU DO NOT AGREE WITH THE TERMS RETURN THIS UBPOPENED DISK PACKAGE AND THE ACCOMPANYING ITEMS TO THE PLACE WHERE YOU OBTAINED THEM. LICENSE: LICENSOR grants you a limited, non-exclusive, non- transferable, personal license (‘License’) to (i) install and operate the copy of the computer program contained in this package (‘Program’) in machine acceptable form only on a single computer (one central processing unit and associated monitor and keyboard) and (ii) make Page—iii one archival copy of the Program for use with the same computer. LICENSOR and its third-party suppliers retain all rights to Program not expressly granted in this Agreement. OWNERSHIP OF PROGRAMS AND COPIES. This License is not a sale of the original Program or any copies. LICENSOR and its third-party suppliers retain the ownership of the Program and all copyrights and other propriety rights therein, and all subsequent copies of the Pro- gram made by you, regardless of the form in which the copies may exist... The Program and the accompanying manuals (‘Documentation’) are copyrighted works of authorship and contain valuable trade secret and confidential information propriety to LI- CENSOR and its third-party suppliers. You agree to exercise reason- able efforts to protect the proprietary interests of the LICENSOR and its third-party suppliers in the Program and Documentation and maintain them in strict confidence. USER-RESTRICTIONS. The Program is provided for use in your in- ternal commercial business operations and must remain at all times upon a single computer owned or leased by you. You may physically transfer the program from one computer to another provided that the Program is operated only on one computer at a time. You may not operate the Program in a time-sharing or service bureau opera- tion or rent, lease, sublease, sell, assign, pledge, transfer, transmit electronically or otherwise dispose of the Program or Documentation, on a temporary or permanent basis, without prior written consent of LICENSOR. You agree not to translate, modify, adapt, disassemble, decompile, or reverse engineer the program, or create derivative works of the Program or Documentation or any portion thereof. TERMINATION. The License is effective until terminated. The Li- cense will terminate without notice from LICENSOR if you fail to comply with any of the provisions of this Agreement. Upon termina- tion, you must cease all use of the Program and Documentation and return them and any copies thereof to LICENSOR. GENERAL. This Agreement shall be governed by and construed in accordance with the Laws of the State of California and the United States of America without regard to conflict of laws provisions thereof and without regard to the United Nations Convention on Con- tracts for the International Sale of Goods. Page—iv AlphaWave Users Manual 3/21/2005 DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY LICENSOR AND ITS THIRD-PARTY SUPPLIERS MAKE NO WARRANTIES OR REPRE- SANTATIONS , EXPRESS OR IMPLIED, REGARDING THE PROGRAM, MEDIA, DOCU- MENTATION , RESULTS OR ACCURACY OF DATA AND HEREBY EXPRESSLY DISCLAIM ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE AND NONFRINGEMENT. LECENSOR AND ITS THIRD-PARTY SUPPLIERS DO NOT WARRANT THE PROGRAM WILLMEET YOUR REQUIREMENTS OR THAT IT’S OPERA- TION WILL BE UNINTERRUPTED OR ERROR-FREE. LICENSOR, its third-party suppliers, or anyone involved in the crea- tion or delivery of the Program or Documentation to you shall have no liability to you or any third-party for special, incidental, indirect or consequential damages (including, but not limited to, loss of profits or savings, downtime, damage to or replacement of equipment or property, or recover or replacement of programs or data) arising from claims based in warranty, contract, tort (including negligence), strict liability, or otherwise even if LICENSOR or its third-party sup- pliers have been advised of the possibility of such claim or damages. The liability of the LICENSOR and its third-party suppliers for direct damages shall not exceed the actual amount paid for this Program License. Some states do not allow the exclusion of limitation of implied war- ranties or liability for incidental or consequential damages, so the above limitations may not apply to you. U.S. G OVERNMENT RESTRICTED RIGHTS The Program and Documentation are provided with RESTRICTIVE RIGHTS. Use, duplication, or disclosure by the Government is sub- ject to restrictions as set forth in subdivisi…

Text truncated - open the document above for the full version.

Attestation Statements

July 18, 2005 ATTESTATION This device is categorically excluded from routine evaluation according to FCC Rule Part 2.1091 when operated at the power levels appropriate to the antenna gain. The device does not transmit an effective radiated power of more than 1.5 Watts per the table below: Antenna Part# Gain dBi AlphaWave Power Setting ERP AT-30000 to AT30005 0 33 dBm (2W) 1.22W AT-30006 to AT-30007 3 30 dBm (1W) 0.61W AT-30008 to AT-30010 5 28 dBm (0.63W) 0.385W AT-30011 to AT 30015 9 24 dBm (0.25W) 0.153W AT-30016 8.8 24.2 dBm (0.263W) 0.128W AT-30017 to AT-30018 9 24 dBm (0.25W) 0.153W Thomas Chanian President & CEO ArWest Communications Tel: (408)866-9668 Tel: (408)866-9688 Direct Fax:(408)762-2018

Attestation Statements

Letter of Authorization Company: ArWest Communications Corp. Address: 300 Orchard City Dr. Suite # 126 Campbell, CA 95008 Product: AW400 UHF-FM Transceiver Type Designation: This is to certify that ArWest Communications Corp.’s AW400 and GFU20-1 Radio Modems are certified and meet the spectrum efficiency standard of Part 90.203, paragraph (j)(3) (5). ArWest herby attest that AW400 and GFU20-1 equipments are designed to operate on the UHF frequencies in the 430-470 MHz and are capable of transmitting data with up to 2-watt power output, and have the channel bandwidth of more than 6.25 KHz and fully support a minimum data rate of 4800 bits per second per 6.25 KHz of channel bandwidth. Name: Thomas Chanian Date: July 9, 2005 Title: Chief Executive Officer Place of issue: Campbell ____________________________

Cover Letter(s)

06/04/05 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Request for Confidential Treatment from public disclosure of the ArWest Communication Corp. - schematics, block diagrams, circuit diagram descriptions, theory of operation, and engineering drawings. Dear Sirs/Madam, ArWest Communication Corp., would like to request that ArWest Communication Corp.’s schematics, block diagrams, circuit diagram descriptions, theory of operation, and engineering drawings submitted with the application for certification be withheld from public disclosure per Section 0.459 of the FCC Rules. This confidentiality request is made under the provisions of Section 0.457(d) of the FCC Rules and Section 552(b)(4) of the Freedom of Information Act. The various items contain proprietary, confidential and trade secret materials, which would not customarily be made available for public inspection. If you have any questions, please do not hesitate to contact me. Sincerely, Thomas Chanian President & CEO

ID Label/Location Info

Type: AW400 This device contains a transmitter: FCC ID: TBGAW400 IC: 5892A-AW400 Freq: 403-470MHz Power : 12VDC nominal/2.0A max ArWest Communications 300 Orchard City Drive Suite# 126 Campbell CA 95008, USA Manufactured: 2005 Made in U.S.A. This device complies with Part 90 of the FCC rules and to Industry Canada IC RSS 119. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. S. No. 000000001177

ID Label/Location Info

T his device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. AW400 ArWest Communications300 Orchard City DriveSuite# 126, CampbellCA 95008, USAManufactured: 2005S.No.:Made in U.S.A 000000010001 Power: 12VDC nominal/2.0A max.Freq.: 403-470MHz20mW - 2W, 6.25/12.5/25 kHz CS C F C

ID Label/Location Info

Type: GFU20-1 Art. No.: 746780 ArWest Communications300 Orchard City DriveSuite# 126, CampbellCA 95008, USAManufactured: 2005S.No.:Made in U.S.A T his device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. 000000100001 Power: 12VDC nominal/1.0A max.Freq.: 403-470MHz This device contains a transmitter: FCCID TBGGFU

ID Label/Location Info

Type: GFU20-1 This device contains a transmitter: FCC ID: TBGAW400 IC: 5892A-AW400 Power : 12VDC nominal/2.0A max Freq: 403-470MHz ArWest Communications 300 Orchard City Drive Suite# 126 Campbell CA 95008, USA Manufactured: 2005 Made in U.S.A. S. No. 000000100026 Art. No.: 746780

Operational Description

UHF 403 – 470 MHz DSP based Radio Modem with Built-in wireless link Monitoring and Management Tools: • Both Licensed and Unlicensed operation modes • 50 miles Maximum Distance Range • Data Speed over the air 38400 bps at 25 kHz and 19200 bps at 12.5 kHz • Programmable Output Power (100 mW to 2 W) • Advanced Forward Error Correction (FEC) • RS-232 compatible serial interfaces with RTS/CTS flow control support • Data Speed over the serial ports 300 to 115200 bps • Testing, monitoring and control of the unit over the air • AlphaWave SuperScan® - automatic search and select for best frequency/channel ArWest Communications Corp. exceeds established standards within the SCADA and outdoor telemetry markets with the release of AlphaWave (AW) series DSP based integrated wireless modem, the first in a series of next generation Narrow-Band products. The AW radio modem provides a high-speed Point-to- Point and Point-to-Multipoint wireless data transfer at up to 38.4 kbps. AW software supports user selectable modulation techniques (GMSK/BPSK, QPSK, 8PSK, or 16QAM), which allows the user to achieve the highest data speed for a given range (up to 50 miles). It also includes a selectable error correction, which improves the functioning of the radio modem under interference. The unmatched features of AW include data scrambling, frequency hopping, user selectable transmit output power level, low power consumption sleep modes, auto-scanning for base and plug-and- play installation for remote terminals. AW supports two separate Application Data and Maintenance RS-232 serial ports. Without data link interruption the radio parameter settings can be changed through the unit’s Dedicated Maintenance serial port. The built-in software tools provide the wireless link testing, units’ status and error statistics monitoring as well as units’ settings change over the air. The software of the AW radio modem resides in a flash memory. The updating of the radio modem programs is entirely software-based. The flash memory is re-programmable through an RS-232 interface or over the air. AlphaWave AlphaWave Narrowband Radio Modems Narrowband Radio Modems W W IRELESS IRELESS S S OLUTIONS OLUTIONS FOR FOR S S YSTEM YSTEM C C ONTROL ONTROL A A PPLICATIONS PPLICATIONS ArWest Communications Corp. 300 Orchard City Drive # 126 Campbell, CA Tel: (1) 408-866-9668 Fax: (1) 408-866-9678 Email: [email protected] © 2003 ArWest Corp. ArWest is a registered trademark of ArWest Corp Printed in the USA 3/1/05 Specifications are typical and subject to change without prior notice. Visit us on the web at www.arwestcom.com ArWest Communications Corp. 300 Orchard City Drive # 126 Campbell, CA Tel: (1) 408-866-9668 Fax: (1) 408-866-9678 Email: [email protected] © 2003 ArWest Corp. ArWest is a registered trademark of ArWest Corp Printed in the USA 3/1/05 Specifications are typical and subject to change without prior notice. Visit us on the web at www.arwestcom.com AlphaWave AlphaWave Narrowband Radio Modems Narrowband Radio Modems W W IRELESS IRELESS S S OLUTIONS OLUTIONS FOR FOR S S YSTEM YSTEM C C ONTROL ONTROL A A PPLICATIONS PPLICATIONS AW400 Receiver Specifications Parameter Specification Noise Figure 10 dB Nominal Input Impedance 50 Ohms Receiver Sensitivity (@BER 1x10 -4 , over temperature –30 o C to +60 o C) 25/12.5/6.25 kHz CS -113 / -116 / -119 dBm Rx AGC Dynamic Range -119 to –52 dBm Co-Channel Rejection 25/12.5 kHz CS -8 / -12 / -16 dB Adjacent Channel Selectivity 25/12.5/6.25 kHz CS 70 / 60 / 50 dBc General Radio Specifications Parameter Specification Operating Frequency Range 403 - 470 MHz Modulation Technique GMSK/DBPSK, DQPSK, D8PSK and D16QAM Media Access Control Protocols Time Division Duplex (TDD) Time Division Multiplex Access (TDMA) Supported User Interfaces RS232 (current) Supported Comms. Protocols MODBUS (current) Maximum Distance Range 50 miles / 80 km Occupied Bandwidth 6.25 kHz, 12.5 kHz or 25 kHz Data Rate 25 kHz 12.5 kHz 6.25 kHz GMSK/DBPSK DQPSK D8PSK D16QAM 9600 19200 28800 38400 4800 9600 19200 28800 2400 4800 7200 9600 System Gain (Antenna not incl.) 146 dBm 149 dBm 152 dBm End to End delay 50 ms Environmental Specifications Parameter Specification Operating –30 o C to +60 o C (ETSI 300-019-1-3 Class 3.1 (E). Temperature Storage –40 o C to +85 o C Environmental IPC66 Dimensions (H x W x D) 5.87” x 2.93” x 1.51” D (137mm x 75mm x 29mm) Weight 12 oz (340 g) Power Supply Voltage +9 to +24 VDC nominal Power Consumption (Average) 6W / 2W / 0.05W – Transmit / Receive / Sleep Housing/Color Aluminum / Two-tone Silver / Black Antenna Connector TNC, 50Ω, female User Interface Connector / Power Connector D15 waterproof, female connector Altitude -1,000 m below sea level to 8,500 m above sea level Transmitter Specifications Parameter Specification Output Power 13 dBm to 33 dBm in 1 dB steps Output power control accuracy ±1.5 dB (at normal test conditions) Nominal Output Impedance 50 Ohms Carrier Frequency Stability ±1.5 ppm initial stability over temp with ±3.0 ppm aging/year Max. Frequency Error ±1.0 kHz (at normal test conditions) Adjacent Channel Power (Conducted) 25/12.5/6.25 kHz CS < 70 / 60 / 50 dBc Spurious Emission (Conducted) -36 dBm @(9 kHz – 1GHz) -30 dBm @(1GHz – 4 GHz) Spurious Emission (Radiated) -36 dBm @(9 kHz – 1GHz) -30 dBm @(1GHz – 4 GHz) Compliance Parameter Specification ETSI / FCC / Industry Canada ETSI 300-113 / FCC Part 15 / RSS-210 UL UL 1419 UL Hazardous Locations Class 1, Div 2; Groups A, B, C, and D; hazardous locations FM Approved

RF Exposure Info

3922 Valley Avenue ‘Suite B’, Pleasanton, California 94566 USA Tel.: +1 925 462 0304, Fax: +1 925 462 0306 www.micomlabs.com Tuesday, July 19, 2005 ARWT01-A1 AlphaWave AW400 Maximum Permissible Exposure Calculation Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) d = √(EIRP/(4πPd)) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) P (worst case) = +33 dBm, 2,000 mW, Antenna Gain = 0 dBi, 1.0 numeric The MPE limit for 450 MHz in this case is f(MHz)/1500 or 0.3 mW/cm2 Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance (d) @ 0.3 mW/cm 2 Limit (mW/cm 2 ) 1 +33.0 2,000 23 cm 0.3

Test Report

Bookmarks are enabled in this document Test of AlphaWave AW400 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT01-A1 Rev B TEST REPORT FROM Test of AlphaWave AW400 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT01-A1 Rev B This report supersedes ARWT01-A1 Rev A Manufacturer: ArWest Communications Corp. 300 Orchard City Drive, Suite #126 Campbell, California 95008 USA Product Function: System Monitoring and Control Applications Copy No: pdf Issue Date: 11th July 2005 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 3922 Valley Avenue, Suite B Pleasanton, California 94566, USA Phone: 925.462.0304 Fax: 925.462.0306 www.micomlabs.com This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: AlphaWave AW400 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT01-A1 Rev B 11th July 2005 2 of 68 This test report may be reproduced in full only. The document may only be updated by MiCOM This page has been left intentionally blank Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Title: AlphaWave AW400 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT01-A1 Rev B 11th July 2005 3 of 68 This test report may be reproduced in full only. The document may only be updated by MiCOM TABLE OF CONTENTS 1. TEST RESULT CERTIFICATE.................................................................................6 2. REFERENCES AND MEASUREMENT UNCERTAINTY........................................7 2.1. Normative References............................................................................................7 2.2. Test and Uncertainty Procedures...........................................................................7 3. PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................8 3.1. Technical Details....................................................................................................8 3.2. Scope of Test Program...........................................................................................9 3.3. Equipment Model(s) and Serial Number(s)..........................................................10 3.4. Antenna Details....................................................................................................10 3.5. Cabling and I/O Ports...........................................................................................10 3.6. Test Configurations...............................................................................................10 3.7. Equipment Modifications.......................................................................................11 3.8. Deviations from the Test Standard.......................................................................11 3.9. Subcontracted Testing or Third Party Data..........................................................11 4. TEST SUMMARY....................................................................................................12 5. TEST RESULTS......................................................................................................13 5.1. Device Characteristics..........................................................................................13 5.1.1. Output Power........................................................................................13 5.1.2. Occupied Bandwidth and Emission Mask.............................................16 5.1.3. Frequency Stability................................................................................34 5.1.4. Conducted Spurious Emissions............................................................41 5.1.5. Transient Frequency Behavior..............................................................53 5.1.6. Unwanted Emissions.............................................................................57 5.1.7. dc Voltage(s) and Current(s).................................................................63 6. TEST SET-UP PHOTOGRAPHS............................................................................64 6.1. General Measurement Test Set-Up......................................................................64 6.2. Unwanted Emissions (30 MHz - 5 GHz)...............................................................65 6.3. AW400 Internal Photographs – pcb Topside........................................................66 6.4. AW400 Internal Photographs – pcb Underside....................................................67 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7. TEST EQUIPMENT DETAILS.................................................................................68 Title: AlphaWave AW400 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT01-A1 Rev B 11th July 2005 4 of 68 This test report may be reproduced in full only. The document may only be updated by MiCOM LISTINGS MiCOM Labs test facilities are listed by the following organizations; North America United States of America Federal Communications Commission (FCC) Listing #: 102167 Canada Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Industry Canada (IC) Listing #: 4143 Title: AlphaWave AW400 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT01-A1 Rev B 11th July 2005 5 of 68 This test report may be reproduced in full only. The document may only be updated by MiCOM DOCUMENT HISTORY Document History Revision Date Comments Draft Rev A 3 …

Text truncated - open the document above for the full version.

Test Report

Bookmarks are enabled in this document Test of Narrowband Radio Modem, GFU20-1 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT02-A1 Rev A Test of Narrowband Radio Modem, GFU20-1 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT02-A1 Rev A TEST REPORT FROM Test of Narrowband Radio Modem, GFU20-1 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT02-A1 Rev A This report supersedes NONE Note: This report for product GFU20-1 contains supplementary information to MiCOM Labs report #: ARWT01-A1 for the AlphaWave AW400 Narrow Band Radio Modem Manufacturer: ArWest Communications Corp. 300 Orchard City Drive, Suite #126 Campbell, California 95008 USA Product Function: System Monitoring and Control Applications Copy No: pdf Issue Date: 30th June 2005 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 3922 Valley Avenue, Suite B Pleasanton, California 94566, USA Phone: 925.462.0304 Fax: 925.462.0306 www.micomlabs.com This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Narrowband Radio Module GFU20-1 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A1 Rev A 30th June 2005 2 of 22 This test report may be reproduced in full only. The document may only be updated by MiCOM This page has been left intentionally blank Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Title: Narrowband Radio Module GFU20-1 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A1 Rev A 30th June 2005 3 of 22 This test report may be reproduced in full only. The document may only be updated by MiCOM TABLE OF CONTENTS 1. TEST RESULT CERTIFICATE.................................................................................6 2. REFERENCES AND MEASUREMENT UNCERTAINTY........................................7 2.1. Normative References............................................................................................7 2.2. Test and Uncertainty Procedures...........................................................................7 3. PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................8 3.1. Technical Details....................................................................................................8 3.2. Scope of Test Program.........................................................................................10 3.3. Equipment Model(s) and Serial Number(s)..........................................................11 3.4. Antenna Details....................................................................................................11 3.5. Cabling and I/O Ports...........................................................................................11 3.6. Test Configurations...............................................................................................11 3.7. Equipment Modifications.......................................................................................11 3.8. Deviations from the Test Standard.......................................................................12 3.9. Subcontracted Testing or Third Party Data..........................................................12 4. TEST SUMMARY....................................................................................................13 5. TEST RESULTS......................................................................................................14 5.1. Device Characteristics..........................................................................................14 5.1.1. Unwanted Emissions.............................................................................14 6. PHOTOGRAPHS.....................................................................................................20 6.1. Unwanted Emissions (30 MHz - 5 GHz)...............................................................20 6.2. EUT Photographs.................................................................................................21 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7. TEST EQUIPMENT DETAILS.................................................................................22 Title: Narrowband Radio Module GFU20-1 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A1 Rev A 30th June 2005 4 of 22 This test report may be reproduced in full only. The document may only be updated by MiCOM LISTINGS MiCOM Labs test facilities are listed by the following organizations; North America United States of America Federal Communications Commission (FCC) Listing #: 102167 Canada Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Industry Canada (IC) Listing #: 4143 Title: Narrowband Radio Module GFU20-1 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A1 Rev A 30th June 2005 5 of 22 This test report may be reproduced in full only. The document may only be updated by MiCOM DOCUMENT HISTORY Document History Revision Date Comments Draft Rev A June 30 th ‘05 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Title: Narrowband Radio Module GFU20-1 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A1 Rev A 30th June 2005 6 of 22 This test report may be reproduced in full only. The document may only…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Thomas A. Chanian(CEO)
[email protected]408-866-9688Fax: 408-762-2018

Test Firm

Micom LabsGordon Hurst
[email protected]925-462-0304Fax: 925-462-0306

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
69430 MHz - 470 MHz2 W2K86G1D0.4 ppm
Confidentiality
Long Term
Grant Notes
Power Output listed is conducted. Transmitter output power and antenna gain must be selected such that the radiated power is less than the limit for categorical exclusion from routine RF exposure evaluation, as defined by Rule Part 2.1091. The antenna used for this transmitter must be installed to provide a separation distance of at least 25 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
