TBGAW435UHF Transceiver

AlphaWave Users Manual AlphaWave Users Manual 4/26/2006 COPYRIGHT NOTICE Copyright 2004 ArWest Communications Corp. All rights reserved. No part of this publication or the computer programs described herein may be reproduced, translated, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise, without prior written permis- sion of ArWest Communications Corp. Your rights with regard to this publication and the computer programs are subject to the restric- tions and limitations imposed by the copyright laws of the United States of America (“U.S.A.”) and/or the jurisdiction in which you are located. For information on translations and distribution outside the U.S.A., please contact ArWest Communications. Printed in the United States of America Part Number: UF-00001-100 March 05 T RADEMARK NOTICE ArWest is the registered trademark of ArWest Communications Corp. AlphaWave, AW and AWare are trademarks of ArWest Communica- tions Corp. All other product and brand names are trademarks or registered trademarks of their respective holders. S OFTWARE LICENSING AGREEMENT IMPORTANT: BY OPENING THE SEALED DISK PACKAGE CONTAINING THE SOFT- WARE MEDIA OR INSTALLING THE SOFTWARE YOU ARE AGREEING TO BE BOUND BY THE TERMS AND CONDITIONS OF THE LICENSE AGREEMENT (‘AGREEMENT’). THIS AGREEMENT CONSTITUTES THE COMPLETE AGREEMENT BETWEEN YOU (‘ LICENSEE’) AND ARWEST (‘LICENSOR’). CAREFULLY READ THE AGREEMENT AND IF YOU DO NOT AGREE WITH THE TERMS RETURN THIS UBPOPENED DISK PACKAGE AND THE ACCOMPANYING ITEMS TO THE PLACE WHERE YOU OBTAINED THEM. LICENSE: LICENSOR grants you a limited, non-exclusive, non- transferable, personal license (‘License’) to (i) install and operate the copy of the computer program contained in this package (‘Program’) in machine acceptable form only on a single computer (one central processing unit and associated monitor and keyboard) and (ii) make Page—iii one archival copy of the Program for use with the same computer. LICENSOR and its third-party suppliers retain all rights to Program not expressly granted in this Agreement. OWNERSHIP OF PROGRAMS AND COPIES. This License is not a sale of the original Program or any copies. LICENSOR and its third-party suppliers retain the ownership of the Program and all copyrights and other propriety rights therein, and all subsequent copies of the Pro- gram made by you, regardless of the form in which the copies may exist... The Program and the accompanying manuals (‘Documentation’) are copyrighted works of authorship and contain valuable trade secret and confidential information propriety to LI- CENSOR and its third-party suppliers. You agree to exercise reason- able efforts to protect the proprietary interests of the LICENSOR and its third-party suppliers in the Program and Documentation and maintain them in strict confidence. USER-RESTRICTIONS. The Program is provided for use in your in- ternal commercial business operations and must remain at all times upon a single computer owned or leased by you. You may physically transfer the program from one computer to another provided that the Program is operated only on one computer at a time. You may not operate the Program in a time-sharing or service bureau opera- tion or rent, lease, sublease, sell, assign, pledge, transfer, transmit electronically or otherwise dispose of the Program or Documentation, on a temporary or permanent basis, without prior written consent of LICENSOR. You agree not to translate, modify, adapt, disassemble, decompile, or reverse engineer the program, or create derivative works of the Program or Documentation or any portion thereof. TERMINATION. The License is effective until terminated. The Li- cense will terminate without notice from LICENSOR if you fail to comply with any of the provisions of this Agreement. Upon termina- tion, you must cease all use of the Program and Documentation and return them and any copies thereof to LICENSOR. GENERAL. This Agreement shall be governed by and construed in accordance with the Laws of the State of California and the United States of America without regard to conflict of laws provisions thereof and without regard to the United Nations Convention on Con- tracts for the International Sale of Goods. Page—iv AlphaWave Users Manual 4/26/2006 DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY LICENSOR AND ITS THIRD-PARTY SUPPLIERS MAKE NO WARRANTIES OR REPRE- SANTATIONS , EXPRESS OR IMPLIED, REGARDING THE PROGRAM, MEDIA, DOCU- MENTATION , RESULTS OR ACCURACY OF DATA AND HEREBY EXPRESSLY DISCLAIM ANY WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE AND NONFRINGEMENT. LECENSOR AND ITS THIRD-PARTY SUPPLIERS DO NOT WARRANT THE PROGRAM WILLMEET YOUR REQUIREMENTS OR THAT IT’S OPERA- TION WILL BE UNINTERRUPTED OR ERROR-FREE. LICENSOR, its third-party suppliers, or anyone involved in the crea- tion or delivery of the Program or Documentation to you shall have no liability to you or any third-party for special, incidental, indirect or consequential damages (including, but not limited to, loss of profits or savings, downtime, damage to or replacement of equipment or property, or recover or replacement of programs or data) arising from claims based in warranty, contract, tort (including negligence), strict liability, or otherwise even if LICENSOR or its third-party sup- pliers have been advised of the possibility of such claim or damages. The liability of the LICENSOR and its third-party suppliers for direct damages shall not exceed the actual amount paid for this Program License. Some states do not allow the exclusion of limitation of implied war- ranties or liability for incidental or consequential damages, so the above limitations may not apply to you. U.S. G OVERNMENT RESTRICTED RIGHTS The Program and Documentation are provided with RESTRICTIVE RIGHTS. Use, duplication, or disclosure by the Government is sub- ject to restrictions as set forth in subdivisi…

Text truncated - open the document above for the full version.

5.2.1 RADIO LINK GENERAL PROPERTIES Figure 5-3: Radio Link General Properties Tab The following controls reside in the Link General Properties tag: • Modulation: This control should show the modulation type along with the wireless link data rate that is provided by a specific radio modem. This option is available only for Base/Primary unit. • RF Output Power Level (selectable from 13dBm/20mW (, or 25dBm/320mW for High Power ArWest radio modems) to Maxi- mum Value defined by Dealer in the “Dealer Configuration”). CS = 6.25 kHz CS = 12.5 kHz CS = 25 kHz DBPSK 2.4 kbps 4.8 kbps 9.6 kbps DQPSK (default) 4.8 kbps 9.6 kbps 19.2 kbps D8PSK 7.2 kbps 14.4 kbps 28.8 kbps D16QAM 9.6 kbps 19.2 kbps 38.4 kbps GMSK Not applicable 4.8 kbps 9.6 kbps Page 5-4 AlphaWave Users Manual 4/26/2006 Chapter 5 • RF Frequency Channel—Automatic Scanning – it is a default option that grays out the Frequency Channel edit box. The List of frequencies scanned by the unit can be assigned through the Link Frequency Properties tab. • Manual Selection – with this option, the operator can select one of the fixed channels (the actual range is based on the facture configuration). The Frequency Channel can be se- lected using the Frequency Channel combo box • Frequency Hopping – selection of Frequency Hopping grays out the Frequency Channel edit box. The List of hopping fre- quencies can be assigned through the Link Frequency Proper- ties tab. • Hopping Pattern: This control is applicable only if the Frequency Hopping mode is selected. The network operator selects one of the 32 avail able Hopping Patterns. 5.2.2 R ADIO LINK PROTOCOL PROPERTIES The following controls reside in the Link Protocol Properties tab: The Protocol sub-group contains radio-button to choose between two types of units: Base and Remote each type has specific list of proto- cols that listed in the List of Protocols combo-box. • Base − Simplex Transmitter − Half Duplex (specific for base unit) • Remote − Simplex Receiver − Half Duplex (specific for remote units) − RTK Repeater − Repeater • Repeater Check Box (available only for base unit ) − Informs base unit about the Repeater(s) in the network Note: • RF Frequency Channel option is available only for Base/ Primary unit. It is same for all units in the network. AlphaWave Users Manual 4/26/2006 Page 5-5 Chapter 5 AlphaWave Users Manual 4/26/2006 Page 5-6 • Scrambling Check Box The Scrambling check box enables/disables the data link pro- tection by scrambling the transmitted data. • Link ID (this variable is valid only if Scrambling is “On”) Seed for Pseudo-Random Sequence Generator (1 - 255) Figure 5-4: Radio Link Protocol Properties Tab 5.2.3 R ADIO LINK FREQUENCY PROPERTIES This tab displays the list of up to 32 available frequencies mapped to corresponding channels. AWare displays the list of available carrier frequencies based on information from the specific unit profile file. Two buttons under Update Form group helps to update the list of frequencies from saved dealer configuration or directly upload from the unit. Note: • The link with Receive-Only radios does not support ARQ option. • Scrambling options are available only for Base/Primary Chapter 5 Page 5-7 AlphaWave Users Manual 4/26/2006 Figure 5-5: Radio Link Frequency Properties Tab 5.3 MODEM FEATURES PROPERTIES This menu item helps to configure radios’ service features such as the alarm indication mode and alarm control lines’ behavior, and the sleep mode. 5.3.1 M ODEM SLEEP PROPERTIES The Sleep check box enables the sleep mode. The unit with the en- abled sleep mode goes to sleep if there is no activity on the wireless link during waiting time defined by Wait edit box (range 100 – 2550 ms). The sleeping AlphaWave unit can be activated again by the real-time CLK, DTR/RTS lines, and command received through TTL inputs. The operator can select one, two, or all three conditions: • Activate by Real-time clock: − After 100 to 2550 ms of sleeping time • Activate by Control Lines: − DTR − RTS (default) − DTR & RTS Chapter 5 • Activate by Sense Input Line: − Sensor 1 − Sensor 2 − Sensor 1 and Sensor 2 To activate the sleeping unit, the operator can select either Sense TTL inputs or/and RTS and DTR inputs. Figure 5-6: Sleep Properties Tab 5.3.2 MODEM ALARM PROPERTIES The AlphaWave radio modem has the ability to indicate alarms using Alarm LED indicator and two TTL outputs. The First Event Output (TTL1) control allows the operator to route the alarms and the inputs from remote sensors to the first event (TTL) output: • Sensor 1 (the sensor’s input on remote unit, default value) • Sensor 1 and Sensor 2 (logic “and” of the sensors’ inputs on remote unit) • Sensor 1 or Sensor 2 (logic “or” of the sensors’ inputs on re- mote unit) Page 5-8 AlphaWave Users Manual 4/26/2006 Chapter 5 The Second Event Output (TTL2) control allows the operator to rout the alarms and the inputs from remote sensors to the second event (TTL) output: • Sensor 2 (the sensor’s input on remote unit, default value) • SYNC Loss • BER > Threshold or SYNC Loss The BER control allows the operator to select the BER threshold level for second event output in case of selected “BER > Threshold or SYNC Loss”: • BER Threshold Level >10 –3 (default value) • BER Threshold Level >10 –2 Figure 5-7: Alarm Properties Tab Page 5-9 AlphaWave Users Manual 4/26/2006 Note: The Alarm Properties are not available for Simplex Trans- mitter configuration. Chapter 5 5.4 SERIAL PORT FEATURES PROPERTIES This menu item helps to configure radios’ service features such as the user data port and maintenance port settings. Figure 5-8: Data Port Properties Tab 5.4.1 DATA PORT PROPERTIES From the Port tab of Unit Configuration dialog box the operator can configure the following data port parameters: • Baud Rate – indicates the operating rate for the data port (300 bps to 115 kbps). The “MP Baud Rate” operating option does not define the data rate specifically. In this mode on, the same data rate is used for both maintenan…

Text truncated - open the document above for the full version.

February 23, 2006 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Request for Confidential Treatment from public disclosure of the ArWest Communication Corp. - schematics, block diagrams, circuit diagram descriptions, theory of operation, Bill Of Material, and engineering drawings. Dear Sirs/Madam, ArWest Communication Corp. would like to request that ArWest Communication Corp.’s schematics, block diagrams, circuit diagram descriptions, theory of operation, and engineering drawings submitted with the application for certification be withheld from public disclosure per Section 0.459 of the FCC Rules. This confidentiality request is made under the provisions of Section 0.457(d) of the FCC Rules and Section 552(b)(4) of the Freedom of Information Act. The various items contain proprietary, confidential and trade secret materials, which would not customarily be made available for public inspection. If you have any questions, please do not hesitate to contact me. Sincerely, Thomas Chanian President & CEO

Spectrum Effciency Statement Company: ArWest Communications Corp. Address: 300 Orchard City Dr. Suite # 126 Campbell, CA 95008 Product: AW400 UHF-FM Transceiver Type Designation: This is to certify that ArWest Communications Corp.’s AW435 Radio Modems are certified and meet the spectrum efficiency standard of FCC 47 CFR Part 90. ArWest herby attest that AW435 equipments are designed to operate on the UHF frequencies in the 430-470 MHz and are capable of transmitting data with up to 35-watt power output, and have the channel bandwidth of more than 12.5 KHz and fully support a minimum data rate of 4800 bits per second per 12.5 KHz of channel bandwidth. Name: Thomas Chanian Date: February 23, 2006 Title: Chief Executive Officer Place of issue: Campbell ____________________________

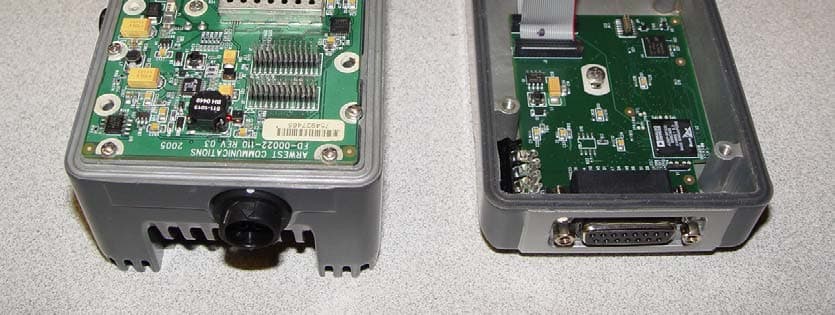

MiCOM Labs, 3922 Valley Avenue, Suite “B”, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab March 8, 2006 ARWT02 – A1 – Alpha Wave AW 435 ArWest Communications Corp. External Photograph AW 435 AW435 BNC RF Connector AW435 Side AW435 Heatsink AW435 Rear Connectors

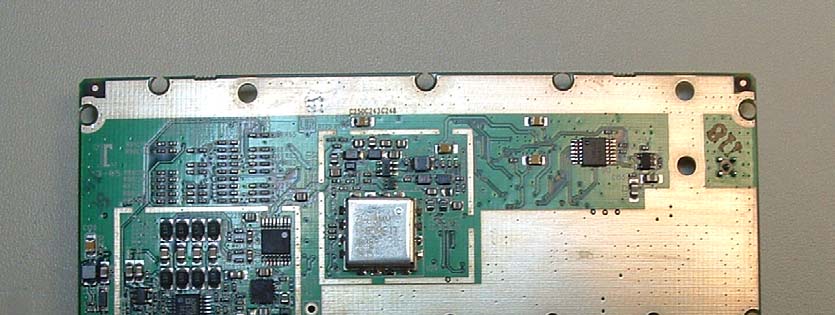

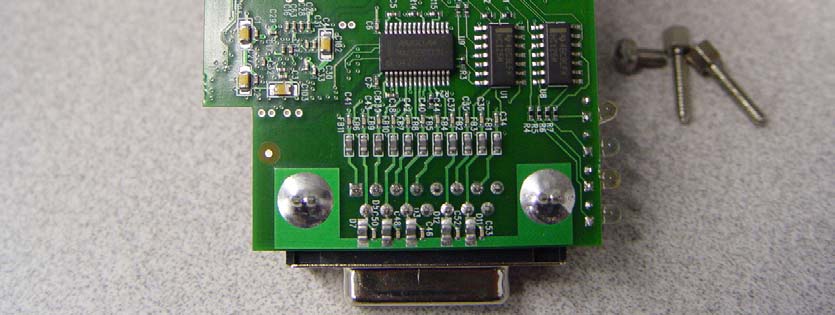

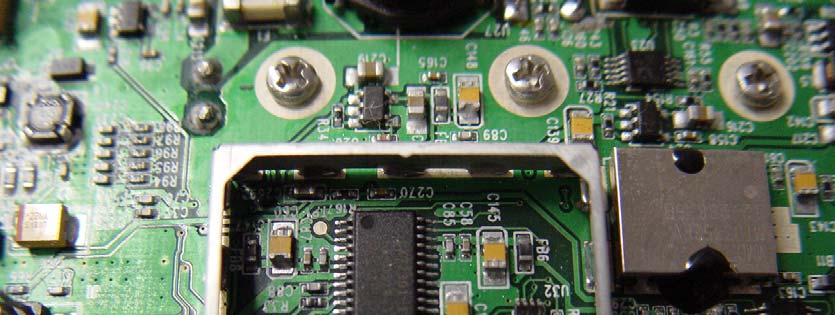

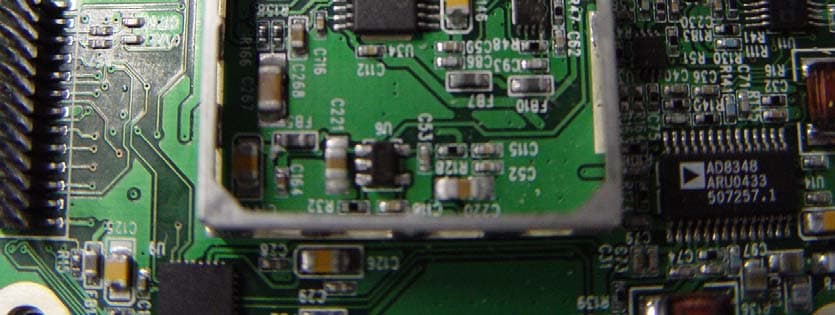

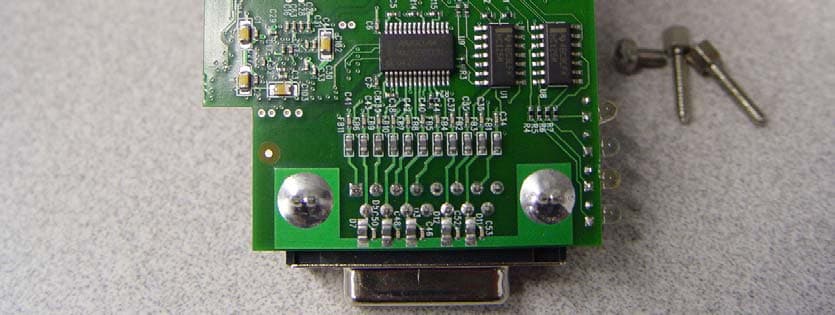

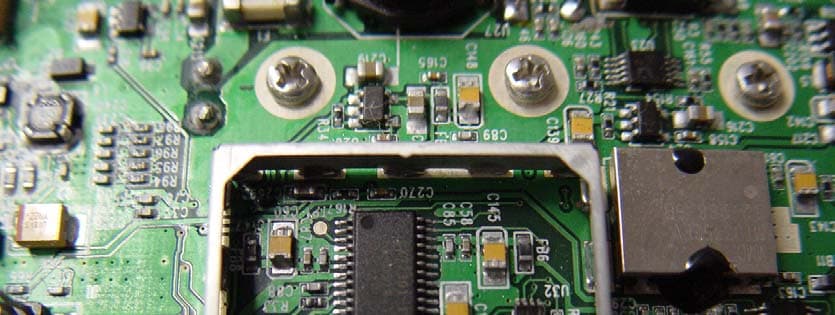

MiCOM Labs, 3922 Valley Avenue, Suite “B”, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab March 8, 2006 ARWT02 – A1 – Alpha Wave AW 435 ArWest Communications Corp. Internal Photographs Pcb’s Page 2 of 4 the wireless lab Main pcb underside Page 3 of 4 the wireless lab Daughter pcb underside Page 4 of 4 the wireless lab RF Screen Removed

Maximum Permissible Exposure Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) P (worst case) = +45 dBm, 31,622 mW Antenna Gain (Worst Case) = 9.0 dBi, 7.94 numeric, Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is f/1500. At 430 MHz operation; Limit = 430/1500 = 0.287 mW/cm 2 Antenna Gain (dBi) Numeric Gain (numeric) Max Power (dBm) Max Allowable Peak Power (mW) Calculated Safe Distance at 0.287 mW/cm 2 (cm) 0.0 1.000 45 31,622 93.6 3.0 1.995 42 15,849 93.6 5.0 3.162 40 10,000 93.6 9.0 7.943 36 3981 93.6 Safe distance under all circumstances is 93.6 cm

Test of Arwest Communications AW435 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT02-A2 Rev B TEST REPORT FROM Test of AlphaWave AW435 To FCC 47 CFR Part 90 & IC RSS-119 Test Report Serial No.: ARWT02-A2 Rev B This report supersedes ARWT02-A2 Rev A Manufacturer: ArWest Communications Corp. 300 Orchard City Drive, Suite #126 Campbell, California 95008 USA Product Function: System Monitoring and Control Applications Copy No: pdf Issue Date: 29th April 2006 This Test Report is Issued Under the Authority of; CERTIFICATE #2381.01 MiCOM Labs, Inc. 3922 Valley Avenue, Suite B Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: AlphaWave AW435 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A2 Rev B 29th April 2006 2 of 76 This test report may be reproduced in full only. The document may only be updated by MiCOM This page has been left intentionally blank Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com Title: AlphaWave AW435 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A2 Rev B 29th April 2006 3 of 76 This test report may be reproduced in full only. The document may only be updated by MiCOM TABLE OF CONTENTS 1. TEST RESULT CERTIFICATE.................................................................................6 2. REFERENCES AND MEASUREMENT UNCERTAINTY........................................7 2.1. Normative References............................................................................................7 2.2. Test and Uncertainty Procedures...........................................................................7 3. PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................8 3.1. Technical Details....................................................................................................8 3.2. Scope of Test Program...........................................................................................9 3.3. Equipment Model(s) and Serial Number(s)..........................................................11 3.4. Antenna Details....................................................................................................11 3.5. Cabling and I/O Ports...........................................................................................11 3.6. Test Configurations...............................................................................................11 3.7. Equipment Modifications.......................................................................................12 3.8. Deviations from the Test Standard.......................................................................12 3.9. Subcontracted Testing or Third Party Data..........................................................12 4. TEST SUMMARY....................................................................................................13 5. TEST RESULTS......................................................................................................14 5.1. Device Characteristics..........................................................................................14 5.1.1. Output Power........................................................................................14 5.1.2. Occupied Bandwidth and Emission Mask.............................................17 5.1.3. Frequency Stability................................................................................31 5.1.4. Conducted Spurious Emissions............................................................38 5.1.5. Transient Frequency Behavior..............................................................55 5.1.6. Unwanted Emissions.............................................................................59 5.1.7. dc Voltage(s) and Current(s).................................................................68 6. TEST SET-UP PHOTOGRAPHS............................................................................69 6.1. General Measurement Test Set-Up......................................................................69 6.2. Unwanted Emissions (30 MHz - 5 GHz)...............................................................70 6.3. Transmitter Frequency Transient Test Setup.......................................................71 6.4. Internal Photographs – pcb’s................................................................................72 6.5. Internal Photographs – Main pcb underside.........................................................73 6.6. Internal Photographs – Daughter pcb underside..................................................74 6.7. Internal Photographs – RF Screen Removed.......................................................75 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 7. TEST EQUIPMENT DETAILS.................................................................................76 Title: AlphaWave AW435 To: Serial #: Issue Date: Page: FCC 47 CFR Part 90 & IC RSS-119 ARWT02-A2 Rev B 29th April 2006 4 of 76 This test report may be reproduced in full only. The document may only be updated by MiCOM LISTINGS MiCOM Labs test facilities are listed by the following organizations; North America United States of America Federal Communications Commission (FCC) Listing #: 102167 Labs personnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 3922 Valley Avenue, Suite B, Pleasanton, CA 94566 USA, Phone: …

Text truncated - open the document above for the full version.

MiCOM Labs, 3922 Valley Avenue, Suite “B”, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab March 8, 2006 ARWT02 – A1 – Alpha Wave AW 435 ArWest Communications Corp. TEST SET-UP PHOTOGRAPHS General Measurement Test Set-Up Page 2 of 3 the wireless lab Unwanted Emissions (30 MHz-5 GHz) Page 3 of 3 the wireless lab Transmitter Frequency Transient Test Setup
