TEM5605Remote Control Mail Box Alarm

中山能者电子有限公司 Block Diagram Of Transmitter No. Product: Remote Control Mail Box Alarm Model: 5605 中山能者电子有限公司 1. Block Diagram of Transmitter Freq:315 MHZ 2. The working theorem of the transmitter: ( Please refer to the diagram of electric theory) Press the “AN” button, a triggering signal of rising edge effective for the first mono-stable circuit for 6 seconds (composed of U1A,U1B,R4,C4. UIF is designed to protect the circuit against mis-action ). Then U1(4069) output high level for seconds from the four pins of U1 at once (During output ,any triggering is rejected ) The high level for 6 seconds is the triggering signal of rising edge effective for the second mono-stable circuit for 0.8 second(composed of U1C,U1D,R2,C1) ,After it is triggered ,output high level for 0.8s at once (During output , any triggering is rejected) The high level for0.8 second is converted into low level through U1E to trigger code OSC-transmit circuit ,then complete transmitting job.(U2-SL5262 is code IC, for coding Q1-9018,C6,C3,R2,XTI compose into OSC-transmit circuit ,affected by SL5262 , If Sl5262 operate, OSC-transmit circuit work ; If not, OSC-transmit circuit don't work ) Date： Jul 01 2005 No：KF-B-008-0 DC 12V Timing Circuit Encode Circuit High Freq.Oscillntion& Transmission Circuit Antenna Vibratio Modulate Not allow to arise two mis-triggering circuit in 6 seconds

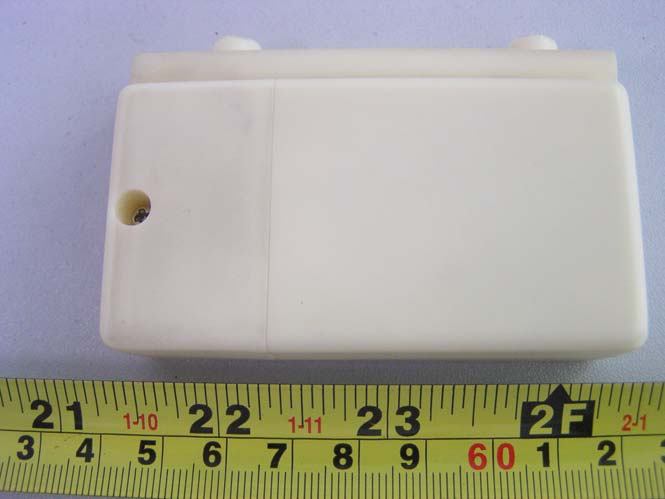

External Photos EUT Front View EUT Back View

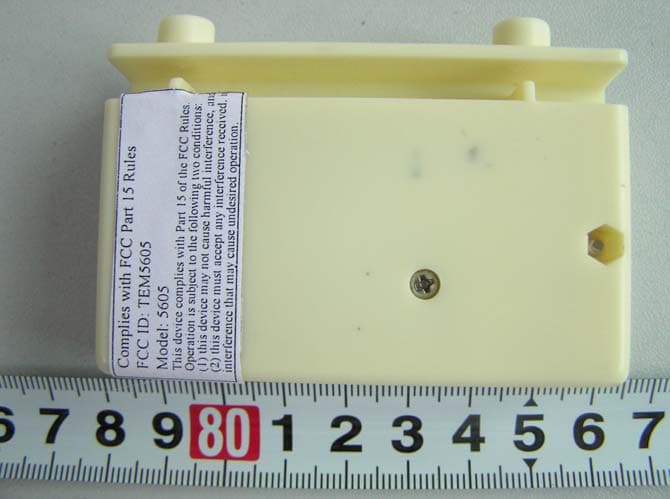

ID Label Label Complies with FCC Part 15 Rules FCC ID: TEM5605 Model: 5605 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. Complies with FCC Part 15 Rules FCC ID: TEM5605 Model: 5605 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesire d operation.

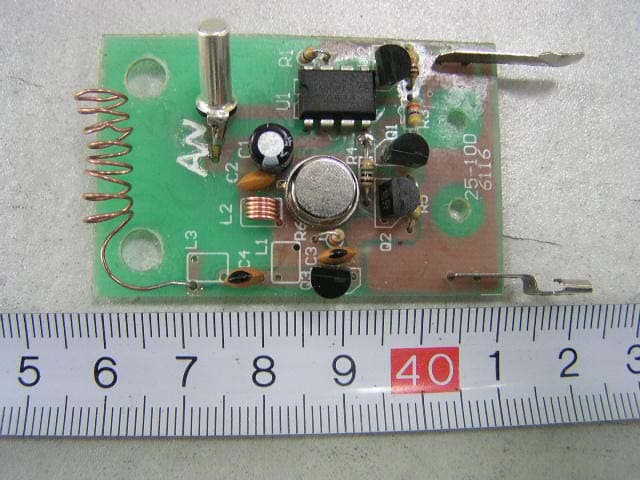

Internal Photos EUT - Uncovered View EUT – PCB Front View EUT –PCB Rear View

中山能者电子有限公司 Circuit Description No: Product: Remote Control Mail Box Alarm Model: 5605 Press the “AN” button, a triggering signal of rising edge effective for the first mono-stable circuit for 6 seconds (composed of U1A,U1B,R4,C4. UIF is designed to protect the circuit against misaction ). Then U1(4069) output high level for seconds from the four pins of U1 at once (During output ,any triggering is rejected ) The high level for 6 seconds is the triggering signal of rising edge effective for the second mono-stable circuit for 0.8 second(composed of U1C,U1D,R2,C1) ,After it is triggered ,output high level for 0.8s at once (During output , any triggering is rejected) The high level for0.8 second is converted into low level through U1E to trigger code OSC-transmit circuit ,then complete transmitting job.(U2-SL5262 is code IC, for coding Q1-9018,C6,C3,R2,XTI compose into OSC-transmit circuit ,affected by SL5262 , If Sl5262 operate, OSC-transmit circuit function ; If not, OSC-transmit circuit don't function ) Date： JUN,06,2005 No：KF-B-008-0

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For APAC SCM Ltd 2307 Metroplaza Tower 2, 223 Hing Fong Road, Kwai Chung, Hong Kong FCC ID: TEM5605 June 21, 2005 This Report Concerns: Original Report Equipment Type: Remote Control Mail Box Alarm Test Engineer: Louise Lu Report No.: RSZ05061001 Test Date: June 14-15, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 APAC SCM Ltd FCC ID: TEM5605 Report # B0508201Rpt Page 2 of 15 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.231 (B)- RADIATED EMISSION...........................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 TEST RECEIVER SETUP.................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 STANDARD APPLICABLE..............................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................10 §15.231(C) 20DB BANDWIDTH TESTING .............................................................................................................12 REQUIREMENT...........................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA................................................................................................................................................................12 §15.231(A)-DEACTIVA…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission – Stand View (1) Radiated Emission – Stand View (2)
