TEM560506Remote Control Mail Box Alarm

Manual Commodity name: Remote Control Mail Box Alarm Model: 560506 Picture: the sketch map of main parts Installation Instruction: 1. Transmitter: Use the crossed screwdriver to open the battery cover, set in a 12V23A battery according to the right electrode, and lid the cover. 2. Receiver: Open the battery cover and set in two 2AA batteries according to the right electrode. 3. Placed the transmitter, placed the receiver on where don’t have icebox, TV set, magnet and metal object. Function operation 1. Placed the transmitter on a vertical plane after set a battery, the transmitter enter into waiting state, the transmitter will send out a radio wave signal right away when the transmitter incline and make a angle less than 45 degree with the horizontal. 2. The transmitter stop sending out signal and enter to waiting state when it return to initialization. 3. The music will stop automatically after it lasting 8 seconds after the receiver finish to receiving signal; the indicator light glitter quickly according to fixed time interval, and it will not stop glittering until you press the reset button. After that the indicator light enter into waiting state. 4. You can adjust the volume by the button that is on the right side of receiver. 5. The indicator light on the receiver will glitter twice quickly according to a fixed time interval if the battery has not enough voltage after use a period of time. And if the transmitter’s batteries have not enough voltage, the indicator light on the transmitter will glitter thrice quickly according to a fixed time interval. You should change a new battery. Caution: Change or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -----Reorient or relocate the receiving antenna. -----Increase the separation between the equipment and receiver. -----Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -----Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void users authority to operate this device.

Block Diagram Model: 560506

ID Label Label FCC ID: TEM560506

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

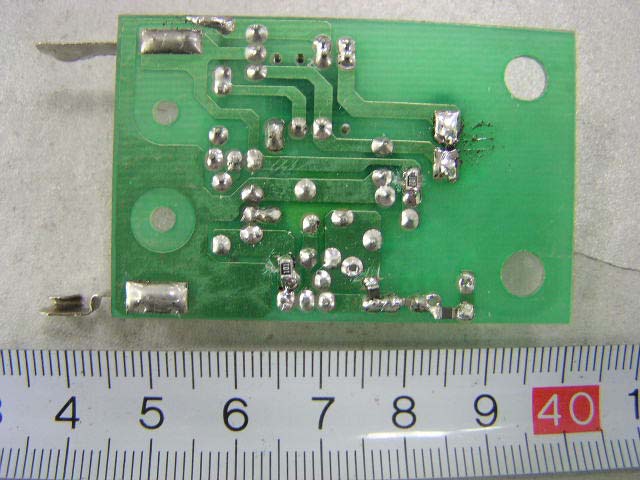

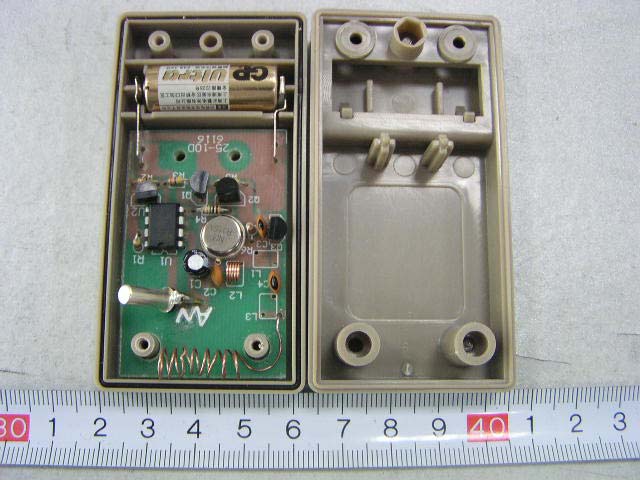

Internal Photos EUT – Uncovered View EUT – PCB Top View EUT –PCB Bottom View

Working theory of transmitter： When the transmitter was sloped 45 degree to appointed bearing, the bead switch transmit a pulse to the eighth pin of CPU, the SCM start to work, the inner calculagraph start to time and the transmit signal from fourth pin according to the stated code. The fourth pin of CPU stop transmitting signal when the time get 3 seconds, and the CPU stop working as far as the time get 5 seconds, then preparing to receive next triggering signal. During these 5 seconds, CPU doesn’t answer any triggering signal. Q3 (9018), X1, R6, C3, L1 and L2 make up of surge transmit circuit, the work estate of it was controlled by the forth pin of CPU, it means that this circuit only work base on there is a signal transmitted by the forth pin of CPU.

Main Technical Parameter of Transmitter No. Item Estate Remark 1 Working Voltage of Transmitter 12V 2 Static Current of Transmitter ＜20μA 3 Working Voltage of Transmitter ＜10mA 4 Frequency ＜315MHz 5 Power of Transmitter ＜5mW 6 Answer time ≤2S

1234 A B C D 4 321 D C B A =organization=address1 =title =DocumentFullPathAndName =revision =CurrentDate=CurrentTime BT1 BATTERY C1 22U R1 2M AN R3 47K R2 10K IN 2 OUT 3 G N D 1 U2 HT7150 R6 18K Q3 9018H C4 3P L1 5.5T Q2 9014 C2 222 R4 1M R5 470k Q1 9015 GP0/C- 5 VSS 7 GP1/C+ 4 GP2/CO 3 VDD 2 GP3/MCLR 8 NC 1 NC 6 U1 PIC10F200 L2 4.5T C3 6P 17-Apr-2006 L3 3.5T 9cm X1

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For APAC SCM Ltd 2307 Metroplaza Tower 2, 223 Hing Fong Road, Kwai Chung, Hong Kong FCC ID: TEM560506 April 21, 2006 This Report Concerns: Original Report Equipment Type: Remote Control Mail Box Alarm Test Engineer: Henry Yang Report No.: RSZ06041002 Test Date: April 20, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 APAC SCM Ltd FCC ID: TEM560506 Report # RSZ06041002 Page 2 of 16 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................6 STANDARD APPLICABLE..............................................................................................................................................6 §15.205, §15.209, §15.231 (b)- RADIATED EMISSION ...........................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................6 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................6 TEST PROCEDURE........................................................................................................................................................6 STANDARD APPLICABLE..............................................................................................................................................6 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................6 TEST RESULTS SUMMARY............................................................................................................................................6 TEST DATA..................................................................................................................................................................6 PLOT(S) OF TEST DATA................................................................................................................................................6 §15.231(c) 20DB BANDWIDTH TESTING ................................................................................................................6 REQUIREMENT.............................................................................................................................................................6 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................6 TEST PROCEDURE........................................................................................................................................................6 TEST DATA........…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission - Front View (30-1000MHz) Radiated Emission - Rear View (30-1000MHz) Radiated Emission - Front View (Above 1GHz) Radiated Emission - Rear View (Above 1GHz)
