TEY-A580TTwo Way Radio

2022-07-14 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with ABELL INDUSTRIES CO.,LTD/701-702, 7/F, D Bldg, Qianwan Hard Technology Industrial Park,Nanchang community, Xixiang Rd., Bao An Dist., Shenzhen. Agency agreement expiration date: 2023-07-13 By: Bo Wang Signature Printed Title: R&D Director On behalf of : ABELL INDUSTRIES CO.,LTD Telephone: 0755-26521000

2022-07-14 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: TEY-A580T Product Name: Two Way Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Bo Wang Signature Printed Title: R&D Director On behalf of : ABELL INDUSTRIES CO.,LTD Telephone: 0755-26521000

Differences Declaration To whom concern, We company ABELL INDUSTRIES CO.,LTD hereby declares: The product model(s) A580T (LF) is identical in the same PCB layout, interior structure and electrical circuits with the model A580T which tested in Shenzhen Huatongwei International Inspection Co., Ltd, the only differences are the model name for commercial purpose. Sincerely yours, Name: WANG BO Position: R&D Director CompanyAdress: 701-702, 7/F, D Bldg, Qianwan Hard Technology Industrial Park, Nanchang community, Xixiang Rd., Bao An Dist., Shenzhen. Tel: 0755-26095567 E-mail: [email protected]

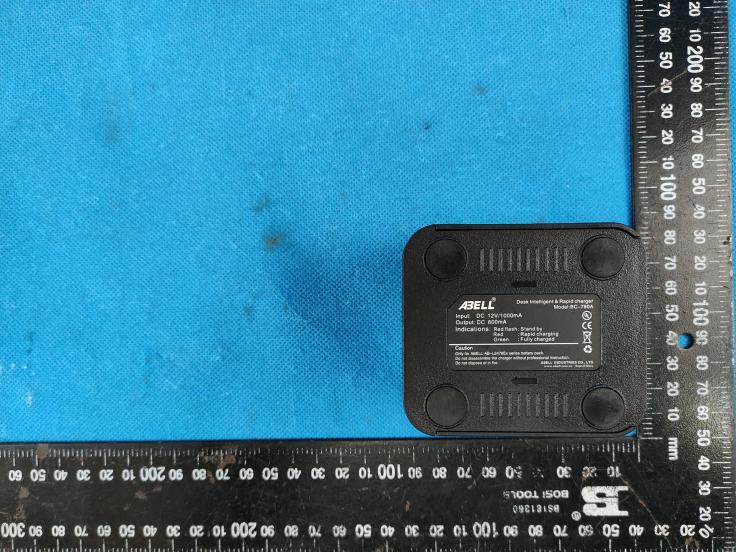

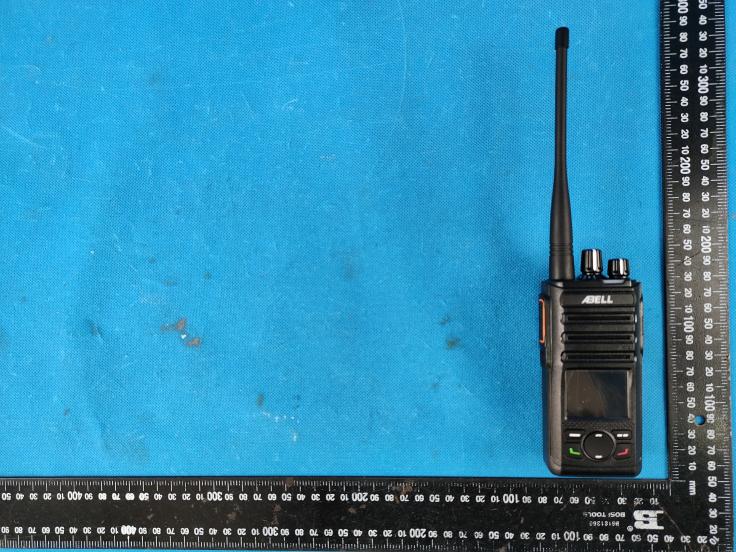

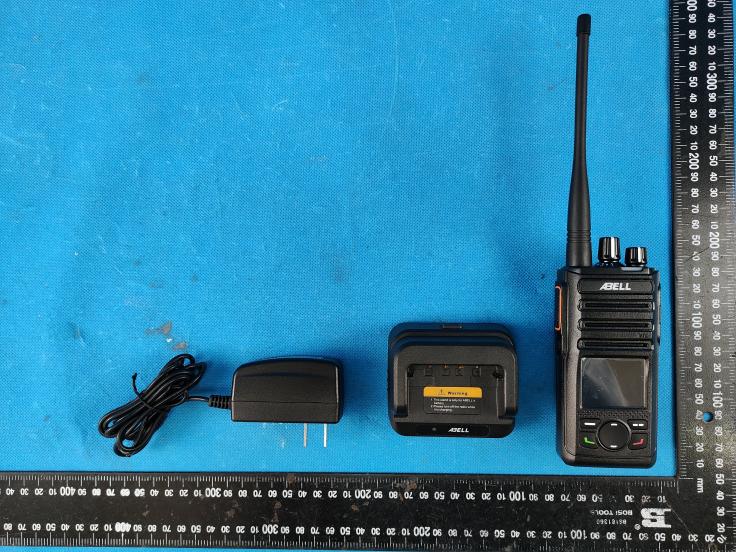

Report No.: CHTEW22070008 Page: 39 of 44 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 7 EXTERNAL AND INTERNAL PHOTOS OF THE EUT 7.1 External photos Report No.: CHTEW22070008 Page: 40 of 44 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Report No.: CHTEW22070008 Page: 41 of 44 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01)

Report No.: CHTEW22070008 Page: 42 of 44 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 7.2 Internal photos Report No.: CHTEW22070008 Page: 43 of 44 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Report No.: CHTEW22070008 Page: 44 of 44 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 8 APPENDIX REPORT

Page: 1 of 18 TEST REPORT Report No..................................: CHTEW22070009 Report Verification: Project No.................................： SHT2111082704EW FCC ID ............................................. : TEY-A580T Applicant’s name ........................... : ABELL INDUSTRIES CO.,LTD Address ............................................. : 701-702, 7/F, D Bldg, Qianwan Hard Technology Industrial Park, Nanchang community, Xixiang Rd., Bao An Dist., Shenzhen. Test item description .................... : Two Way Radio Trade Mark ....................................... : ABELL Model/Type reference ....................... : A580T Listed Model(s) ................................. : A580T (LF) Standard ......................................... : FCC CFR Title 47 Part 15 Subpart B Date of receipt of test sample...........: Jun.15, 2022 Date of testing..............................: Jun.16, 2022-Jul.01, 2022 Date of issue.................................: Jul.05, 2022 Result .................. ........................: PASS Compiled by (Position-Printed name-Signature) : File administrators Fanghui Zhu Supervised by (Position-Printed name-Signature) : Project Engineer Caspar Chen Approved by (Position-Printed name-Signature) : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely corresponds to the test sample. Report No.: CHTEW22070009 Page: 2 of 18 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TEST STANDARDS AND REPORT VERSION ........................................... 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION .................................................................... 4 3. SUMMARY ............................................................................... 5 3.1. Client information 5 3.2. Product description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION ................................................................. 7 4.1. Operation mode 7 4.2. Support unit used in test configuration and system 7 4.3. Testing environmental condition 7 4.4. Statement of the measurement uncertainty 7 4.5. Equipments Used during the Test 8 5. TEST CONDITIONS AND RESULTS ..................................................... 9 5.1. Conducted Emissions 9 5.2. Radiated Emissions 11 6. TEST SETUP PHOTOS OF THE EUT .................................................. 17 7. EXTERNAL AND INTERNAL PHOTOS OF THE EUT .................................. 18 Report No.: CHTEW22070009 Page: 3 of 18 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC CFR Title 47 Part 15 Subpart B - Unintentional Radiators ANSI C63.4: 2014 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40GHz 1.2. Report version Revision No. Date of issue Description N/A 2022-07-05 Original Report No.: CHTEW22070009 Page: 4 of 18 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. TEST DESCRIPTION Section Test Item Section in CFR 47 Result Test Engineer 5.1 Conducted Emissions 15.107(a) Pass Quanhai Deng 5.2 Radiated Emissions 15.109(a) Pass Hongtao Meng Note: 1. The measurement uncertainty is not included in the test result. Report No.: CHTEW22070009 Page: 5 of 18 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMMARY 3.1. Client information Applicant: ABELL INDUSTRIES CO.,LTD Address: 701-702, 7/F, D Bldg, Qianwan Hard Technology Industrial Park, Nanchang community, Xixiang Rd., Bao An Dist., Shenzhen. Manufacturer: ABELL INDUSTRIES CO.,LTD Address: 701-702, 7/F, D Bldg, Qianwan Hard Technology Industrial Park, Nanchang community, Xixiang Rd., Bao An Dist., Shenzhen. 3.2. Product description Name of EUT: Two Way Radio Trade mark: ABELL Model/Type reference: A580T Listed model(s): A580T (LF) Power supply: DC7.4V Battery information: Model:AB-L2252 7.4V d.c., 2200mA/16Wh Charger information: Model: BC-780A Input: 12V d.c., 1000mA Output: 600mA d.c. Adapter information: Model:DSA-12PFT-12 FUS 120100 Input:100-240Va.c., 50/60Hz 0.5A Output:12Vd.c., 1A Hardware version: V1 Software version: V1.06.01 3.3. Radio Specification Description Support Frequency Range: 400MHz~480MHz Rated Output Power: High Power: 4W Low Power: 1.5W Modulation Type: Analog: FM Digital : 4FSK Supported Digital Protocol: DMR Channel Separation: Analog: 12.5kHz Digital : 6.25kHz 12.5kHz Emission Designator: Analog: 11K0F3E Digital: 7K60FXW, 7K60FXD Support data rate: 9.6kbps Report No.: CHTEW22070009 Page: 6 of 18 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Antenna Type: External Antenna Gain: 0dBi 3.4. Testing Laboratory Information Laboratory Name Shenzhen Huatongwei International Inspection Co., Ltd. Laboratory Location 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianlia…

Text truncated - open the document above for the full version.

Report No.: CHTEW22070009 Page: 17 of 18 Issued: 2022-07-05 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 6. TEST SETUP PHOTOS OF THE EUT Conducted Emissions (AC Mains) Radiated Emissions
