TF5KEYBOARDBLUETOOTH KEYBOARD

Ultra-Flat Bluetooth Keyboard User Manual Version 1.0 CAUTION: To use this product properly, please read the user's guide before installation Welcome Congratulations on selecting the Ultra-Flat Bluetooth Keyboard, it’s super slim size with 85 keys. Advanced patent on less noise and adopt latex spring circle and scissor structure,This creative and easy-to-use Bluetooth Keyboard will bring you the novel feeling of wireless transmitting. Package Contents The retail package contains: z Ultra-Flat Bluetooth Keyboard z User Manual z Power USB2.0 Cable If any items are damaged or missing, please contact your vendor. System Requirement IBM or PC Compatible/Mac PC enable with Bluetooth wireless technology. Windows system with Bluetooth software installed (Windows XP SP2 or above, Windows vista, Toshiba stack, Widcomm BTW, or IVT Bluecoleil). Mac OS 10.2.8 or above with Bluetooth software installed. Operation Note: on the first use, the battery might be empty, so you should recharge it for 20min-30min. Installation Guide Step 1. Charging the battery When to charge 1. First-Time Use: Please charge at least 6 hours for the first time usage and charge at least 2 hours when battery runs low How to charge Plug the USB cable into your keyboard and computer by USB port 2. respectively and it starts charging. Keyboard can work uninterruptedly during charging. When charging, the RED led will light and come to dark; When finish charging, the RED led will be in dark of off. 1. Switch the keyboard ON, using the ON/OFF button: The Green led will light for 2 seconds 2. Click the PAIR/CONNECT button, at the right of the keyboard: The Green led will light for 2 seconds and be blinking intermittently 3. Now the Flat Bluetooth keyboard is under pairing state and it’s waiting for connecting with your device 4. When low power, the Green led light for 1 second and blink Intermittently Step 2. Pairing your Bluetooth Keyboard with your computer Before pairing your Bluetooth Keyboard with your computer, you should read through the instructions that came with your Bluetooth hardware and software for detail how to pair a device to your specific Bluetooth configuration. Follow below steps to pair your Bluetooth Keyboard under Widcomm BTW, Microsoft Bluetooth driver and IVT Bluecoleil .Before you can install your Bluetooth Keyboard, please make sure you have done the Bluetooth dongle installation procedure. .Press the “Discovery” button on the bottom of the keyboard for 2-5 seconds. The keyboard will be switched to the standby mode for pairing, the Greed light LED will flash.. Next Pairing Steps A. Steps for matching WIDCOMM 1）.Double click the BTW icon in toolbar, select “Bluetooth” and click "search for devices" 2）On Bluetooth Keyboard type the stochastic match code and press the Enter key B. Steps for matching on Microsoft built-in software 1）. Click Start menu, click Control Panel and double click “Bluetooth Devices”., On the “Devices” tab, click “Add”. 2）.Select "My device is set up and ready to be found", when find the Bluetooth Keyboard, you can select it and click "next" 3）. Select "Don't use passkey", and click "next", operating system will finish the installation of the new facility automatically. C.Steps for matching on IVT Bluecoleil 1）.Make sure the bluetooth function have been activated on the computer system, double click the bluetooth icon in toolbar, then click "Bluetooth Device Discovery" under "My Bluetooth" in toolbar. 2）. Select the found bluetooth keyboard device, press the right button and select "Refresh Services" 3）. Then select the Bluetooth Keyboard icon, press right button to select “Connect” and click “Bluetooth Human Interface Device Service”, On Bluetooth Keyboard type the stochastic match code and press the Enter key Product Specifications . Bluetooth Specification: Version 2.1 Class 2.HID 1.0 Compliant . Frequency: 2.4GHz Spectrum . Integrated Recharged Li-Battery . Working distance among bluetooth: 10 meters . Operation Current: < 5mA . Standby Current: 1.2mA . Sleep Current: < 0.2 mA . Transmit Range: up to 10 meters .Control audio functions directly from the keyboard .One-touch hot keys to quickly access to music and multimedia function .Compatible with Andriod OS .Compatible with Windows® 2000/ XP/Vista/7 . Storage Temperature: -40 ~ +125 degree .Dimensions:246mm(L)x101.7mm(W)x6.0mm(H) Troubleshooting If you are unable to connect your Bluetooth Keyboard to the computer, or the keyboard work unconventionally, please try the following: .Before you install your Bluetooth Keyboard, please make sure you have done the Bluetooth Dongle installation procedure, and Bluetooth facility is turned on. .Ensure Bluetooth Keyboard has been paired to PC completely. (The system may require pairing again after restart PC If use low battery to pair ) .Ensure the Bluetooth Keyboard is wi thin a 10 meters range of your PC .Ensure your bluetooth device of PC have not be changed.(you have to re-connect if changed) .If your PC bluetooth facility is connect ed to other bluetooth device, please kindly confirm that the speed of the Bluetooth facility is enough. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received., including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Dispose of batteries according to local regulations. Do not dispose as household waste FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equ…

Text truncated - open the document above for the full version.

Block Diagram ` ` EEPROM BCM2042 Cristal Oscillate 24MMhz Power part Keyboard INPUT

Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TF5KEYBOARD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TF5KEYBOARD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

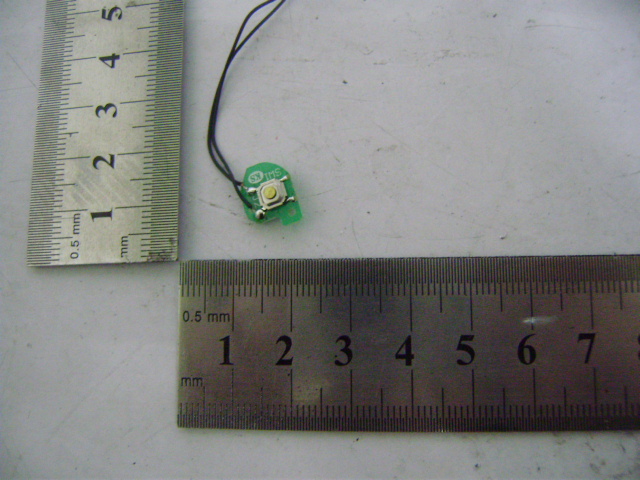

Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I FCC PART 15.247 Solder Board-Component View 4

I NTEGRATED R ADIO T RANSCEIVER The BCM2042 has an integrated radio transceiver that has been optimized for use in 2.4-GHz Bluetooth wireless systems. It has been designed to provide low-power, low-cost, robust communications for applications operating in the globally available 2.4-GHz unlicensed ISM band. It is fully compliant with Bluetooth Radio Specification v1.2 and meets or exceeds the requirements to provide the highest communication link quality of service. T RANSMITTER P ATH The BCM2042 features a fully integrated zero IF transmitter. The baseband transmit data is digitally GFSK modulated in the modem block and up-converted to the 2.4-GHz ISM band in the transmitter path, which contains signal filters, an I/Q up- converter, an output power amplifier (PA), and RF filters. Digital Modulator The digital modulator performs the data modulation and filtering required for the GFSK. The fully digital modulator minimizes any frequency drift or anomalies in the modulation characteristics of the transmitted signal and is much more stable than direct VCO modulation schemes. Digital Demodulator and Bit Synchronizer The digital demodulator and bit synchronizer take the low IF received signal and perform an optimal frequency tracking and bit synchronization algorithm. Power Amplifier The fully integrated PA provides a maximum output signal level of +4 dBm using a highly linearized, temperature compensated design. This gives the user greater flexibility in the type of front end matching and filtering to use with the BCM2042. Due to the linear nature of the PA combined with some integrated filtering, no external filters are required for meeting Bluetooth and regulatory harmonic and spurious requirements. R ECEIVER P ATH The receiver path uses a low IF scheme to down-convert the received signal for demodulation in the digital demodulator and bit synchronizer. The receiver path provides a high degree of linearity, an extended dynamic range, and high order on-chip channel filtering to ensure reliable operation in the noisy 2.4-GHz ISM band. The front end topology with built-in out-of-band attenuation enables the BCM2042 to be used in most applications with no off chip filtering. Digital Demodulator and Bit Synchronizer The digital demodulator and bit synchronizer take the low IF received signal and perform an optimal frequency tracking and bit synchronization algorithm. Receiver Signal Strength Indicator The radio portion of the BCM2042 provides an Receiver Signal Strength Indicator (RSSI) signal to the baseband so that the controller can take part in a Bluetooth power-controlled link by providing a metric of its own receiver signal strength to determine whether the transmitter should increase or decrease its output power. L OCAL O SCILLATOR G ENERATION Local Oscillator (LO) generation provides fast frequency hopping (1600 hops/sec) across the 79 maximum available channels. The LO generation subblock employs an architecture for high immunity to LO pulling during PA operation. The BCM2042 uses an internal RF and IF loop filter, which only requires one external capacitor. C ALIBRATION The BCM2042 radio transceiver features an automated calibration scheme that is fully self-contained in the radio. No user interaction is required during normal operation or during manufacturing to provide the optimal performance. Calibration, which accounts for process and temperature variations, optimizes the performance of all major circuit blocks within the radio. The gain and phase of all relevant filter blocks, amplifier blocks, and matching circuits are calibrated. Calibration occurs in the background during normal operation and during LO frequency hop setting times. I NTERNAL R EGULATOR To reduce the external BOM, the BCM2042 has an integrated 1.5V Low Dropout (LDO) regulator to provide power to the digital and RF circuits. This regulator operates from a 1.7V to 3.6V input supply with less than 50 mV of maximum dropout voltage at full load. A ferrite bead may be needed between the digital and RF supply pins to isolate noise coupling and suppress the noise into the RF circuits. For optimal performance, it is best to include a low-pass filter between the digital and RF supply pins; a pi filter circuit with two shunt caps and one 0603 ferrite bead will suffice. Figure 2 illustrates a sample LDO filter. Figure 2: LDO Filter M ICROPROCESSOR U NIT The Microprocessor Unit (μPU) runs software from the Link Control (LC) layer, up to the Host Controller Interface (HCI). The microprocessor is an enhanced performance 8051 microcontroller. The μPU also consists of one UART port, 2 KB of internal register RAM, 24 KB of internal SRAM, 112 KB of application ROM, and 16K of boot-ROM. An external EEROM up to 32 KB in size may be connected to customize the operation of the BCM2042 for a particular application. The EEPROM may also contain patch-code to modify application behavior, or to fix any bugs which may exist in the ROM code. The 8051 core is object code compatible with the industry standard 8051 microcontroller. E XTERNAL M EMORY I NTERFACE (120- PIN P ACKAGE O NLY ) The memory interface (available only on the 120-pin package) allows 8051 microcontroller accesses to two types of 8-bit wide external memory: Flash memory and SRAM. The interface can access 128 KB (1 Mbit) of external Flash memory, 128 KB of external SRAM with no bank switching required, or access 256 KB (2 Mbit) of Flash without access to SRAM. When using external Flash, 32 KB of the Flash may be used to contain configuration and patch-code, eliminating the need for an external EEPROM. When using a 256 KB (2 Mbit) or larger Flash, over-the-air firmware updates can be supported. B LUETOOTH B ASEBAND C ORE The Bluetooth Baseband Core (BBC) implements all of the time critical functions required for high performance Bluetooth operation. The BBC manages the buffering, segmentation, and routing of data for all connections. It also buffers data that passes through it, …

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 5-May-2010 Sheet of File: F:\xiaochun\xiaochun\KB105\pcb&sch\kb105.DDB Drawn By: P3_1_COL17 P1_1_COL1P1_2_COL2 P1_3_COL3 P3_0_COL16 P2_6_COL14 P1_4_COL4 P2_5_COL13 P2_4_COL12 P2_3_COL11 P2_0_COL8 P1_7_COL7P1_6_COL6 P1_5_COL5 P2_2_COL10 P1_0_COL0P2_7_COL15 P2_1_COL9P0_5_ROW5 P0_3_ROW3 P0_4_ROW4P0_1_ROW1 P0_2_ROW2 P0_6_ROW6 P0_7_ROW7P0_0_ROW0 SW1 P3_1_COL17 P0_7_ROW7 P4_5 48 P0_0 15 P0_7 14 UP_TX 13 UP_RX 12 P0_6 11 SDA 10 SCL 9 P2_7 8 P2_6 7 P3_0 6 P4_2 5 XOUT/P 3_5] 4 P2_5 3 GND 43 P42 44 P4_3 45 P4_4 46 P4_1 47 P2_3 1 P1_0 2 RF 42 GND 41 P1_7 40 P1_1 39 P3_3 38 P3_2 37 P1_4 36 P1_5 35 P1_2 34 P1_3 33 P1_6 32 P3_4 31 3P0V 30 P2_4 29 1P8V 16 GND 17 VBATT 26 P3_1 27 FB 28 P2-0 25 P2_1 24 P2_2 23 P0_1 22 P0_4 21 P0_5 20 P0_2 19 P0_3 18 U1 P1_0_COL0P2_3_COL11P0_6_ROW6P2_6_COL14SDASCLP2_7_COL15P3_0_COL16P2_5_COL13 P0_5_ROW5 P0_4_ROW4 P0_2_ROW2 P0_3_ROW3 P0_0_ROW0P0_7_ROW7UP_TX P1_7_COL7 P0_1_ROW1 P2_2_COL10 P2_1_COL9 P2_0_COL8 P1_2_COL2P1_5_COL5P1_4_COL4P1_1_COL1 SDA SCL P4_3_WP P3_1_COL17P2_4_COL12 P3_4_LED P1_6_COL6P1_3_COL3 C5 1V8 C6 1V8 C3 VDD A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U2 P4_3_WP 1v8 R1 R2 R3 C1 BT1 C2 R4 D1 VBATT P3_4_LED D3 R7 VCC R9 VBATT VCC 1 D- 2 D+ 3 ID 4 GND 5 JP2 1234567891011121314151617181920212223242526 JP1 P3_0_COL16P2_5_COL13P1_0_COL0P2_3_COL11P2_6_COL14P2_7_COL15 SCLSDA P0_6_ROW6P0_7_ROW7P0_0_ROW0 P0_3_ROW3 P0_2_ROW2 P0_5_ROW5 P0_4_ROW4 P0_1_ROW1 P2_2_COL10 P2_1_COL9 P2_0_COL8 P4_3_WP P1_7_COL7P1_1_COL1P1_4_COL4P1_5_COL5P1_2_COL2P1_3_COL3P1_6_COL6P3_4_LEDP2_4_COL12P3_1_COL17 12 J1 R14 CHRG 1 VCC 4 GND 2 PROG 5 BAT 3 U3 C8 1V8 C7 C10 VDD SW2 VBATT VDD 1 1 2 2 R6 R5 UP_TX UP_RX UP_RX R13 R8 R12 B 1 C 3 E 2 Q1 R10 VDD EN 1 VIN 4 GND 2 SW 3 VFB 5 U4 L2 C9 R15 R16 C4 1 2 J2 WIRELESS KEYBOARD 918510

Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I PAGE 1 OF 30 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Shenzhen Baoxin Tech Co., Ltd 5F, Building C, Jia An Industrial Park, District 72, Bao An, Shenzhen, China FCC ID: TF5KEYBOARD Report Concerns: Original Report Equipment Type: Bluetooth Keyboard Model: 918510 Report No.: STR10058024I Test Date: 2010-05-06 to 2010-05-17 Issue Date: 2010-05-25 Test Engineer: Susan Su Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I PAGE 2 OF 30 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING .................................................................7 4.1 STANDARD APPLICABLE.........................................................................................................................................7 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.3 TEST PROCEDURE...................................................................................................................................................7 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................10 5.1 STANDARD APPLICABLE.......................................................................................................................................10 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 5.3 TEST PROCEDURE.................................................................................................................................................10 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................10 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. 20-DB BANDWIDTH ..............................................................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 7. POWER OUTPUT...............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Baoxin Tech Co., Ltd Model: 918510 REPORT NO.: STR10058024I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
