TG3-HXEP525LTruly Wireless Earphone

QS-HXEP525 © 2020 JAM. All Rights Reserved. JAM is trademark of HMDX. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HMDX is under license. / Tous droits réservés / Todos derechos reservados / Alle Rechte vorbehalten / Tutti i diritti riservati HX-EP525 Quickstart Guide Guide de démarrage rapide Guía de inicio rápido Schnellstartanleitung Guida rapida www.JamAudio.com/ Instruction-Books 2 hrs TRUE WIRELESS ATHLETE 7+ hrs32+ hrs L / R L ...1x ...5s ...2x ...3x ...2x JAM TWS Athlete TWS Athlete ...2s ...2s ...1x ...1x R R L ...1x ...2x R L ...5s JAM TWS Athlete TWS Athlete LEGAL INFORMATION - READ ALL INSTRUCTIONS BEFORE USE AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsi- ble for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ISEDC Caution: This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. ISEDC RF Exposure Statement: The device is in compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. 1-YEAR LIMITED WARRANTY – US & CANADA WARRANTY – US & CANADA JAM warrants this product free from defect in material and workmanship for a period of 1 year from the date of purchase. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of JAM. For detailed Warranty instructions and information, visit: http://www. jamaudio.com/customer-support/warranty-1yr. To obtain warranty service on your JAM product, contact a Consumer Relations representative by the telephone number or email address for your country of residence. Please make sure to have the model number of the product available. For service in the USA Email: [email protected] Tel: 1-888-802-0040 8:30am – 7:00pm EST M–F For service in Canada Email: [email protected] Tel: 1-888-225.7378 8:30am – 5:00pm EST M–F WARRANTY – UK & EUROPE JAM warrants this product free from defect in material and workmanship for a period of 2 years from the date of purchase. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; or any other conditions whatsoever that are beyond the control of JAM. Distributed in the EU by FKA Brands Ltd, Somerhill Business Park, Tonbridge, TN11 0GP, UK. Tel: 020 3538 0768 Email: [email protected]. WARRANTY – AUSTRALIA (1-YEAR LIMITED WARRANTY) We or Us means HoMedics Australia Pty Ltd ACN 31 103 985 717 and our contact details are set out at the end of this warranty; You means the purchaser or the original end-user of the Goods. You may be a domestic user or a professional user; Supplier means the authorized distributor or retailer of the Goods that sold you the Goods in Australia and New Zealand; and Goods means the product or equipment which was accompanied by this warranty and purchased in Australia and New Zealand. For Australia: Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled, subject to the provisions of the Australian Consumer Law, to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled, subject to the provisions of the Australian Consumer Law, to have the Goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This is not a complete statement of your legal rights as a consumer. For New Zealand: Our Goods come with guarantees that cannot be excluded under the Consumer Guarantees Act 1993. This guarantee applies in addition to the conditions and guarantees implied by that legislation. The Warranty HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship under normal use and service. In the unlike- ly event that your HoMedics product proves to be fault…

Text truncated - open the document above for the full version.

QA-FR-170-B FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 FCC Authorization 2020/02/24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (FKA Distributing Co., LLC), the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Mark Straight Senior Project Engineer

FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 FCC Confidential Authorization 2020/02/24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: TG3-HXEP525L In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (FKA Distributing Co., LLC) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Mark Straight Senior Project Engineer

FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 Date: 2020/02/24 To whom it may concern: The RF chip, model AC6936D, which installed in our product Truly wireless earphone, Model: HX-EP525, FCC ID: TG3-HXEP525L, supports BDR (GFSK), EDR (π/4- DQPSK, 8DPSK), and BLE functions. For use in America and this chip will not support/enable EDR (8DPSK) and BLE function. The EDR (8DPSK) and BLE function has been shielded by the manufacturer using the software. Sincerely Yours, Mark Straight Senior Project Engineer

FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 FCC ID Cover Letter We, FKA Distributing Co., LLC, hereby submit justification for placing the FCC ID in the associated user manual and charging case. According to the FCC Regulation and Guidance (KDB Publication 784748 D01 v09r01) allows for the FCC ID to be moved to the user manual and charging case if the device is unquestionably too small for the FCC ID to be printed. Referring to the above quote, as the device is too small for the label (FCC ID: TG3-HXEP525L) to be printed. The FCC ID will be moved to user manual and charging case. The details are as below: A. Side surface (A): The side surface does not provide enough physical space to fit the printing of the FCC ID according to below reference picture. B. Top cover (B): The top cover does not provide enough physical space to fit the printing of the FCC ID according to below reference picture. Conclusion: Based on the above description of area A to B, we conclude that the device is unquestionably too small for enabling the FCC ID to be printed onto any surface. We therefore request to move the FCC ID to the user manual and charging case. Best regards, Mark Straight Senior Project Engineer

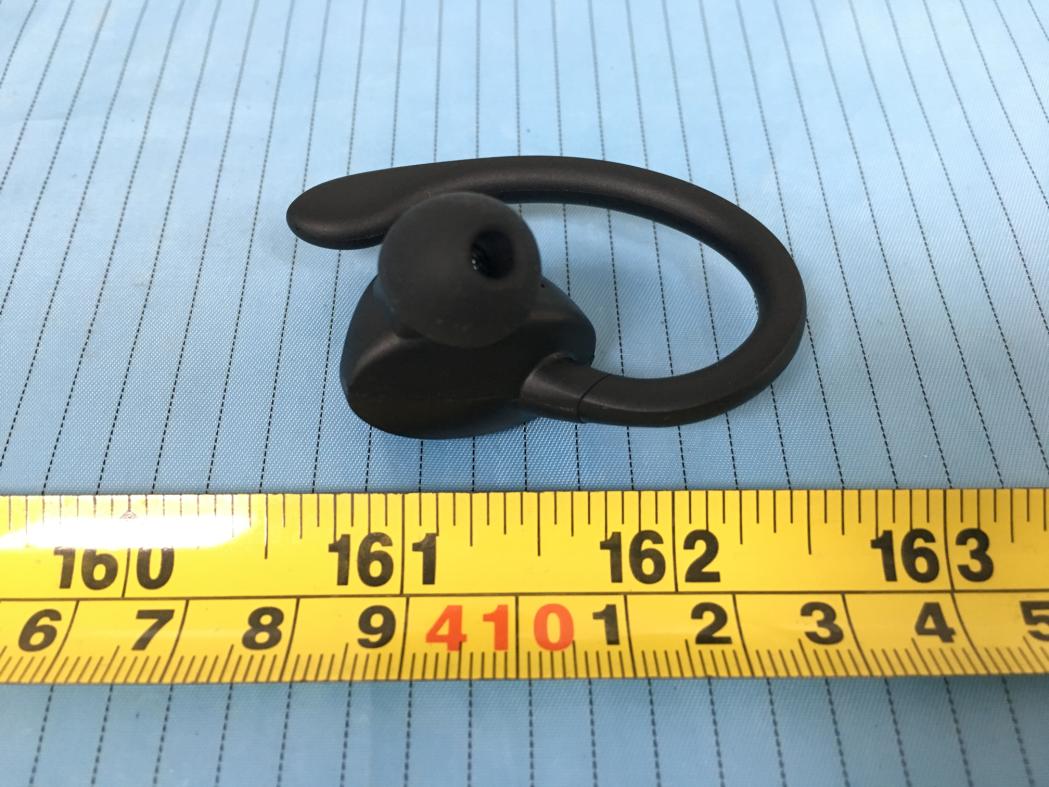

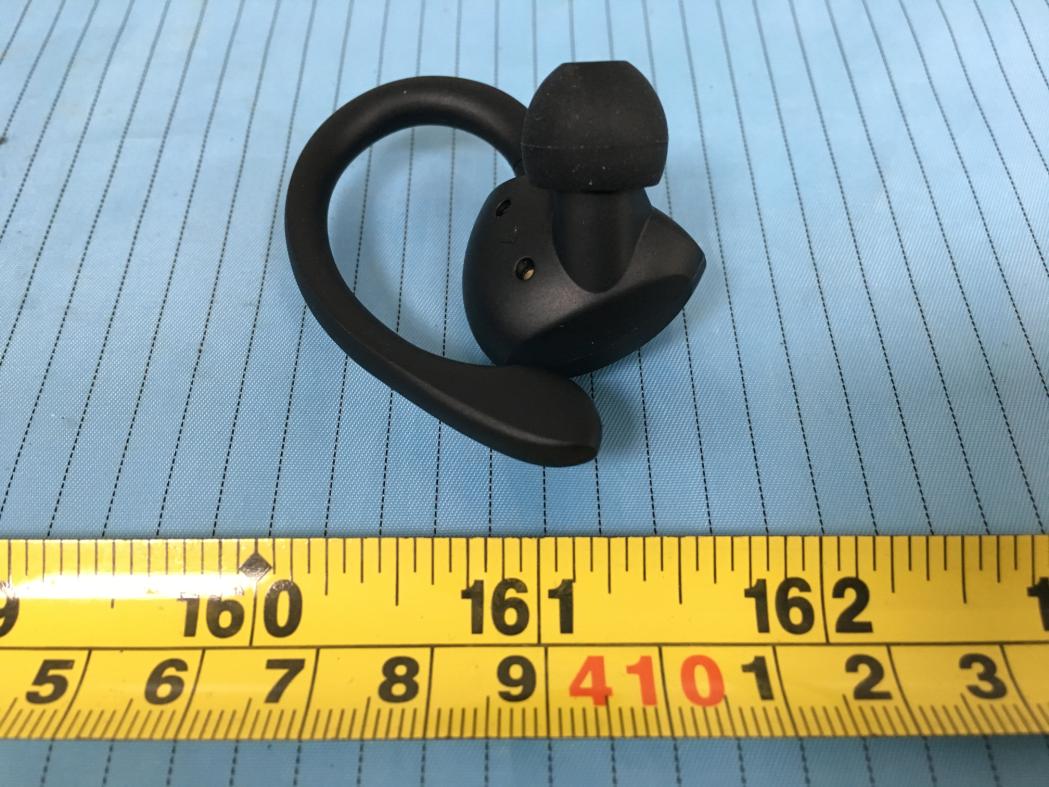

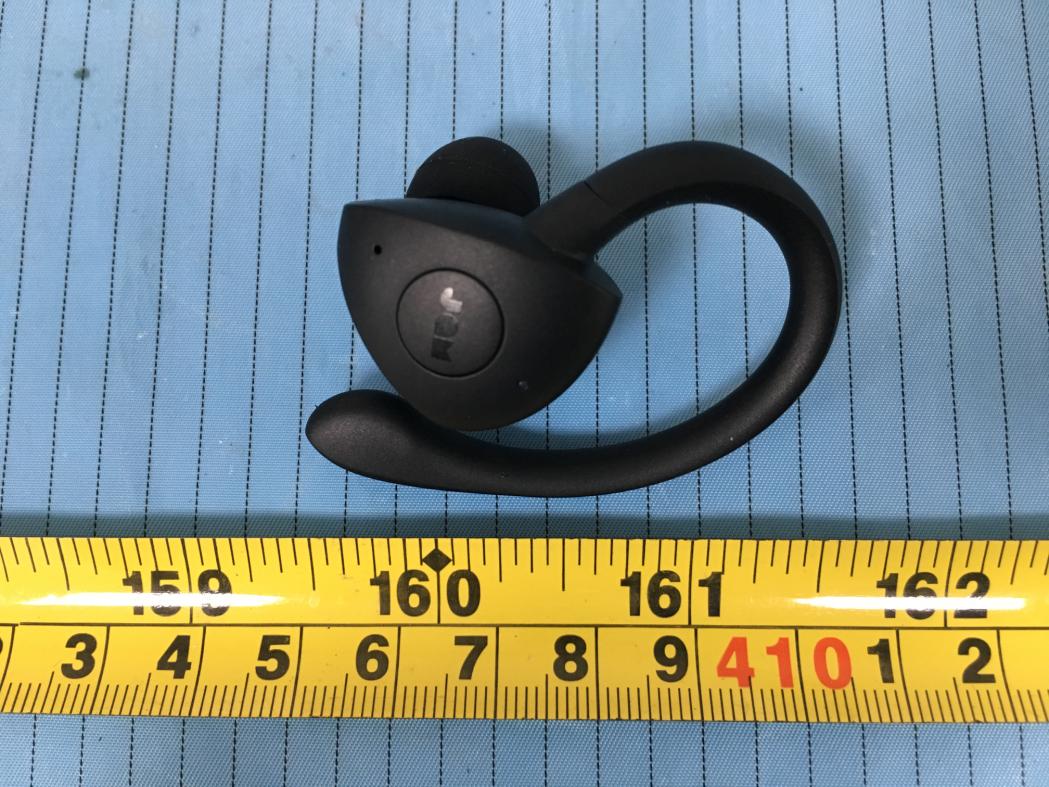

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Left Earphone BT Ant

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For FKA Distributing Co., LLC 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States FCC ID: TG3-HXEP525L R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e: T r u l y w i r e l e s s e a r p h o n e Report Number: RSZ191213803-00A Report Date: 2020-02-14 Reviewed By: Nancy Wang RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ191213803-00A FCC Part 15.247 Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE.................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION .......................................................…

Text truncated - open the document above for the full version.

AppendixA: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20dB EBW[MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.780 --- PASS 2441 0.780 --- PASS 2480 0.780 --- PASS 2DH1 Ant1 2402 1.209 --- PASS 2441 1.209 --- PASS 2480 1.209 --- PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 AppendixB: Occupied Channel Bandwidth(For IC) Test Result TestMode Antenna Channel OCB [MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.791 --- PASS 2441 0.794 --- PASS 2480 0.794 --- PASS 2DH1 Ant1 2402 1.163 --- PASS 2441 1.163 --- PASS 2480 1.166 --- PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 AppendixC: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 -0.95 <=20.97 PASS 2441 -1.08 <=20.97 PASS 2480 -1.12 <=20.97 PASS 2DH1 Ant1 2402 -0.17 <=20.97 PASS 2441 -0.4 <=20.97 PASS 2480 -0.44 <=20.97 PASS Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 AppendixD: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1 >=0.520 PASS 2DH1 Ant1 Hop 1 >=0.806 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop AppendixE: Time of occupancy Test Result TestMode Antenna Channel BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.42 320 0.134 <=0.4 PASS DH3 Ant1 Hop 1.67 150 0.25 <=0.4 PASS DH5 Ant1 Hop 2.91 100 0.291 <=0.4 PASS 2DH1 Ant1 Hop 0.43 320 0.137 <=0.4 PASS 2DH3 Ant1 Hop 1.67 110 0.184 <=0.4 PASS 2DH5 Ant1 Hop 2.92 90 0.262 <=0.4 PASS Note 1：A period time=0.4*79=31.6(S), Total of Dwell=Pluse T ime*Hopping Number Note 2: Hopping Number=Hopping Number in 3.16s*10 Note 3: Hoping Number in 3.16s=Total of highest signals in 3.16s(Secong high signals were other channel) Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop AppendixF: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop AppendixG:Band edge measurements Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
