QA-FR-170-B FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 FCC Authorization 2020/03/30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We (FKA Distributing Co., LLC), the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Mark Straight Senior Project Engineer

FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 FCC Confidential Authorization 2020/03/30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: TG3-HXP325 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (FKA Distributing Co., LLC) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Mark Straight Senior Project Engineer

FKA Distributing Co., LLC Address: 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States Email: [email protected] Tel: 2488633001Extension:1390 Fax: 2488633000 Date: 2020/03/30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, model AC6928B, which installed in our product Retro wireless speaker, Model: HX-P325, FCC ID: TG3-HXP325, supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), and BLE functions. For use in America and this chip will not support/enable EDR (8DPSK) and BLE function. The EDR (8DPSK) and BLE function has been shielded by the manufacturer using the software. Sincerely Yours, Mark Straight Senior Project Engineer

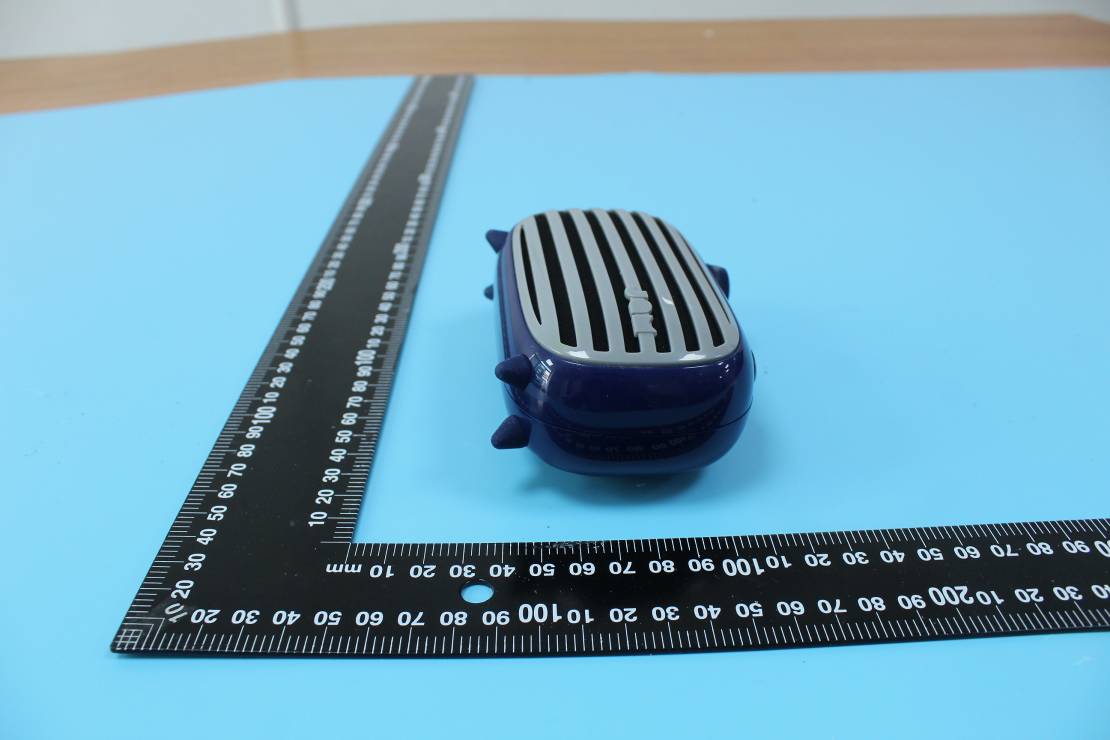

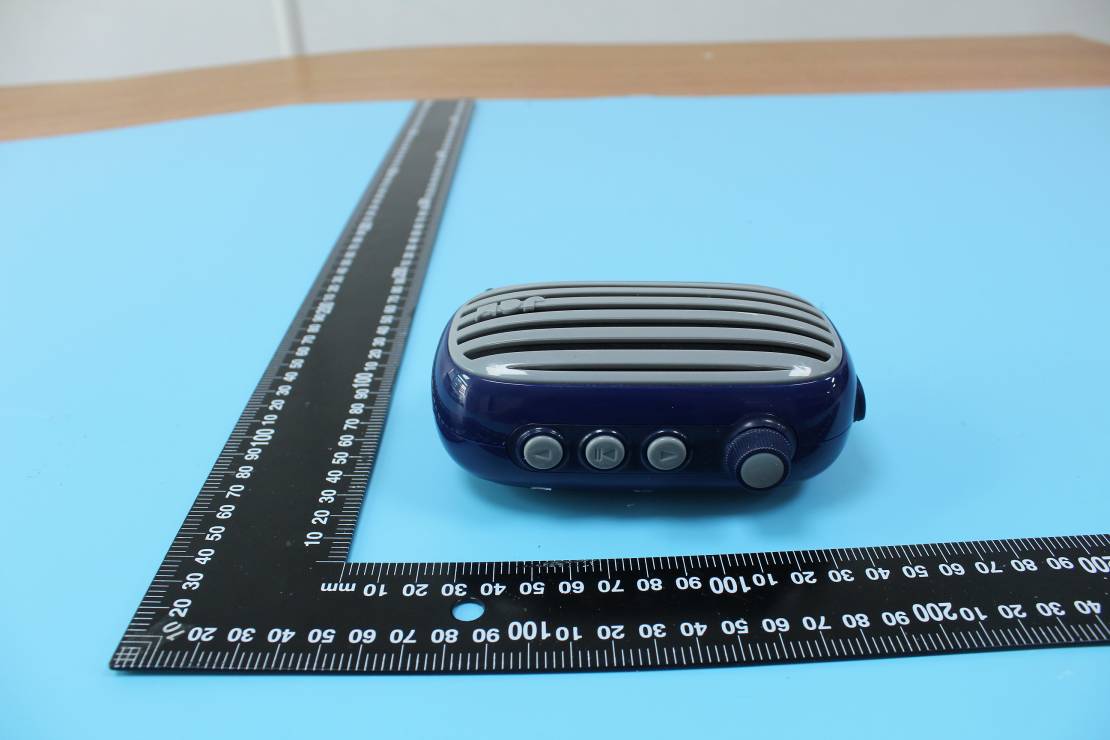

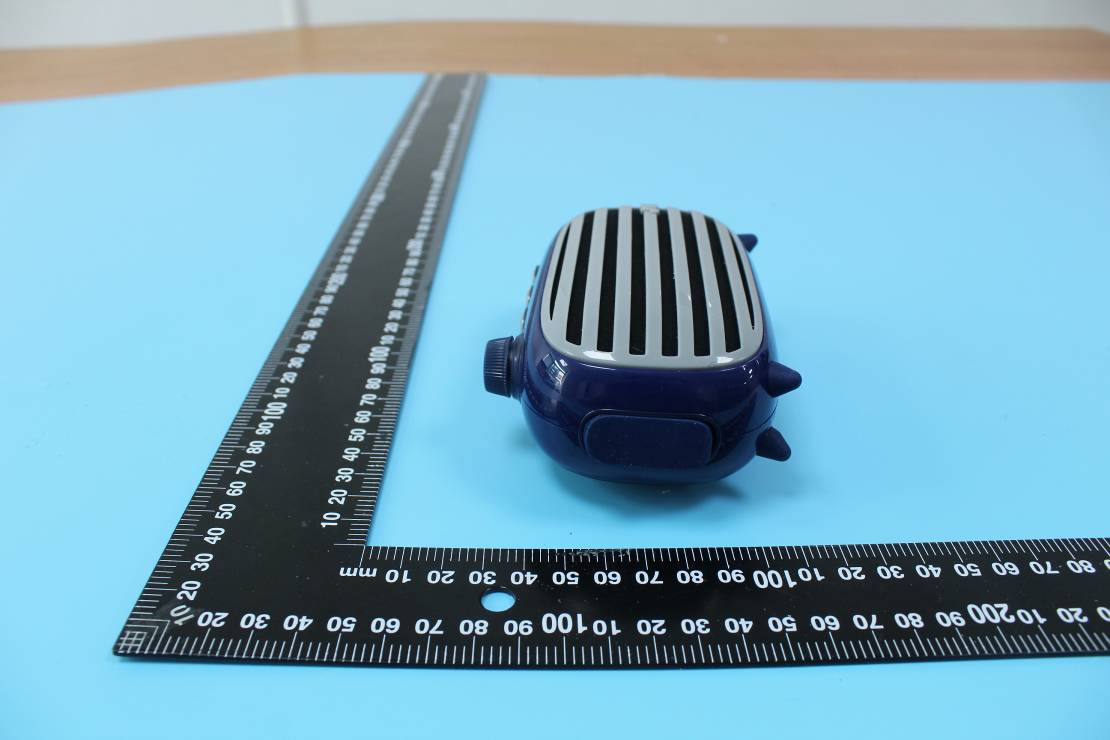

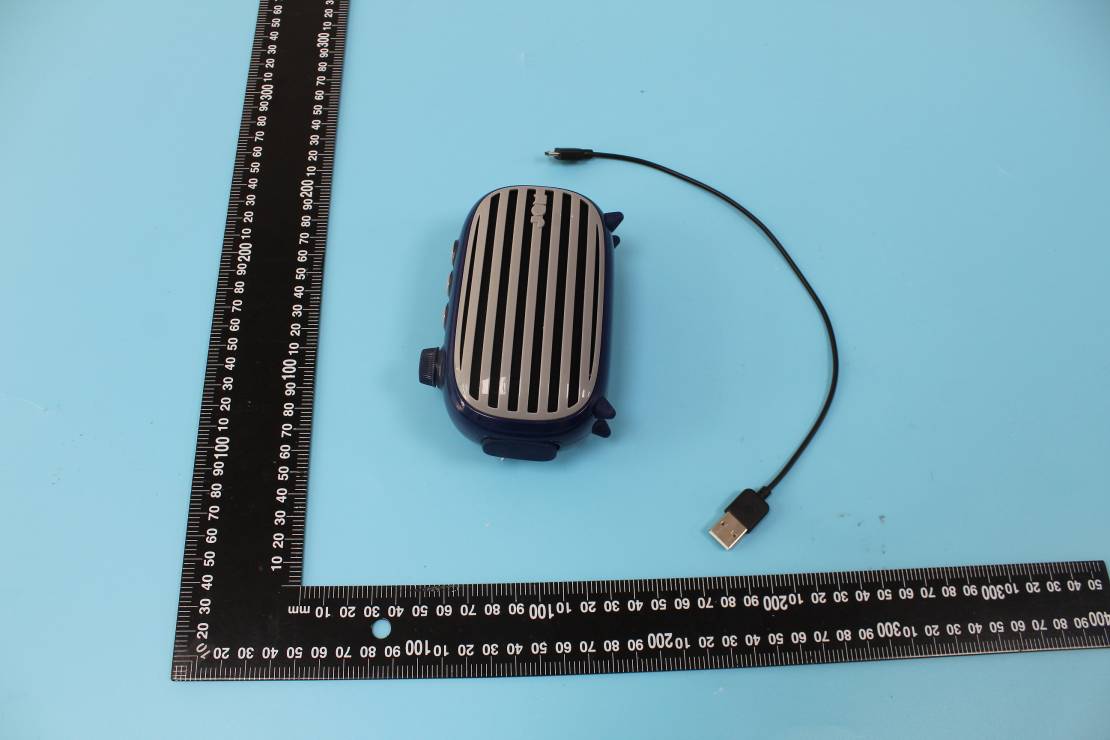

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Screw Hole Bluetooth Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For FKA Distributing Co., LLC 3000 N. Pontiac Trail, Commerce Township, Michigan, 48390, United States FCC ID: TG3-HXP325 Report Type: Original Report Product Type: Retro wireless speaker Re port Number: RSZ200120801-00 Re port Date: 2020-04-01 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) &§2.1093 – RF EXPOSURE ...................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ......................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 1 of 20 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.882 --- PASS 2441 0.885 --- PASS 2480 0.885 --- PASS 2DH1 Ant1 2402 1.233 --- PASS 2441 1.233 --- PASS 2480 1.260 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 2 of 20 Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 3 of 20 DH1_Ant1_2480 2DH1_Ant1_2402 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 4 of 20 2DH1_Ant1_2441 2DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 5 of 20 Appendix B: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 1.72 <=20.97 PASS 2441 1.22 <=20.97 PASS 2480 0.90 <=20.97 PASS 2DH1 Ant1 2402 2.27 <=20.97 PASS 2441 1.78 <=20.97 PASS 2480 1.57 <=20.97 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 6 of 20 Appendix C: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1.000 >=0.588 PASS 2DH1 Ant1 Hop 1.003 >=0.822 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 7 of 20 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 8 of 20 Appendix D: Time of occupancy Test Result TestMode AntennaChannel BurstWidth [ms] TotalHops [Num] Result[s]Limit[s] Verdict DH1 Ant1 Hop 0.37 330 0.123 <=0.4 PASS DH3 Ant1 Hop 1.62 110 0.178 <=0.4 PASS DH5 Ant1 Hop 2.86 70 0.200 <=0.4 PASS 2DH1 Ant1 Hop 0.38 320 0.122 <=0.4 PASS 2DH3 Ant1 Hop 1.63 120 0.195 <=0.4 PASS 2DH5 Ant1 Hop 2.87 70 0.201 <=0.4 PASS Note 1：A period time=0.4*79=31.6(S), Total of Dwell=Pluse Time*Hopping Number Note 2: Hopping Number=Hopping Number in 3.16s*10 Note 3: Hoping Number in 3.16s=Total of highest signals in 3.16s. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 9 of 20 Test Graphs DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 10 of 20 DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 11 of 20 DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 12 of 20 2DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 13 of 20 2DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 14 of 20 2DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 15 of 20 Appendix E: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 16 of 20 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 17 of 20 Appendix F: Band edge measurements Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 18 of 20 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 19 of 20 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200120801-00 FCC Part 15.247 Page 20 of 20 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
