TG3SS-5000TXWireless Thermometer

SS-5000 TX Instruction Manual READ ALL INSTRUCTIONS BEFORE USING Caution – Please read all instructions carefully before operating. Remote Sensor Battery Installation: 1. Loosen the 4 screws securing the battery cover with a small screwdriver (included) and remove. Insert 2 alkaline AAA batteries according to the polarity direction indicated. 2. Place the home receiver (Sound Spa Premier) as close as possible to the remote sensor. This will help with synchronization between the two units. NOTE: Once you are ready to position your remote sensor and home receiver, ensure that the distance is not outside the effective transmission range (100 feet). Some building materials and location of the home receiver or remote sensor can affect transmission quality and range. Try various locations for best results. 3. Press the C/F button inside the remote sensor to change between ºC and ºF. (The remote sensor is preset on ºF.) 4. Press the TX button inside of the remote sensor to verify the reception. 5. Replace the cover and tighten the 4 screws. NOTE: It is recommended to test the units next to each other to ensure that both the remote sensor and home receiver are properly synchronized. Remote Sensor Mounting Instructions The Remote Sensor comes with a table stand or can be wall mounted. Table Stand - Simply fold out the attached stand from the mounting bracket. Wall Mounting - Set a screw in the desired hanging location and mount. NOTE: Keep the remote sensor out of direct sunlight and rain. Do not mount on metal surface. Remote Sensor Low Battery Indication Low battery indication is available for the remote sensor. A battery life icon will display on the remote sensor. Replace the batteries as necessary and follow the setup procedure. MAINTENANCE AND CARE INSTRUCTIONS • Extreme temperatures, shock or areas of unusual vibration should be avoided to prevent damage to the units. • Clean the units using only a soft, damp cloth to wipe. Do not use solvents, abrasives, detergents or other strong cleaning agents. After cleaning, wipe surfaces with a dry cloth. • Do not submerge units in water or other liquids. • Do not subject the units to extremely severe temperatures - DO NOT PLACE UNITS INTO OVENS, FREEZERS or MICROWAVE UNITS. NOTE: Opening the housing (other than the battery compartment) of the Remote Sensor or the SoundSpa Unit will invalidate your warranty. Do not attempt to repair this unit - There are no consumer serviceable parts. TROUBLE SHOOTING Indoor and Outdoor temperatures do not match when placed next to each other - The sensor is manufactured to be +/- 2 degree in accuracy under normal conditions. So it is possible to have up to four degrees difference shown on the separate temperature sensors (one could be “+2 degree” and the other “-2 degree”. Additionally, the calibration curve is different between the two units because of the greater temperature range of the outdoor sensor. Errors are usually noted on the extreme ends of the temperature ranges. SoundSpa unit is not accepting remote transmissions - The units may not be properly synchronized or the batteries may need to be replaced. See “USING OUTDOOR TEMPERATURE” section for detailed instructions. With the two units next to each other, attempt synchronization. Remember to always place the remote sensor within the effective transmission range and away from large metal surfaces. What is the recommended battery type? We recommend using only alkaline batteries. Where can I mount the remote sensor? To get accurate readings and to prolong the life of your sensor, we recommend that you mount it out of direct sunlight and rain. Fog and mist will not affect the sensor, but large volumes of soaking rain may. To guard against this, we recommend that you mount it under the eve of your house, your garage or any other suitable place that will keep it out of direct sun and rain. Modifications not authorized by the manufacturer may void users authority to operate this device. Outdoor Temperature Reading shows “- -” This may indicate a low battery or out of transmission range. SPECIFICATIONS Range of temperature measurement: Remote sensor: -4º F to +140º F (-20º C to +60º C) Transmission: max. 100 ft. (30 m) open area, RF434 MHz FCC DISCLAIMER This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Freq. 434 MHz FCC ID: TG3SS-5000TX (Transmitter) Modifications not authorized by the manufacturer may void users authority to operate this device. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help

Block Diagram MCU Thermometer LCD RF Transmitter Keys

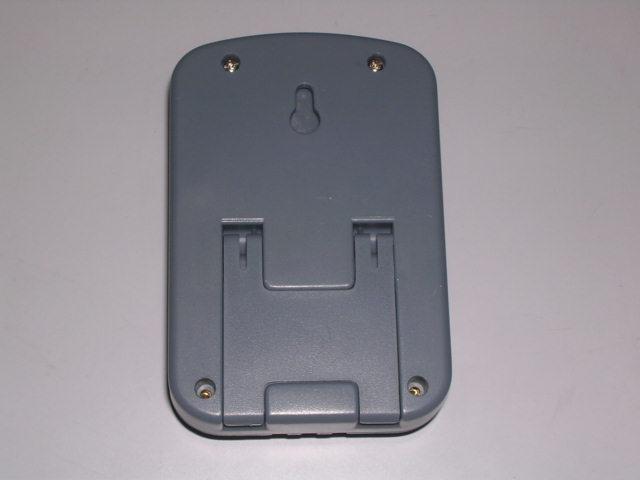

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: TG3SS-5000TX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operations. PP-SSRMT1 W126 Housing Color : (Moulded) Pantone 7545U Grey LENS : BLACK Logo size : (17.8 x 5)mm Logo silk screen color : BLACK Silk screen color : BLACK 9mm Silk screen color : BLACK

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Application No.: HM154791 Date: 2005-08-03 FCC ID: TG3SS-5000TX Circuit Description The 434 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q1 has the matching network consisting of L4, R6and C5, C6 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AAA” size battery x 2) primary battery. Operation Descriptions The transmitter is a wireless thermometer operating at 434 MHz band. The transmitter is powered by a 3Volt battery (AAA x 2) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 434 carrier frequency. Remarks: The transmitter is a Trigger transmitter. The EUT continues to transmit while Trigger is being pressed. It is Pulse transmitter, Modulation by Data Code; and type is Pulse modulation.

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 1 of 21 No. : HM154791 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: HoMedics, Inc. 3000 Pontiac Trail, Commerce Township, MICHIGAN 48390, United States Description of Samples: Model name: Remote Sensor Model no.: SS-5000TX Brand name: HoMedics FCC ID: TG3SS-5000TX Date Samples Received: 2005-07-19 Date Tested: 2005-07-26 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMD DAR Approved Signatory 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 2 of 21 No. : HM154791 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Samples Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 1.8 Additional Information of EUT Page 6 of 21 2.0 Technical Details 2.1 Investigations Requested Page 7 of 21 2.2 Test Standards and Results Summary Page 7 of 21 3.0 Test Results 3.1 Emission Page 8-12 of 21 3.2 Bandwidth Measurement Page 13-14 of 21 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 3 of 21 No. : HM154791 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 15 of 21 Appendix B Duty Cycle Correction During 100 msec Page 16-17 of 21 Appendix C Periodic Operation Page 18-19 of 21 Appendix D Photographs Page 20-21 of 21 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 4 of 21 No. : HM154791 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant HoMedics, Inc. 3000 Pontiac Trail, Commerce Township, MICHIGAN 48390, United States HKSTC Code Number for Applicant ANE001 Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 5 of 21 No. : HM154791 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Product: Remote Sensor Manufacturer: N/A Brand Name: HoMedics Model Number: SS-5000TX Input Voltage: 3Vd.c (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a HoMedics, Inc., Remote Sensor. The transmitter is an automatic transmitter. The EUT is to transmit RF signal while temperature measurement is changed. The EUT is for data transmission, Modulation by Data Code. Type is pulses modulation. 1.4 Date of Order 2005-07-19 1.5 Submitted Sample(s): 3 Samples per model 1.6 Test Duration 2005-07-26 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 6 of 21 No. : HM154791 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2005-08-03 TEST REPORT Page 7 of 21 No. : HM154791 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investiga…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
