TG7BR-20MOBILE RECORDER

User Manual MODEL No. : BR-20 1. Charging before use Please charge by using USB or DC adaptor(optional). Green light is turned on at the LED of REC/PLAY during charging and green light blinks when charging is completed. Check ! Battery remains can be checked at the beginning of recording or playback. Battery remains Operation Enough : 70 ~ 100% Green LED is turned on for 5 seconds Usual : 30 ~ 70 % Green LED blinks for 5 seconds Short : less than 30% No indication 2. Turning on power 1) Connecting to bluetooth device(pairing) A. For pairing, mobile device starts Bluetooth search. B. Press the button of talk for 5 seconds until Bluetooth LED lights up in blue and red alternately, rapidly. C. Select BR-20 which mobile device has searched. Function Operation Power On/Off Until blue LED is turned on/of, press the button of talk for 1 second. Answering/ending call Press the button of talk. Rejecting talk Press the button of talk two times rapidly. Redialing last number Press the button of talk while not talking over the phone. Adjusting volume Press the button of volume + or volume – on the side. Battery status In case bluetooth LED blinks in red, battery is in shortage. 2) Recording call A. Pair with mobile device by pressing the button of talk.(refer to “Connecting to bluetooth device”) B. Move recording switch on side to Bluetooth(down). C. When you receive a call or make a call, recording starts automatically and recording ends when call is finished. D. LED of REC/PLAY is turned on in red during recording. Caution ! In case talking time is less than 10 seconds, recording might not start. 3) General recording A. Move recording switch on side to VOICE(up). B. After showing current battery remains, LED of REC/PLAY is turned on in red. C. When you move recording switch on side to OFF(center), recording ends. 4) Playing back A. Move recording switch on side to OFF(center). B. Press the button of PLAY/STOP(▶/■) for 3 seconds until the LED of REC/PLAY is turned on in blue. C. After showing current battery remains, it is played back automatically in case there are recorded files. D. During playback, it is possible to move files by pressing the button of previous file(◁◁) or next file(▷▷). 5) Deleting a file A. After stopping playback, press the button of DEL long and press it one more time. Caution ! Deleted files can not be recovered. Delete the files after checking them carefully. 3. Naming of each part 4. Specification Model No. BR-20 Bluetooth version V 3.0 + EDR Radio Class Class 2/3 Supported profiles HFP, HSP Usage Distance Max. 10m Range of frequency 2.4GHz Continuous talk/Standby time about 13 hours / about 360 hours General recording time about 10 hours Charging time about 2.5 hours Rechargeable Battery 150mAh Lithium Polymer REC/PLAY LED Bluetooth LED Speaker Talk Button Microphone Volume Button + Volume UP - Volume DOWN Deletion Button Recording Switch ↑ VOICE ⊙ OFF ↓ Bluetooth USB Previous File PLAY/STOP Next File 5. Cautions 1) In case there are no battery remains, recording is not possible. Please use it after charging all the time. 2) If you remove it from PC in using, contents could be lost and please be sure to use the USB safety removal. 3) Please undergo a back up for the files saved in internal memory all the time. FCC notice to users and product statements Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, any cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Caution This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. European CE notice to users and product statements Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

ESONIC Co., Ltd. 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152-736, SEOUL, South Korea Tel. +82-2-2108-7493 / Fax. +82-2-2-2108-7492 Company Letter head Date: JAN 13, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD Product: MOBILE RECORDER Model name: BR-20 Variant Model name: MQ-B20, EVR-B20, BR-30, MQ-B30, EVR-B30 To Whom It May Concern: This letter is to ascertain that ESONIC Co., Ltd. has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, please. contact us. Sincerely Yours, ______________________________________ NAME : Jeong Cheol Seo TITLE : DIRECTOR E-MAIL: [email protected] FAX: +82- 2- 2108-7493 TEL: +82-2- 2108-7492 ESONIC Co., Ltd.

ESONIC Co., Ltd. 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152-736, SEOUL, South Korea Tel. +82-2-2108-7493 / Fax. +82-2-2-2108-7492 Date: JAN 13, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Samsung Electronics Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project : -Product: MOBILE RECORDER -Model name: BR-20 -Variant Model name: MQ-B20, EVR-B20, BR-30, MQ-B30, EVR-B30 I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, ______________________________________ NAME : Jeong Cheol Seo TITLE : DIRECTOR E-MAIL: [email protected] FAX: +82-2- 2108-7493 TEL: +82-2- 2108-7492 ESONIC Co., Ltd.

ESONIC Co., Ltd. 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152-736, SEOUL, South Korea Tel. +82-2-2108-7493 / Fax. +82-2-2-2108-7492 FCC Confidentiality Request Letter Date: JAN 13, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TG7BR-20 We hereby request confidential treatment of information accompanying this application as outlined below: • Block diagram • Schematics • Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ______________________________________ NAME : Jeong Cheol Seo TITLE : DIRECTOR E-MAIL: [email protected] FAX: +82-2- 2108-7493 TEL: +82-2- 2108-7492 ESONIC Co., Ltd.

ESONIC Co., Ltd. 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152-736, SEOUL, South Korea Tel. +82-2-2108-7493 / Fax. +82-2-2-2108-7492 Date: JAN 13, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Letter of Similarity We, Samsung Electronics Co., Ltd., declare the differences for between original model and variant models. Product: MOBILE RECORDER Model name: BR-20 Variant Model name: MQ-B20, EVR-B20, BR-30, MQ-B30, EVR-B30 Variant models simply have different model names due to the request of buyer and there’s no different on software, hardware and functions. Sincerely Yours, ______________________________________ NAME : Jeong Cheol Seo TITLE : DIRECTOR E-MAIL: [email protected] FAX: +82-2- 2108-7493 TEL: +82-2- 2108-7492 ESONIC Co., Ltd.

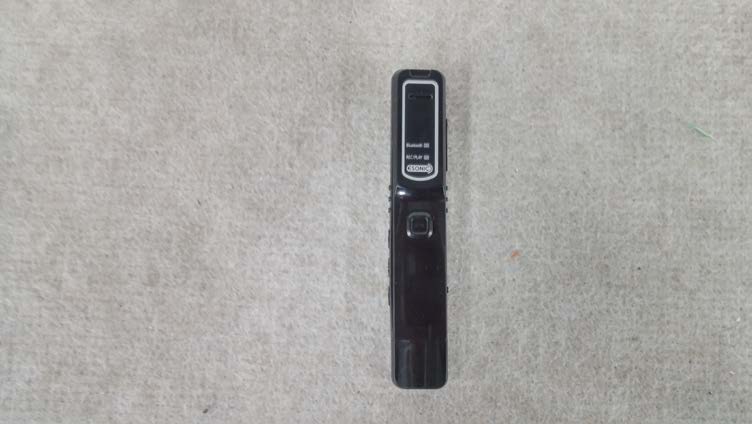

http://www.emc2000.co.kr External photos of EUT EMC compliance Ltd. Page: 1 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC TEST REPORT -Basic Model EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3-390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT -Variant Model 1 ESONIC CO., LTD. MOBILE RECORDER MODEL NAME : BR-30 Rate : 5V - -, 0.5A FCC ID : TG7BR-20 MADE IN KOREA MSIP-CMM-ESO-BR-20 xxx-xxxxxx EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3-390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT -Variant Model 2 EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3-390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT -Variant Model 3 EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3-390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT -Variant Model 4 EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3-390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT -Variant Model 5 EMC compliance Ltd. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3-390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval.

http://www.emc2000.co.kr Internal photos of EUT EMC compliance Ltd. Page: 1 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr Antenna EMC compliance Ltd. Page: 3 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. KDB447498 was used as the guidance. According to §1.1310 and §2.1093 RF exposure is calculated. 1.1 Result Test frequency (㎓) Conducted output power (㏈m) Conducted output power (㎽) Min. test separation distance (㎜) SAR test exclusion thresholds ≤ 7.5 for 10-g SAR 2.480 4.5 2.82 5 0.89 1. SAR test exclusion thresholds = [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(㎓)] = [(2.82)/(5)] · [√2.480] = 0.89 Mode Target power (㏈m) Allowed tolerant (㏈) Max tune up power (㏈m) Measured Average power (㏈m) GFSK 2.5 ±2.0 4.5 2.95 8DPSK 1.0 ±2.0 3.0 1.53 1.2 RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation. EMC compliance Ltd. Page: 1 of 1 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70 -5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0205 [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description ........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Carrier Frequency Separation ..................................................................................................................... 14 5.4 20 ㏈ Channel Bandwidth .......................................................................................................................... 19 5.5 Number of Hopping Channels .................................................................................................................... 27 5.6 Time of Occupancy(Dwell Time) ............................................................................................................... 31 5.7 Spurious Emission, Band edge and Restricted bands ................................................................................. 36 5.8 Conducted Emission ................................................................................................................................... 47 6. Test equipment used for test ........................................................................................................................... 50 EMC compliance Ltd. Page: 2 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0205 1. Client information Applicant: ESONIC CO., LTD. Address: 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152- 768, SEOUL, Republic of Korea Telephone number: +82-02-2108-7493 Facsimile number: +82-02-2108-7492 Contact person: Han Dong Ryeol / [email protected] Manufacturer: ESONIC CO., LTD. Address: 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152- 768, SEOUL, Republic of Korea EMC compliance Ltd. Page: 3 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0205 2. Laboratory information Address EMC compliance Ltd. 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-70-5008-1021 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No.: KR0040 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city EMC compliance Ltd. Page: 4 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0205 3. Description of E.U.T. 3.1 Basic description Applicant: ESONIC CO., LTD. Address of Applicant 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152- 768, SEOUL, Republic of Korea Manufacturer ESONIC CO., LTD. Address of Manufacturer 406, HANSIN IT TOWER, 272, DIGITAL-RO, GURO-GU, 152- 768, SEOUL, Republic of Korea Type of equipment MOBILE RECORDER Basic Model BR-20 Va r i a n t Models MQ-B20, EVR-B20, BR-30, MQ-B30, EVR-B30* Serial number N/A * Variant models simply have different model names due to the request of buyer and there’s no different on software, hardware and functions. 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Type of Modulation GFSK, π/4DQPSK , 8DPSK Number of Channels 79 channels Type of Antenna Pattern Antenna Antenna Gain -1.53 ㏈i Transmit Power 5.01 ㏈m Power supply DC 3.7 V* * Declared by the applicant. EMC compliance Ltd. Page: 5 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written …

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0000 Te s t setup photos * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ EMC compliance Ltd. Page: 1 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0000 * 1 ㎓ Over EMC compliance Ltd. Page: 2 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0000 *Conducted EMC compliance Ltd. Page: 3 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si , Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.
