TG7BR-25MOBILE RECORDER

User Manual MODEL No. : BR-25 1. Charging before use Please charge by using USB or DC adaptor(optional). Charging : The motion LED alternates between a green light and a red light. Charging complete : Motion LED turns off. Check ! The remaining battery can be checked by pressing and holding the VOL+,- key while waiting for playback or recording.. Battery remains Operation Enough : 70 ~ 100% Green LED is turned on for 5 seconds Usual : 30 ~ 70 % Green LED blinks for 5 seconds Short : less than 30% No indication 2. Turning on power 1) Connecting to bluetooth device(pairing) A. For pairing, mobile device starts Bluetooth search. B. Move the mode switch to Bluetooth. C. Press the Talk/Power button until the blue LED flashes rapidly. (5 seconds) D. Select BR-25 which mobile device has searched. Function Operation Power On/Off Until blue LED is turned on/of, press the button of talk/power for 1 second. Answering/ending call Press the button of talk/power. Rejecting talk Press the button of talk/power two times rapidly. Adjusting volume Press the button of volume + or - on the side during call or playback. 2) Recording call A. Pair with mobile device by pressing the button of talk/power. (refer to “Connecting to bluetooth device”) B. Move the mode switch to Bluetooth. C. When you receive a call or make a call, recording starts automatically and recording ends when call is finished. D. Motion LED is turned on in red during recording. Caution ! In case talking time is less than 10 seconds, recording might not start. 3) General recording A. Move mode switch to recording. B. To turn on the power, press and hold the Talk/Power button until it vibrates. C. After showing current battery remains, the Motion LED lights up red and recording starts. D. Press and hold the Talk/Power button to end recording and turn off power. 4) Playing back A. Move mode switch to VOICE playback (⊙) B. To turn on the power, press and hold the Talk/Power button until it vibrates. C. Press the PLAY/STOP(▶/■) button. D. Play the recorded file if it exists.. E. During playback, it is possible to move files by pressing the button of previous file(◁◁) or next file(▷▷). F. Press the PLAY/STOP(▶/■) button again to stop. 5) Connecting to a PC A. Remove the product's L-channel (left) earphone and connect the USB cable to the terminal.. B. Connect the opposite cable to your PC. C. Connect to your PC as a removable disk. D. Removable disk ->VOICE folder contains recorded files and can be played and deleted. Caution ! Deleted files can not be recovered. Delete the files after checking them carefully. 3. Name of each part Motion LED Talk/Power Mike Mode Switch ↑ Bluetooth ⊙ VOICE playback ↓ Recording Right Earphone Left Earphone , USB Terminal + Next File, Volume+ ▷ Play - Previous File, Volume - 4. Specification Model No. BR-25 Bluetooth version V 4.0 Supported profiles HFP, HSP, A2DP Usage Distance Max. 10m Range of frequency 2402-2480 MHz Recording a call/Standby time about 10 hours / about 25 days General recording time XHQ about 25 hours / HQ about 30 hours Charging time about 2.5 hours Rechargeable Battery 230mAh Lithium Polymer 5. Cautions 1) In case there are no battery remains, recording is not possible. Please use it after charging all the time. 2) If you remove it from PC in using, contents could be lost and please be sure to use the USB safety removal. 3) Please undergo a backup for the files saved in internal memory all the time. FCC notice to users and product statements European CE notice to users and product statements A/S TEL : 070-4015-7114~6 Address : 2fl., 10-19, 166 beongil, LS-ro, Gunpo-si, Gyeonggi-do, Korea 15807 Homepage : http://www.esonic.co.kr Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, any cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

ESONIC CO., LTD. Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TG7BR-25 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram_BR-25.pdf Part list Partlist_BR-25.pdf Schematics Schematics_BR-25.pdf Operational Description Operating Description_BR-25.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name Internal Photo INTERNAL PHOTO_BR-25.pdf Manual Manual_BR-25.pdf Test Set-up Photo Test Setup Photo_BR-25.pdf For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Jeong Kyun, Park / Manager

ESONIC CO., LTD. Apr 16 th , 2021 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370a Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Hong gyu Lee of ICR Co.,Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: TG7BR-25 including signing of all documents relating to these matters. Any and all acts carried out by Hong gyu Lee of ICR Co.,Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from ESONIC CO., LTD. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Park Jeong Kyun / Manager

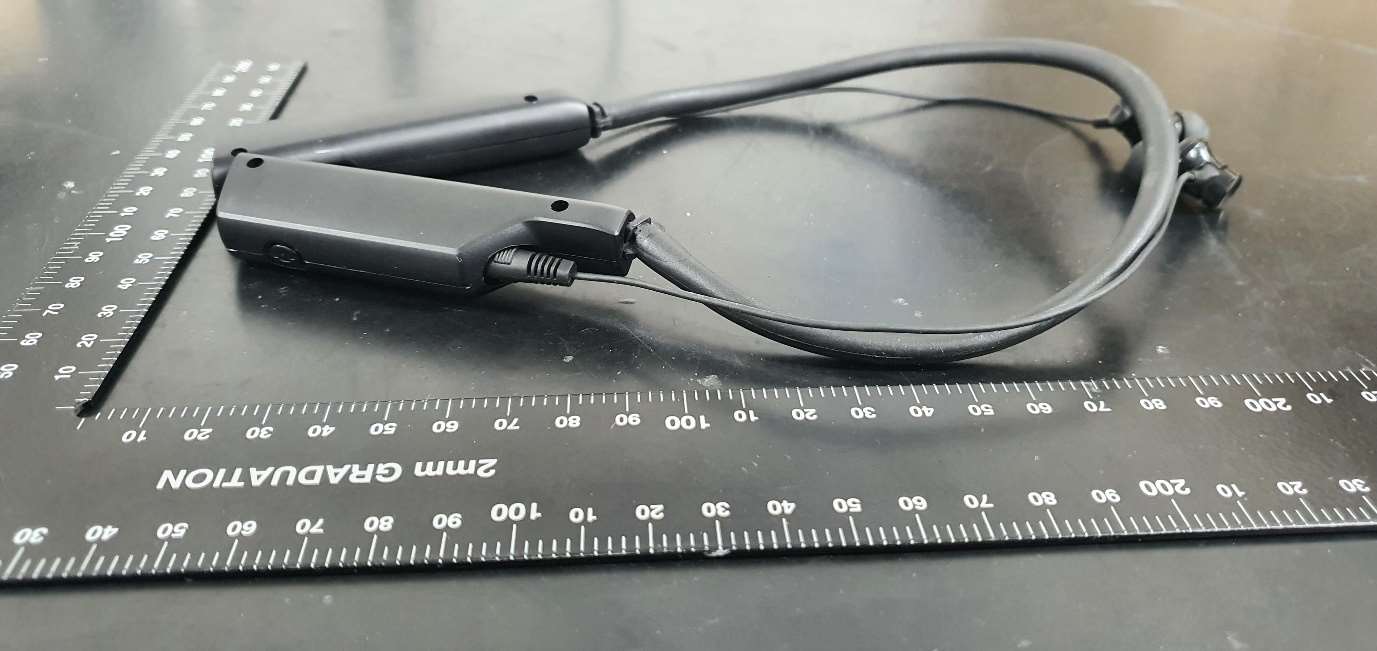

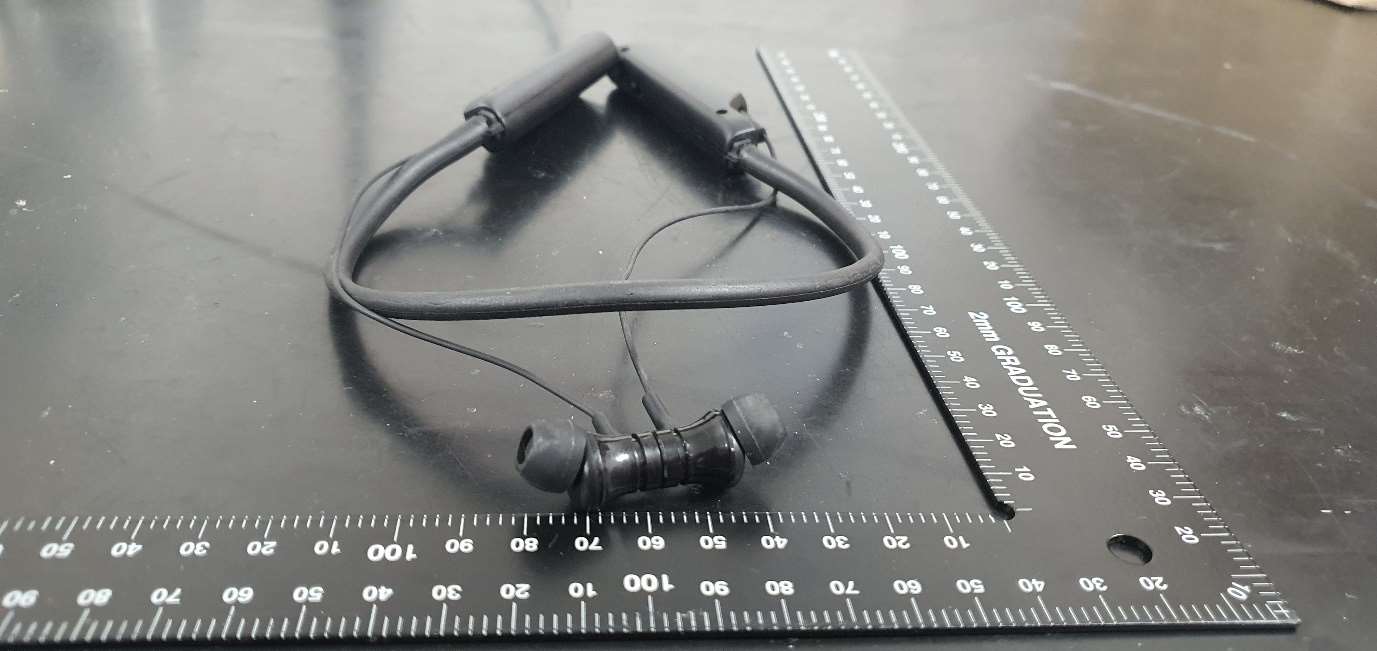

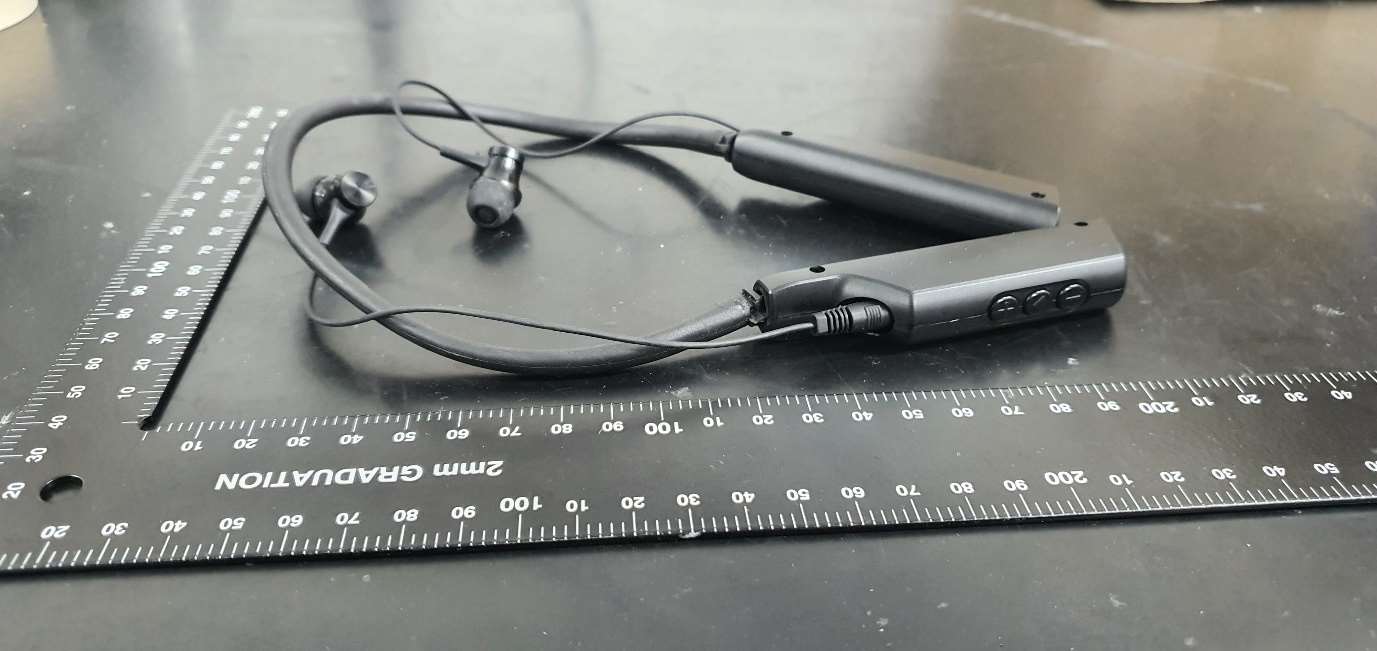

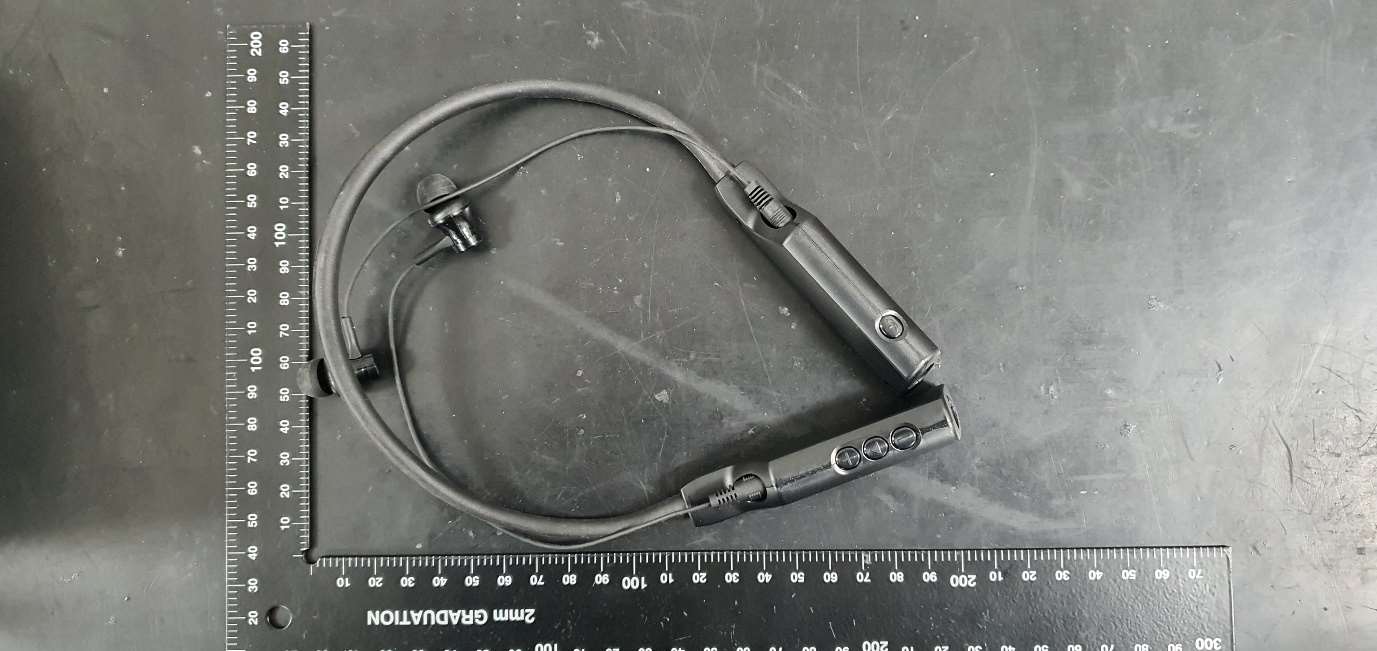

Exterior Photographs Front Top Rear Bottom Side 1 Side 2 Side 3 Side 4 Port

Label & Location

Internal of sample Main Board(Front) Main Board (rear) Sub Board 1 (Front) Sub Board 1 (rear) Sub Board 2 (Front) Sub Board 2 (rear) Antenna
