TGD10200WIRELESS THERMOSTAT

ENERNET Corporation Copyright ©2005 Model T9000 Wireless Thermostat Installation and User Guide Table of Contents INTRODUCTION............................................................................................................................................................................................................................1 MOUNTING....................................................................................................................................................................................................................................2 INSTALLING/CHANGING BATTERIES....................................................................................................................................................................................2 Figure 1 — Battery Locations.........................................................................................................................................................................................................................2 Replacing same type batteries (Alkaline or Lithium).................................................................................................................................................................2 Figure 2 — Opening Thermostat.....................................................................................................................................................................................................................2 FOUR-BUTTON / HOTEL CONFIGURATION..........................................................................................................................................................................3 Figure 3 — Four-Button Cluster......................................................................................................................................................................................................................3 Figure 4 — Four-Button LCD Display............................................................................................................................................................................................................3 SEVEN-BUTTON CONFIGURATION.........................................................................................................................................................................................4 Figure 5 — Three-Button Cluster....................................................................................................................................................................................................................4 SETTING THE CLOCK......................................................................................................................................................................................................................4 PROGRAMMING YOUR THERMOSTAT..................................................................................................................................................................................5 RUN BUTTON.................................................................................................................................................................................................................................6 CHANGING TEMPERTATURE WHILE RUNNING A PROGRAM.......................................................................................................................................6 IMPORTANT NOTE..........................................................................................................................................................................................................................6 INSTALLING AND REMOVING NODES...................................................................................................................................................................................7 The Linking Procedure..............................................................................................................................................................................................................7 Installing Nodes..............................................................................................................................................................................................................................................7 Removing Nodes........................................................................................................................................................................................................................7 All Nodes Removal.........................................................................................................................................................................................................................................7 Setting Min/Max Set Point.........................................................................................................................................................................................................8 Figure 7 — Internal Button.............................................................................................................................................................................................................................8 TROUBLESHOOTING FAQ.........................................................................................................................................................................................................9 Figure 1 — PTAC RCN Connection Diagram.....................................................................................................................................................................................12 Figure 2 — J-Box RCN Electric Heat Example..................................................................................................................…

Text truncated - open the document above for the full version.

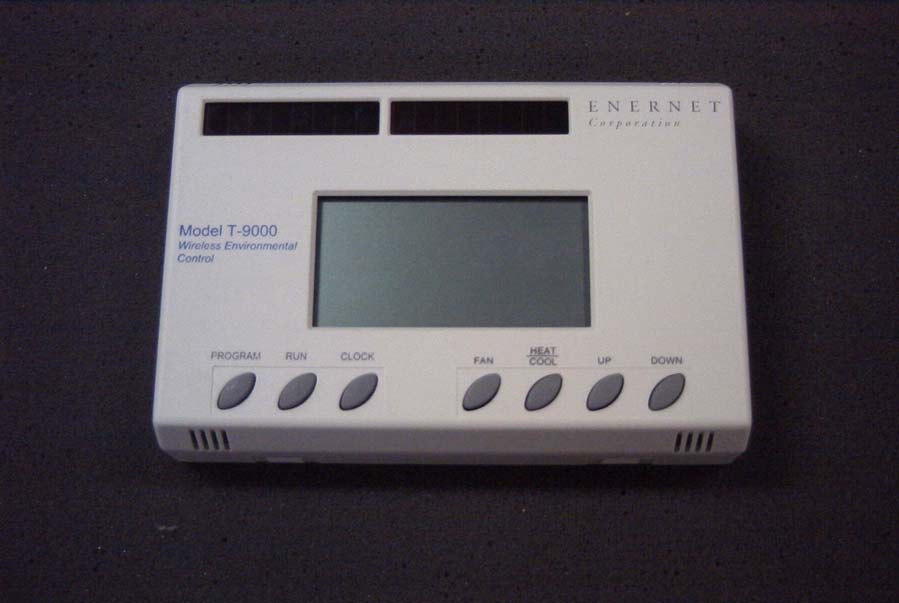

ENERNET CORPORATION FCC ID: TGD10200 EXTERNAL PHOTOGRAPHS

E N E R N E T C o r p o r a t i o n 307 Dewittshire Road Syracuse, New York 13214 (315) 449-0839 VOICE (315) 449-3056 FAX NOTES: Mfg.: SixB Labels — #R016S die choice. UL and CSA approved clear polyester face stock. High performance solvent-based acrylic adhesive. Service Temp. Range: -65°F to +302°F (-40° C to +150° C). Sans Serif Font 6 points. Black Ink. T9000 P/N 102, 105, 122 FCC/IC Label SCALE: DATE: DESIGN BY: DRAWING NO.: DRAWN BY: 1X = 1:1 / 2X = 2:1 08-10-05 B.J. Hesse B.J. Hesse FILE: \products\rfthermostat\drawings\enclosure\encl 06006-02 R016S die = 0.625 x 2.375 FCC ID TGD10200 / IC 6120A-10200 This device complies with Part 15 of the FCC rules. Opera- tion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. R016S die = 0.625 x 2.375 FCC ID TGD10200 / IC 6120A-10200 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1X 2X

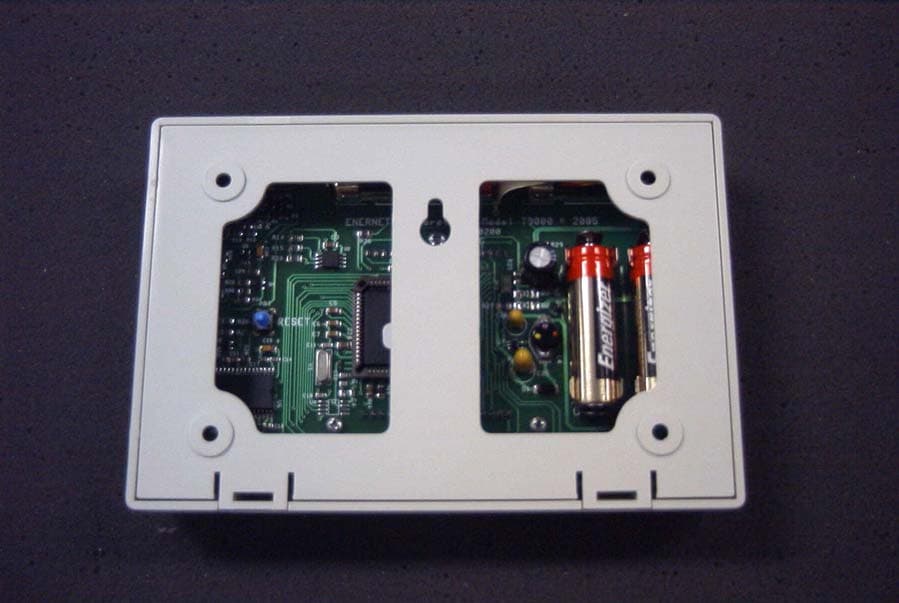

ENERNET CORPORATION FCC ID: TGD10200 INTERNAL PHOTOGRAPHS

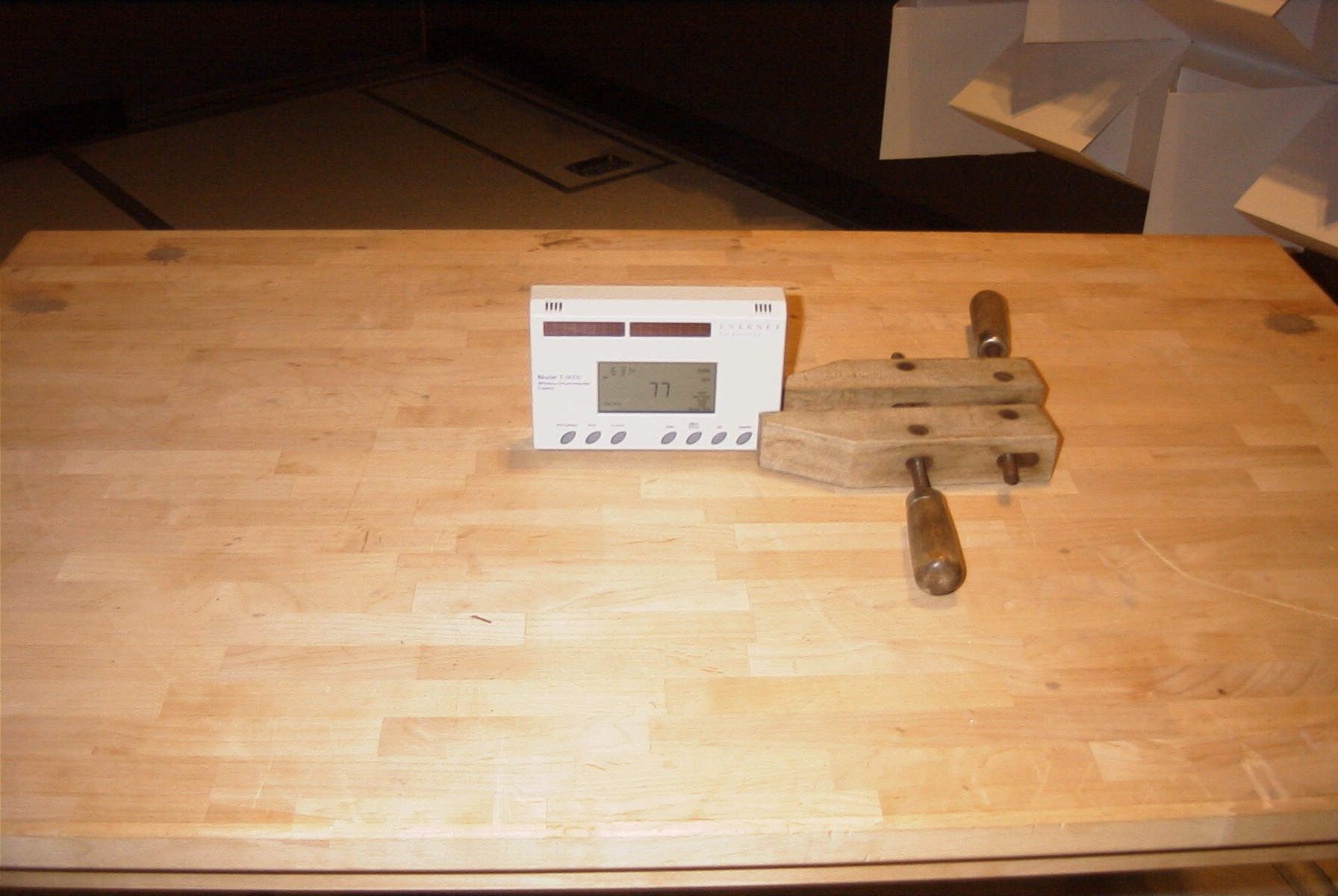

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 REPORT #: E\ENERNET\1542AUT5\1542AUT5TestReport.doc COVER SHEET Test Report Product Name: WIRELESS THERMOSTAT FCC ID: TGD10200 Applicant: ENERNET CORPORATION Date Receipt: 7/21/2005 Date Tested: 8/10/2005 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 REPORT #: E\ENERNET\1542AUT5\1542AUT5TestReport.doc TABLE OF CONTENTS APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-4.........RADIATION INTERFERENCE TEST DATA PAGE 5-7.........OCCUPIED BANDWIDTH EXHIBIT INCLUDED: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 REPORT #: E\ENERNET\1542AUT5\1542AUT5TestReport.doc Page 1 of 7 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 REPORT #: E\ENERNET\1542AUT5\1542AUT5TestReport.doc Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. The UUT was transmitting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 74.3oF with a humidity of 69%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 REPORT #: E\ENERNET\1542AUT5\1542AUT5TestReport.doc Page 3 of 7 APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.209 of Fundamental: of Harmonics 30 - 88 MHz 40 dBuV/m @3M 902-928 MHZ 88 - 216 MHz 43.5 2.4-2.4835 GHz 216 - 960 MHz 46 94 dBuV/m @3m 54 dBuV/m @3m ABOVE 960 MHz 54dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST RESULTS: This unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarit y Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 916.3 916.30 60.6 V 1.97 22.59 85.16 8.84 916.3 916.30 61.9 H 1.97 23.43 87.30 6.70 916.3 2,749.00 11.1 H 3.42 32.90 47.42 6.58 916.3 2,749.00 15.1 V 3.42 32.90 51.42 2.58 916.3 3,665.30 4.0 V 4.20 33.43 41.63 12.37 916.3 3,665.30 6.0 H 4.20 33.43 43.63 10.37 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 REPORT #: E\ENERNET\1542AUT5\1542AUT5TestReport.doc Page 4 of 7 APPLICANT: ENERNET CORPORATION FCC ID: TGD10200 NAME OF TEST: RADIATION INTERFERENCE TEST PROCEDURE: ANSI STANDARD C63.4-2003 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Pre-selector, a Hewlett Packard Model 85650A Quasi-Peak adapter, and an appropriate antenna. The bandwidth of spectrum analyzer was 100 kHz with an appropriate sweep speed. When an emission was found, the table was rotated to produce the maximum signal strength…
