THGGZ2055Gizmondo / Game Console GPRS / BT

gizmondo quick start guide gizmondo quick start guide gizmondo quick start guide introduction page 3 Welcome to gizmondo. in this booklet is all you need to know to get your device up and running quickly and easily. We don’t want anything getting in the way of you starting to use your gizmondo tm device, so in the following pages, we have provided you with an accessible guide to all your new system has to offer. By the time you have finished reading this you will be fully equipped to take complete advantage of the range of entertainment options the gizmondo tm device has in store. Then, if you are still inquisitive to find out more, in-depth detail, about specific functions you can take a look at the user guide on the cd enclosed in your pack. introduction gizmondo quick start guide content page 4 5. pack contents 6. What does each Button do? 8. get up and running 13. registering your device 22. piano keys 28. main menu 29. inserting an sd card 30. games 31. movies 35. music 38. messaging 46. gps 53. gps services 73. digital camera 76. contacts List 79. applications 85. Bluetooth tm 88. topping up your sim card 92. usB 93. mobile content services contents gizmondo quick start guide pack contents page 5 What should i find included in the gizmondo tm device pack? You should find the following included in your Gizmondo pack: 1. gizmondo tm device 2. device charger 3. Battery 4. gizmondo quick start user guide 5. CD-ROM featuring the In-Depth User Guide 6. SIM Card. We have provided you with a Vodaphone pre-pay SIM Card. 7. stereo Headphones 8. usB cable 9. sd card. pack contents What does each button do? gizmondo quick start guide tHe gizmondo tm device page 6 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. gizmondo quick start guide tHe gizmondo tm device page 7 1. d-pad: This control allows you to navigate quickly through the menus. 2. l-shift: When used in conjunction with one of the other control buttons the shift opens up many opportunities for multi-functionality. 3. home: By selecting this control button you will be immediately transported back to the main menu. 4. volume: This control allows you to adjust the volume of any music or media quickly and conveniently. 5. brightness: This gives the option to quickly and easily adjust the brightness of the image on the main screen. 6. alert: At Gizmondo we realize that the world we live in is not always as safe as we may hope, so we have incorporated an alert system into your device. see page 26 for further details. 7. poWer: An easily accessible on/off button to activate your Device. 8. reWind: This has various uses, including giving you the flexibility to backtrack through movies or music. 9. r menu: This conveniently placed button allows you quick and easy access to additional menus within the separate function areas of your device. 10. stop/back: This button allows you to navigate back through the different functions on your Gizmondo tm device, and provides you with a clear and easy way of stopping a movie or piece of music at any given point. . 11. fast forWard: This has various uses, including giving you the flexibility to move forward through movies or music, and scroll through your messages. 12. play/ accept: This acts like an enter key, allowing you to accept a function once you have selected it on the main screen. This will also, amongst other things, play music and movie files for you, read on for more details. 13. camera: The centralised position of the camera lens makes it easy to focus in on the subject of your photograph, whilst viewing the image on the main screen. 14. battery cover: An easy to remove cover to keep the battery protected. 15. poWer socket: This allows you to charge your Device efficiently by connecting it directly to a mains power supply. 16. usb socket: In order that you can take full advantage of your Gizmondo tm device, we have integrated a USB socket into the console so that you can plug your Device directly into your PC and use it in conjunction with microsoft® activesync. 17. stereo headphone socket: Allows you to enjoy your Gizmondo tm device without interruption 18. sd card slot: When you buy games or movies for your Gizmondo tm device they will come in the form of an sd memory card. get up and running to get your gizmondo tm device up and running you will need to carefully work through the step by step instructions, as outlined in the next 4 pages: 1. installing your sim card and battery 2. charging your battery 3. powering up the device gizmondo quick start guide get up and running page 8 installing your sim card and battery the sim card is enclosed in your pack. as a means of protection, it is attached to a credit card-sized piece of plastic. Carefully push the sim card away from the surrounding card, making sure that nothing comes into contact with its metal contacts. make sure the gizmondo tm device is switched off and the charger is disconnected. turn your gizmondo tm device over so it is facing front down. You will see that there is a battery cover at the back of the gizmondo tm device. remove this battery cover by releasing the catch. in the centre of the battery compartment you will see that there is a sim card holder. Lift sim card holder. 1. 2. 3. 4. 5. 6. gizmondo quick start guide instaLL sim and BatterY page 9 installing your sim card and battery slide the sim card into the holder. When installing the sim card be sure that you have the gold bars on the card facing into the gizmondo tm Device, so that they align with the six gold contacts within the body of the device. the cut away notch in the sim card should be facing towards the top left hand side of the gizmondo tm device. Lower the sim card holder back into the body of the gizmondo tm device. slide the silver metallic strip, which is across the sim card holder, upwards towards the top of the gizmondo tm device. place the battery inside the device, as shown in the diagram. make sure that the gold contacts on the batter…

Text truncated - open the document above for the full version.

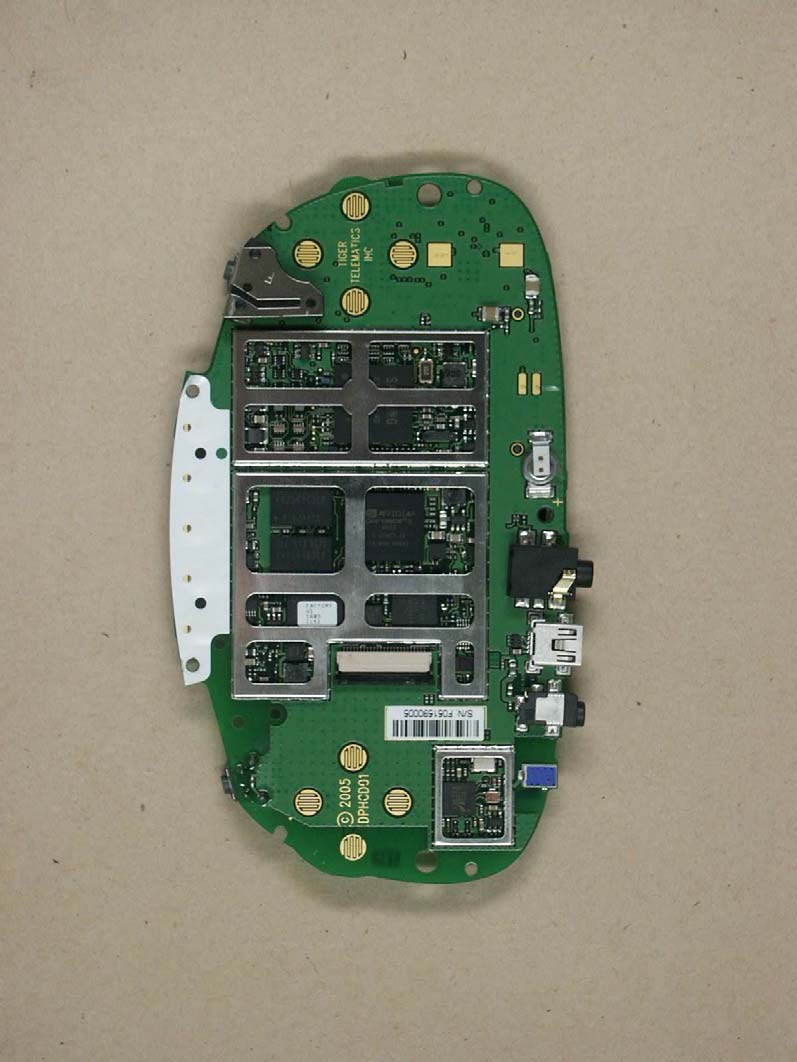

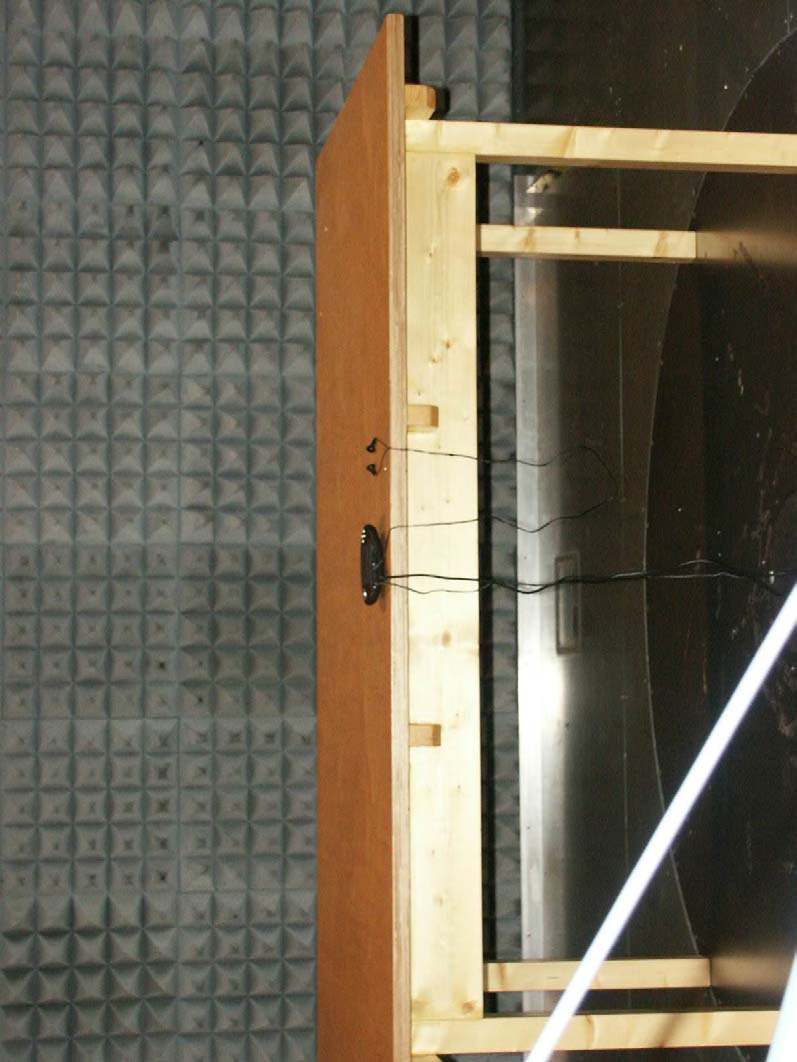

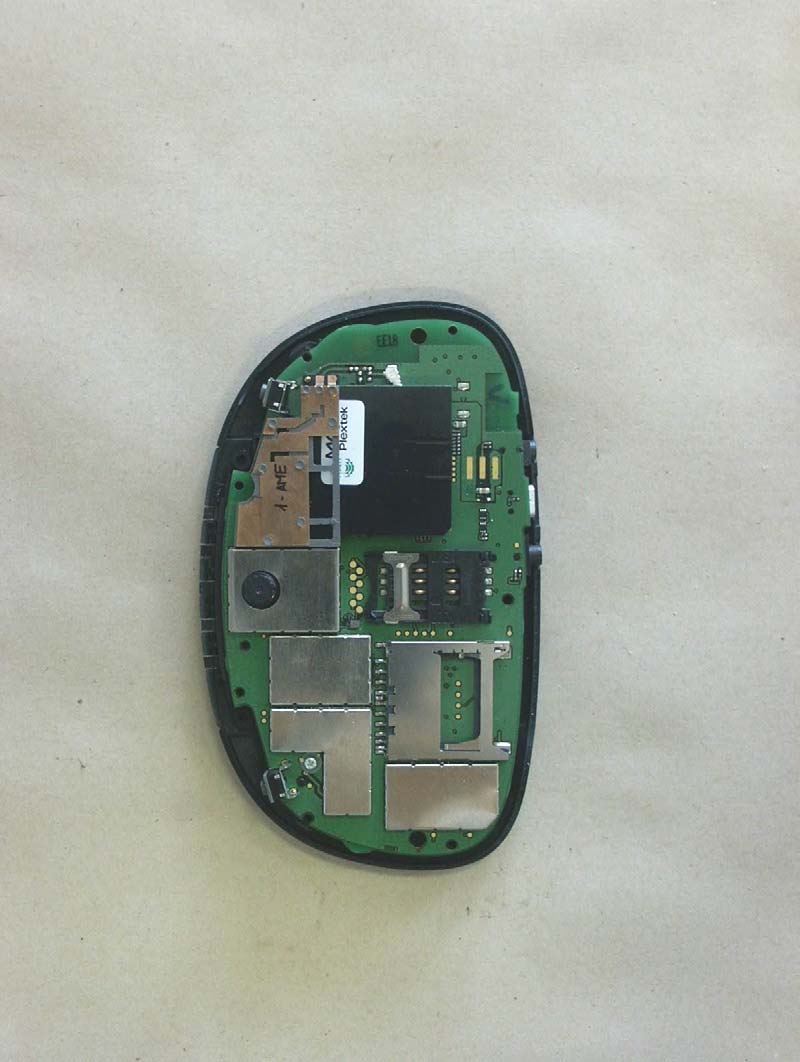

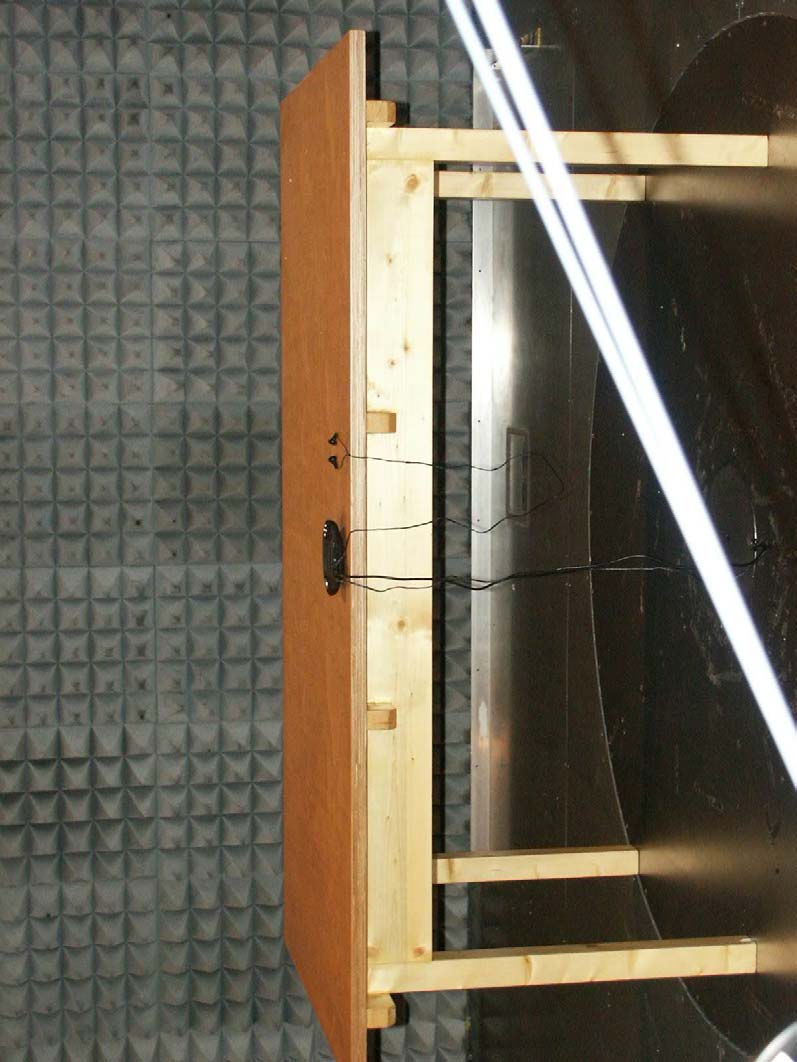

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 1 of 16 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 2 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 3 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 4 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 5 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 6 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 7 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 8 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 9 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 10 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 11 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 12 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 13 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 14 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 15 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 16 of 16

GIZMONDO GZ2055 label specification

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 7 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 8 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 9 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 10 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 11 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 12 of 16

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20507-9636-S-1 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-S-1 Page 1 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-S-1 Page 2 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 29.08.2005 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 29.08.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-S-1 Page 3 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Gizmondo Europe Ltd Street : 1 Meadow Gate Avenue Farnborough Business Park Town : Farnborough, Hants GU14 6FG Country : U.K. Telephone : +44(0)1252 557 100 Fax : +44(0)1252 557 101 Contact : Mr. Ilkka Martikainen E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-S-1 Page 4 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 05.07.2005 Date of receipt of test item : 05.07.2005 Date of test : 06.07.2005 - 08.07.2005 1.6 Test item FCC ID : THGGZ2055 Description of test item : Gizmondo / Game Console GPRS / BT Type identification : Gizmondo Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM900 DCS1800 PCS 1900 TX Frequency range : 880,2 - 914,8 MHz 1710,2 - 1784,8 MHz 1850,2 - 1909,9 MHz RX Frequency range : 925,2 - 959,8 MHz 1805,2 - 1879,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 31,57 dBm (1,44W) 28,87 dBm (0,77W) Power supply : 3.7 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx antenna are the same. This device contains 900/1800 MHz functions that are not subject to this FC filing. This filing is only applicable for PCS 1900 MHz operations. 1.7 Test Results Max. SAR Measurement (GSM900) : 0.643 W/kg (averaged over 1 gram) Max. SAR Measurement (DCS1800) : 0.318 W/kg (averaged over 1 gram) Max. SAR Measurement (PCS1900) : 0.210 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-S-1 Page 5 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagn…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-S-1 Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 07/08/05 10:02:45 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (m)_250mW_08.07.2005 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.06 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.2 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 4.14 W/kg SAR(1 g) = 2.8 mW/g; SAR(10 g) = 1.8 mW/g Maximum value of SAR (measured) = 3.05 mW/g 0 dB = 3.05mW/g Date/Time: 07/06/05 08:38:38 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1800(m)_250mW_6.7.2005 DUT: Dipole 1800 MHz (D1800V2); Type: SA AAD 180 BA; Serial: 2d046 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: Muscle 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.58 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 1800 (250mW)/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.9 mW/g Dipol 1800 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.1 V/m; Power Drift = -0.004 dB Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.49 mW/g Maximum value of SAR (measured) = 11.9 mW/g 0 dB = 11.9mW/g Date/Time: 07/07/05 08:16:15 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW_7.7.2005 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.9 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.6 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 10.9 mW/g; SAR(10 g) = 5.71 mW/g Maximum value of SAR (measured) = 12.4 mW/g 0 dB = 12.4mW/g Date/Time: 07/08/05 06:32:24 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 900_flat_front_ch62 DUT: GIZMONDO; Type: Gameconsole; Serial: MC55 Communication System: EGSM 900; Frequency: 902.4 MHz;Duty Cycle: 1:8.3 Medium: Muscle 900 MHz Medium parameters used (interpolated): f = 902.4 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 MC55/Area Scan (121x181x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.575 mW/g MC55/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.670 W/kg SAR(1 g) = 0.540 mW/g; SAR(10 g) = 0.407 mW/g Maximum value of SAR (measured) = 0.568 mW/g MC55/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.763 W/kg SAR(1 g) = 0.508 mW/g; SAR(10 g) = 0.354 mW/g Maximum value of SAR (measured) = 0.551 mW/g 0 dB = 0.551mW/g Date/Time: 07/08/05 10:29:24 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 900_flat_back_ch62 DUT: GIZMONDO; Type: Gameconsole; Serial: MC55 Communication System: EGSM 900; Frequency: 902.4 MHz;Duty Cycle: 1:8.3 Medium: Muscle 900 MHz Medium parameters used (interpolated): f = 902.4 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 MC55/Area Scan (121x181x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.803 mW/g MC55/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.3 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.736 mW/g; SAR(10 g) = 0.470 mW/g Maximum value of SAR (measured) = 0.808 mW/g MC55/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value =…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 24 Test report no.: G0M20507-9636-P-24 FCC ID: THGGZ2055 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 1 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Occupied Bandwidth, FCC 2.1049 6.1 Test Procedure 6.2 Test Results 7 Field Strength of Spurious Radiations, FCC 2.1053, 24.238 7.1 Test Procedure 7.2 Test Results 8 Line Conducted Emissions, FCC 15.207 8.1 Test Procedure 8.2 Test Results 9 Frequency Stability vs Temperature, FCC 2.1055, 24.235 9.1 Test Procedure 9.2 Test Results 10 Frequency Stability vs Voltage, FCC 2.1055, 24.235 10.1 Test Procedure 10.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 2 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 01.08.2005 Date ETS-Lab. Name Signature Technical responsibility for area of testing: 01.08.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 3 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : Gizmondo Europe Ltd Street : 1 Meadow Gate Avenue Farnborough Business Park Town : Farnborough, Hants GU14 6FG Country : U.K. Telephone : +44(0)1252 557 100 Fax : +44(0)1252 557 101 Contact : Mr. Ilkka Martikainen Email : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 4 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 05.07.2005 Date of receipt of test item : 05.07.2005 Date of test : 13.07.2005 – 15.07.2005 1.5 Test item Description of test item : Gizmondo / Game Console GPRS / BT Type identification : Gizmondo Serial number : Test model without serial number. Photos : See annex A Technical data Frequency range Tx : 1850.2 - 1909.8 MHz Frequency range Rx : 1930.2 – 1989.8 MHz Antenna transmitter : external antenna Antenna Gain : 0 dBi Power supply : 3.7 V DC 120 V AC/DC Adaptor Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : Additional information : This device contains 900/1800 MHz functions that are not subject to this FCC filing. This filing is only applicable for PCS 1900 MHz operations. ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 5 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Part 24 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Extreme temperature : -30 / 50 °C ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9636-P-24 Page 6 of 30 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SMV 11 MEB ETS 0006 Test receiver system SME 12 MEB ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Antenna ARA 2 MEB ETS 0010 Antenna Loop antenna MEB ETS 0011 Antenna van Veen/ Frame Rohde & Schwarz ETS 0012 Antenna HK 116 Rohde & Schwarz ETS 0013 Antenna HL 223 Rohde & Schwarz ETS 0014 Antenna HL 025 Rohde & Schwarz ETS 0015 Antenna HL 025 Rohde & Schwarz ETS 0016 Precision antenna kit VHAP …
