TIH-BSAP1800V2Wireless Access Point

1 BlueSecure TM Access Point 1800 Installation Guide Bluesocket, Inc 10 North Avenue Burlington, MA 01803 USA +1 781-328-0888 www.bluesocket.com Document Version 1.0 BlueSecure™ Access Point 1800 Installation Guide 2 Copyright Notice Copyright © 2010 Bluesocket, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means, electronic or manual, including photocopying without the written permission of Bluesocket, Inc. The products described in this document may be protected by one or more U.S. patents, foreign patents, or pending patents. This document is provided “as is” without warranty of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. This publication could include technical inaccuracies or typographical errors. Changes are periodically added to the information herein; these changes will be incorporated in new editions of the document. Bluesocket inc. may make improvements or changes in the products or the programs described in this document at any time. Trademarks Bluesocket, The Bluesocket Logo, Secure Mobility, BlueView, and BlueSecure are trademarks or registered trademarks of Bluesocket, Inc. Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and is licensed to Bluesocket, Inc. All other trademarks, trade names and company names referenced herein are used for identification purposes only and are the property of their respective owners. BlueSecure™ Access Point 1800 Installation Guide 3 Table of Contents I. Overview............................................................................................................................4 II. Familiarizing Yourself with the BSAP-1800 Hardware................................................5 III. Provisioning Your Bluesocket WLAN for BSAPs..........................................................8 IV. Selecting a BSAP Installation Location......................................................................11 V. Wall Mounting the BSAP-1800.......................................................................................12 VI. Ceiling Mounting Kit for the BSAP-1800....................................................................13 VII. Connecting and Powering the BSAP..........................................................................15 VIII. Using the BSAP Command Line Interface (CLI)...................................................16 IX. General Specifications.................................................................................................22 BlueSecure™ Access Point 1800 Installation Guide 4 I. Overview The BlueSecure Access Point 1800 is an 802.11n-based “thin” access point that works in conjunction with BlueSecure Controllers (BSCs) for enterprise wireless LAN (WLAN) deployments. The BlueSecure Access Point 1800 features dual radios supporting 802.11a/n and 802.11b/g/n with a high performance internal antenna. BSAPs are simple to configure and require only minimal provisioning to make them operational on a WLAN secured and managed by a BlueSecure Controller BSAPs can be directly attached to any existing Layer-2 or Layer-3 Ethernet switch and communicate with the BSC across any subnet boundary. Once the BSAP has discovered and established Layer-2 or Layer-3 communication with its home (i.e., host) BlueSecure Controller, advanced configuration and provisioning may be applied either to individual BSAPs or globally across the entire WLAN using the BSC’s web-based Administrator Console. Figure 1: BSAPs Automatically Discover BSCs across L2/L3 Networks Once the BlueSecure Access Point has downloaded its configuration from the BlueSecure Controller, the BSAP initializes its radios and begins servicing clients. This guide provides complete installation procedures for your BSAP including: • Familiarizing yourself with the BSAP hardware • Provisioning your Bluesocket WLAN for BSAPs • Selecting a BSAP installation location • Connecting and powering the BSAP • Using the BSAP command line interface (CLI) BlueSecure™ Access Point 1800 Installation Guide 5 II. Familiarizing Yourself with the BSAP-1800 Hardware Make sure that you receive the following items in the package: 1 - BSAP-1800 1 - Wall-mounting Hardware (Wall/table bracket/stand, 4 screws, 4 wall anchors) 8 - Adhesive rubber feet 1 - Ceiling mounting Hardware Please spend a few minutes familiarizing yourself with the BSAP-1800 enclosure. Antenna The BSAP-1800 has a high-performance internal antenna (no external antenna is required) LED Indicators The following LED indicators are located on the top of the BSAP-1800 housing. BlueSecure™ Access Point 1800 Installation Guide 6 Table 1: Status and Radio LED Definitions Status 2.4Ghz LED 5Ghz LED Description Yellow Solid Off Off Initial power-up Green Solid Off Off Initializing software and acquiring an IP address Green Blink Off Off Discovering Bluesocket controller Green Solid Green Solid/Blink Green Solid/Blink Radios Activated and passing traffic Orange Solid Off Off Software Upgrade Table 2: Network LED Definitions Network LED Description Off No Link Detected Amber - ON 10/100 Link Detect with No Activity Amber - Blinking 10/100 Link Detect with with Activity Green - ON 1000 Link Detect with No Activity Green - Blinking 1000 Link Detect with with Activity The BSAP does not have a power switch. It’s powered on when connected to a Power over Ethernet (PoE) from a PoE injector (BSAP-POE-001-00-0), switch or other network device that supplies power over the network cable based on the IEEE 802.3af standard. Ethernet/PoE Connector The BSAP-1800 has one auto-sensing 10BASE-T/100BASE-TX/1000BaseT RJ-45 connector that can be attached directly to 10BASE-T/100BASE-TX/1000BaseT switches to provide a full-duplex link. These segments must conform to the IEEE 802.3 or 802.3u specifications. This connector uses an MDI (i.e., internal straight-through) pin c…

Text truncated - open the document above for the full version.

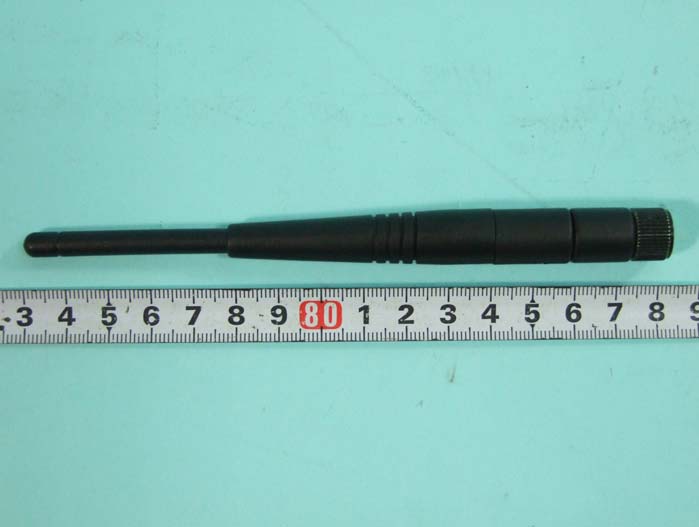

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT Internal antenna Model No. BSAP-1800 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 External antenna Model No. BSAP-1840C FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C17 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C18 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C19 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C20 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255

WP741AP-B3(BSAP-1840) Safety label 509110050827 Violet 賀麗輝 2009.07.21 Z1194 Z1194 Black WP741APE-B3(11N) Bluesocket Product label MM128008207 Violet 賀麗輝 2010.3.03 509120063327 FCC ID: TIH-BSAP1800V2 IC: 6023A-BSAP1800V2 P/N: 870-01800-001 Wireless Access Point BSAP-1800 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BSAP-1800 Code 39* 1. S/N 1802 WW YY 04 XXXX 2. MAC ID: Blueskcket MAC address:() MAC address 32MAC address(16) Label MAC MAC ID (00,20,40,60,80,A0,C0,E0). LiteOn 0001 :BSAP-1800 :XXXXXXXXXXXX :1802WWYY04XXXX Coce 39 MAC: XXXXXXXXXXXX S/N: 1802WWYY04XXXX Input (DC Jack): 12V , 1.25A Input (PoE 802.3af): 48V , 0.32A FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 04, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT Internal antenna Model No. BSAP-1800 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C20 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT External antenna Model No. BSAP-1840C FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C17 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C18 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C19 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C20 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C21 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C22 OF C26 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 17, 2010 FAX : 886-2-2696-2255

FCC RADIO TEST REPORT Report No.: FR843032-17AI Page No. : A1 of A3 FCC ID : TIH-BSAP1800V2 Appendix A. Maximum Permissible Exposure FCC RADIO TEST REPORT Report No.: FR843032-17AI Page No. : A2 of A3 FCC ID : TIH-BSAP1800V2 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC RADIO TEST REPORT Report No.: FR843032-17AI Page No. : A3 of A3 FCC ID : TIH-BSAP1800V2 1.3. Calculated Result and Limit Antenna Type : Monopole Antenna For Single Chain: Max Conducted Power for IEEE 802.11a : 12.69dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 12.6900 18.5780 0.005861 1 Complies Max Conducted Power for IEEE 802.11n (40MHz) : 16.65dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 16.6500 46.2381 0.014586 1 Complies For Two Chain: Max Conducted Power for IEEE 802.11n Ant. 1 & 2 (40MHz) : 15.22dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 15.2200 33.2660 0.010494 1 Complies

FCC RADIO TEST REPORT Report No.: FR843032-17AI Page No. : A1 of A3 FCC ID : TIH-BSAP1800V2 Appendix A. Maximum Permissible Exposure FCC RADIO TEST REPORT Report No.: FR843032-17AI Page No. : A2 of A3 FCC ID : TIH-BSAP1800V2 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC RADIO TEST REPORT Report No.: FR843032-17AI Page No. : A3 of A3 FCC ID : TIH-BSAP1800V2 1.3. Calculated Result and Limit Antenna Type : PCB Antenna For Two Chain: Max Conducted Power for IEEE 802.11a Ant. A + Ant. B: 12.21dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.08 3.221069 12.21 16.6341 0.0107 Max Conducted Power for IEEE 802.11n Ant. A + Ant. B (40MHz) : 13.14dB Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.08 3.221069 13.14 20.6063 0.0132

FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 1 of 13 FCC ID : TIH-BSAP1800V2 Co-location Report FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 2 of 13 FCC ID : TIH-BSAP1800V2 1 TEST RESULT 1.1 Radiated Emissions Measurement 1.1.1 Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2 Measuring Instruments and Setting Please refer to section 2 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band)1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 3 of 13 FCC ID : TIH-BSAP1800V2 1.1.3 Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 4 of 13 FCC ID : TIH-BSAP1800V2 1.1.4 Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5 Test Deviation There is no deviation with the original standard. 1.1.6 EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 5 of 13 FCC ID : TIH-BSAP1800V2 1.1.7 Results of Radiated Emissions (9kHz~30MHz) Final Test Date Aug. 03 2009 Test Site No. OS04-LK Temperature 26 Humidity 49% Test Engineer Benny Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 6 of 13 FCC ID : TIH-BSAP1800V2 1.1.8 Results of Radiated Emissions (30MHz~1GHz) Final Test Date Aug. 03 2009 Test Site No. OS04-LK Temperature 26 Humidity 49% Test Engineer Benny Configuration POE Mode (Power Supply: POE20U-560(G) -R) Horizontal FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 7 of 13 FCC ID : TIH-BSAP1800V2 FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 8 of 13 FCC ID : TIH-BSAP1800V2 Vertical FCC RADIO TEST REPORT Report No.: FR843032-17 Page No. : 9 of 13 FCC ID : TIH-BSAP1800V2 Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Pr…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No.: FR843032-17AI SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart E § 15.407 Equipment : Wireless Access Point Model No. : BSAP-1840C Brand Name : bluesocket Filing Type : Addational Applicant : Bluesocket, Incorporated 10 North Ave Burlington Massachusetts 01803 United States FCC ID : TIH-BSAP1800V2 Manufacturer : DONG GUAN G-COM COMPUTER CO., LTD 1 st Row Yin Shan Rd., Yin Hwu Industrial Area, Qingxi Town, DongGuan City, Guang Dong, China Received Date : May 01, 2008 Final Test Date : Aug. 03, 2009 Statement Test result included is only for the 802.11a/n (5150~5250MHz) Monopole Antenna of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC RADIO TEST REPORT Report No.: FR843032-17AI SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Mar. 03, 2010 FAX : 886-2-2696-2255 FCC ID : TIH-BSAP1800V2 Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 4 2 GENERAL INFORMATION..................................................................................................................................... 5 2.1 Product Details ........................................................................................................................................................................................ 5 2.2 Table for Filed Antenna ........................................................................................................................................................................... 5 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 7 2.4 Table for Test Modes .............................................................................................................................................................................. 8 2.5 Table for Testing Locations ..................................................................................................................................................................... 9 2.6 Table for Supporting Units....................................................................................................................................................................... 9 2.7 Table for Parameters of Test Software Setting ..................................................................................................................................... 10 2.8 EUT Operation during Test ................................................................................................................................................................... 10 2.9 Test Configuration ................................................................................................................................................................................. 11 3 TEST RESULT ...................................................................................................................................................... 13 3.1 AC Power Line Conducted Emissions Measurement............................................................................................................................ 13 3.2 99% Occupied Bandwidth Measurement .............................................................................................................................................. 21 3.3 Maximum Conducted Output Power Measurement .............................................................................................................................. 32 3.4 Power Spectral Density Measurement .................................................................................................................................................. 47 3.5 Peak Excursion Measurement .............................................................................................................................................................. 58 3.6 Radiated Emissions Measurement........................................................................................................................................................ 69 3.7 Band Edge and Fundamental Emissions Measurement ..................................................................................................................... 103 3.8 Frequency Stability Measurement....................................................................................................................................................... 109 3.9 Antenna Requirements........................................................................................................................................................................ 112 4 LIST OF MEASURING EQUIPMENTS ...................................…
