TIQ-MA110Bluetooth adapter to use with an Apple iPod.

© 2005-2006 Wi-Gear, Inc. All rights reserved. iMuffs, Wi-Gear, and the Wi-Gear logo are trademarks of Wi- Gear Inc. The Bluetooth word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Wi-Gear Inc. is under license. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. All other products and services may be marks of their respective owners. Printed in China. www.wi-gear.com USER GUIDE 1313 Regulatory Infor mation FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radio and Television Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. IMPORTANT: Changes or modifications not expressly approved by Wi-Gear Inc. could void the user's authority to operate the equipment. IC Compliance Statement The term "IC": before the certification/registration number only signifies that the Industry Canada technical specifications were met. 13 Contents Introduction 1 What's included in this package? 2 Product Features 3 Getting Started 5 Playing Music 6 Bluetooth phone operation 8 Troubleshooting 10 Specifications 11 Regulatory Information 13 Introduction Cut the cord today! Congratulations on purchasing iMuffs™ wireless headphones for your iPod™ AND Bluetooth ® phone! Soon you'll be enjoying these benefits: Wireless Freedom - Throw your iPod in your backpack and listen to your music wirelessly! No more cords to untangle or snag. Enjoy near-CD quality sound up to 30' (10m) away thanks to the Advanced Audio Distribution Profile (A2DP) and Bluetooth 2.0. Never Miss a Call - When your Bluetooth phone rings, the iMuffs automatically pause your iPod and ring in the headphones, and let you talk through the integrated microphone. Versatile - Listen to music from your laptop or desktop 1 , iPaq, or MP3 smartphone 2 . Talk on the phone or over iChat or Skype. Even chat while playing video games. Ergonomic Controls - Intuitive controls let you pause, change volume, and skip tracks right from the headphones. 1 Currently, Windows XP only and requires a Bluetooth adaptor with A2DP support (Bluetooth Stereo). 2 Must support Bluetooth Stereo using A2DP. Battery n Battery Type: Lithium-Polymer 500mAh (built-in, not user-serviceable) n Charge Time: Quick charge, 80% in 2 hours / Full charge in 5 hours n Up to 16 hours of continuous operation of the headphones depending on usage pattern, distance from adaptor, and battery age. iMuffs Adaptor for iPod is dependent on iPod's actual battery capacity. Power Input n Standard USB voltage input (mini-USB, 5-pin) or Provided AC-DC n USB Power Adapter (110-240V) Temperature n Operating: 0∞-35∞ C (32∞-95∞ F) n Storage: -20-50∞ C (-68∞- 122∞ F) Weight n 2.3 oz (headphones) n 0.3 oz (adaptor) 112 Specifications Wireless Range n 3-10 meters (9-30 feet) n Actual range depends on environmental factors: orientation of devices relative to each other, obstructions and enclosures, radio frequency noise, and interference. Bluetooth n Bluetooth 2.0 n Advanced Audio Distribution Profile (A2DP) n Audio Video Remote Control Profile (AVRCP) n Headphones Profile (HSP) n Handsfree Profile (HFP) Audio Code n Codec Encoder/Decoder Type: Sub-band Codec (SBC) n Bit Rate: 328 kb/s (High Quality) Audio Output n Near CD-quality (44.1 KHz, 16-bit) n Frequency response: 20Hz-20KHz Audio Input n Apple iPod Dock Connector Line Out n Built-in unidirectional microphone Wha t's Included in this Pac kage? n iMuffs Stereo Bluetooth Headphones n iMuffs Dock Adaptor for iPod (see below) n Travel charger/adaptor n USB cable n User Guide 112 iPod (4G)iPod miniiPod (3G) Compatible with these models: iPod nano iPod with video (5G) iPod with color display iPod photo Troubleshooting If you have problems using the iMuffs Stereo Bluetooth Headphones, this section may help. For further help, please visit www.wi-gear.com. Most problems can be resolved with a simple reset. Switch the headphones off, and then on. Unplug the adaptor from the iPod, plug it back in. You hear no sound. Ensure the headphones are switched on and the iMuffs Dock Adaptor for iPod is plugged into a compatible iPod. If the iPod screen is blank, the iPod may have gone to sleep mode. Press Menu on the iPod to turn it on. Verify that the devices are within the recommended range of approximately 30 feet (10 meters). The headphone does not power on. The battery charge may be too low. In this case, the orange LED may flash and be accompanied by alert beeps. 310 Pr oduct Fea tures Familiarize yourself with all of the controls located on the right side of your iMuffs headphones. Please note that the two LEDs are visible only when lit. View of controls (right side) Blue LED Orange LED Next/FF button Previous/Rewind button Power switch USB charg…

Text truncated - open the document above for the full version.

Adapter – MA110 Block Diagram SPI: Connect for Flash Programming via logic level card UART: Connect to iPod for communication and Test Modes “BlueTest” Output: (1) LED Stereo Audio Input: Stereo audio output from Apple iPod BlueCore3-Multimedia IC “Single chip contains the following” XTAL 26 MHz Antenna

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TIQ-MA110 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: o Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Michael Kim February 3, 2006

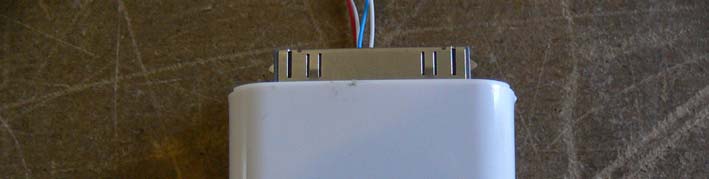

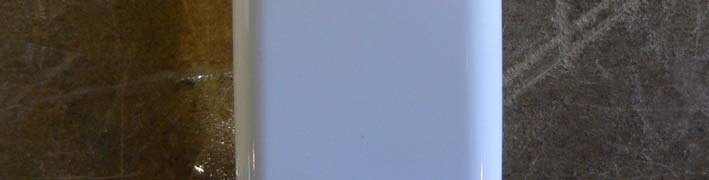

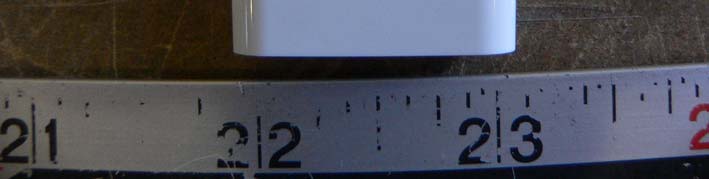

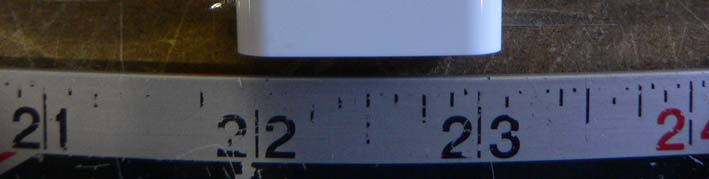

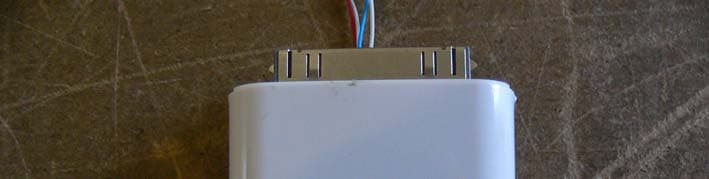

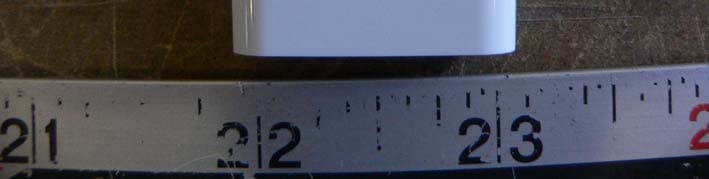

Wi-Gear Inc. FCC ID: TIQ-MA110 EXHIBIT C - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear Side of EUT/Proposed FCC ID Label FCC ID: TIQ-MA110 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Wi-Gear Inc. FCC ID: TIQ-MA110 EUT - Component Top View EUT - Solder Bottom View Wi-Gear Inc. FCC ID: TIQ-MA110 EUT - Top View with Antenna

Product Specification Product Specification Rufa 2.4 GHz SMD Antenna Rev : AE020157-F / April 30 2004 Rufa 2.4 GHz SMD Antenna 2 (10)Subject to changes without prior notice 1. FEATURES - Designed for 2.4 GHz applications [Bluetooth TM , WiFi TM (802.11b/g), Zigbee TM , WiMedia TM etc.] - Intended for SMD mounting - Supplied in tape on reel 2. DESCRIPTION - Mobile phones - PDAs - Headsets - Laptops - PC- Cards - CF- Cards 3. APPLICATION The Rufa antenna is intended for use with all 2.4 GHz applications. The antenna requires a groundplane, i.e your device acts as an active part of the antenna and thus demand careful consideration concerning its placement TABLE OF CONTENT 1. Features ......................................................................................................................................................................... 2 2. Description ..................................................................................................................................................................... 2 3. Application ...................................................................................................................................................................... 2 4. Model names .................................................................................................................................................................. 3 5. General data ................................................................................................................................................................... 3 6. Electrical characteristics ................................................................................................................................................. 3 7. Electrical performance .................................................................................................................................................... 4 7.1 Voltage Standing Wave Ratio ............................................................................................................................... 4 7.2 3D-Radiation ........................................................................................................................................................ 4 7.3 Radiation patterns ................................................................................................................................................ 4 8. Antenna Dimensions ....................................................................................................................................................... 5 9. Antenna Foot print .......................................................................................................................................................... 5 10. Electrical interface ........................................................................................................................................................ 6 10.1 Transmission line and matching ......................................................................................................................... 6 10.2 Test board dimensions ....................................................................................................................................... 6 10.3 Test board matching ........................................................................................................................................... 6 11. Soldering ....................................................................................................................................................................... 6 11.1 Recommended soldering conditions .................................................................................................................. 6 11.2 Leadfree soldering ............................................................................................................................................. 6 12. Reliability ...................................................................................................................................................................... 7 12.1 Temperature and Humidity ................................................................................................................................. 7 12.2 Mechanical ......................................................................................................................................................... 7 12.3 Miscellaneous .................................................................................................................................................... 7 12.4 Judgement standard .......................................................................................................................................... 7 13. Hazardous Material Reguration Conformance .............................................................................................................. 7 14. Application example ...................................................................................................................................................... 8 15. Packaging ..................................................................................................................................................................... 9 15.1 Shelf storage recommendation .......................................................................................................................... 9 15.2 Tape characteristics ........................................................................................................................................... 9 15.3 Reel dimension .................................................................................................................................................. 9 15.4 Box dimensions ................................................................................................................................…

Text truncated - open the document above for the full version.

795 Folsom St. 1st Floor San Francisco, CA 94107 415.240.4152 Technical Specifications Device Model: MA110 Adapter Power Source (For use with Apple iPods ONLY): iPod Mini, iPod 3G, iPod 4G, iPod Photo, iPod Nano, iPod Video When the iPod is sleeping and the adapter is NOT in use: +3.3V @ ~5mA When the adapter is connected to the iPod and in use: +3.3V @ ~40mA Max Output Power: 3-4dBm (Class-2 Bluetooth) Antenna Type: SMD Antenna connected via 50-ohm microstrip (see included datasheet “antenna-info.PDF” for more details) No. Channels: 79 Frequency Characteristics: Frequency Hopping in 79 hops displaced by 1MHz, starting at 2.402GHz and finishing at 2.480GHz Type of Modulation: GFSK (Gaussian Frequency Shift Keying)

§15.247 (e)(i) - RF EXPOSURE According to §15.247(b)(5) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. TCB Exclusions List For Portable Device According to §1.1310 and §2.1093 RF exposure is calculated. This is a portable device. For 2.4GHz device, Low Threshold = 25 mW, High Threshold = 375mW, The peak output power is 2.1mW which is under the low threshold. Therefore, EUT is not subject to any SAR evaluation.

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For Wi-Gear Inc. 795 Folsom St., 1 st Floor San Francisco, CA 94107, USA FCC ID: TIQ-MA110 This Report Concerns: Original Report Equipment Type: Bluetooth Ipod Adapter Test Engineer: James Ma Report No.: R0602065 Report Date: 2006-02-23 Reviewed By: Snell Leong Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 1274 Anvilwood Dr., Sunnyvale, CA94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Wi-Gear Inc. FCC ID: TIQ-MA110 Report # R0602065Rpt.doc Page 2 of 35 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 SCHEMATICS / BLOCK DIAGRAM..................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT.......................................................................................................................................5 INTERFACE PORTS AND CABLING.................................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS FOR FCC PART 15............................................................................................7 ANTENNA REQUIREMENT ......................................................................................................................................8 §15.205 & §15.209 - RADIATED EMISSION.............................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 TEST SETUP..................................................................................................................................................................9 SPECTRUM ANALYZER SETUP......................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................10 3 METERS RADIATED EMISSION TEST DATA..............................................................................................................11 §15.247 (A) (1) - HOPPING CHANNEL SEPARATION ........................................................................................13 STANDARD APPLICABLE............................................................................................................................................13 MEASUREMENT PROCEDURE......................................................................................................................................13 TEST EQUIPMENT.......................................................................................................................................................13 ENVIRONMENTAL CONDITIONS......…

Text truncated - open the document above for the full version.

Wi-Gear Inc. FCC ID: TIQ-MA110 EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
