TJJ-BB002SPREAD SPECTRUM TRANSMITTER

INSTALLATION MANUAL 311-0288-053 Rev. A 11/05 FIG. 2 FIG. 1 © 2004 Hopkins Manufacturing Corporation Printed in U.S.A Move seat back. antage antage Phone (800) 470-2287 w ww.brakebuddy.com antage antage Congratulations on the purchase of your new BrakeBuddy! The BrakeBuddy was designed and built as an auxiliary braking system to operate in conjunction with the existing braking system in your towed vehicle. Use of the BrakeBuddy in a manner inconsistent with these instructions may result in damage to your vehicle, serious injury or death. You must read and understand these instructions prior to the use of this product. If you have any questions after reading these instructions, please call BrakeBuddy customer service at 1-800-470-2287. 1.Remove the BrakeBuddy and components from the shipping carton. The complete system consists of: Main BrakeBuddy Unit Breakaway System Clevis Assembly Remote Alert System 2. Install the breakaway system by following the step-by-step instructions included with the breakaway kit. 3. Attach the lock nut and clevis assembly to the air cylinder (Fig.1). 4. Adjust the driver’s seat to the far back position (Fig. 2). Place the BrakeBuddy on the floorboard between the seat and the brake pedal. Slide the BrakeBuddy back against the seat for maximum working room. 5. With the notched end of the clevis facing up, attach the clevis to the top of the towed vehicle’s brake pedal (Fig. 3). Angle the brake pedal clevis so the upper portion of the clevis grabs the top of the towed vehicle’s brake pedal. Pull down on the air cylinder rod (or lower portion of the clevis) to extend the clevis under the bottom of the towed vehicle’s brake pedal. Pull back on the red locking tab (A) until secure (tab should not go all the way down). 6. Move the BrakeBuddy forward until the air cylinder rod is fully retracted (Fig. 4). Make sure the brake pedal is not being pressed. 7. Adjust the driver’s seat forward until it touches the handle on the back on the BrakeBuddy (Fig. 5). 8. Adjust the BrakeBuddy handle (Fig. 6). Loosen the adjustment knob on the back center portion of the BrakeBuddy and adjust the height of the handle so it contacts the seat at the lowest position possible without sliding under the seat. (NOTE: the lower on the seat, the firmer the support). T ighten the adjustment knob to secure handle. FIG. 3 A Move BrakeBuddy forward. Move seat forward. FIG. 4FIG. 5 FIG. 6 Adjust handle up or down to fit seat at lowest point. Lighter INSTALLATION MANUAL FIG. 8 FIG. 7 311-0288-053 Rev. A 11/05© 2004 Hopkins Manufacturing Corporation Printed in U.S.A P lug into 12-volt a ccessory receptacle. antage antage Phone (800) 470-2287 w ww.brakebuddy.com antage antage 9. Power the BrakeBuddy (Fig. 7). To power the BrakeBuddy, plug the unit into a 12-volt receptacle in the towed vehicle. When powered, the air compressor will fill the air tank in 30-40 seconds. If a 12-volt power supply is not available in the towed position (or the 12-volt power remains off in the ignition off position), a 12-volt Battery Direct Kit is available (part number 39305). At a minimum, a 15-amp 12-volt power supply is required to operate the BrakeBuddy. NOTE: The red “bleed brakes” light will be lit until completion of step 10. 10. Push the red AUTO START button located on top of the BrakeBuddy (Fig. 8). The arm will automatically extend / cycle 5 times. This will remove any vacuum stored in the brake vacuum reservoir of the towed vehicle as well as diagnose any errors in the system startup (B). NOTE: While the arm is activating, look at the brake lights on the rear of the towed vehicle. The brake lights will fluctuate on and off as the BrakeBuddy is pressing on and off the brake pedal.If the brake lights remain on,the BrakeBuddy unit is too close to the brake pedal. NOTE:After Auto Start cycle is complete, the red “bleed brakes”light will go out and the green “normal” light will be on. NOTE: The test button (Fig. 8 / C)is a manual (one time) arm activation test.The test button can be used to confirm the unit is in the correct floor position. WARNING:Any time the towed vehicle’s engine has been started (e.g., running through gears, charging battery, etc.) You Must push the Auto Start after shutting the towed vehicle’s engine off. This removes the vacuum out of the vehicle’s brake system. Failure to drain the towed vehicle’s brake vacuum will result in excessive tire wear . 11. Make final seat adjustments. If there is a gap between the seat and handle, adjust the seat forward to close the gap. B C OPERATION INSTRUCTIONS FIG. 9 VEHICLE WEIGHT FORMULA 1,500 – 2,000 680 – 90725 35 2,000 – 2,500 907 – 1,134 35 45 2,500 – 3,000 1,134 – 1,361 40 50 3,000 – 3,500 1,361 – 1,588 4555 3,500 – 4,000 1,588 – 1,8145060 4,000 – 4,500 1,814 – 2,0415565 4,000 – 4,500 1,814 – 2,0415565 1999+ Jeep Gr. Cherokee 4,500 – 5,000 2,041 – 2,2686575 5,000 + 2,268 +7585 Pounds KilogramsPsi. With Tow Doll y 31 1-0288-053 Rev . A 11/05 © 2004 Hopkins Manufacturing Corporation Printed in U.S.A antage antage Phone (800) 470-2287 w ww.brakebuddy.com antage antage 1. Adjust the air pressure to match the weight of your towed vehicle. The braking pressure, or how hard your towed vehicle will brake in tow, is adjusted by the + / - Buttonslocated on top of the BrakeBuddy (Fig. 9). To find the correct pressure setting specific for your towed vehicle, please refer to the Vehicle Weight Formula Chart below. The display will adjust in increments or decrements of 1 when held down and displays air pressure from 20 to 90 PSI. After 5 minutes the display will “power down.” Upon a button press, the display will “power on.” NOTE:The DIGITAL DISPLAY shows how much pressure is set to apply the brake; it does not display the air pressure inside the air tank that is automatically filled when the BrakeBuddy is plugged into the 12-volt receptacle. 2. Install the AA battery (included) to the wireless alert system (Fig. 10) and mount in a suitable location in the RV (a…

Text truncated - open the document above for the full version.

December 8, 2005 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: Hopkins Manufacturing Corporation 428 Peyton Emporia, KS 66801 CORES number: 0013-8572-71 Equipment: FCC ID: TJJ-BB002 FCC Rules: Part 2 and 15.247, modular transmitter RE: Job 2396UC5 request for additional information response Gentlemen: This letter is response to the request for additional information for the above referenced submittal. Please find below a copy of the request with responses. 1. The label sample and location exhibit shows that the FCC ID will be screened onto the PCB, but the 2-part statement is only provided as “additional label information”. Where is the 2-part statement going to be placed? Due to the size of the device, the manual may be appropriate, in which case a revised manual with the 2-part statement would be required. 2. The modular approval letter indicates that labeling instructions for the end product would be included in the manual; however there appear to be no such instructions. Please revise the manual and resubmit. 3. Test setup photos: The device is shown integrated into hosts. The modular approval letter states that the device was tested in a stand-alone configuration. Please explain. 4. 2.1033 (b) - Block diagram: Please include frequency of oscillators and frequency generated and/or used in this device. Please indicate location of antenna. 5. Please revise report to list ANSI C63.4 2003 and not 1992. 6. Radiated data – page 14/29(pdf): Please indicate if the device was tested at three places in the band as required per part 15.31(m). 7. Radiated data – page 14/29(pdf): Please indicate whether the emissions reported are Peak or Average. FYI - Compliance with part 15.35(b) is required as well. 8. Form 731: Please calculate the power (conducted or EIRP) based on the field strength measurement data. Provide the maximum value measured at three places in the band. 9. 20dB bandwidth: This measurement appears wrong. The bandwidth should be less than 150kHz according to the upper curve was taken at 10kHz. Please retake a plot. The Average time of occupancy (dwell time) should be revised if 20dBBW<250kHz. The calculation would be required over a period of 20s. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 z Page 2 December 8, 2005 10. Page 24/29: Please explain this table compared with the table on page 14/29. 11. Page 24/29: Please indicate whether the emissions reported are Peak or Average. FYI - Compliance with part 15.35(b) is required as well. Response: 1. The FCC ID will be screened onto the PCB. The labeling (including the 2 part statements) will also be attached to outside of each device in which this module is incorporated. 2. The manufacturer is the sole user of the transmitter module and understands the modular labeling requirements. 3. Test setup photographs of the transmitter module have been added to the test setup photographs. 4. A revised block diagram has been added to the application submittal. 5. The type error has been corrected. 6. The unit was tested at three frequencies in the operational range as shown in the test report. 7. The unit complies with both peak and average emissions requirements as demonstrated in the test report. 8. The transmitter power has been added to the 731 form. 9. The occupied bandwidth has been measured and added to the test report (Hopkins BB002 Test Report.pdf file). 10. The tables may contain duplicate data reported parts of which are recorded for each different paragraphs of CFR 47 part 15c. 11. Peak and average measurements were performed on the EUT with worst-case data reported in the test report. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures

November 1, 2005 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Federal Communications Commission Equipment Approval Services P.O. Box 35815 Pittsburgh, PA 15251-3315 Applicant: HOPKINS MANUFACTURING CORPORATION 428 Peyton Emporia, KS 66801 Phone: (620) 342-7320 ext. 8429 Equipment: FCC ID: TJJ-BB002 FCC Rules: Part 2 and 15.247 (Spread Spectrum Frequency Hopping Modular Transmitter) Re: modular transmitter approval Gentlemen: As requested in the Public Notice DA00-1407 regarding Part 15 unlicensed modular transmitter approval, the following information has been addressed. The transmitter module is a complete RF transmitter containing its own reference oscillator, antenna etc. The connections available on the module are for power only. Below please find information, addressing each paragraph from DA00-1407, requested about the unit. 1.) The unit has its own RF shield to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Photographs of the unit are included in an exhibit with the application. 2.) The unit incorporates a buffer stage on the inputs to limit over-modulation and has no provision for input data. 3.) The unit has power regulation incorporated in the circuitry to ensure continued compliance regardless of the design of the power supplying circuitry. 4.) The unit utilizes a permanently connected antenna and has no provision for external antenna connection. This fulfills the antenna connection requirements of 15.203. 5.) The module was tested in a stand-alone configuration. The module complies with part 15 emissions limits regardless of the device into which it is eventually installed. 6.) The module has the FCC ID number permanently affixed to the printed circuit board and information supplied to the end user regarding label placement on the outside of the device into which the module is contained. This information is clearly defined in the user manual. 7.) The unit complies with part 15.247 as stated in the user manual. Adequate instructions are supplied with the unit to explain the requirements. 8.) The unit complies with the RF exposure requirements as stated in 2.1091, 2.1093, and part 15. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot D. Rogers Rogers Labs, Inc. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

November 1, 2005 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Office of Engineering and Technology Federal Communications Commission Columbia, MD 21046 Equipment Approval Services Applicant: Hopkins Manufacturing Corporation 428 Peyton Emporia, KS 66801 Re: Confidentiality for submittal information regarding FCC ID number TJJ-BB002 PRODUCT: FM Transmitter operated under part 15.247. Dear Sirs: Hopkins Manufacturing Corporation requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459 (1998), following grant of the application. In support of this request, Hopkins Manufacturing Corporation submits the following: 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: TJJ-BB002 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Hopkins Manufacturing Corporation’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Hopkins Manufacturing Corporation 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Hopkins Manufacturing Corporation and not made available to third parties except pursuant to non- disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 1 of 1 BB002 Photos.Doc 10/12/2005 Photographs of EUT in battery holding configuration.

ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 1 of 1 BB002 ID Label location.Doc 10/12/2005 Brake Buddy Vantage FCC/IC label will be placed on the bottom of the printed circuit board and supplied with labeling to be placed externally on the finished product. The top and bottom silk screening is pictured below. Additional label information includes the following. Bottom screen Top screen

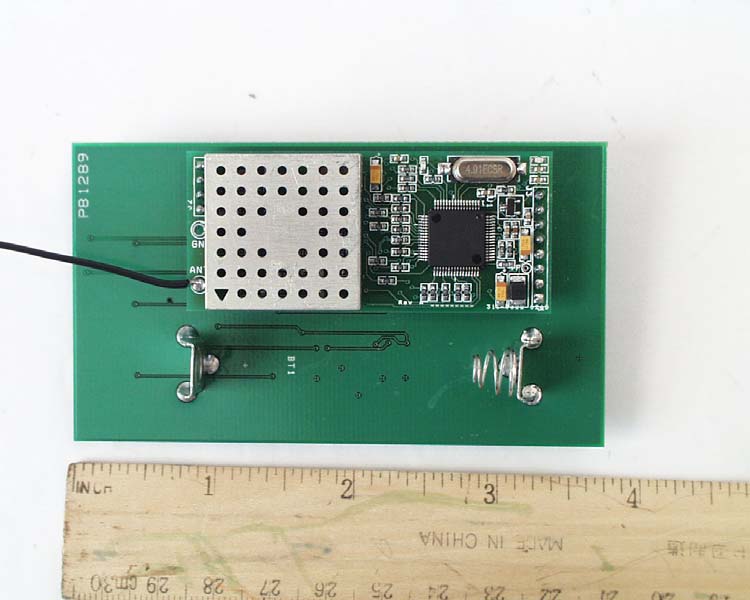

ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 1 of 1 BB002 Internal photos.Doc 10/12/2005 Photographs of printed circuit board.

ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 1 of 1 BB002 Tuneup.Doc 10/12/2005 The unit has no provisions for tuning. It is produced and tested with a pass on pass operation.

ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 1 of 1 BB002 MPE calculation.Doc 10/12/2005

ENGINEERING TEST REPORT FOR APLLICATION of GRANT of CERTIFICATION FOR CFR 47, PART 15C - INTENTIONAL RADIATORS Paragraph 15.247 Spread Spectrum Frequency Hopping System Operation in the 902-928 MHz band For HOPKINS MANUFACTURING CORP. 428 Peyton Emporia, KS 66801 Jon Gray, Engineer Model: BRAKE BUDDY VANTAGE Frequency 902-928 MHz FCC ID#: TJJ-BB002 IC: 6047A-BB002 Test Date: October 7, 2005 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Hopkins Manufacturing Corp. FCCID#: TJJ-BB002 4405 W. 259th Terrace MODEL: Brake Buddy Vantage IC: 6047A-BB002 Louisburg, KS 66053 Test #: 051007 SN: 002 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15c (15.247) Page 2 of 29 Certification\Hopkins BB002 Test Report.doc 12/7/2005 TABLE OF CONTENTS TABLE OF CONTENTS.................................................................................................. 2 FORWARD..................................................................................................................... 3 1) APPLICABLE STANDARDS & TEST PROCEDURES........................................... 3 2.1033(b) Application for Certification..........................................................................................................4 2) EQUIPMENT TESTED ............................................................................................ 5 3) EQUIPMENT FUNCTION AND TESTING PROCEDURES..................................... 5 4) EQUIPMENT AND CABLE CONFIGURATIONS .................................................... 5 Conducted Emission Test Procedure..................................................................................................................5 Radiated Emission Test Procedure.....................................................................................................................5 5) LIST OF TEST EQUIPMENT................................................................................... 6 6) UNITS OF MEASUREMENTS................................................................................. 7 7) TEST SITE LOCATIONS......................................................................................... 7 8) SUBPART B – UNINTENTIONAL RADIATORS .................................................... 7 Conducted EMI ....................................................................................................................................................7 Radiated EMI .......................................................................................................................................................7 Data Conducted Emissions (7 Highest Emissions)............................................................................................11 Data General Radiated Emissions from EUT (6 Highest Emissions)................................................................11 Summary of Results for Conducted Emissions ...............................................................................................11 Summary of Results for Radiated Emissions ..................................................................................................12 Statement of Modifications and Deviations .....................................................................................................12 9) SUBPART C - INTENTIONAL RADIATORS ........................................................ 12 15.203 Antenna Requirements ..........................................................................................................................12 15.205 Restricted Bands of Operation..............................................................................................................12 Data Radiated Emissions in Restricted Bands ...................................................................................................13 Summary of Results for Radiated Emissions in Restricted Bands ................................................................13 15.209 Radiated Emissions General Requirements ........................................................................................14 Radiated EMI.....................................................................................................................................................14 Data General Radiated Emissions from EUT (6 Highest Emissions)................................................................17 Summary of Results for Radiated Emissions ..................................................................................................18 15.247 Operation in the Band 902-928 MHz ...................................................................................................18 Data Radiated Emissions from EUT..................................................................................................................23 Data Antenna Substitution Method for Power Output ......................................................................................23 Summary of Results for Radiated Emissions of Intentional Radiator ..........................................................24 Statement of Modifications and Deviations .....................................................................................................24 APPENDIX .................................................................................................................... 25 NVLAP Accredited Laboratory NVLAP Lab Code: 200087-0 ROGERS LABS, INC. Hopkins Manufacturing Corp. FCCID#: TJJ-BB002 4405 W. 259th Terrace MODEL: Brake Buddy Vantage IC: 6047…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 1 of 3 BB002 Test setup photos.Doc 12/8/2005 Test setup photographs of module. ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 2 of 3 BB002 Test setup photos.Doc 12/8/2005 Test setup photographs of transmitter located in applications. ROGERS LABS, INC. Hopkins Manufacturing Corp. FCC ID: TJJ-BB002 4405 West 259 th Terrace MODEL: Brake Buddy Vantage IC:6047A-BB002 Louisburg, KS 66053 Test #:051007 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.247, RSS-210 Page 3 of 3 BB002 Test setup photos.Doc 12/8/2005 Transmitter located inside host unit was also tested and found to comply.
