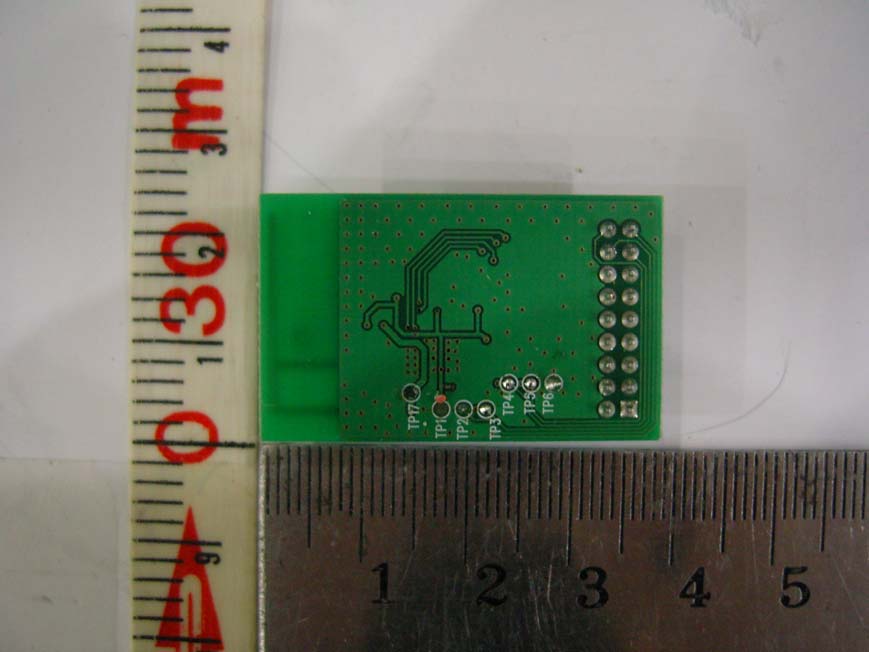

TJK-M5GBLUETOOTH MODULE

OPENBRAIN Technologies Co., LTD. TEL : +82-31-596-6400 FAX : +82-31-596-6410 E-mail : [email protected] http://www.OPENBRAIN.co.kr http://www.sonorix.com Approval Sheet for Product Specification Ref.No: Rev. No : Issued Date : Customer : Product Name : Model No. : Customer Approval Signature / Stamp SBNTECH Bluetooth Module M5G APS-2009-012 1.1 2009.5.23 2 OPENBRAIN Technologies Co., LTD. Change History Rev. Date Author Reason for Change 0.9 2008.5.26 S.H.Cho Preliminary Drafting 1.0 2008.6.18 S.H.Cho Antennae characteristics and reliability test data supplements 1.1 2009.5.23 Y.Y.Lim Change the Connector (SMD > DIP) Internal Check/Approval Author Checked by Approved by Name Y. Y. L i m J . H . P a r k J . D . O h Date 2009.5.23 Signature 3 OPENBRAIN Technologies Co., LTD. Contents 1. SUMMARY ................................................................................................................................................ 4 1.1. PRODUCT SUMMARY .................................................................................................................................... 4 1.2. PRODUCT FEATURES .................................................................................................................................... 4 1.3. SPECIFICATIONS .......................................................................................................................................... 4 1.4. APPLICATION ............................................................................................................................................... 5 1.5. EXTERNAL APPEARANCE AND PIN (PAD) SPECIFICATIONS ................................................................................. 5 2. HOW TO USE ............................................................................................................................................ 7 2.1. HARDWARE DESIGN METHODOLOGY .............................................................................................................. 7 2.2. OPERATING PROCEDURES ............................................................................................................................ 7 3. PRODUCT SPECIFICATIONS .................................................................................................................. 8 3.1. ELECTRICAL SPECIFICATIONS ........................................................................................................................ 8 3.2. CURRENT CONSUMPTION ............................................................................................................................. 9 3.3. ANTENNAE RADIATION CHARACTERISTICS .................................................................................................... 10 3.4. MECHANICAL SPECIFICATIONS ..................................................................................................................... 13 4. PRECAUTIONS DURING HANDLING ................................................................................................... 14 4.1. GENERAL PRECAUTIONS ............................................................................................................................. 14 4.2. MAXIMIZING RF PERFORMANCE .................................................................................................................. 14 5. RELIABILITY TEST RESULT ................................................................................................................. 15 5.1. OPERATING AND STORAGE TEMPERATURE TEST RESULTS................................................................................ 15 5.2. TIME VS TEMPERATURE FOR OPERATING & STORAGE RELATIVE GRAPH .......................................................... 15 5.3. RADIO CHARACTERISTICS FOR EACH CHECK POINT ...................................................................................... 16 6. PACKAGING ........................................................................................................................................... 20 7. PRODUCT SETTING (CUSTOMIZATION) ............................................................................................. 21 8. FCC Information ........................................................................................................... 22 4 OPENBRAIN Technologies Co., LTD. 1. Summary This document defines the product specifications of Bluetooth voice communication module (M5G) including electrical and mechanical characteristics manufactured by OPENBRAIN for customer approval purposes. 1.1. Product Summary OPENBRAIN’s M5G is a compact Bluetooth module designed to provide easy Bluetooth audio application for communication devices without Bluetooth functionality. By integrating the module into communication devices that use speaker/microphone or wired ear-sets, it enables the communication device to be used with Bluetooth headsets within a range of 10m distance. M5G integrates all the functions needed to replace existing audio connection wirelessly and has been designed such that it is possible to control and monitor the functions externally via serial (UART) communication thereby enabling Bluetooth functionality to be implemented into devices in a short period of time. Also, the module has been designed to be ultra-small and light with minimal power consumption thereby making it ideal for integration without sacrificing electrical and mechanical design factors of existing devices. The advantages of using M5G are, it makes production easy and simple as the modules are RF tuned and tested before supply and it is not necessary for customers to secure additional Bluetooth test/measuring equipments. 1.2. Product Features „ Wireless application possible without having to change circuit or software of existing communication devices „ Built-in antennae eliminates the need for separate antennae „ Control of all functions and state monitoring via UART communication „ Can be customized accor…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosureDate: February 23, 2010 Page 1 of 1 OPENBRAIN Technologies Co., Ltd. Room 503/504, Dongan Venture Center, 1307-37, Kwanyang 2 Dong, Dongan Gu, Anyang City, Kyonggi Do South Korea Subject:Request for confidentiality FCC ID: TJK-M5G Reference number: Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), <name applicant> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: (TJK-M5G) Bill(s) of Material☑ Block Diagrams☑ Operational Description☑ Schematic Diagrams☑ Above materials contain secrets, proprietary and technical information,whichwould customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to otherparties could cause substantial competitive harm and provide unjustified benefits for competitors. <Name applicant> understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. <Date>February 23, 2010 <City> Anyang City <Nameandsignatureofapplicant>

Appendix D: Limited Modular Approval Justification Please refer to the following page. Korea Standard Quality Laboratories #102, Jangduk Dong Hwasung City, Gyunggi Do South Korea http://www,ksqlab.com Client : OPENBRAIN Technologies Model : M5G Standard : FCC 15.247 FCC ID : TJK-M5G 24 February, 2010 Room 503/504, Dongan Venture Center, Kwanyang 2 Dong, Dongan Gu, Anyang City, Gyonggi Do, South Korea To Whom It May Concern: We certify that our RF module comply with the points for obtaining the limited modular approval. According to this, our module comply the next: 1. The modular transmitter has its own power supply regulation. 2. The modular transmitter is tested in a stand-alone configuration. 3. The modular transmitter will be labeled with its own FCC ID number. The FCC ID number will be: TJK-M5G. 4. The use of the modular transmitter is only approved to be used inside SBN Tech equipment. We assure the compliance of the end product when it is assembled inside SBN Tech equipment. Sincerely, K.H Choi Quality Manager

ID Label Location & Sample 1. Label Location 2. Label Drawing Label position

Operational Description OPENBRAIN’s M5G is a compact Bluetooth module designed to provide easy Bluetooth audio application for communication devices without Bluetooth functionality. By integrating the module into communication devices that use speaker/microphone or wired ear-sets, it enables the communication device to be used with Bluetooth headsets within a range of 10m distance. M5G integrates all the functions needed to replace existing audio connection wirelessly and has been designed such that it is possible to control and monitor the functions externally via serial (UART) communication thereby enabling Bluetooth functionality to be implemented into devices in a short period of time. It operates in 2400 to 2483.5 MHz band. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The control signals and data in the Bluetooth Chipset are modulated and processed and then pass the PA in it. They will be transmitted from ANT through the BALUN FILTER to another Bluetooth device. The RF signal from other Bluetooth devices is received via ANT. And they go through BALUN FILTER into the chip. They are magnified by internal LNA in the chip. The power settings and crystal trim are stored in internal Flash Memory. The product is powered by DC +3.3V nominal and has an Inverted F PCB antenna in it.

Report Number : KSQ-FCC100210FCC ID : TJK-M5G Page 2 /41 TABLE OF CONTENTS 1. GENERAL.................................................................................................................................................4 2. TEST SITE.................................................................................................................................................4 2.1 Location................................................................................................................................................4 2.2 Test Date...............................................................................................................................................4 2.3 Test Environment..................................................................................................................................4 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST..........................................................................5 3.1 Rating and Physical Characteristics.......................................................................................................5 3.2 Equipment Modifications......................................................................................................................5 3.3 Submitted Documents...........................................................................................................................5 4. MEASUREMENT CONDITIONS............................................................................................................6 4.1 Description of test configuration...........................................................................................................6 4.2 List of Peripherals.................................................................................................................................6 4.3 Type of Used Cables..............................................................................................................................6 5. TEST AND MEASUREMENT.................................................................................................................7 5.1 ANTENNA REQUIREMENT..............................................................................................................7 5.1.1 Regulation.......................................................................................................................................7 5.1.2 Result..............................................................................................................................................7 5.2. 20dB BANDWIDTH...........................................................................................................................8 5.2.1 Regulation.......................................................................................................................................8 5.2.2 Test Condition................................................................................................................................8 5.2.3 Test result........................................................................................................................................8 Table 1 : Measured values of the 20dB Bandwidth..........................................................................................8 Figure 1 Plot of the 20dB Channel Bandwidth...............................................................................................9 5.3. MAXIMUMPEAKPOWER.............................................................................................................11 5.3.1 Regulation.....................................................................................................................................11 5.3.2 Test Condition...............................................................................................................................11 5.3.3 Test result......................................................................................................................................11 Table 2 : Measured values of the Maximum Peak Output Power(Conducted)......................................................11 Figure 2 : Plot of the Maximum Peak Output Power(Conducted).....................................................................12 5.4. CARRIER FREQUENCY SEPARATION........................................................................................14 5.4.1 Regulation.....................................................................................................................................14 5.4.2 Test Condition...............................................................................................................................14 Report Number : KSQ-FCC100210FCC ID : TJK-M5G Page 3 /41 5.4.3. Test result.....................................................................................................................................14 Table 3 : Measured values of the Carrier Frequency Separation.......................................................................14 Figure 3 : Plot of the Carrier Frequency Separation.......................................................................................15 5.5. NUMBEROF HOPPINGCHANNELS............................................................................................17 5.5.1 Regulation.....................................................................................................................................17 5.5.2 Test Condition...............................................................................................................................17 5.5.3 Test result......................................................................................................................................17 Table 4 : Measured values of the Number of Hopping Channels.......................................................................17 Figure 4 : Plot of the Number of Hopping Channels..............…

Text truncated - open the document above for the full version.
