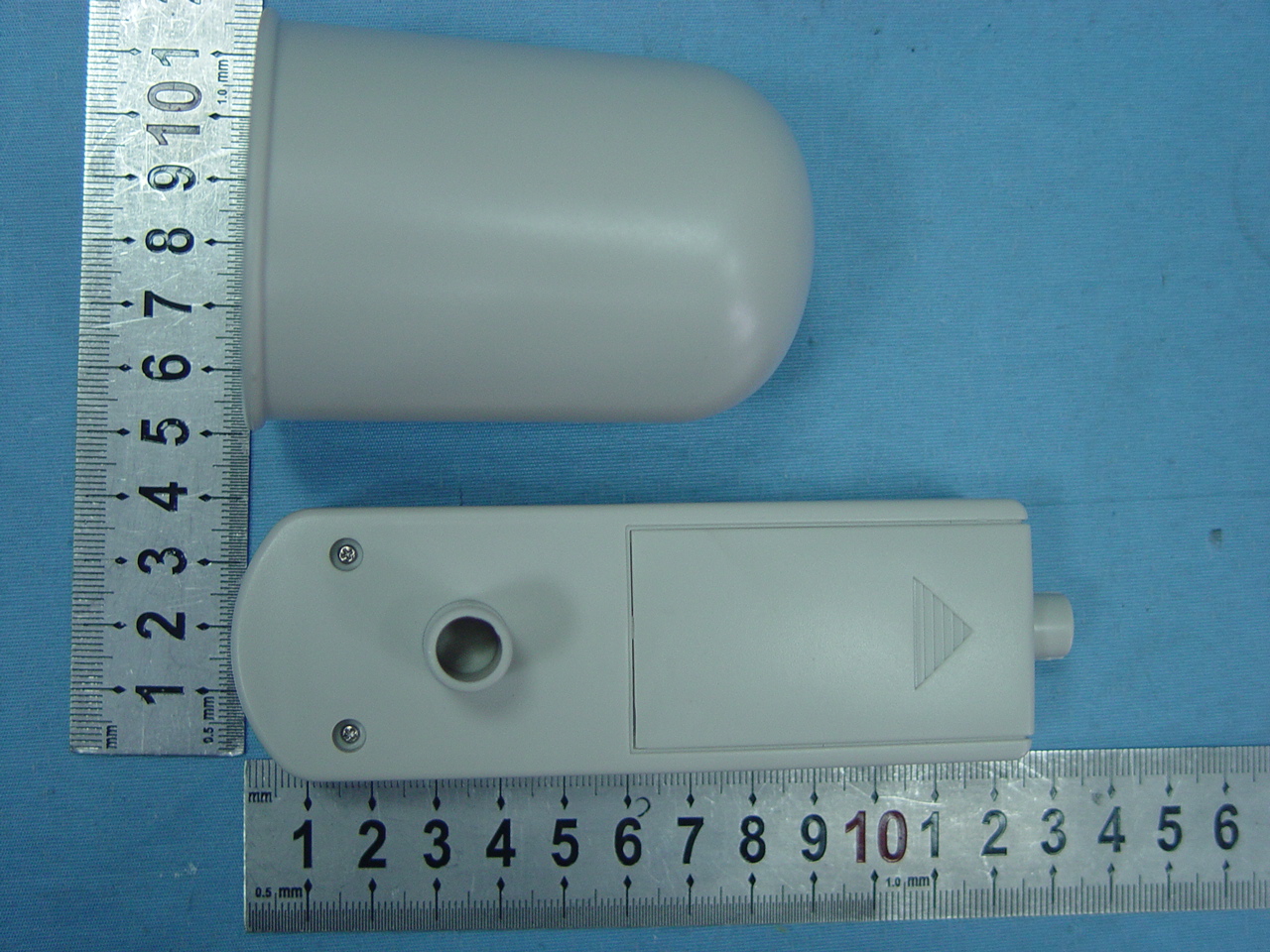

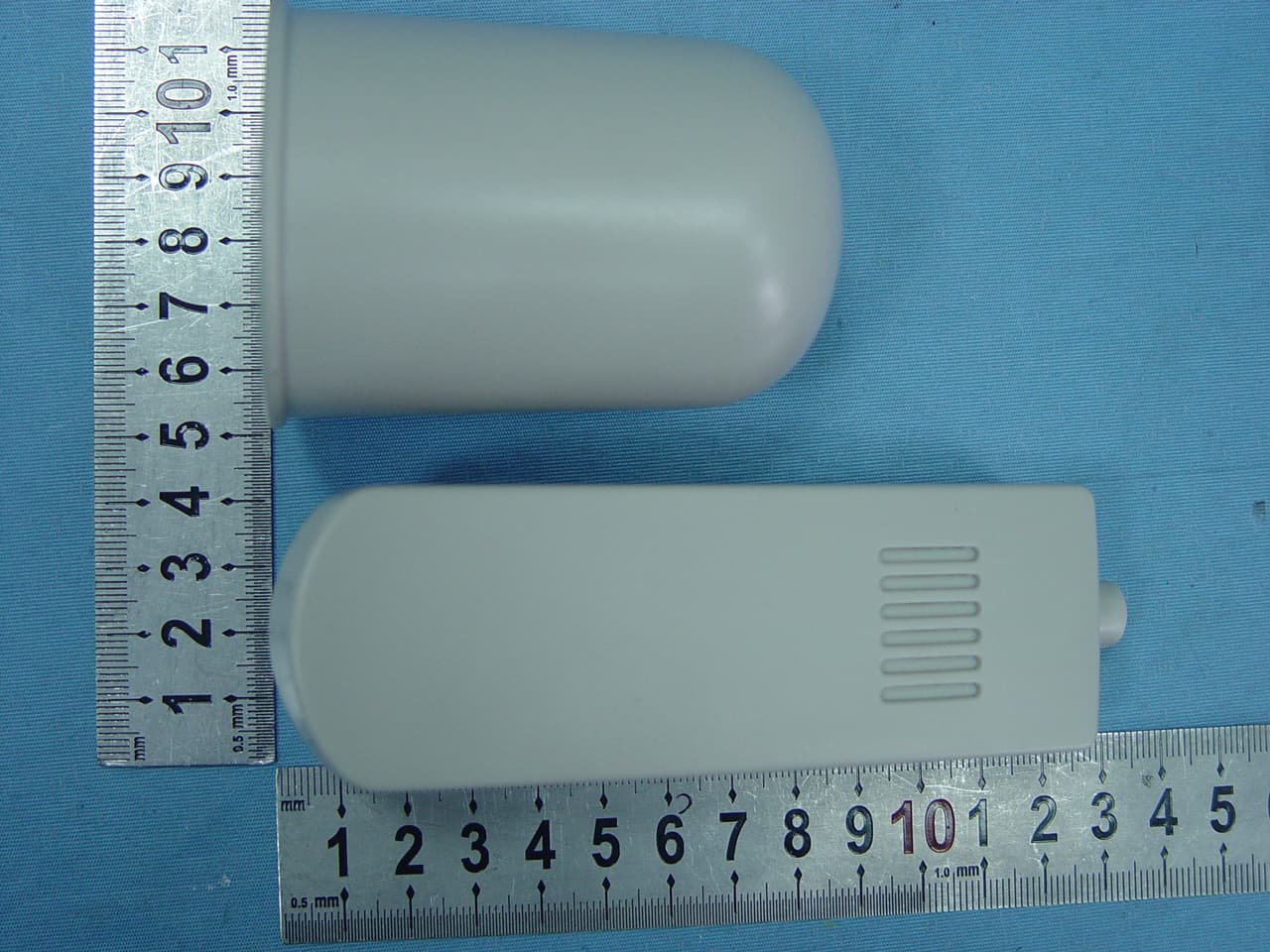

TJY43392MWireless Temperature/ Humidity Transmitter

1 1 Analog Clock Set Up Instruction INVENTORY OF CONTENTS 1. Clock with Outdoor Temperature and Indoor Temperature (figurine 1) 2. The remote temperature sensor and mounting bracket (figurine 2) 3. 2 each, 1/2” Phillips screws. 4. Instruction Manual and Warranty Card. ADDITIONAL EQUIPMENT (not included) 1. 1 Philips screwdriver 2. 5 Fresh AA Alkaline batteries.(one for clock and four for indoor temperature station) 3. 2 Fresh AA Alkaline batteries.(for outdoor temperature sensor) SET UP GUIDE Clock: Please slide up the back panel and put 1 AA Alkaline battery into the clock movement Outdoor Temperature: Hint: Use only good quality Alkaline Batteries and Never use rechargeable batteries. 2 2 First, make sure there is no battery in the Outdoor temperature sensor and Indoor temperature station. 1. Have the indoor temperature station and remote temperature sensor 3 to 5feet apart. 2. Install 4 AA batteries in the indoor temperature Station FIRST (figurine 3), make sure they don’t spring free or start-up problems may occur. At this time, the temperature hand will go back to –60°F and the green LED light will start to blink(it means it start to search the signal) 3. After the green light starts to blink, install 2 AA batteries in the remote temperature sensor (figurine 4), at this moment,3 LED lights will turn on for one second and then the green LED light will turn on consistently. During this time, the remote temperature sensor will send signal to Indoor temperature station automatically for 9 minutes. You can find a proper location to put the Outdoor Temperature Sensor, (the distance between Indoor Weather Station and Outdoor temperature Sensor should be less than 120 feet without obstacles), if you go beyond this range, the green LED light will start to blink again, that means you should bring the Outdoor Temperature Sensor closer to the Indoor Weather Station. Once you bring the two units closer, the green LED light will turn on continually. After 9 minutes the green LED light will turn off for one minute to restore the battery power, after that the temperature hand will move to the correct temperature degree. NOTE: THE INDOOR TEMPERATURE STATION MUST BE STARTED BEFORE REMOTE TEMPERATURE SENSOR. In this time, the indoor temperature station and remote temperature sensor will talk to each other, and the temperature hand will display the temperature. If the indoor temperature station does not display correct temperature and the green LED light still turns on after 10min, please retry the set up as stated above. After indoor temperature Station is displayed for 10 minutes then you can place your remote temperature sensor outdoors. The remote temperature sensor should be place in a dry, shaded area. The remote temperature sensor has a range of 120 feet. Any walls that the signal will have to pass through will reduce distance. An outdoor wall or window will have 20~30 feet of 3 3 resistance and an interior wall will have 10~20 feet of resistance. Your distance plus resistance should not exceed 120 feet in a straight line. NOTE: FOG AND MIST WILL NOT HARM YOUR REMOTE TEMPERATURE SENSOR BUT DIRECT RAIN MUST BE AVOIDED. Reset System The Reset button is located in the indoor weather station (Please see attached photo). Make sure you press the Reset button when you change the batteries or change the location of Outdoor Temperature or Indoor Weather Station. Also if the performance is not acting as good as expected, please press the reset button. Indoor Temperature: It will automatically detect the indoor temperature, there is no need to set up. MOUTING NOTE: To achieve a true temperature reading, avoid mounting in direct sunlight. The sending range is 120 feet, obstacles such as walls, concrete, and large metal objects will reduce the range. Place both units in their desired location before permanently mounting. Remote Temperature Sensor 1. Remove the mounting bracket from the remote temperature sensor. 2. Mount the bracket in the desired location with screws. 3. Re-attach the remote temperature sensor into mounting bracket. Indoor Temperature Station 1. Insert an appropriate screw in your desired location. 2. Using the integrated hanging hole on the back of the unit, slip indoor temperature 4 4 station over the screw and pull down to secure. The meaning of Symbol 1. means Indoor temperature station searching signal- After receiving the outdoor sensor signal, the green light will turn off automatically. 2. means Indoor temperature station low battery power- if the LED light turns on continually, please change batteries of Indoor temperature station with 4 fresh AA batteries and press the Reset button. 3. means Outdoor temperature sensor low battery power- if the LED light turns on continually, please change batteries of outdoor temperature sensor with 2 fresh AA batteries and starts to press the reset button. Frequently Asked Questions NOTE: For problems not solved, please contact with Weather Time International Inc via [email protected] or call at 1-800-xxxxxxx Problem: No outdoor temperature is displayed at first time Solution: 1. Remove all batteries, reinsert into indoor temperature station first, at this time, the temperature hand will move back to –60°F and the green LED light will start to blink, then put the batteries into outdoor temperature sensor. 2. Place indoor temperature station closer to the outdoor temperature sensor. 3. Make sure all the batteries are fresh. 4. place remote temperature sensor and indoor temperature station in position so the straight-line is not passing through more than two or three walls. Problem: Temperature do not mach if units are placed next to each other. Solution: 5 5 Each temperature sensor is manufactured to be accurate to within 2 degree plus or minus and under normal conditions. It is possible for two temperature sensors to be as much as 4 degrees different. The difference can be exaggerated further because the temperature sensors are designed for di…

Text truncated - open the document above for the full version.

TX Block Diagram Low Battery Test Temp. Sensor Power Supply MCU ASK Modulation Oscillator Amplifier Antenna 433.92 MHz

FCC MARKING/LABEL FOR PART15 40mm Wireless Analog Outdoor Temperature/Humidity Transmitter Model No.: P04481 FCC ID: TJY43392M POWER: DC3.0V TX Frequency: 433.92MHz This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. Made in China 25mm

TX operation description MCU resets when powered on. MCU gets temperature data from sensor and encodes it to transmission circuit. The transmission circuit modulates the signal and transmits it at 433 MHz. The TX circuit monitors working voltage all time. If the voltage is low, a signal will be transmitted to a receiver. This info will be indicated by a LED lamp to remind users to change battery.

11 22 33 44 D D C C B B A A FLYTOP V1.0 Hu 2006-9-22 CompanyName: Title: Revision: DrawBy: ModifiedDate: R1310k R121M R162 R14682R151M R1727 C11 102 C125PF C18102 C15102 C163P C149PC139P C191000P C2115PC2215P C17102 C20102 433MHz R1168 Q1 NPN L10.4mm 3T Q2 NPN L2 0.4mm 5T L3 100uH C231.5-5pF IN ANT +3V (10P)(8P)

11 22 33 44 D D C C B B A A FLYTOP WirelessSendControl V1.0 Hu 2005-12-16 CompanyName: Title: Revision: DrawBy: ModifiedDate: IOD2 61 SEG40 64 SEG41 65 TE ST 66 XIN 1 XOUT 2 FRIN 3 FROUT 4 CFIN 5 CFOUT 6 GND 7 RESET 8 INT 9 VDD1 10 VDD2 11 VPP 12 VD D3 13 CUP1 14 CUP2 15 COM1 16 COM2 17 COM3 18 COM4 19 COM5/DC5 20 COM6/DC6 21 COM7/DC7 22 COM8/DC8 23 DC9 24 SEG1 25 SEG2 26 SEG3 27 SEG4 28 SEG5 29 SEG6 30 SEG7 31 SEG8 32 SEG9 33 SEG10 34 SEG11 35 SEG12 36 SEG13 37 SEG14 38 SEG15 39 SEG16 40 SEG17 41 SEG18 42 SEG19 43 SEG20 44 SEG21 45 SEG22 46 SEG23 47 SEG2 4/ IOA1 48 SEG2 5/ IOA2 49 SEG2 6/ IOA3 50 SEG2 7/ IOA4 51 SEG28/IOB1 52 SEG29/IOB2 53 SEG30/IOB3 54 SEG31/IOB4 55 IOC1 56 IOC2 57 IOC3 58 IOC4 59 IOD1 60 IOD3 62 IOD4 63 U1 FT5115 R1 10 k 1 % R3 1M R410 k C310 4 C210 4 C6 10 4 C7 10 4 C5 15 pF C4 15 pF C110 3 12 BAT1BAT Vi n Vo ut GN D U2 HT 702 4 RH1RT1 103RT 12345678 161514131211109 JUMP1 SW DIP-8 1 2 4 3 JUMP2 SW DIP-2 1 2 Y132 76 8 3v VPP OU T RESET INT R2 1k 3V R5* C8 10 4 R510 0k TE ST ID VCC VCC

Page 1 of 27 FCC ID: TJY43392M ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20061837 FCC CERTIFICATION On Behalf of Matador International Inc. Wireless Analog Outdoor Temperature/Humidity Transmitter Model No.: P04481 FCC ID: TJY43392M Prepared for : Matador International Inc. Address : 5F., No.225, Sec.5, Nan Jing E.Rd., Taipei, 104, Taiwan Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20061837 Date of Test : September 11, 2006 Date of Report : September 15, 2006 Page 2 of 27 FCC ID: TJY43392M ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20061837 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................4 1.3. Measurement Uncertainty.........................................................................................................................4 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 5 3. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 6 3.1. Block Diagram of Test Setup....................................................................................................................6 3.2. The Field Strength of Radiation Emission Measurement Limits..............................................................6 3.3. Configuration of EUT on Measurement ...................................................................................................7 3.4. Operating Condition of EUT ....................................................................................................................7 3.5. Test Procedure ..........................................................................................................................................7 3.6. The Field Strength of Radiation Emission Measurement Results ............................................................8 4. OCCUPIED BANDWIDTH ........................................................................................................... 10 4.1. Block Diagram of Test Setup..................................................................................................................10 4.2. The Bandwidth of Emission Limit According To Section 15.231(c) .....................................................10 4.3. EUT Configuration on Measurement .....................................................................................................11 4.4. Operating Condition of EUT ..................................................................................................................11 4.5. Test Procedure ........................................................................................................................................11 4.6. Measurement Result ...............................................................................................................................12 5. AVERAGE FACTOR MEASUREMENT .................................................................................... 13 5.1. Block Diagram of Test Setup..................................................................................................................13 5.2. Average factor Measurement ..................................................................................................................13 5.3. EUT Configuration on Measurement .....................................................................................................14 5.4. Operating Condition of EUT ..................................................................................................................14 5.5. Test Procedure ........................................................................................................................................14 5.6. Measurement Result ...............................................................................................................................15 APPENDIX I ( TEST CURVES) (11pages) Page 3 of 27 FCC ID: TJY43392M ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20061837 Test Report Certification Applicant : Matador International Inc. Manufacturer : E-Kai Industrial Co., Ltd. EUT Description : Wireless Analog Outdoor Temperature / Humidity Transmitter (A) MODEL NO.: P04481 (B) SERIAL NO.: N/A (C) POWER SUPPLY: DC 3.0V(“AA” battery Type×2) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231: 2004 & ANSI C63.4: 2003 The device described above is tested by ACCURATE TECHNOLOGY CO. LTD to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C Section 15.231 limits. The measurement results are contained in this test report and ACCURATE TECHNOLOGY CO. LTD is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of ACCURATE TECHNOLOGY CO. LTD. Date of Test : September 11, 2006 Prepared by : (Engineer) Reviewer : (Quality Manager) Approved & Authorized Signer : (Manager) Page 4 of 27 FCC ID: TJY43392M ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20061837 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Wireless Analog Outdoor Temperature / Humidity Transmitter Mod…
