TKE2542248Biomedical Telemetry & Locator Transmitter

Wanderless System - Instruction Manual Locator Systems Corp. 692 Sumas St. Victoria, BC, V8T 4S6 Tel: +1-250-381-9425 Fax: +1-250-381-9426 [email protected] www.locatorsystemscorp.com Page 1 Wanderless Receiver Manual –2.4 July-05 DPR Table of Contents Introduction................................................................................................................................................................. 2 The Wanderless System............................................................................................................................................ 3 Implementing Wanderless.......................................................................................................................................... 4 Notify all care providers that the resident is using Wanderless.............................................................................. 4 Personal Locator Transmitter battery recharging schedule.................................................................................... 4 Emergency Response to missing resident from facility.......................................................................................... 4 Ongoing training...................................................................................................................................................... 4 Setup of Wanderless Receiver in a Care Facility....................................................................................................... 4 Setup and Charge Personal Locator Transmitter....................................................................................................... 5 PLT attachment methods........................................................................................................................................... 5 Wanderless Receiver Controls................................................................................................................................... 6 Keypad Functions....................................................................................................................................................... 6 Operation.................................................................................................................................................................... 7 Frequency Selection................................................................................................................................................... 7 Stage One – Monitor and Prevent.............................................................................................................................. 8 Set the monitor and prevent safety zone:............................................................................................................... 8 Turn on/off the monitor and prevent alarm............................................................................................................. 8 How to locate wanderer.............................................................................................................................................. 8 Stage Two – Locate and Return................................................................................................................................. 9 Exercise A) Learning VHF directionality with the Osprey Receiver and Yagi Locator Antenna............................. 9 Exercise B) Hide and go seek................................................................................................................................9 Exercise C) Hide and go seek - slow moving target............................................................................................. 10 Triangulation – locating a wanderer...................................................................................................................... 10 How to locate a Wanderer.................................................................................................................................... 11 Factors Affecting Locating Performance.................................................................................................................. 13 Receiver Controls..................................................................................................................................................... 14 Channel Scanning Settings...................................................................................................................................... 15 Settings: LCD Contrast; Backlight ON Time;............................................................................................................ 15 On Off Menu............................................................................................................................................................. 16 Date/time Set............................................................................................................................................................ 16 Product Details......................................................................................................................................................... 17 Maintenance............................................................................................................................................................. 17 Battery Charging....................................................................................................................................................... 17 Backup Battery Power.............................................................................................................................................. 17 Precautions............................................................................................................................................................... 17 Operating in Extreme Conditions...............................................................................…

Text truncated - open the document above for the full version.

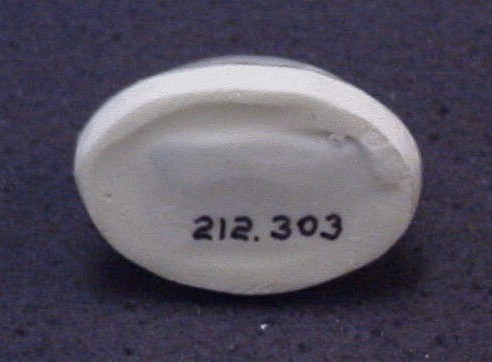

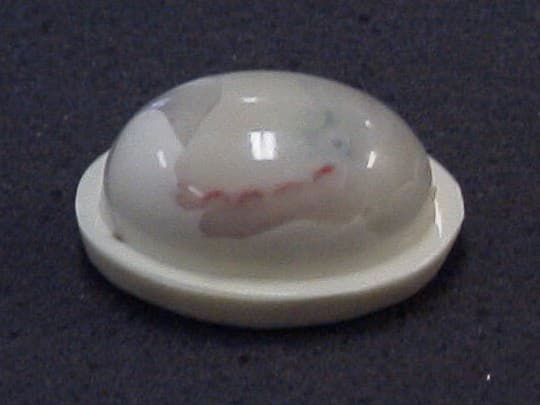

H.A.B.I.T. RESEARCH LTD. FCC ID: TKE2542248 EXTERNAL PHOTOS

692 Sumas Street. Victoria, BC V8T 4S6 Canada Tel: (250) 381-9425 Fax: (250) 381-9426 Confidential Information – HABIT Research Ltd. FCC ID Sticker details, clear background with blue font Label Sample FCC ID: TKE2542248 Location Note: identical model with various cosmetics

H.A.B.I.T. RESEARCH LTD. FCC ID: TKE2542248 INTERNAL PHOTOS

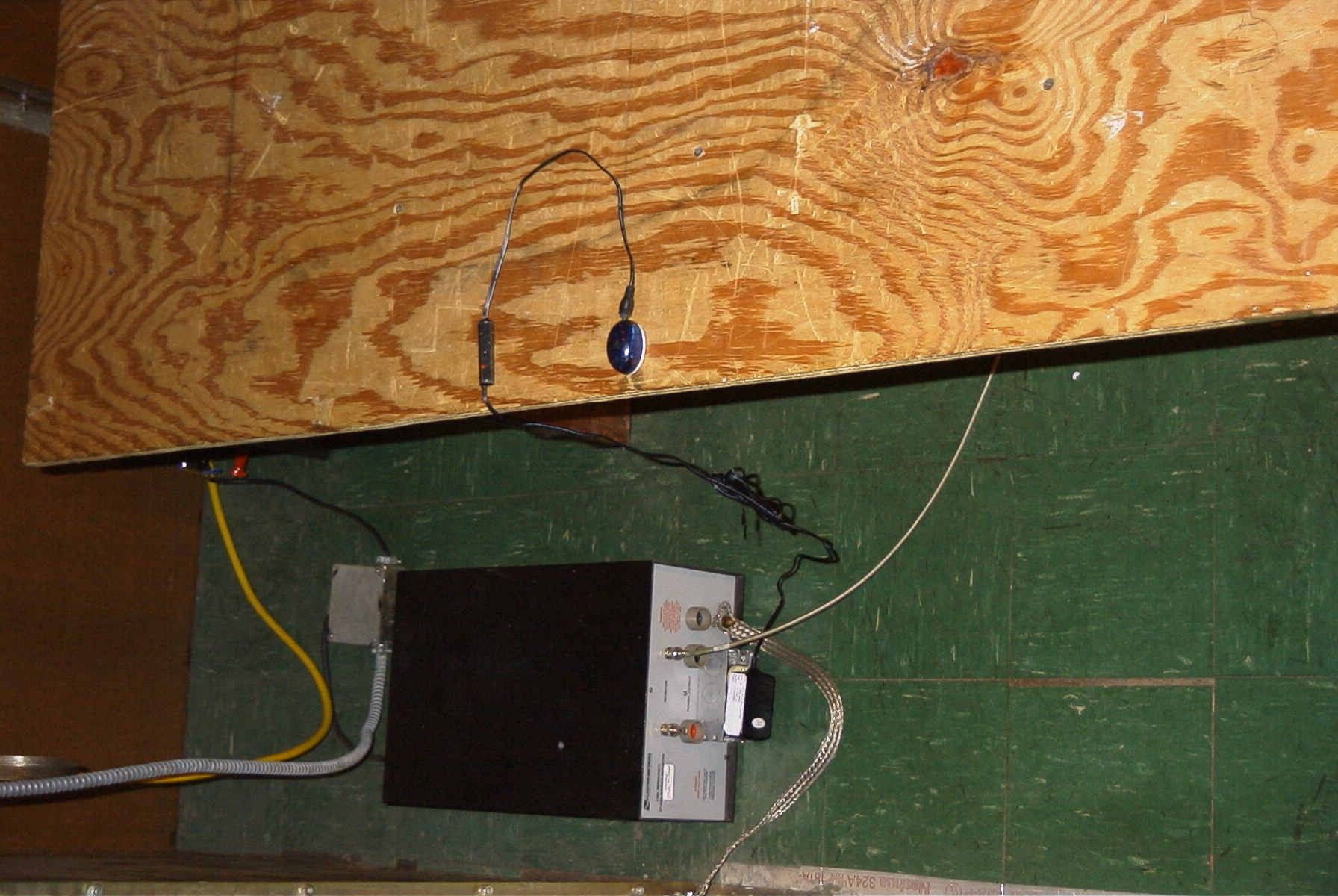

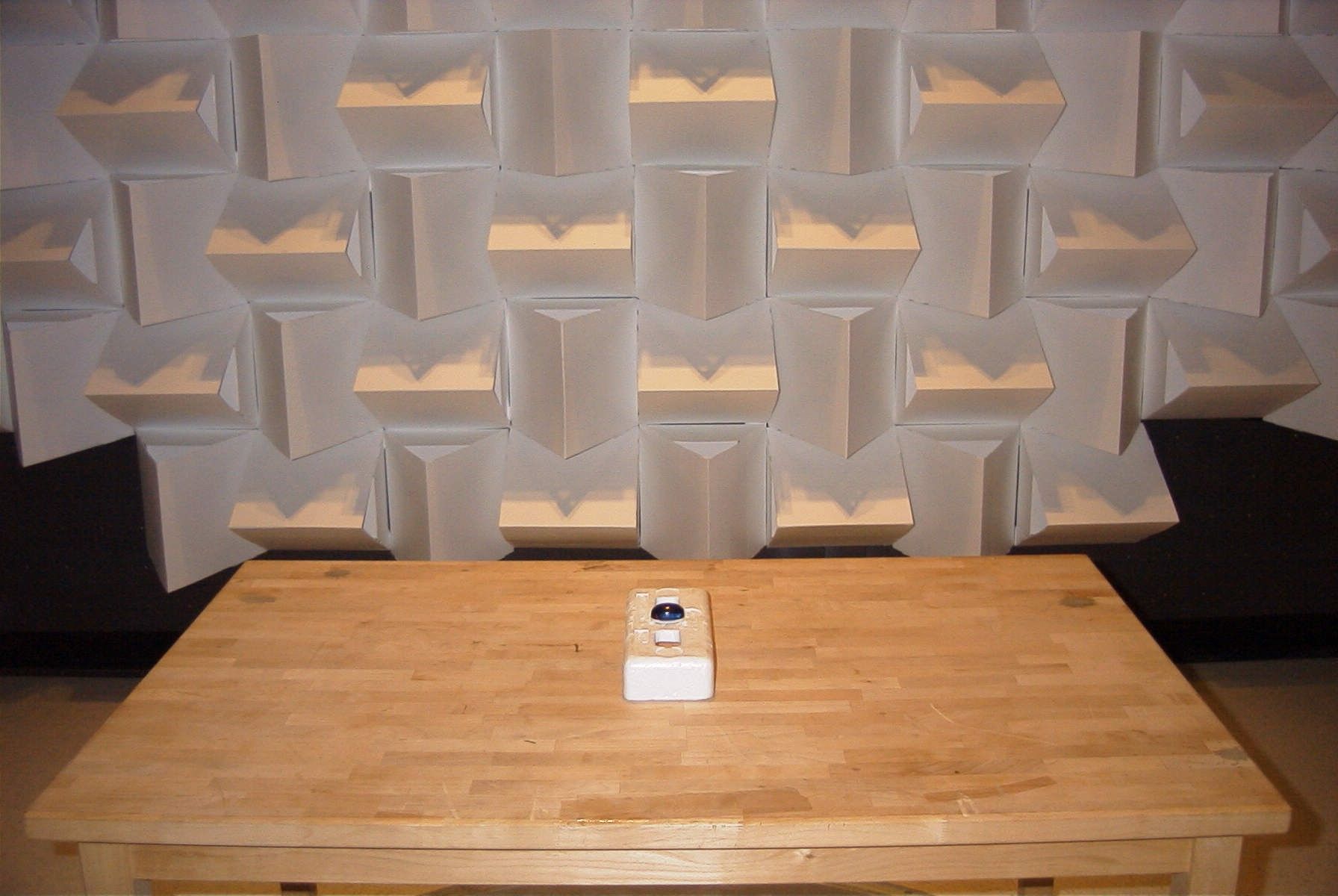

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 Test Report Product Name: TRANSMITTER FCC ID: TEK2542248 Applicant: H.A.B.I.T Research Ltd. 692 Sumas Street Victoria BC Canada Date Receipt: 11/21/2005 Date Tested: 11/21/2005 REPORT #: H\HabitResearch\1879XUT5\1879XUT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 TABLE OF CONTENTS LIST APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-4...........RADIATION INTERFERENCE TEST DATA PAGE 5.............OCCUPIED BANDWIDTH PAGE 6.............OCCUPIED BANDWIDTH PLOT PAGE 7.............POWERLINE CONDUCTED PAGE 8-9...........POWERLINE CONDUCTED PLOTS EXHIBITS INCLUDING: CONFIDENTIALITY REQUEST LETTER BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH REPORT #: H\HabitResearch\1879XUT5\1879XUT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 8/3/05 8/3/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 REPORT #: H\HabitResearch\1879XUT5\1879XUT5TestReport.doc Page 1 of 9 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre- selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. REPORT #: H\HabitResearch\1879XUT5\1879XUT5TestReport.doc Page 2 of 9 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.241 REQUIREMENTS: CARRIER EMISSION WILL NOT EXCEED 63.5 dBuV/m AT 3M. Or 1500uV/m @3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 43.5dBuV/m @ 3M for any emission outside the 200kHz BW. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Antenna Correction Factor dB Duty Cycle Field Strength dBuV/m Margin dB 212.6 70.87 19.5 H 0.57 8.24 11.9 16.41 27.09 212.6 85.83 14.7 V 0.61 8.08 11.9 11.49 32.01 212.6 141.74 16.1 V 0.69 12.9 11.9 17.79 25.71 212.6 212.6 41.2 V 0.93 11.07 11.9 41.3 22.2 212.6 212.6 49.4 H 0.93 11.95 11.9 50.38 13.12 212.6 214.62 26.8 H 0.93 11.91 11.9 27.74 15.76 212.6 214.63 17.3 V 0.93 11.05 11.9 17.38 26.12 212.6 217.59 22 H 0.94 11.85 11.9 22.89 20.61 215.6 71.87 20.3 V 0.57 7.24 11.9 16.21 27.29 215.6 71.9 20.1 H 0.57 7.93 11.9 16.7 26.8 215.6 143.74 15.4 V 0.69 13.02 11.9 17.21 26.29 215.6 143.74 20.6 H 0.69 13.4 11.9 22.79 20.71 215.6 215.62 43.3 V 0.93 11.04 11.9 43.37 20.13 215.6 215.62 51.8 H 0.93 11.89 11.9 52.72 10.78 215.6 219.42 28.6 V 0.94 11.01 11.9 28.65 14.85 215.6 219.42 37.9 H 0.94 11.81 11.9 38.75 4.75 215.6 223.32 21.8 H 0.95 11.8 11.9 22.65 20.85 215.6 223.37 14.4 V 0.95 11 11.9 14.45 29.05 215.6 287.48 16 H 1.07 14.1 11.9 19.27 24.23 215.6 431.23 22.4 V 1.23 16.22 11.9 27.95 15.55 REPORT #: H\HabitResearch\1879XUT5\1879XUT5TestReport.doc Page 3 of 9 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: H.A.B.I.T Research Ltd. FCC ID: TEK2542248 APPLICANT: H.A.B.I.T Research Ltd. F…
