TLN-PERFECT-TEMPIntegrated Electronic Wine Therrmometer

EWT-4X Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. PARTS LIST / BREAKDOWN Installing / Replacing Batteries Main Unit (Ice Bucket) 1. Locate the battery compartment on the bottom of the unit. 2. Open the battery compartment. 3. Insert 3 “AA” size batteries (not included) into the battery compartment. Make sure that the batteries are installed according to the correct polarity markings in the bottom of the compartment. 4. Replace the battery compartment door. Sensor Unit (Wireless Temperature Sensor) The icy WineBar’s Wireless Temperature Sensor comes with a battery already installed at the factory. Should the Sensor Unit battery need to be replaced: 1. Open the Sensor Unit by removing the battery lid with a small flat head screwdriver. 2. Remove the exhausted battery and replace it with a lithium button cell “CR2032” 3. When inserting the new battery make sure that the positive “+” terminal of the battery is upwards. 4. Replace the battery lid. BE CAREFUL WHEN INSTALLING BATTERIES INTO THE MAIN UNIT OR WIRELESS TEMPERATURE SENSOR OF THE ICY WINEBAR. INSTALLING THE INCORRECT BATTERIES OR REVERSING THE POLARITIES COULD CAUSE PERMANENT DAMAGES TO THE PRODUCT. Easy to Use (Operating instructions) 1. Insert the Wireless Temperature Sensor into your opened bottle of wine. 2. Turn on the icy WineBar by: a. Turning the switch to the “ON” position on the Wireless Temperature Sensor b. Pressing the “POWER” button on the Ice Bucket 3. Set the Wine Setting according to the type of opened wine bottle by pressing the “SELECT” button. Keep pressing the select button until the correct setting appears on the LCD & screen. Red 17°C (63°F) Rosé 15°C (59°F) White 10°C (50°F) Champagne 9°C (48°F) www.lightninglever.com � � � � � � � � � � � A - LCD B - Red LED C - Temperature Display D - Power Button E - Removable Ice Bucket F - Green LED G - Preset “Select Button” H - Main Unit Battery Compartment I - Sensor Battery Cover J - Sensor “ON / OFF” Switch K - Wireless Temperature Sensor Pickup Easy to Use (Operating instructions) (Continued) 4. The LCD will display the temperature: a. The single line will indicate the current temperature of the wine b. Three lines will indicate the ideal temperature based on the setting selected in step 3. 5. Now read the color of the LED lights a. If the red LED is lit, it means either your wine is too Cool or too Warm. b. If the green LED is flashing it means that your wine is within ± 1°C (± 1.8°F) of the ideal serving temperature. c. If the green LED is solid, it means that your wine is as the perfect temperature based on the Perfect Temp system and it’s ready to serve. 6. If the red LED is lit and the single line is above the three lines it means that your wine is too warm and it needs to be chilled. a. Place your wine bottle in the middle of the ice bucket and then fill it with ice uniformly around your wine bottle for even cooling. Additionally we recommend adding water to improve the cooling performance. b. In approx 10 minutes a bottle of white wine at normal room temperatures (~21°C / ~70°F) should be cooled enough, and within 4 minutes, a bottle of room temperature red wine will attain 17°C (63°F) when using a mixture of water and ice. THEREFORE FOR MAXIMUM COOLING EFFICIENCY WE RECOMMEND A MIXTURE OF WATER AND ICE 7. If the red LED is lit and the single line is below the three lines it means that your wine is too cool to be served and it needs to be placed in a warmer environment. We do not recommend heating your wine. Please let your wine stand in room temperatures to warm your wine. LASTLY REMEMBER TO SHUT OFF THE WIRELESS TEMPERATURE SENSOR BY TURNING THE POWER SWITCH TO “OFF” & THE ICE BUCKET UNIT BY PRESSING THE “POWER” BUTTON. Cleaning Instructions 1. Remove the bucket insert to discard of the ice & water solution. 2. Rinse both the removable bucket insert & the Wireless Temperature Sensor under cold tap water. IMPORTANT: rinse only the metal pickup portion of the wireless temperature sensor. If the top portion of the sensor is exposed to liquids damage to the temperature sensor will occur. 3. If necessary clean the Ice Bucket unit with a mild soap solution using a cloth. Wipe clean with a damp cloth. WARNING: DO NOT SUBMERGE THE ICE BUCKET UNIT IN WATER. DOING SO WILL PERMANENTLY DAMAGE THE ICY WINEBAR Troubleshooting In this section you can find solutions to common problems by trying the suggestions below. SYMPTOMPOSSIBLE CAUSE / SOLUTION The ice bucket display is not showing any information • The unit is off, press the power button • The batteries are dead, replace the batteries (see battery changing procedure above) The unit is on but is not registering the temperature of your wine • The wireless temperature sensor is off, turn it on by moving the power switch to “ON” position • The wireless temperature sensor is more than 0.5 meters (20 inches) away from the ice bucket unit. • The wireless temperature sensor battery is dead, replace it (see battery changing procedure above) NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to r…

Text truncated - open the document above for the full version.

Thermistor Microprocessor SF8305 TX Block diagram 27.145MHz crystal 8,September,2005 RC 250KHz

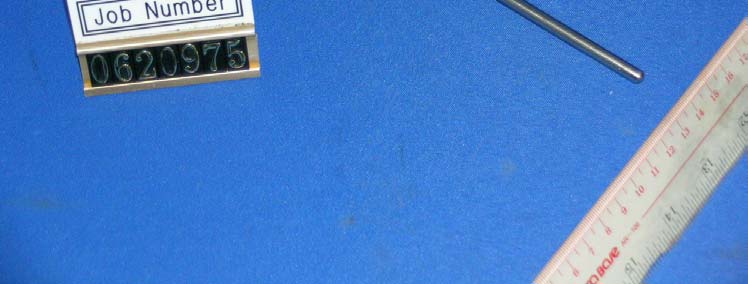

Test Setup FCC ID : TLN-PERFECT-TEMP External Photo - Front External Photo - Rear

position: label size : 25mm x 6.5 mm fonts : Birch STD 200% 200%

Test Setup FCC ID : TLN-PERFECT-TEMP Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : TLN-PERFECT-TEMP Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : TLN-PERFECT-TEMP Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : TLN-PERFECT-TEMP Internal Photo - 7

Transmition Principle (TX) 1) The microprocessor IC1 detect the temperature through the thermistor 2) The temperature reading encode into the digital signal. 3) The encoded signal mix with the carrier frequency (Q2, Y1) and form the RF signal. 4) The RF signal transmitted out through the antenna.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Concept Solutions Ltd. Application For Certification (FCC ID: TLN-PERFECT-TEMP) Transmitter 0518167 DL/ Sandy Lee September 21, 2005 INTERTEK TESTING SERVICES FCC ID: TLN-PERFECT-TEMP i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: TLN-PERFECT-TEMP ii MEASUREMENT/TECHNICAL REPORT Concept Solutions Ltd. - MODEL: PERFECT TEMP EWT40 PERFECT TEMP EWT41 PERFECT TEMP EWT42 PERFECT TEMP EWT236 FCC ID: TLN-PERFECT-TEMP September 21, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-04 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: TLN-PERFECT-TEMP iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .....................................................................................15 5.0 Product Labelling ................................................................................................17 6.0 Technical Specifications ....................................................................................19 7.0 Instruction Manual ..............................................................................................21 8.0 Miscellaneous Information .................................................................................23 8.1 Bandwidth Plot ...................................................................................................24 8.2 Discussion of Pulse Desensitization ...................................................................25 8.3 Emissions Test Procedures................................................................................26 INTERTEK TESTING SERVICES FCC ID: TLN-PERFECT-TEMP iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: TLN-PERFECT-TEMP 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: TLN-PERFECT-TEMP 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operation at 27.145MHz. The EUT is powered by 3V d.c. (1 x 3V “CR2032” battery). It transmits temperature signal to the corresponding receiver and the temperature level will be indicated on the display of the receiver. The Model: PERFECT TE…

Text truncated - open the document above for the full version.

Test Setup FCC ID : TLN-PERFECT-TEMP Radiated Photo - Front Radiated Photo - Rear
