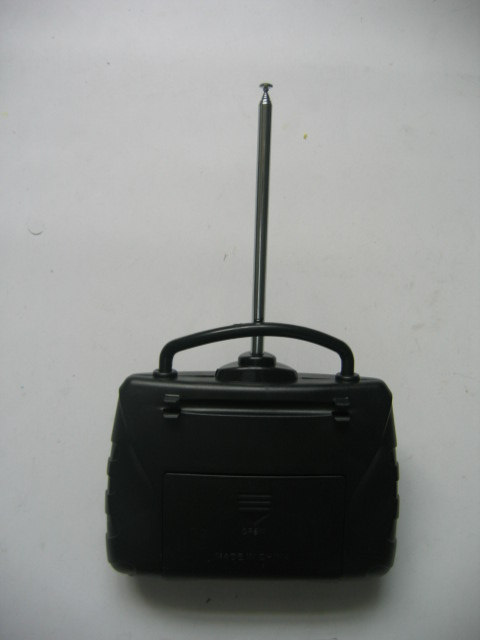

TLRRC-LR-16-49Remote Control Toy Transmitter

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

DC 9V POWER SUPPLY IC2 OSCIL LATING & MIX AMP MODULATION

FCC ID location FCC ID Label Sample FCC ID No.: TLRRC-LR-16-49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NEW1：6 R/C CAR FUNCTION DESCRIPTION THE NEW 1:6 ITEM IS A R/C TOY CAR WITH FIVE FUNCTIONS : FORWARD ,INCLUDING TWO SPEEDS, BACKWARD, LEFT TURNING,RIGHT TURNING. THE CHANGING OF SPEED COULD BE OPERATED BY PRESSING SPEED 1, SPEED 2 BUTTONS. WHEN PRESS THE “ON” BUTTON, THE GREEN LIGHT ON THE CONTROLLER SHINES. THE CAR IS ON SPEED 1 CONDICTION( LOW SPEED). PRESS THE “FORWARD” HANDSPIKE, THE CAR GO ADVANCE AT SPEED 1. PRESS SPEED 2, THE CAR GO AHEAD AT SPEED 2 WITH THE RED LED LIGHT ON. THE CAR DOESN’T WORK WHEN PRESSING BOTH SPEED 1 AND SPEED 2 AT THE SAME TIME.WHEN EITHER OF THE BUTTON RELEASED, THE CAR WILL AT THE OTHER CONDITION (SPEED 1 OR SPEED 2) NO MATTER WHCH SPEED THE CAR IS, IT WILL ON SPEED 1 WHEN TURNING LEFT OR RIGHT. WHEN PRESSING THE BACKWARD HANDSPIKE, THE CAR GO BACKWARD. THE FRONT LIGHT WILL ON WHEN THE CAR GO ADVANCE AND BACK LIGHT ON WHEN GO BACKWARD.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 23-Sep-2005 Sheet of File: E:\p cb\ 20 04 PCB\ 1 6.Dd b Drawn By: LED 2.2UH X1 1234567 8 9 10 11 12 13 14 R3 6.8UH R6 C13 C11 C10 C14 2SC945 R1 R2 TX R7 2.2UH K2 K3 K1 C9 D1 Q1 C6 C4 R5 C3 R4 T1 RX VCC+9V C5 C8 C2 C1 SK1 DC12V IC1 S1 S1 Q1 D4 D2 D3 D1 D1 C1 R1 R2 R15 R2 R1 R17 R25 R1 D7 D8 R10 R9 Q1 Q1 R? R12 D1 R1 C1 D2 C3C2 GK-XP16 27MHZ SCHEMATIC DRAWING JINWEI INDUSTRIAL, CO.,LTD 1.0 Song

T Report No.: SZEMO050901147RFF Page : 1 of 9 FCC ID : TLRRC-LR-16-49 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO050101147RF(SZTYR050901202/EL) Applicant : Guangdong Shantou City Chenghai District Jinwei Co., Ltd FCC ID : TLRRC-LR-49 Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : 1:6R/C Landrover car Model : RC-LR-16 Labelled Age Grading: 8 AND UP Standards : FCC PART 15, SUBPART C : 2004 Section 15.235 Date of Receipt : 26 September 2005 Date of Test : 8 to 9 October 2005 Date of Issue : 10 October 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID.: TLRRC-LR-16-49 Report No.: SZEMO050901147RFF Page : 2 of 9 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.235 PASS Occupied Bandwidth FCC PART 15 :2004 Section 15.235 PASS Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. FCC ID.: TLRRC-LR-16-49 Report No.: SZEMO050901147RFF Page : 3 of 9 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY.......................................................................................................................................2 3 CONTENTS................................................................................................................................................3 4 GENERAL INFORMATION........................................................................................................................4 4.1 CLIENT INFORMATION...........................................................................................................................4 4.2 DETAILS OF E.U.T. ...............................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS.........................................................................................................4 4.4 TEST LOCATION....................................................................................................................................4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER...........................................................................4 4.6 TEST FACILITY......................................................................................................................................5 5 TEST RESULTS.........................................................................................................................................6 5.1 TEST INSTRUMENTS..............................................................................................................................6 5.2 E.U.T. OPERATION...............................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA............................................................................................6 5.3.1 Radiated Emissions.......................................................................................................................6 5.3.2 Occupied Bandwidth......................................................................................................................9 5.3.3 Photographs - Radiated Emission Test Setup in Chamber..........Error! Bookmark not defined. 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS........ERROR! BOOKMARK NOT DEFINED.-12 FCC ID.: TLRRC-LR-16-49 Report No.: SZEMO050901147RFF Page : 4 of 9 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant: Guangdong Shantou City Chenghai District Jinwei Co., Ltd . Address of Applicant: Nanwan Industrial Zone, Lian nan Road, Chenghai, GuangDong 4.2 Details of E.U.T. Product Name: 1:6R/C Landrover car Model: RC-LR-16 Power Supply: 9V DC (6 x ‘AA’ Size Batteries) for the transmitter. Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Ltd., Guangzhou EMC Laboratory, 1/F, Buildin…
