TMQRFT01Remote control transmitter

FCC Home | Search | Updates | E-Filing | Initiatives | For Consumers | Find People Office of Engineering and Technology FCC > FCC E-filing > TCB > Submit Correspondence FCC Site Map Form 731 Confirmation Number: TC385320 Correspondence Reference Number: 27073 Enter Comments Below: * * - Indicates that this field must be completed before proceeding. In response to the comment regarding the size of the device, please refer to Page 5 of the test report which states that the size is 46 by 46 by 80 mm high. The device is conical shaped with the base 46 mm in diameter tapering to an 80 mm height. We considered the device small enough to qualify to 15.19(a)(5) which allows the required wording to appear in the user manual instead of on the device. Submit ResponseClear Last Reviewed/Updated on 06/11/2003 Please send any comments or suggestions for this site to OET Systems Support Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act Page 1 of 1OET Equipment Authorization System Reply to OET Correspondence 3/17/2006https://gullfoss2.fcc.gov/prod/oet/cf/tcb/forms/SubmitCorrespondenceEntryTC.cfm

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1655 Scott Blvd to public safety and committed to Santa Clara, CA 95050 quality service for over 100 years EMC Services Department Tel: (408) 876-2905 Fax: (408)556-6071 ELECTROMAGNETIC COMPATIBILITY (EMC) REPORT EMISSIONS Elica s.p.a Model 2009B FCC ID: TMQRFT01 August 16, 2005 Project No.: 05CA31756 Test Report No.: MC8339-081605 Company: Elica s.p.a. Model #:2009B Project: 05CA31756 FCC ID: TMQRFT01 Report #:MC8339-081605 Page 2 of 26 REPORT DIRECTORY Title Section General Information 1.0 Scope 1.1 Purpose 1.2 Test Results 1.3 Documentation Review/Approval 1.4 General Product Description 2.0 Justification of Configuration 2.1 EUT Operating Mode(s) 2.2 Environmental Conditions in Test Lab 3.0 Calibration Details of Equipment Used for Measurement 4.0 Test Facility 5.0 Accreditations and Authorizations 6.0 Emissions Test Regulations 7.0 Field Strength Calculations 7.1 Measurement Uncertainty 7.2 Measurement Bandwidths 7.3 Transmit Deactivation Time 7.4 Radiated Electric Field Spurious Emissions 7.5 Radiated Electric Field Fundamental Emissions 7.6 Fundamental Duty Cycle 7.7 Occupied Bandwidth 7.8 Company: Elica s.p.a. Model #:2009B Project: 05CA31756 FCC ID: TMQRFT01 Report #:MC8339-081605 Page 3 of 26 1.0 General Information 1.1 Scope Underwriters Laboratories Inc., authorizes the above named company to reproduce this Report, provided it is reproduced in its entirety. The data in this Report reflects only the items tested in the configurations and mode of operations described. All data recorded and photographs represents testing under the worst case conditions permitted by the requirements applied to the product. It is the manufacturer’s responsibility to assure that additional production units are manufactured with identical electrical and mechanical components. Any modifications necessary for compliance made during testing must be implemented in all production units for compliance to be maintained. Underwriters Laboratories Inc., shall have no liability for any deductions, inferences or generalizations drawn from this report. This report shall not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the United States government. 1.2 Purpose Testing was performed to the following regulations: Emissions Standards used: CFR 47 Part 15 Subpart C Except as noted below, all test methods and data contained in this report are covered by NVLAP accreditation. Exceptions: None. Company: Elica s.p.a. Model #:2009B Project: 05CA31756 FCC ID: TMQRFT01 Report #:MC8339-081605 Page 4 of 26 1.3 Test Results In Compliance Not in Compliance Statements regarding compliance with requirements and criteria in the subsequent sections of this report are opinions and interpretations provided by Underwriters Laboratories Inc. technical staff. Transmitter Requirement Summary Environmental Phenomena Frequency Range FCC Section Test Result Antenna Requirements 88 – 108 MHz 15.203 The unit is provided with an integral antenna Conducted Emissions, AC Mains 0.15 – 30 MHz 15.207 Not Required (Battery Operated) 5 Second Transmit Time 433.9 MHz 15.231(a)(1) See Section 7.4 Spurious Radiated Emissions 30 – 5000 MHz 15.209,15.231(b) See Section 7.5 Fundamental Emissions 433.9 MHz 15.231(b) See Section 7.6 Occupied Bandwidth 20 dB 433.9 MHz 15.231(c) See Section 7.8 1.4 Documentation Review/Approval Project Management: Technical Review By: Bill Barry Asim Tirmizi Staff Engineer Project Engineer International EMC Services International EMC Services Department 3014A Department 3014A Company: Elica s.p.a. Model #:2009B Project: 05CA31756 FCC ID: TMQRFT01 Report #:MC8339-081605 Page 5 of 26 2.0 General Product Description Applicant : Elica Spa Manufactured By : Same as Applicant License Holder : Not Applicable Applicant Address : Via Dante 288 Fabriano, AN 60044 ITALY Applicant Contact : Luca David Model/Type No. : 2009B Date of Issue : August 16, 2005 File No. : MC8339 Test Report No. : MC8339-0801605 Project No. : 05CA31756 Product Description The EUT is a 433.9 MHz manually activated remote control transmitter. The device is intended to control an overhead cooking range light and fan. Equipment Size, Mobility, and Identification Dimensions: 46 by 46 by 80 mm Mobility: Hand-held Table-top Floor-standing Rack Mount Electrical Ratings Voltage [Volts] Current or Power Frequency [Hz] Phase Eut 6 V Not provided DC NA Test Voltage & Frequency Unless indicated otherwise on the individual data sheet or test results, the test voltage and frequency was as indicated below. Voltage Frequency 6 V DC Clocks/Oscillators 4 MHz, 433.9 MHz Equipment Type Prototype Pre-Production Production Company: Elica s.p.a. Model #:2009B Project: 05CA31756 FCC ID: TMQRFT01 Report #:MC8339-081605 Page 6 of 26 Model Differences Any other model(s) represented by the models tested in this investigation will be documented by the manufacturer. Device Modifications The following modifications were necessary for compliance: None EUT Description Manufacturer Model/Part # Serial Number Remote Control Elica 2009B Not provided 2.1 Justification of Configuration The EUT is provided in one configuration. 2.2 EUT Operating Mode(s) Equipment under test was operated during the measurement under the following conditions: The transmitter was powered from a fresh battery. For all testing except spurious emissions and fundamental emissions, the transmitter was manually operated to generate its RF signal. For all other tests, the transmitter was modified to allow continuous transmission. Fundamental measurements were made before and after the continuous transmission tests to verify the battery did not deplete. Since the unit is intended to be used on a countertop, only one orientation was tested. Company: Elica s.p.a. Model #:2009B Project: 05CA31756 FCC ID: TMQRFT01 Report #:MC8339-081605 Page 7 of 26 3.0 Environmental Conditions in Test Lab Tempera…

Text truncated - open the document above for the full version.

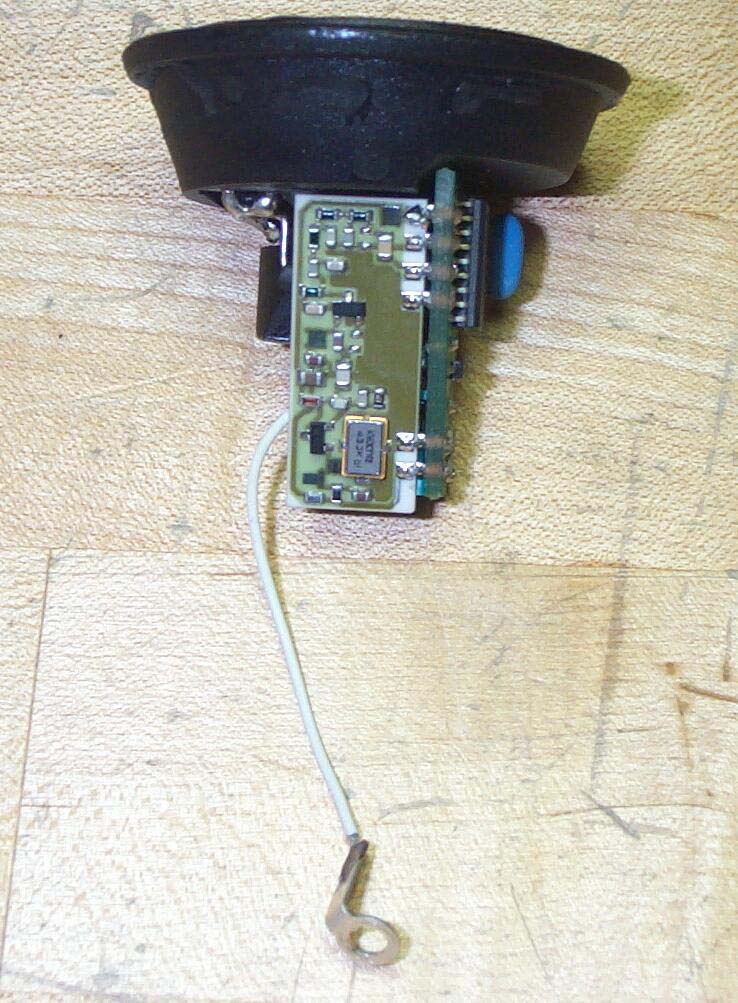

Test Setup Photos
