 Main Office:15-15 Yoido-dong, 4th Fl. Ilshin Bldg., Youngdeungpo-gu, Seoul A/S Center:40-999 Hangang-ro 3-ga, I-Park Mall Electronics Store P-501, Yongsan-gu, Seoul Factory:68 Gobong-ri, Seongsan-myun, Gunsan, Chollabuk-do IInnssttaallllaattiioonn aanndd SSaaffeettyy IInnssttrruuccttiioonnss These are instructions to keep you safe and prevent the loss of your property Please read carefully to learn how to use the device properly User Manual 3 FCC Compliance Statement 2 Table of Contents FCC Compliance Statement..................................................................................... 3 Safety Instructions..................................................................................................... 4 List of Features.......................................................................................................... 5 List of Parts................................................................................................................ 6 Connections............................................................................................................... 7 Timing Guide ............................................................................................................. 8 Pin Configuration....................................................................................................... 9 - VGA Connection (Cable Side) - DVI Connection (Cable Side) Functions of the Controls........................................................................................ 10 Menu Descriptions................................................................................................... 11 Troubleshooting....................................................................................................... 14 Specifications........................................................................................................... 15 ❖ NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against radio frequency interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception (this can be determined by turning this equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. ● Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. ● Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under FCC rules. CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Safety Instructions 54 Safety Instructions Do not apply any physical shock to the panel (monitor screen). It may cause personal injury and/or malfunction. Do not install the monitor in wet or dusty locations. It may cause a fire, electric shock, and/or damage to the monitor. Avoid placing the monitor in direct sunlight or near a heater or fireplace. It may present a fire hazard. Take caution not to block the ventilation openings when you install the monitor. Overheating may pose a fire hazard. Disassembly, repair, or modification by unauthorized personnel is not allowed. It may cause a fire, electric shock, and/or damage to the monitor. Do not install the monitor on a tilted surface or in a place where it can be exposed to severe vibration. It may cause the monitor to fall or tip over, resulting in personal injury or damage to the unit. Take caution not to spill liquids (e.g., water, coffee, etc.) or put or drop coins, hairpins, matchsticks or other foreign objects into the openings of the monitor. It may cause a fire, electric shock, and/or damage to the monitor. If you see smoke coming from the monitor or notice any signs of malfunction, turn off the power switch, remove the power cord and contact the Customer Center. Continued use may cause an electric shock or a fire. To clean the screen surface, first unplug the monitor and wipe the surface with a soft cloth. (Never use acetone or alcohol, as it can cause damage to the LCD surface.) It may cause a fire or electric shock. List of Features The iBridge Cyfix JL 1720BM / JL 1910BM:
Has a 17/19-inch, amorphous-silicon TFT (Thin Film Transistor) LCD panel and supports up to 1280x1024.
Supports both Analog (15-pin D-Sub) and Digital (24-pin DVI-D) signals and is compatible with the IBM PC and Apple Macintosh TM . (You need an additional adapter to use it with an Apple Macintosh.)
Automatically switches to horizontal frequencies (30-80 kHz) or vertical frequencies (55-75 Hz).
Has an energy-saving feature and consumes 40W (17 ") , 50W (19") when turned on and less than 3W when turned off.
Supports audio features.
Is an ultra-light and ultra-slim monitor. This device is a class B digital apparatus. 7 Connections - Connecting a PC Before you connect the cables, make sure that both the monitor and PC are turned off. Connect the 15-pin D-Sub or 24-pin DVI-D signal cable between PC IN connector on the monitor and the PC output connector on your computer. Connect the power cord to the DC adapter and connect the adapter plug to the POWER IN connector on the rear of the monitor. Connect the plug of the power cord into an AC wall outlet. Turn on the PC before you turn on the monitor.…

Text truncated - open the document above for the full version.

FCC ID : To whom it may concern: We the undersigned IBRIDGE CO LTD. hereby authorize ESTECH Co., Ltd.(EST) of Korea to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by EST on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Sang-Hoon,Park / Manager Engineer

#15-15, Yeouido-Dong, Youngdeungpo-Gu, Seoul 150-875, Korea TEL : +82-63-450-5573 FAX : 82-63-450-5693 Federal Communications Commission Authorization and Evaluation Division FCC ID : TOAJL1720BM Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, Sang-Hoon,Park / Manager Engineer IBRIDGE CO LTD TEL : +82-63-450-5573 FAX : +82-63-450-5693

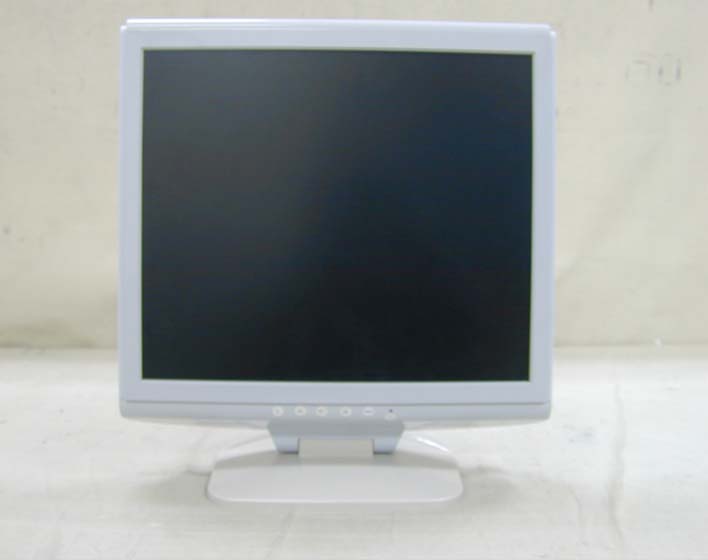

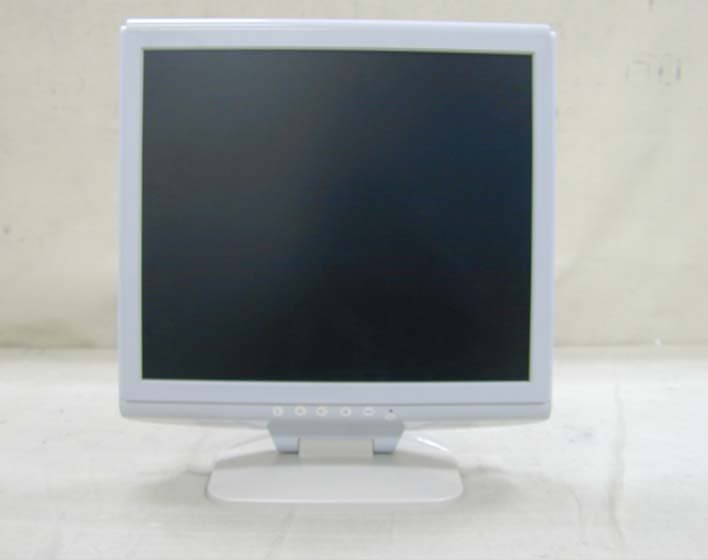

1. FRONT 2. REAR
