TOFAUH210Wireless Microphone

5.7dBm

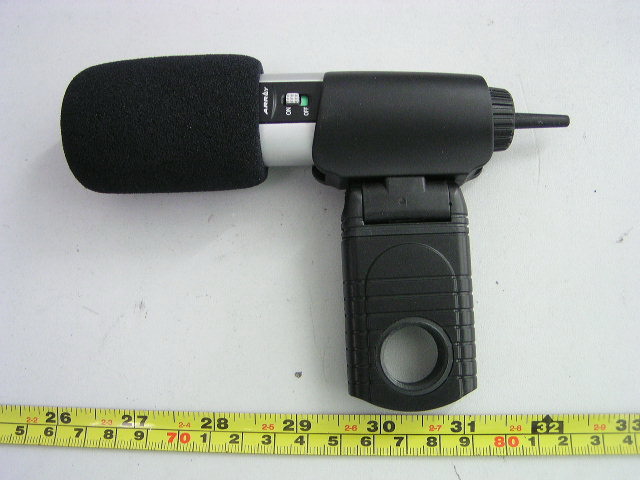

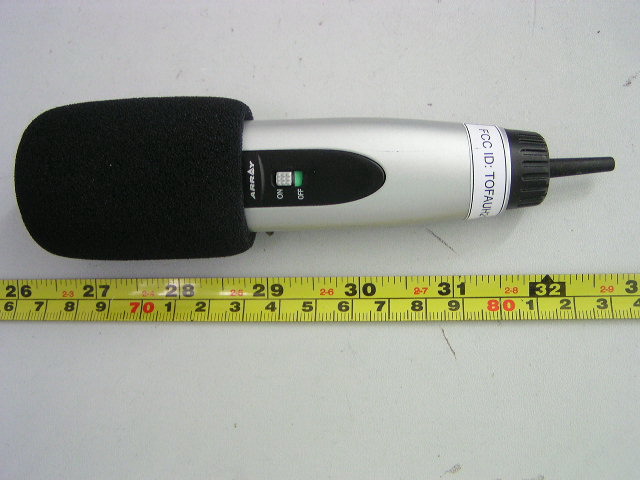

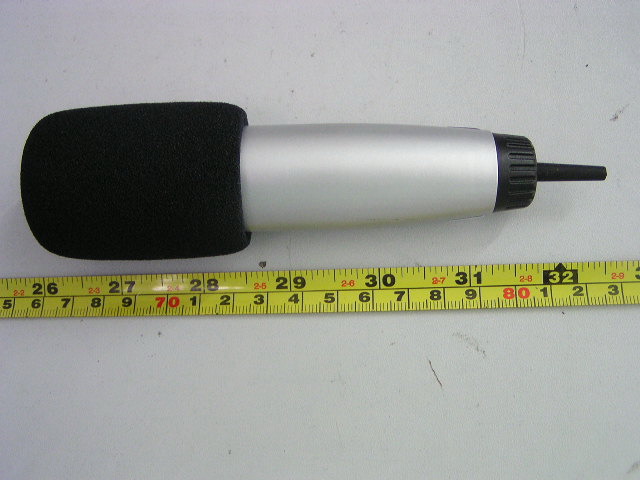

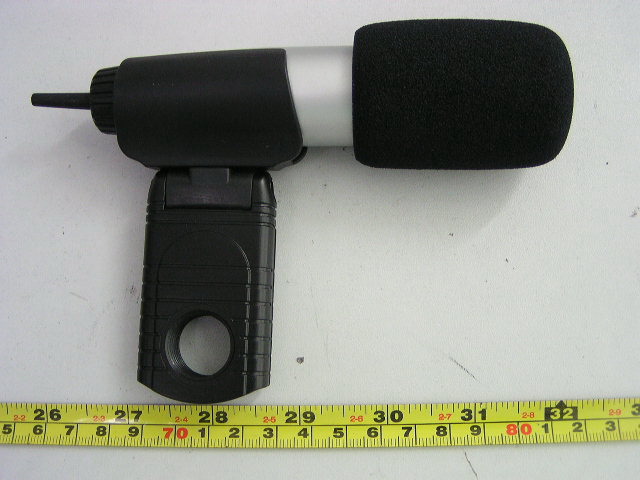

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View (1) EUT – Top View (2) EUT – Top View (3) EUT – Bottom View (1) EUT – Bottom View (2)

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Rear Side of EUT / Proposed Label Location FCC ID: TOFAUH210

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncovered View (1) EUT – Uncovered View (1) EUT – Top View of PCB (1) EUT – Top View of PCB (2) EUT – Bottom View of PCB (1) EUT – Bottom View of PCB (2)

Applicant: ARRAY ELECTRONIC CO., LTD. FCC ID: TOFAUH210 Operation Description 1. Audio 1). MIC AMP (U 1 ) 2). Regulator (U 4 ) BATT (1.5V) 2. RF 1). Q 5 is the oscillation circuit. This controls the transmitting frequency to the buffer amplifier (Q 2 , Q 6 ) via PLL (U 6 ). Q 3 This multiplies the frequency oscillated from Q 2 , Q 6 . Q 4 This multiplies the frequency oscillated from Q 3 . The frequency from Q 3 will be sent out to the antenna via the bandpass filter. 2). U 3 is the infrared receiving units, which control PLL (U 6 ) to change the frequency of the transmitter via CPU (U 2 ) when receiving the infrared signal. 3). U 5 is the EEPROM, which is used to save the data of the frequency of the transmitter.

Applicant: Array Electronic Co., Ltd FCC ID:TOFAUH210 COMPONENTS LIST OF AUH210 TRANSMITTER R1 2.2KΩ/0603 chip resistor R2 10KΩ/0603 chip resistor R3 390Ω/0603 chip resistor R4 22KΩ/0603 chip resistor R5 51Ω/0805 chip resistor R6 560KΩ/0603 chip resistor R7 22KΩ/0603 chip resistor R8 2.2KΩ/0603 chip resistor R9 390Ω/0603 chip resistor R10 390Ω/0603 chip resistor R11 2.2KΩ/0603 chip resistor R12 10KΩ/0603 chip resistor R13 22KΩ/0603 chip resistor R14 100KΩ/0603 chip resistor R15 220Ω/0603 chip resistor R16 10KΩ/0603 chip resistor R17 1KΩ/0603 chip resistor R18 table R19 4.7KΩ/0603 chip resistor R20 390Ω/0603 chip resistor R21 2.2KΩ/0603 chip resistor R22 22Ω/0603 chip resistor R23 22Ω/0603 chip resistor R24 22Ω/0603 chip resistor R25 22Ω/0603 chip resistor R26 10KΩ/0603 chip resistor R27 51Ω/0603 chip resistor R28 33kΩ/0603 chip resistor R29 4.7kΩ/0603 chip resistor R30 51Ω/0603 chip resistor R31 33KΩ/0603 chip resistor R32 33KΩ/0603 chip resistor R33 4.7KΩ/0603 chip resistor R34 22Ω/0603 chip resistor R35 4.7KΩ/0603 chip resistor R36 220Ω/0603 chip resistor R37 51Ω/0603 chip resistor R38 220Ω/0603 chip resistor R39 220Ω/0603 chip resistor R40 4.7KΩ/0603 chip resistor R41 100Ω/0603 chip resistor R42 2.7KΩ/0603 chip resistor R43 10KΩ/0603 chip resistor R44 22KΩ/0603 chip resistor R45 2.7kΩ/0603 chip resistor R46 10KΩ/0603 chip resistor C1 100pF/0603 chip capacitor C2 0.1uF/0603 chip capacitor C3 1uF/0603 chip capacitor C4 1.5nF/0603 chip capacitor C5 4.7uF/0805 chip capacitor C6 100pF/0603 chip capacitor C7 100pF/0603 chip capacitor C8 100pF/0805 chip capacitor C9 1uF/0603 chip capacitor C10 220uF/10V7×8 electrolytic capacitor C11 0.47uF/0603 chip capacitor C12 100pF/0603 chip capacitor C13 1uF/0603 chip capacitor C14 220uF/10V7×8 electrolytic capacitor C15 0.1uF/0603 chip capacitor C16 0.1uF/0603 chip capacitor C17 10uF/0805 chip capacitor C18 1uF/0603 chip capacitor C19 3.9nF/0603 chip capacitor C20 1uF/0603 chip capacitor C21 0.1uF/0603 chip capacitor C22 100PF/0603 chip capacitor C23 0.1uF/0603 chip capacitor C24 100uF/10V5×7 electrolytic capacitor C25 0.47uF/1206 chip capacitor C26 100uF/10V5×7 electrolytic capacitor C27 1uF/0603 chip capacitor C28 1nF/0603 chip capacitor C29 1nF/0603 chip capacitor C30 1uF/0603 chip capacitor C31 4.7uF/0805 chip capacitor C32 4.7uF/0805 chip capacitor C33 1nF/0603 chip capacitor C34 1uF/0603 chip capacitor C35 1nF/0603 chip capacitor C36 1uF/0603 chip capacitor C37 2.2pF/0603 chip capacitor C38 0.1uF/0603 chip capacitor C39 1pF/0603 chip capacitor C40 1pF/0603 chip capacitor C41 100pF/0603 chip capacitor C42 3.3pF/0603 chip capacitor C43 5.9pF/0603 chip capacitor C44 7pF/0603 chip capacitor C45 100pF/0603 chip capacitor C46 1nF/0603 chip capacitor C47 7pF/0603 chip capacitor C48 7pF/0603 chip capacitor C49 100pF/0603 chip capacitor C50 7pF/0603 chip capacitor C51 100pF/0603 chip capacitor C52 33pF/0603 chip capacitor C53 33pF/0603 chip capacitor C54 470pF/0603 chip capacitor C55 0.47uF/0603 chip capacitor C56 4.7uF/0805 chip capacitor L1 82uH/6×9 drum ferrite core coils L2 1uH/0603 chip inductor L3 10nH/0603 chip inductor L4 10nH/0603 chip inductor L5 8.2nH/0603 chip inductor L6 8.2nH/0603 chip inductor L7 12nH/0603 chip inductor VD1 LED /0805 LED green VD2 LED/0805 LED red VD3 DIN5819/1206 chip diode VD4 1SV276/0805 chip diode DR1 DR840 (2×2×10.5) medium resonator Q1 S8550 (SOT-23) transistor Q2 2SC5065(SO-07) transistor Q3 2SC5065(SO-07) transistor Q4 2SC5065(SO-07) transistor Q5 2SC5065(SO-07) transistor Q6 2SC5065(SO-07) transistor Q7 S8050 (SOT-23) transistor Q8 S8050 (SOT-23) transistor J1 2011-1×5GS pin insertion Y1 ZK4.000M crystal oscillator K1 2235S/SOP switch U1 SA8507S(SSOP20) integrate circuit U2 HT46R47(SOP18) integrate circuit U3 GP1838Z-B integrate circuit U4 R1210N501D(SOT-5) integrate circuit U5 24LC02(SSOP8) integrate circuit U6 LMX1601(SSOP16) integrate circuit

Applicant: ARRAY ELECTRONIC CO., LTD. FCC ID: TOFAUH210 Tune-up Procedure 1. Make the Receiver send the Infrared signals of frequency change. 2. Input the power to the device and check the voltage: 1.5V. 3. Hold the Infrared Wireless Interface of the device 20 cms from the Infrared Wireless Interface of the receiver. 4. Turn on the switch of the deviceand wait for three seconds. The channel will be selected on the receiver into the transmitter automatically.

Applicant: Array Electronic Co., Ltd FCC ID:TOFAUH210 SCHEMATICS DIAGRAM OF AUH210 TRANMITTER

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 74 EMI MEASUREMENT AND TEST REPORT For ARRAY ELECTRONIC CO., LTD. XISHANQIAO, YUHUATAI ZONE, NANJING, 210041, CHINA FCC ID: TOFAUH210 October 19, 2005 This Report Concerns: Original Report Equipment Type: Wireless Microphone Test Engineer: Louise Lu Report No.: RSZ05092301 Test Date: October 11-19, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 ARRAY ELECTRONIC CO., LTD. FCC ID: TOFAUH210 Report # RSZ05092301 Page 2 of 28 FCC Par74 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §74.861(e)(1)(ii) – OUTPUT POWER MEASUREMENT .........................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST DATA..................................................................................................................................................................7 §74.861(e)(3) – MODULATION CHARACTERISTICS .........................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST DATA................................................................................................................................................................11 §74.861(e)(5) - OCCUPIED BANDWIDTH OF EMISSION ...................................................................................12 STANDARD APPLICABLE............................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA................................................................................................................................................................12 §74.861 (e)(6)(iii) – RADIATED SPURIOUS EMISSION .......................................................................................17 STANDARD APPLICABLE............................................................................................................................................17 MEASUREMENT UNCERTAINTY..................................................................................................................................17 EUT SETUP................................................................................................................................................................18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP...................................…
