TOFAUT210Wireless Microphone

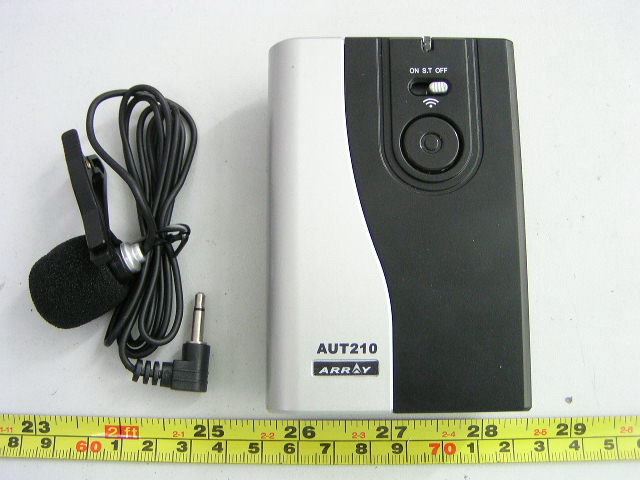

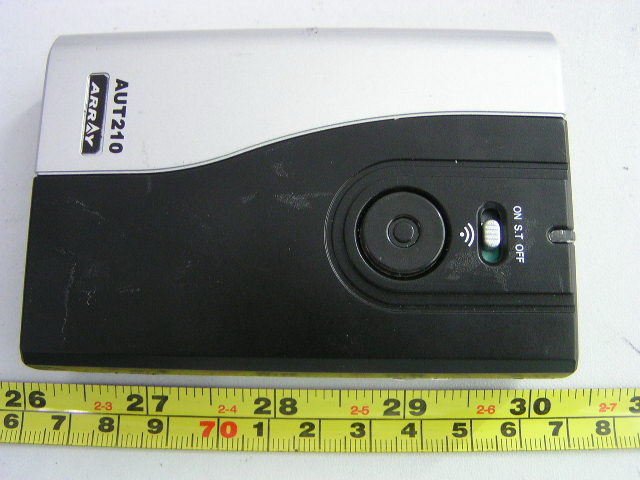

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View (1) EUT – Top View (2) EUT – Bottom View (1) EUT – Bottom View (2)

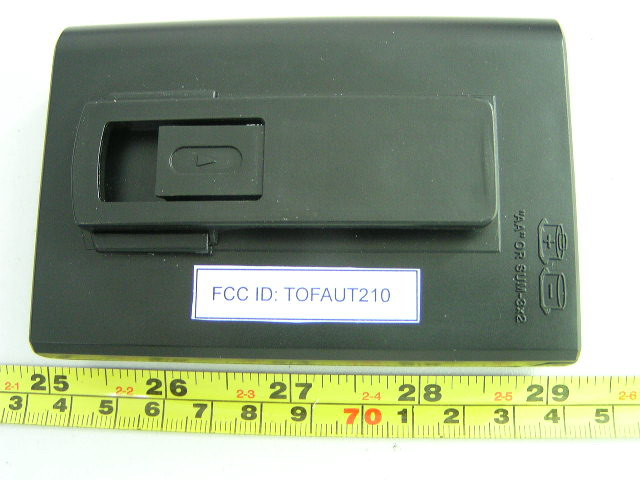

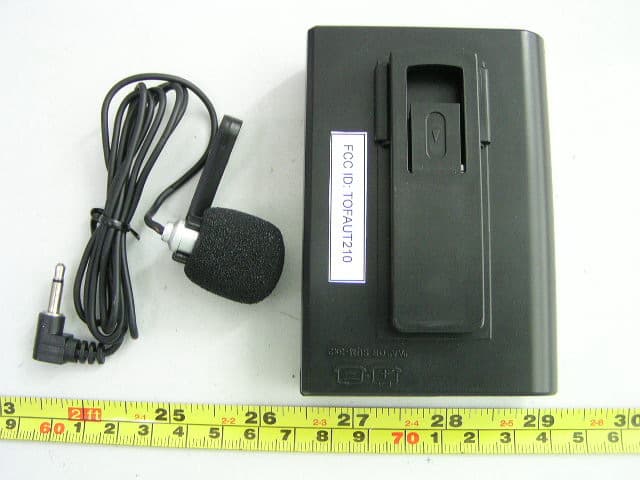

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Rear Side of EUT / Proposed Label Location FCC ID: TOFAUT210

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncovered View EUT – Top View of PCB EUT – Bottom View of PCB

Applicant: ARRAY ELECTRONIC CO., LTD. FCC ID: TOFAUT210 Operation Description 1. Audio 1). MIC AMP (U 1 ) This amplifies the voice signal of 50Hz¬15KHz by about 20dB and makes pre-emphasis features of 50us. 2). Regulator (U 6 ) This makes standard voltage for MIC AMP and RF part being supplied power from 3.0V battery. 2. RF 1). Q 4 is the oscillation circuit. This controls the transmitting frequency via PLL (U 5 ). The frequency is through the buffer amplifier (Q 1 , Q 5 ) then to the first frequency amplifier Q 2 then to the second frequency amplifier Q 3 and finally be sent out to the antenna via the bandpass filter. 2). U 3 is the infrared receiving units, which control PLL (U 5 ) to change the frequency of the transmitter via CPU (U 2 ) when receiving the infrared signal. 3). U 4 is the EEPROM, which is used to save the data of the frequency of the transmitter.

Applicant: Array Electronic Co., Ltd FCC ID:TOFAUT210 COMPONENTS LIST OF AUT210 TRANSMITTER R1 47KΩ/0603 chip resistor R2 22KΩ/0603 chip resistor R3 10KΩ/0603 chip resistor R4 51Ω/0603 chip resistor R5 10KΩ/0603 chip resistor R6 2.7KΩ/0603 chip resistor R7 4.7KΩ/0603 chip resistor R8 15KΩ/0603 chip resistor R9 390Ω/0603 chip resistor R10 390Ω/0603 chip resistor R11 2.2KΩ/0603 chip resistor R12 1KΩ/0603 chip resistor R13 10KΩ/0603 chip resistor R14 100KΩ/0603 chip resistor R15 220Ω/0603 chip resistor R16 10KΩ/0603 chip resistor R17 390Ω/0603 chip resistor R18 10KΩ/0603 chip resistor R19 2.2KΩ/0603 chip resistor R20 9.1KΩ/0603 chip resistor R21 15KΩ/0603 chip resistor R22 6.8KΩ/0603 chip resistor R23 22Ω/0603 chip resistor R24 22Ω/0603 chip resistor R25 22Ω/0603 chip resistor R26 10KΩ/0603 chip resistor R27 4.7KΩ/0603 chip resistor R28 51Ω/0603 chip resistor R29 51Ω/0603 chip resistor R30 22Ω/0603 chip resistor R31 33KΩ/0603 chip resistor R32 33KΩ/0603 chip resistor R33 22KΩ/0603 chip resistor R34 4.7KΩ/0603 chip resistor R35 4.7KΩ/0603 chip resistor R36 22Ω/0603 chip resistor R37 220Ω/0603 chip resistor R38 220Ω/0603 chip resistor R39 220Ω/0603 chip resistor R40 4.7KΩ/0603 chip resistor R41 100Ω/0603 chip resistor R42 4.7KΩ/0603 chip resistor R43 10KΩ/0603 chip resistor R44 22KΩ/0603 chip resistor R45 2.7KΩ/0603 chip resistor R46 560KΩ/0603 chip resistor R47 4.7KΩ/0603 chip resistor R48 2.2KΩ/0603 chip resistor VR1 5KΩ variable resistor C1 100pF/0603 chip capacitor C2 100pF/0603 chip capacitor C3 1uF/0603 chip capacitor C4 1uF/0603 chip capacitor C5 3.9nF/0603 chip capacitor C6 100pF/0603 chip capacitor C7 3.9nF/0603 chip capacitor C8 4.7uF/0805 chip capacitor C9 1uF/0603 chip capacitor C10 2.2uF/50V4×7 electrolytic capacitor C11 100pF/0603 chip capacitor C12 0.47uF/50V4×7 electrolytic capacitor C13 1uF/0603 chip capacitor C14 1nF/0603 chip capacitor C15 0.1uF/0603 chip capacitor C16 10uF/0805 chip capacitor C17 1uF/0603 chip capacitor C18 0.1uF/0603 chip capacitor C19 100uF/10V5×5 electrolytic capacitor C20 0.1uF/0603 chip capacitor C21 220uF/6.3V5×6 electrolytic capacitor C22 1uF/0603 chip capacitor C23 100pF/0603 chip capacitor C24 1nF/0603 chip capacitor C25 1uF/0603 chip capacitor C26 220uF/6.3V5×6 electrolytic capacitor C27 1nF/0603 chip capacitor C28 1nF/0603 chip capacitor C29 1uF/0603 chip capacitor C30 1uF/0603 chip capacitor C31 1nF/0603 chip capacitor C32 100P/0603 chip capacitor C33 1uF/0603 chip capacitor C34 1nF/0603 chip capacitor C35 10nF/0603 chip capacitor C36 2.2pF/0603 chip capacitor C37 100pF/0603 chip capacitor C38 1pF/0603 chip capacitor C39 1pF/0603 chip capacitor C40 3.3pF/0603 chip capacitor C41 7pF/0603 chip capacitor C42 100pF/0603 chip capacitor C43 2.2pF/0603 chip capacitor C44 7pF/0603 chip capacitor C45 7pF/0603 chip capacitor C46 100pF/0603 chip capacitor C47 7pF/0603 chip capacitor C48 100pF/0603 chip capacitor C49 0.1uF/0603 chip capacitor C50 33pF/0603 chip capacitor C51 33pf/0603 chip capacitor C52 220uF/10V6×7 electrolytic capacitor C53 0.1uF/0603 chip capacitor C54 0.1uF/0603 chip capacitor C55 0.1uF/0603 chip capacitor C56 1uF/0603 chip capacitor C57 470pF/0603 chip capacitor C58 220uF/10V6×7 electrolytic capacitor C59 4.7uF/0805 chip capacitor C60 220uF/10V6×7 electrolytic capacitor C61 0.47uF/1206 chip capacitor L1 1uH/0603 chip inductor L2 10nH/0603 chip inductor L3 10nH/0603 chip inductor L4 8.2nH/0603 chip inductor L5 10nH/0603 chip inductor L6 82uH/6×9 drum ferrite core coils L7 82uH/6×9 drum ferrite core coils VD1 LED/0805 LED red VD2 LED/0805 LED green VD3 IS2838-T2B(SOT-23) diode VD4 IS2276/0805 diode VD5 DIN5819/1206 diode Q1 2SC5065(SO-07) transistor Q2 2SC5065(SO-07) transistor Q3 2SC5065(SO-07) transistor Q4 2SC5065(SO-07) transistor Q5 2SC5065(SO-07) transistor Q6 SC8050 (SOT-23) transistor Q7 SC8050 (SOT-23) transistor Q8 SI2301 (SOT-23) transistor K1 MSC-23C02-A switch K2 SS12001VG4 switch J1 3F-07-3P jack Y1 ZK4.000M crystal oscillator U1 S18507B01(SOP20) integrate circuit U2 HT46R47(SOP18) integrate circuit U3 TSOP1838SS3V infrared receiver U4 24LC02(SOP8) integrate circuit U5 LMX1601(SSOP16) integrate circuit U6 R1210N331D(SOP-5) integrate circuit

Applicant: ARRAY ELECTRONIC CO., LTD. FCC ID: TOFAUT210 Tune-up Procedure 1. Make the Receiver send the Infrared signals of frequency change. 2. Input the power to the device and check the voltage: 3.0V. 3. Hold the Infrared Wireless Interface of the device 20 cms from the Infrared Wireless Interface of the receiver. 4. Turn on the switch of the deviceand wait for three seconds. The channel will be selected on the receiver into the transmitter automatically.

Applicant: Array Electronic Co., Ltd FCC ID:TOFAUT210 SCHEMATICS DIAGRAM OF AUT210 TRANMITTER

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 74 EMI MEASUREMENT AND TEST REPORT For ARRAY ELECTRONIC CO., LTD. XISHANQIAO, YUHUATAI ZONE, NANJING, 210041, CHINA FCC ID: TOFAUT210 October 19, 2005 This Report Concerns: Original Report Equipment Type: Wireless Microphone Test Engineer: Louise Lu Report No.: RSZ05092303 Test Date: October 11-13, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 ARRAY ELECTRONIC CO., LTD. FCC ID: TOFAUT210 Report # RSZ05092303 Page 2 of 28 FCC Par74 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §74.861(e)(1)(ii) – OUTPUT POWER MEASUREMENT .........................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST DATA..................................................................................................................................................................7 §74.861(e)(3) – MODULATION CHARACTERISTICS .........................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST DATA................................................................................................................................................................11 §74.861(e)(5) - OCCUPIED BANDWIDTH OF EMISSION ...................................................................................12 STANDARD APPLICABLE............................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA................................................................................................................................................................12 §74.861 (e)(6)(iii) – RADIATED SPURIOUS EMISSION .......................................................................................17 STANDARD APPLICABLE............................................................................................................................................17 MEASUREMENT UNCERTAINTY..................................................................................................................................17 EUT SETUP................................................................................................................................................................18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP...................................…
