Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 5 VOICEYE MATE Appendix 5. Block Diagram

Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 3 VOICEYE MATE Appendix 3. Photographs of EUT Front of EUT Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 3 VOICEYE MATE Rear of EUT Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 3 VOICEYE MATE Left of EUT Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 3 VOICEYE MATE Right of EUT

Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 2 VOICEYE MATE Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : VMP-100 FCC ID : TOLVMP100 AD Information & Communications Co., Ltd. Made in Korea

Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Appendix 4. Internal Photographs of EUT Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Top of main board side Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Bottom of main board side Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Top of interface board side Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Bottom of interface board side Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Battery Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Top of LCD side Bottom of LCD board side Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 4 VOICEYE MATE Adaptor

Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. VOICEYE MATE Operational Description • Designed for the people who are blind, visually impaired, partially sighted and illiterate to access to information in all printed matters • Revolutionary and versatile substitute for all kinds of visual and reading aids, such as Braille, screen readers, magnifiers, and audio books • Completely portable reading device for decoding and reciting text and audible data encoded in Voiceye symbol Take advantage of Voiceye mate’s many capabilities ◎ Advanced real-time Text to Speech reader ◎ Audio book ◎ Built-in voice recorder ◎ FM radio ◎ Talking clock ◎ Name card and address book VOICEYE Mate enhances your reading ability by giving you the following features and advantages: Completely portable device for decoding and reciting text Economical tool for listening to text and music High quality voice production – natural-sounding, human-like speech Multi-language available Stand-alone recording capacity – no PC required Stylish and universal design Quick and easy smart navigation controls including talking manu Fast forward/reverse controls 160 x 128 , 4096 Color STN LCD Plug-and-play USB connection for transferring files from PC using the supplied PC software USB2.0 compatible Firmware upgradeable Built-in speaker Built-in lithium polymer rechargeable battery Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. VOICEYE MATE 3-1. Play Mode Diagram 1 TTS Play 1 TTS Pause No Yes cz1 TTS Replay TTS End Yes No 7 Yes 6 8 TTS Play 중 Off 9 TTS Stop/End Yes Yes VOICEYE Mode 2345 Volume Up Volume Down RewFF YesYesYesYes ReturnReturnReturnReturncz7 Yes 2345 UpDown Up Folder Down Folder YesYesYesYes ReturnReturnReturnReturn 678 9 Talking Clock Ment 3 Mode Change YesYesYes Yes Return 7 Ment 4 Delete Yes 23451 9 68 Cancel Return Cancel VOICEYE Mode VOICEYE Mode Play Mode BookMark Folder 로 File copy Return Text To TTS Return Yes Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. VOICEYE MATE 4-1. VOICEYE Mode Diagram VOICEYE Mode Mode Key 에 의한 Mode Change Capture Key 에 의한 Quick Mode Change Reader 착/탈 유무 Beep 5 : “딩동” LED Power On Yes No Ment 6 : “VOICEYE Cam을 연결해주세요” Return Image Capture AD Code 유효성 검증 AD Code Decoding Text To TTS Yes No TTS Play 1 TTS Pause No Yes cz1 TTS Replay TTS End Yes No 7 Yes 6 8 TTS Play 중 Off 9 TTS Stop/End Yes VOICEYE Mode 2345 Volume Up Volume Down RewFF YesYesYesYes ReturnReturnReturnReturncz7 Yes BookMark Folder 로 File copy Return Reader 위치이동 Ment 출력 Ment 11 : 저장하시려면, Time Key 를 눌러주세요. 6 Yes Ment 12 : 저장되었습니다. 6 Key 를 제외한 나머지 Key Ment 13 : 취소되었습니다. YesNo Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. VOICEYE MATE ※VOICEYE Player Channel Stereo (right/left) Frequency Range 20Hz ~ 20KHz Earphone Output (L)15mW + (L)15mW, 16Ω Audio Speaker Output (L)250mW + (L)250mW, 8Ω FM Tuner FM Frequency Range 87.5MHz ~ 108MHz File Support File Type Text Power Adapter USB or Adapter (5V/0.5A) Charge Time 2 hours Power Supply Battery Type Lithium ion Polymer Dimension 102 x 65 x 23 mm Weight 125g (incl. Battery) LCD Size 1.89′′ LCD Display 160 x 128 STN/4096 color Operating Temperature 0 ~ 40°C Memory 512MB internal memory(TTS DB 200MB) USB USB 2.0 Max. Play Time 3 hours (under the condition of play mode) General Voice Recording Sampling Frequency 16kHz , 16 bit mono ※VOICEYE Scanner Dimension 43 x 48 x 67 mm Weight 80g Image Sensor 1/2 inch CMOS Color SXGA Color 24 bit RGB Color Pixel Array Size 1280 x 1024 Exposure Auto & Manual Control S/N Ratio 54 dB Max. Image Transfer Rate 15 FPS (Frame Per Sec) Interface 24 pin Port Length of USB Cable 1.2 m Specifications 1

Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 This report only responds and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 21 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : VOICEYE MATE MODEL/TYPE NO : VMP-100 FCC ID : TOLVMP100 TRADE NAME : - APPLICANT : AD Information & Communications Co., Ltd. #608, Ace Techno Tower 8 th , 191-7, Guro-dong, Guro-gu, Seoul, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : January 7, 2006 DATES OF ISSUE : January 31, 2006 TEST REPORT No. : BWS-06-EF-0004 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This VOICEYE MATE has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. January 31, 2006 (Date) Nam, Tae-Hyun Chief Engineer Laboratory Division BWS TECH Inc. www.bws.co.kr 2611-1, Maesan-ri, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Page 2 of 21 VOICEYE MATE TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~10 6. Test Results 11~19 7. Sample Calculation and Other Information 20 8. Test Equipment List 21 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Page 3 of 21 VOICEYE MATE FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Name : AD Information & Communications Co., Ltd. Applicant Address : #608, Ace Techno Tower 8 th , 191-7, Guro-dong, Guro-gu, Seoul, Korea Manufacturer Name : AD Information & Communications Co., Ltd. Manufacturer Address : #608, Ace Techno Tower 8 th , 191-7, Guro-dong, Guro-gu, Seoul, Korea Contact Person : Kim, Han-yong Phone/Fax : Phone : +82-2-2025-7750 / Fax : +82-2-2025-7754 z EUT Type : VOICEYE MATE z Model Number : VMP-100 z FCC Identifier : TOLVMP100 z S/N : : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2003 z Date of Tests : January 7, 2006 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 611-1, Maesan-ri, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : BWS-06-EF-0004 Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Page 4 of 21 VOICEYE MATE 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 611-1, Maesan-ri, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do 449-853, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C.63.4-2003) was used in determining radiated and conducted emissions from the AD Information & Communications Co., Ltd. VOICEYE MATE Model : VMP-100. Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Page 5 of 21 VOICEYE MATE 3. Product Information 3.1 Equipment Description 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Page 6 of 21 VOICEYE MATE 4. Description of Tests 4.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2003. The measurement were performed over the freque…

Text truncated - open the document above for the full version.

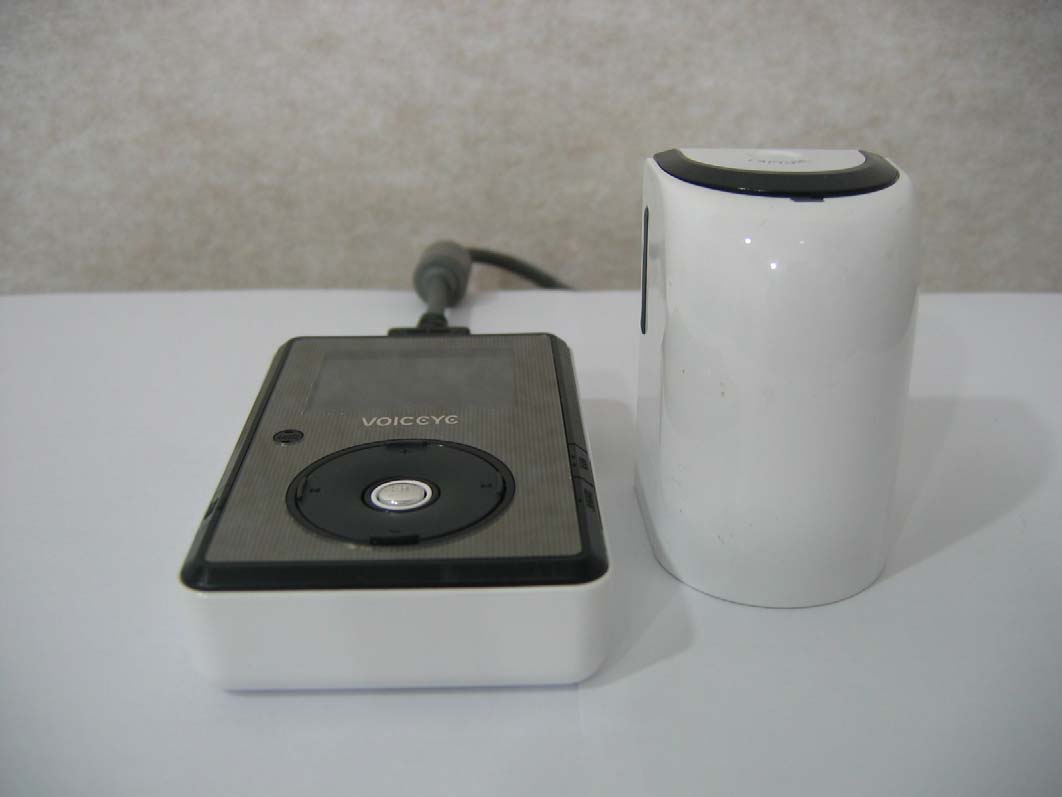

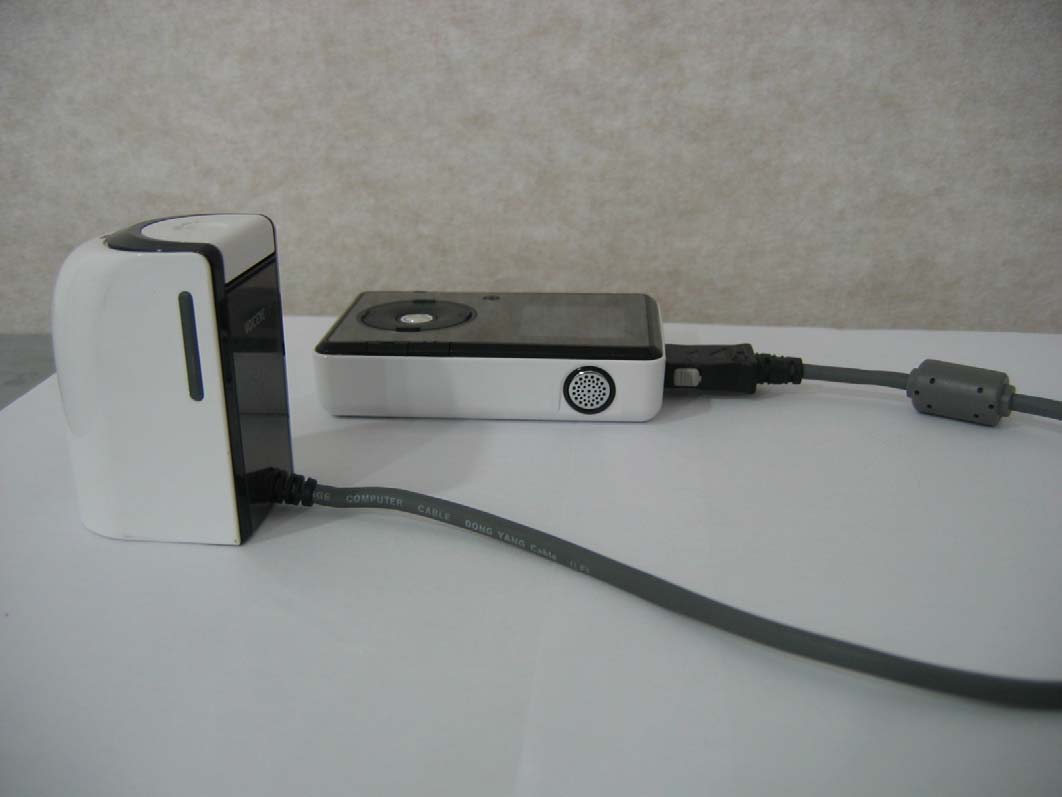

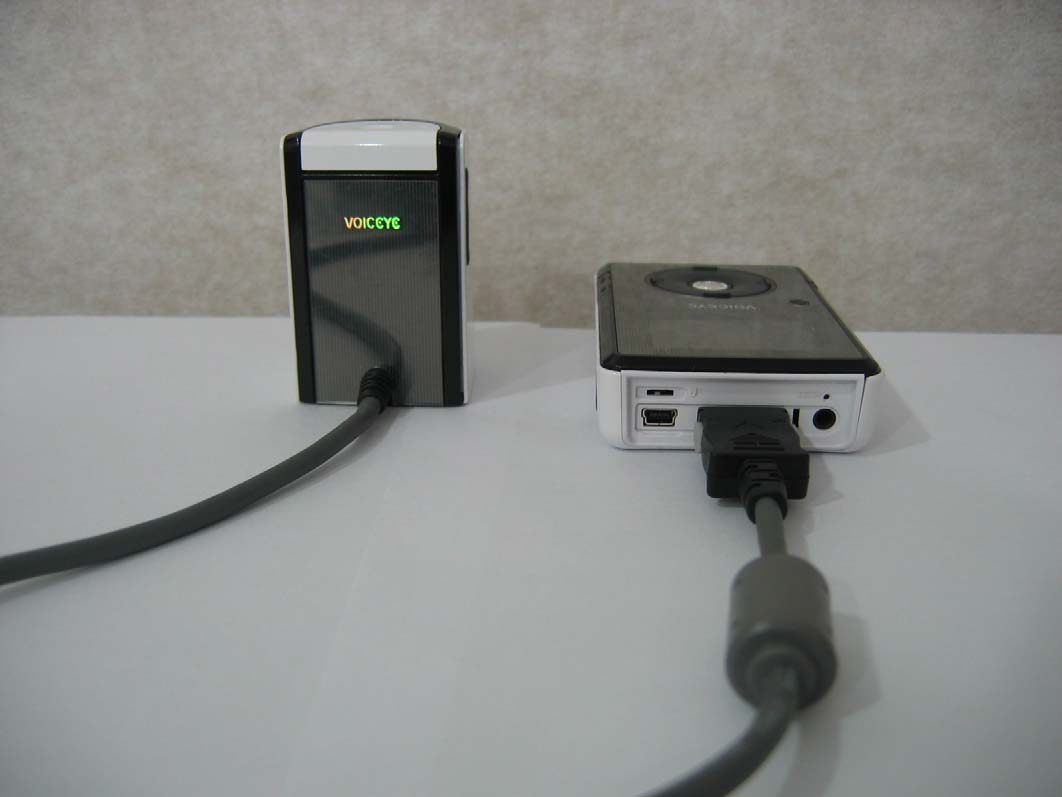

Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 1 VOICEYE MATE Appendix 1. Test Setup Photographs Conducted Emission Test Setup Mode 1) Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 1 VOICEYE MATE Mode 2) Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 1 VOICEYE MATE Radiated Emission Test Setup Mode 1) Report No: BWS-06-EF-0004 FCC ID : TOLVMP100 Date of Test : January 7, 2006 AD Information & Communications Co., Ltd. Appendix 1 VOICEYE MATE Mode 2)
