TOUONU-1-3-105-DGE-PON ONT, 802.11 b/g/n Wireless Router

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 6. User manual 2 PON ONT Overview The CS6204W is an ONT (Optical Network Terminal) based on EPON technology for home and small office. It supports 4 Fast Ethernet (UTP, RJ45) ports, 2 FXS (RJ - 11) ports, and Wi-Fi (802.11 b/g/n) interface to the subscriber. It is connected to GE-PON OLT (Optical Line Terminal) and RN (Remote Node) via a fiber optic cable to provide internet and voice service. CS6204W is connected to the IP terminal devices such as a subscriber’s home- gateway, PC, laptops, smart phones or VoIP phone. It provides internet service, VoIP, and Wi-Fi service at the speed of up to 300 Mbps per subscriber. CS6204W allows up to 32 subscribers to share the data of 1.25Gbps with one optic cable via passive optical distribution device. It adopts the state-of-the-art E-PON technology. By adopting the state-of-the-art E-PON technology, CS6204W supports various functions, superior to those of the existing Ethernet switch, including QoS (Quality of Service) function, management function that enables prompt actions to be taken against the problems in the system and a subscriber line, security function that secures subscriber information safely, and subscriber management function that secures user information from illegal users such as crackers. Key Features  Supports IEEE 802.11b/g/n standard.  2 FXS Phone Line(RJ-11) Interface for VoIP service  Supports WEP 64-bit / 128-bit Security password authentication and WPA, WPA2.  Powerful internet sharing function  Supports IEEE 802.1q VLAN Configuration function.  4 Ethernet LAN ports supported 10/100Mbps and one 1.25G EPON port for WAN  Supports ProDHCP function (Server/Client).  Supports specific application, virtual server, DMZ, Access Control and Firewall.  The management program based on WEB and GUI  Remote system management via Internet and software upgrade 3 PON ONT Contents of the Package Precautions Warning Before you install the CS6204W, read this section. This section contains important safety information you should know before working with the system. Power Considerations  Be careful when connecting the system to the supply circuit so that wiring is not overloaded.  When plugging in a power socket or handling any power source, avoid ring, necklace, metal watch for better safety. If these materials touch the power socket or ground of the product, the parts can be burnt out.  Always make sure if there is any possible danger in the workshop. Wet floor, ungrounded extension, rubbed-off power code, or unsafe (or ungrounded) floor might be dangerous. Installing and Servicing the System  Before installation, the power switch of the system should be turned OFF and disconnect all power and external cables.  Remove all jewelry (including rings and chains) or other items that could get caught in the system or heat up and cause serious burns.  Do not work alone under potentially hazardous conditions.  Do not perform any action that creates a potential hazard to people or makes the equipment unsafe. Disconnecting Power When disconnecting power, note the following guidelines.  Locate the emergency power-off switch for the room before working with the system. CS6204W Power Adaptor RJ45 Cable Installation Guide Installation Guide 4 PON ONT  To completely turn off the system, disconnect the power connection to all power supplies.  For DC power supplies, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the off position, and tape the switch handle of the circuit breaker in the off position.  Do not touch the power supply when the power cord is connected. Line voltages are present within the power supply even when the power switch is off and the power cord is connected. Connecting Cables When you connect cables, note the following guidelines.  Do not work on the system or connect or disconnect cables during periods of lightning activity. Working with Lasers If your system includes a fiber-optic port, note the following guidelines.  To avoid exposure to radiation, do not stare into the aperture of a fiber-optic port. Invisible radiation might be emitted from the aperture of the port when no fiber cable is connected.  Always keep unused fiber-optic ports capped with a clean dust cap. Preventing EMI  When you run wires for any significant distance in an electromagnetic field, electro magnetic interference (EMI) can occur between the field and the signals on the wires.  Bad plant wiring can result in radio frequency interference (RFI).  Strong EMI, especially when it is caused by lightning or radio transmitters, can destroy the signal drivers and receivers in the system, and can even create an electrical hazard by conducting power surges through lines and into the system.  If Strong EMI occurs in the installation place, consult RFI experts to get rid of it. Disposing of the System Dispose of the system and its components (including batteries) as specified by all national laws and regulations. This appliance and its antenna must not be co­located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. RF Exposure Compliance Issue 5 PON ONT Installation Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. 1. Connect the SC/APC connector on the side of a yellow single-mode optical fiber into the optical terminal of the optical outlet and the other connector into the PON port of CS6204W by pushing them until …

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 4. Block Diagram WIFI AP + 4FE L2 SW GE PHY GE PHY GE-PON MAC GE-PON OPTIC MODULE 4 FE TRANSFORMER 4 PORT RJ-45 2 SLIC/ SLAC 2GB DDR2 64MB NAND FLASH 2 PORT RJ-11 POWER Block 12V 3.3V 2.5V 1.8V 1.2V RGMII RESET GMII LED block # 2 Antenna Block SPI , TDM BOS-ONU-1-3-105-D BLCOK DIAGRAM 1 2 3 4 5 5 6 7 8 9 10 11 12 13 14 1Antenna Block : is connected to two Dipole antennas. 2T/2R 802.11b/g/n 264MB NAND Flash : is programed O/S , F/W , S/W. 32GB DDR2 Memory : is running Programed S/W . 4POWER Block : is power block on board. 12v,3.3v,2.5v, 1.8v,1.2v 5GE PHY : is Gigabit Ethernet PHY. 25MHz OSC is running Frequency 6GE-PON MAC : is GE-PON MAC IC. Service for GEPON 7WIFI AP + 4FE L2 SW : is MAIN WIFI AP + L2 SW IC. 20MHz Crystal is running Frequency. 82 SLIC / SLAC : is 2 ch SLIC / SLAC IC for VOIP Service. 94 FE TRANSFORMER : is 4 ports FE Transformer For Ethernet Service. 10 2 PORT RJ-11 : is 2 ports RJ-11 JACK For FXS. 11 4 PORT RJ-45 : is 4 ports RJ-45 JACK For FE (Fast Ethernet) 12 RESET : is RESET Switch/IC for system reset. 13 LED BLOCK : is LED block For status indication. 14 GE-PON OPTIC MODULE : is GE-PON OPTIC MODULE. 20M CRY 25M OSC

LETTER OF AUTHORIZATION Company: COMMSCOPE INC OF NORTH CAROLINA Product Name: GE-PON ONT Model Number: BOS-ONU-1-3-105-D Address: 1100 CommScope Place SE Hickory NC 28602, USA DATE: 25/ 07/ 2012 To whom it may concern: We the undersigned, hereby authorize J. Roberto Mazariegos (COMMSCOPE INC OF NORTH CAROLINA)to act as our authorized agent on our behalf in all manners relating to application for FCC equipment authorization, including signing of all documents relating to these matters. Any individual within this entity may act on our behalf. Any and all acts carried out by J. Roberto Mazariegos (COMMSCOPE INC OF NORTH CAROLINA)on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice from J. Roberto Mazariegos (COMMSCOPE INC OF NORTH CAROLINA) Name: lan Dancel DATE: 25/ 07/ 2012

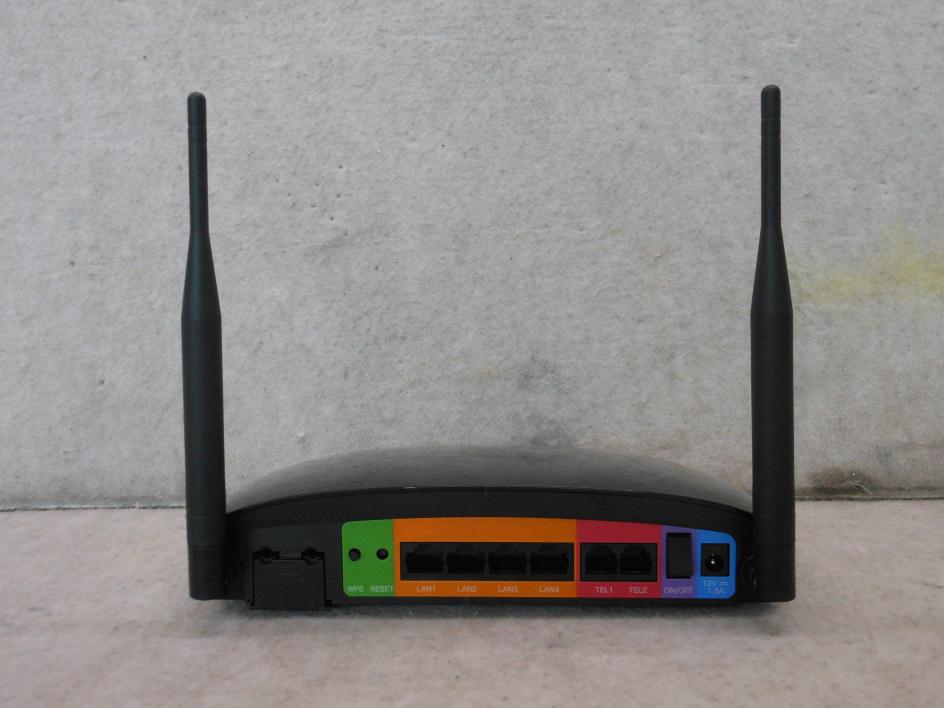

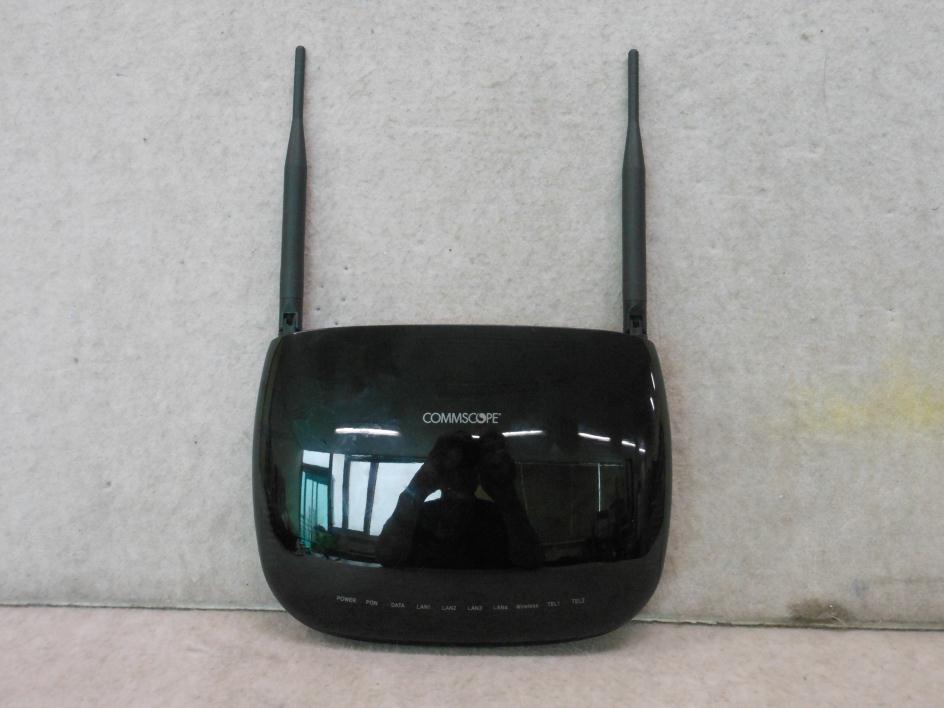

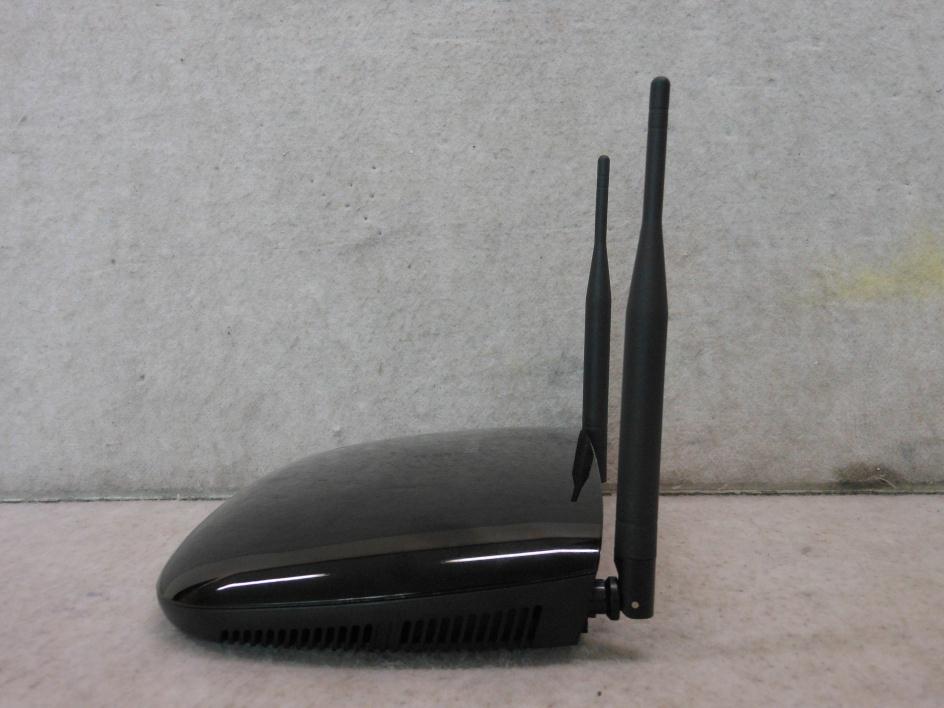

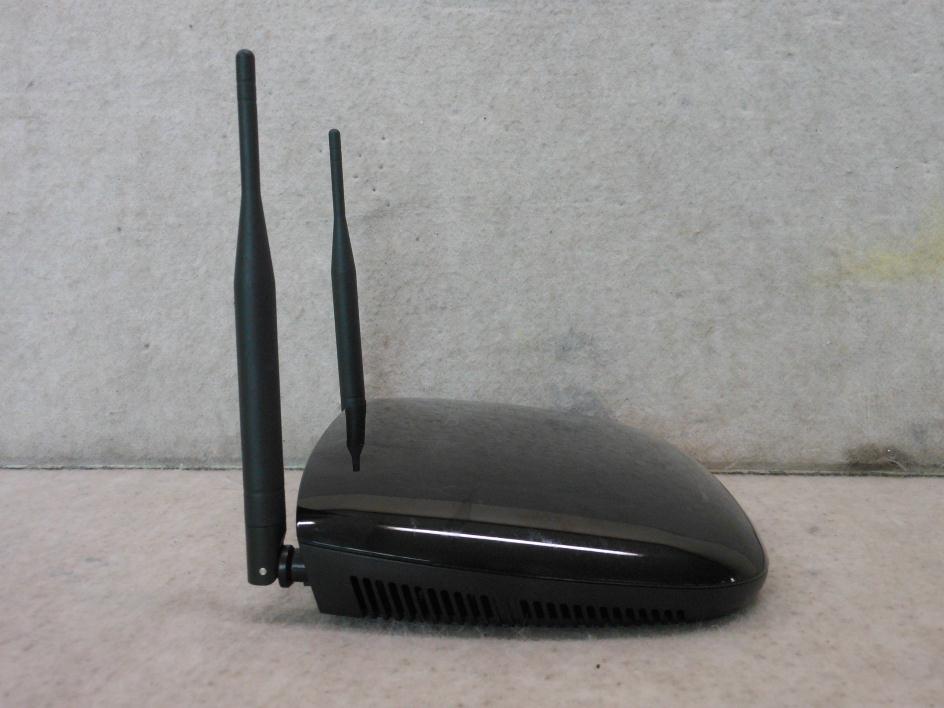

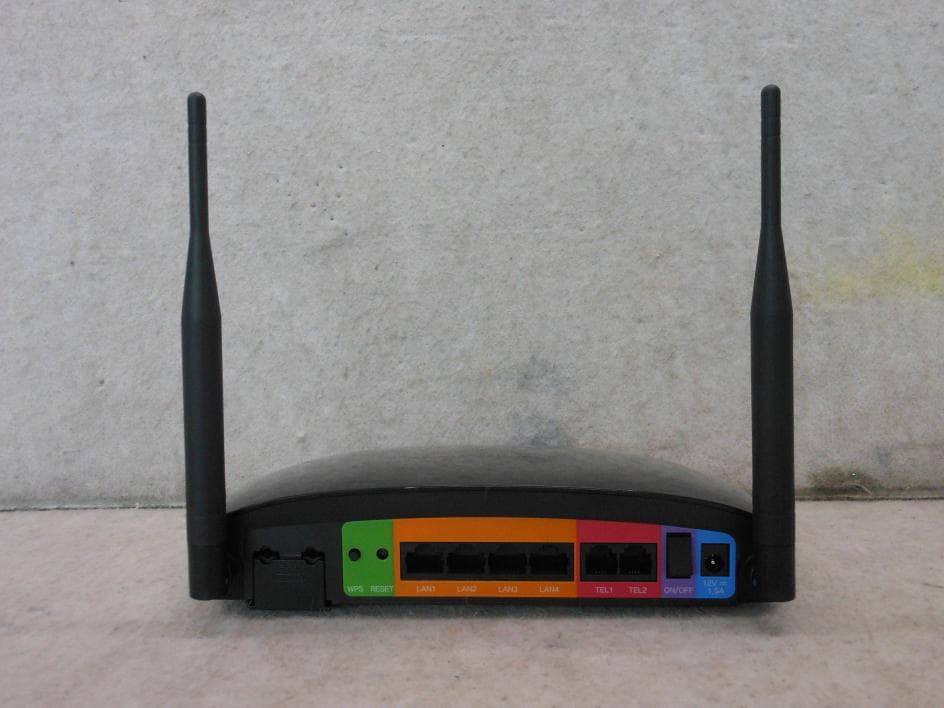

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 2 External photos of EUT - Front - Rear http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 2 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Top - Bottom http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 3 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Left - Right

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMCcomplianceLtd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Label Location

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 3 Internal photos of EUT - Inside - Main botton http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 2 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Main top

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 9. Antenna specification 안테나 규격서 문서번호 KRS-AA-0054 REV. 가람 솔루션 00 DATE 2011-11-17 유비쿼스 MODEL C504W TYPE Secondary Ant PAGE PAGE 9 KRS-A-021(Rev.00) (주) 가람 솔루션 - Gain (3D) 안테나 규격서 문서번호 KRS-AA-0053 REV. 가람 솔루션 00 DATE 2011-11-17 유비쿼스 MODEL C504W TYPE Primary Ant PAGE PAGE 9 KRS-A-021(Rev.00) (주) 가람 솔루션 - Gain (3D)

OPERATION DESCRIPTION 1. Antenna Block : is connected to two Dipole antennas. 2T/2R 802.11b/g/n 2. 64MB NAND Flash : is programed O/S , F/W , S/W. 3. 2GB DDR2 Memory : is running Programed S/W . 4. POWER Block : is power block on board. 12v,3.3v,2.5v, 1.8v,1.2v 5. GE PHY : is Gigabit Ethernet PHY. 25MHz OSC is running Frequency 6. GE-PON MAC : is GE-PON MAC IC. Service for GEPON 7. WIFI AP + 4FE L2 SW : is MAIN WIFI AP + L2 SW IC. 20MHz Crystal is running Frequency. 8. 2 SLIC / SLAC : is 2 ch SLIC / SLAC IC for VOIP Service. 9. 4 FE TRANSFORMER : is 4 ports FE Transformer For Ethernet Service. 10. 2 PORT RJ-11 : is 2 ports RJ-11 JACK For FXS. 11. 4 PORT RJ-45 : is 4 ports RJ-45 JACK For FE (Fast Ethernet) 12. RESET : is RESET Switch/IC for system reset. 13. LED BLOCK : is LED block For status indication. 14. GE-PON OPTIC MODULE : is GE-PON OPTIC MODULE.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 7. Part list S/NTYPEPART_NUMBERCODEFootPrintVENDORQTYNCROHS DESCRIPTION REFERENCE메모 001부품BCM63619VKFEBG1U101 002부품K4T1G084QF-BCE70106C-000160삼성전자2Y 1Gb SDRAM memory U102 U103 003부품NAND512W3A2SN6E48P TSOPMICRON1Y IC,64M x 8 Bit NAND Flash Memory,TSOP,2.7V~3.6V U104 004부품A4809E3VR-293DC3P SOT-23AIT1 IC,DIGITAL,High Precision Built-In Delay Circuit Voltage Detector,TD=200msec,VDET=2.93V U105 006부품AS179-92LF2U401 U402 007부품BCM54610C1KMLG1U501 008부품BCM54616C0KMLG1U502 009부품TK3714A-EEQ-LFG1U601 010부품W25Q80BVSSIG0108X-0001808P SO-8WINBOND1 IC,FLASH,8M bit Low Voltage, Serial Flash Memory With 50MHz SPI Bus Interface,8SOIC-208mil U602 011부품LE88266DLC0101X-00018780P QFPZARLINK1Y Dual Channel Wideband Auto BatterySwitching(ABS) VoicePort, Complete BORSCHT Function for Two Channels U801 012부품SVG170D2U802 U803 013부품AOZ1073AIL0103X-000171AOS3 IC, mixed, 3A Synchronous Buck Regulator U902 U903 U905 014부품ZEN132V230A16LS1U904 015부품LMV331M5X/NOPB1U908 016부품SS320201X-0000022P DO-214ABDELTA2Y DIODE,SILICON,SHOTTKY,3A,20V D201 D202 017부품ES1D-13-FDELTA3D801 D803 D804 018부품MMBD4448HDELTA1D802 019부품DEA252450BT-2027A12FL404 FL405 020부품SFRV250-1204F801 F802 F803 F804 021부품AO66042Q201 Q202 022부품KMA2D4P20SA0303D-0000143P SOT-23KEC1Y SMD,CMOS,P-CH HEXFET POWER MOSFET,SOT-23 Q601 023부품KTK5132U0303B-0000153P SOT-23KEC1Y SMD,N-CH MOSFET,ULTRA-HIGH SPEED SWITCHING APPLICATION ANALOG SWITCH Q602 024부품MBT3946DW1T1G0301B-0000196P SOT-363-6ONSEMI1Y TR,SI,DUAL(NPN+PNP),VCEO +/-40V,IC 200MA,VCBO PNP=60V NPN=-40V,VEB PNP=6V NPN=-5V,150MW , MMDT3946-7-F/diodes Q801 025부품UTF3055G-AA3-R1Q802 026부품CT-1212TEF-IF5P E200411X-000024CORETEK1Y 1000BASE-PX20-ONU Transiver,SFF2*5,Single Pig Tail SC/APC Connector,1310nm FP LD,Single+3.3V, PECL Differential Electrical Interface OPT601 027부품XS3225F-20M-12D-101Y101 029부품HC-49/S(ATS) 25.000MHZ(18PF)1401X-0000412P PTH원라이트전자2 XTAL,PTH,25.000MHz,18PF,30PPM AT Y501 Y502 031부품17-21/BHC-AN1P2/3T12 DIODE,SMD,0805,LED,BLUE LED802 LED803 LED901 LED903 LED904 LED905 LED906 +LED907 LED910 LED911 032부품17-21SURC/S530-A3/TR8EVERLIGHT2 DIODE,SMD,0805,LED,RED LED908 LED909 BL-HE135A 적용 033부품BLM18AG601SN11501X-0004092P 1608MURATA26 BEAD,CHIP,0603,600 OHM @ 100MHz,SN PLATING BD201 BD202 BD305 BD306 BD309 BD310 BD311 BD312 +BD313 BD501 BD502 BD503 BD504 BD505 BD506 BD507 +BD508 BD509 BD605 BD608 BD609 BD610 BD611 BD612 +BD613 BD614 034부품BLM15BD750SN11501X-0004302P 1005MURATA9 BEAD,CHIP,0402,75 OHM @ 100MHz FB201 FB202 FB203 FB501 FB502 FB503 BD601 BD602 +BD603 034부품CLH1005T-1N5S-S CHILISIN1 INDUCTOR,CHIP,0402,1.5nH C402 036부품CP321611T-500Y1BD904 037부품PLF5020T-2R2M3R10702A-0000182P 5025TDK2 SMD POWER WINDING INDUCTOR,2.2UH,3R1A,20% L201 L202 038부품PLF5020T-3R3M2R63L901 L902 L903 039부품40SS1041AXHF1 HST-4047SCR TF701 040부품C8100SUMIDA1TF801 041부품KMG25VB4700M1EC612 4700UF 대치 042부품KMG100VB33M1EC801 043부품KMG50VB100M1EC802 044부품KMG50VB22M0607A-0001352P DIPSAMYOUNG2 CAP,AL,RADIAL,5X11,22uF,50V,105`C,RGA SERIES EC901 EC902 PAGE 1/4 S/NTYPEPART_NUMBERCODEFootPrintVENDORQTYNCROHS DESCRIPTION REFERENCE메모 045부품KMG16VB470M3EC905 EC906 EC907 046부품CL31F226ZPHNNNE0605X-0001322P 3216삼성전기10Y CAP,MLCC,CHIP,3216,22uF,10V,-20/+80%,Y5V,EMBOSS 7in C204 C206 C385 C904 C905 C907 C909 C910 C921 C922 047부품CL10A475KP8NNNC0605X-0017562P 1608삼성전기10Y CAP,MLCC,CHIP,1608,4.7uF,10V,10%,X5R,7in REEL C111 C112 C308 C309 C332 C333 C349 C351 C801 C802 048부품CL10A225KO8NNNC0605X-0017512P 1608삼성전기2Y CAP,MLCC,CHIP,1608,2.2uF,16V,10%,X5R,7in REEL C301 C302 049부품CL21F105ZBFNNNE1C901 050부품CL05F105ZQ5NNNC0605X-0000072P 1005삼성전기14Y CAP,MLCC,CHIP,1005,1uF,6.3V,-20/+80%,Y5V,7in REEL C339 C342 C348 C352 C354 C355 C368 C376 C378 C380 +C381 C382 C384 C386 051부품CL21F106ZPFNNNE0605X-0001042P 2012삼성전기15Y CAP,MLCC,CHIP,2012,10uF,10V,-20/+80%,Y5V,EMBOSS 7in C203 C208 C316 C317 C370 C508 C512 C514 C519 C524 +C528 C530 C623 C628 C803 052부품CL05B104KO5NNNC0605X-0001392P 1005삼성전기152Y CAP,MLCC,CHIP,1005,100nF,16V,10%,X7R,7in REEL C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 +C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 +C123 C124 C125 C128 C129 C130 C202 C205 C207 C210 +C211 C303 C304 C305 C306 C307 C310 C311 C312 C313 +C314 C315 C318 C319 C320 C321 C322 C323 C324 C325 +C326 C327 C328 C329 C330 C331 C334 C335 C336 C343 +C345 C353 C356 C357 C367 C369 C501 C502 C503 C506 +C507 C509 C510 C511 C513 C515 C516 C517 C518 C520 +C521 C522 C523 C525 C526 C527 C529 C531 C532 C533 +C534 C535 C536 C537 C538 C539 C540 C541 C542 C543 +C544 C545 C601 C602 C603 C605 C607 C609 C611 C613 +C615 C616 C622 C625 C626 C627 C630 C633 C635 C637 +C639 C641 C643 C645 C647 C649 C651 C653 C655 C657 +C659 C661 C663 C665 C667 C669 C671 C673 C675 C677 +C679 C681 C683 C685 C687 C813 C814 C815 C816 C817 +C826 C902 054부품CL05B103KO5NNNC0605X-0000522P 1005삼성전기16Y CAP,MLCC,CHIP,1005,10nF,16V,10%,X7R,7in REEL C350 C604 C610 C614 C617 C620 C621 C624 C629 C701 +C702 C703 C704 C903 C906 C908 055부품CL05B332KB5NNNC0605X-0000712P 1005삼성전기1Y CAP,MLCC,CHIP,1005,3.3nF,50V,10%,X7R,7in REEL C337 056부품C1808X102K302T0605X-0000342P 4520HOLYSTONE2Y CAP,MLCC,CHIP,1808,1nF,3KV,10%,X7R,TAPING C705 C706 057부품CL05B102KB5NNNC0605X-0000042P 1005삼성전기21Y CAP,MLCC,CHIP,1005,1nF,50V,10%,X7R,7in REEL C344 C375 C377 C379 C383 C387 C619 C835 C836 C911 +C912 C913 C914 C915 C916 C917 C918 C919 C920 C926 +C928 058부품CL05C101JB5NNNC0605X-0000032P 1005삼성전기37Y CAP,MLCC,CHIP,1005,100pF,50V,5%,COG,7in REEL C201 C338 C340 C341 C346 C347 C606 C608 C612 C632 +C634 C636 C638 C640 C642 C644 C646 C648 C650 C652 +C654 C656 C658 C660 C662 C664 C666 C668 C670 C672 +C674 C676 C678 C680 C682 C684 C686 059부품CL05C120JB5NNNC0605X-0000582P 1005삼성전기1Y CAP,MLCC,CHIP,1005,12pF,50V,5%,COG,7in REEL C126 060부품CL05C150JB5NNNC0605X-0000552P 1005삼성전기1Y CAP,MLCC,CH…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 5. Schematics 55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> A 11 Tuesday, October 11, 2011 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> A 11 Tuesday, October 11, 2011 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> A 11 Tuesday, October 11, 2011 ubiQuoss Company Confidential ModelVersionDesignerDate C524WVer. 0.3 55 44 33 22 11 D D C C B B A A DDR_A0DDR_A1DDR_A2DDR_A3DDR_A4DDR_A5DDR_A6DDR_A7DDR_A8DDR_A9DDR_A10DDR_A11DDR_A12DDR_A13 DDR_A0DDR_A1DDR_A2DDR_A3DDR_A4DDR_A5DDR_A6DDR_A7DDR_A8DDR_A9DDR_A10DDR_A11DDR_A12DDR_A13 DDR_DQ0 DDR_VREF DDR_DQ1DDR_DQ2DDR_DQ3DDR_DQ4DDR_DQ5DDR_DQ6DDR_DQ7 DDR_DQ8DDR_DQ9DDR_DQ10DDR_DQ11DDR_DQ12DDR_DQ13DDR_DQ14DDR_DQ15DDR_DQS0_PDDR_DQS0_NDDR_DQM0DDR_ODTDDR_DQS1_PDDR_DQS1_NDDR_DQM1DDR_CLK1_PDDR_CLK1_NDDR_CLK0_PDDR_CLK0_NDDR_BA0DDR_BA1DDR_BA2DDR_CKEnDDR_CSnDDR_CASnDDR_RASnDDR_WEDDR_VREFDDR_ZQ nTRSTTDO EJTAG_CE TDI DDR_BA0DDR_BA1DDR_BA2DDR_CKEnDDR_CSnDDR_CASnDDR_RASnDDR_WEDDR_CLK0_NDDR_CLK0_P TMSTCK DDR_VREF DDR_BA0DDR_BA1DDR_BA2DDR_CKEnDDR_CSnDDR_CASnDDR_RASnDDR_WEDDR_CLK1_NDDR_A0DDR_A1DDR_A2DDR_A3DDR_A4DDR_A5DDR_A6DDR_A7DDR_A8DDR_A9DDR_A10DDR_A11DDR_A12DDR_A13DDR_CLK1_P DDR_VREF DDR_DQ8DDR_DQ9DDR_DQ10DDR_DQ11DDR_DQ12DDR_DQ13DDR_DQ14DDR_DQ15DDR_DQS1_PDDR_DQS1_NDDR_DQM1DDR_ODT XTAL_INXTAL_OUTGPIO_0GPIO_1GPIO_8GPIO_9GPIO_11GPIO_12GPIO_13GPIO_14GPIO_15GPIO_16GPIO_17GPIO_18GPIO_19GPIO_20GPIO_21GPIO_22GPIO_23GPIO_24GPIO_25GPIO_26GPIO_27GPIO_28GPIO_29GPIO_30GPIO_32GPIO_33 nTRST GPIO_23 HS_SPI_ADDR_24_n32 GPIO_9 SPI_BOOT_DELAY GPIO_19 BOOT_SEL_SPI_nNAND GPIO_20 LS_SPI_MASTER_nSLAVE GPIO_21 LS_SPI_CLK_20M_n781K GPIO_22 HS_SPI_CLK_50M_n20M LS_SPI_SSB_1 GPIO_31HS_SPI_MOSIHS_SPI_SSB0HS_SPI_CLKHS_SPI_MISO GPIO_29GPIO_30GPIO_31 VDD_3P3 VDD_3P3 VDD_1P8 VDD_1P8VDD_1P8 VDD_1P8 VDD_3P3 VDD_3P3 VDD_3P3 VDD_3P3 VDD_3P3 nP1_ACTnP2_ACTnP3_ACTnP4_ACTnB0_NAND_CEB0_NAND_ALEnB0_NAND_WEB0_NAND_CLEnRESTORE_CNFGnB0_NAND_RE B0_NAND_D0B0_NAND_D1B0_NAND_D2B0_NAND_D3B0_NAND_D4B0_NAND_D5B0_NAND_D6B0_NAND_D7 nWPS_IRQ nWLAN_ACT_LEDWLAN_LINK_LED B0_NAND_D0B0_NAND_D1B0_NAND_D2B0_NAND_D3B0_NAND_D4B0_NAND_D5B0_NAND_D6B0_NAND_D7 B0_NAND_RnB B0_NAND_RnB nB0_NAND_REnB0_NAND_CEB0_NAND_CLEB0_NAND_ALEnB0_NAND_WE nSYS_RESET nSYS_RESETnRESET_OUT nRESET_OUT nUSB_DEVICE_LED nFXS_RSTLS_SPI_MISOLS_SPI_CLKLS_SPI_MOSILS_SPI_SSB_0LS_SPI_SSB_2nWPS_LED nPF_INT nPOTS1_LEDnPOTS2_LED TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 11 Tuesday, October 11, 2011 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 11 Tuesday, October 11, 2011 TitleSize Document Number Rev Date: Sheet of <Doc> <RevCode> <Title> C 11 Tuesday, October 11, 2011 수정 20110527 NAND512W3A2SN6E USE.... GPIO [29:31] = "111" => S/W "000" 1005 C1180.1uF 1005 C1180.1uF 1005 C1200.1uF 1005 C1200.1uF TP106TP106TP102TP102 1005 C127 15pF 1005 C127 15pF 1005 R105 NC_4.7K 1005 R105 NC_4.7K 1005 R112 220R/1% 1005 R112 220R/1% 1005 R104 4.7K 1005 R104 4.7K 1005 C1300.1uF 1005 C1300.1uF 1005 C1160.1uF 1005 C1160.1uF 1005 R113 33R 1005 R113 33R RST1RST1 1608 C1114.7uF/10V/0603 1608 C1114.7uF/10V/0603 1005 R10610K 1005 R10610K 1005 R133 NC_3K 1005 R133 NC_3K 1005 R136 NC_3K 1005 R136 NC_3K 1005 C1100.1uF 1005 C1100.1uF 1005 R1091K/1% 1005 R1091K/1% 1005 R103 4.7K 1005 R103 4.7K 1005 R134 NC_3K 1005 R134 NC_3K 1005 C1040.1uF 1005 C1040.1uF 1005 C1070.1uF 1005 C1070.1uF 1 2 3 4 Y101 20.000MHz(16p) Y101 20.000MHz(16p) 1005 C1290.1uF 1005 C1290.1uF 1005 R135 33R 1005 R135 33R TP103TP103 1005 R111 100R/1% 1005 R111 100R/1% 1005 C1240.1uF 1005 C1240.1uF 1608 C1124.7uF/10V/0603 1608 C1124.7uF/10V/0603 1005 C1150.1uF 1005 C1150.1uF 1005 R131 NC_3K 1005 R131 NC_3K 1005 R101 240R/1% 1005 R101 240R/1% 1005 R1160 1005 R1160 1005 C1210.1uF 1005 C1210.1uF 1005 R132 NC_3K 1005 R132 NC_3K A0 H8 A1 H3 A2 H7 A3 J2 A4 J8 A5 J3 A6 J7 A7 K2 A8 K8 A9 K3 A10_AP H2 A11 K7 A12 L2 A13 L8 BA0 G2 BA1 G3 BA2 G1 CK E8 CK F8 CKE F2 CS G8 RAS F7 CAS G7 WE F3 VDD1 A1 VDD2 E9 VDD3 H9 VDD4 L1 VDDQ1 A9 VDDQ2 C1 VDDQ3 C3 VDDQ4 C7 VDDQ5 C9 VDDL E1 VREF E2 DQ0 C8 DQ1 C2 DQ2 D7 DQ3 D3 DQ4 D1 DQ5 D9 DQ6 B1 DQ7 B9 DQS/NU A8 DM/RDQS B3 RDQS/NU A2 DQS B7 ODT F9 VSS A3 VSS E3 VSS J1 VSS K9 VSSQ A7 VSSQ B2 VSSQ B8 VSSQ D2 VSSQ D8 VSSDL E7 NC1 L3 NC2 L7 U103 K4T1G084QF-BCF7 U103 K4T1G084QF-BCF7 DDR_A0 K18 DDR_A1 L19 DDR_A2 K19 DDR_A3 K21 DDR_A4 K20 DDR_A5 J22 DDR_A6 K16 DDR_A7 J21 DDR_A8 J19 DDR_A9 H21 DDR_A10 M18 DDR_A11 J17 DDR_A12 H20 DDR_A13 N21 DDR_DQ0 T19 DDR_DQ1 V21 DDR_DQ2 T18 DDR_DQ3 W22 DDR_DQ4 W21 DDR_DQ5 R19 DDR_DQ6 V22 DDR_DQ7 T20 DDR_DQ8 P19 DDR_DQ9 U19 DDR_DQ10 R17 DDR_DQ11 R16 DDR_DQ12 V19 DDR_DQ13 N19 DDR_DQ14 V20 DDR_DQ15 P20 DDR_BA1 M19 DDR_DQM1 T17 DDR_CLK1_P N18 DDR_DQS1_P R18 DDR_ODT N16 DDR_CLK0_P P22 DDR_DQS1_N P17 DDR_DQS0_N T22 DDR_CS M16 DDR_CKE M22 DDR_CLK1_N N17 DDR_DQM0 U21 DDR_CLK0_N P21 DDR_BA2 K17 DDR_BA0 M20 DDR_DQS0_P T21 DDR_RAS M17 DDR_CAS L17 DDR_WE M21 DDR_VREF W20 DDR_ZQ H19 JTAG_TDI F22 POR_BYPASS G11 EJTAG_CE G19 JTAG_TRST F19 JTAG_TDO F21 JTAG_TMS F20 SYS_RESET E9 RESET_OUT F10 JTAG_TCK E22 XTAL_OUT AB22 XTAL_IN AA22 HS_SPI_SSB_0 B8 HS_SPI_MISO C8 HS_SPI_MOSI E8 HS_SPI_SSB_1 D7 HS_SPI_CLK D8 LS_SPI_SSB_1 A5 LS_SPI_CLK C5 LS_SPI_MOSI B5 LS_SPI_SSB_0 C6 LS_SPI_MISO B6 LED_1 D21 LED_0 D22 LED_2 E21 LED_3 E20 USB_DEVICE_LED/GPIO_0 C22 SYS_IRQ_OUT/GPIO_1 C21 LED_OUT_2/SERIAL_LED_CLK/GPIO_2 C20 LED_OUT_E/SERIAL/LED_DATA/GPIO_3 D20 EPHY_LED_1/GPIO_4 D19 EPHY_LED_2/GPIO_5 E19 EPHY_LED_3/GPIO_6 E18 EPHY_LED_4/GPIO_7 A10 NAND_CE/INET_LED_GPIO_8 B10 LS_SPI_SSB_2/GPIO_9 D11 LS_SPI_SSB_3/GPIO10 E11 PCM_NTR_IN/GPIO_11 F11 NAND_RB/UART2_CTS/GPIO_12 A12 NAND_D_0/UART2_RTS/GPIO_13 B12 NAND_D_1/UART2_SIN/GPIO_14 C12 NAND_D_2/UART2_SOUT/GPIO_15 D1…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 149 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. FCC/IC TEST REPORT Test report No: EMC- FCC- R0067 FCC ID: TOUONU-1-3-105-D Type of Equipment: GE-PON ONT Model Name: BOS-ONU-1-3-105-D Applicant: COMMSCOPE INC OF NORTH CAROLINA. FCC Rule Part(s): FCC Part 15 Subpart C Section 15.203, Section 15.209 Section 15.207, Section 15.247 IC RSS-210, Issue 8 : 2010 Frequency Range: 2 412 MHz ~ 2 462 MHz / 2 422 MHz ~ 2 452 MHz Test result: Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: July 5, 2012 ~ July 16, 2012 Issued date: July 16, 2012 Tested by: Approved by: . SON, MIN GI KIM, CHANG MIN http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 2 of 149 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description........................................................................................................................................... 5 3.2 General description ...................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 23 5.4 6 dB Bandwidth ......................................................................................................................................... 37 5.5 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS .................................................. 51 5.6 Conducted Emission ................................................................................................................................. 114 5.7 RF Exposure ............................................................................................................................................. 117 6. Test equipment used for test ......................................................................................................................... 149 Appendix 1 Test setup photos Appendix 2 External photos of EUT Appendix 3 Internal photos of EUT Appendix 4 Block diagram Appendix 5 Schematics Appendix 6 User manual Appendix 7 Part list Appendix 8 Layout diagram Appendix 9 Antenna Specification http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 3 of 149 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: COMMSCOPE INC OF NORTH CAROLINA Address: 1100 CommScope Place SE Hickory NC 28602, USA Telephone number: +828-431-2563 Facsimile number : +828-323-4896 Contact person: J. Roberto Mazariego / Product Engineering Manager Manufacturer : Ubiquoss Inc. Address: 24F Millennium Building, 467-12 Dogok-Dong, Gangnam-Gu Seoul,Korea http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 4 of 149 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC Compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea Telephone Number: 82 31 336 9919 Facsimile Number: 82 31 336 4767 Certificate CBTL Testing Laboratory, KOLAS NO.: 231 FCC Filing No.: 508785 VCCI Registration No…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0067 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced…
