TPO-OTD36Offender Tracking Device

ReliAlert™ Operations Guide SecureAlert, Inc. Version 1.1.2 March, 2011 Referenced To: Hardware Release 3.6 Firmware Revision: v1543 ReliAlert™ Operations Guide SecureAlert, Inc. Copyright © 2011 SecureAlert, Inc. All rights reserved. Page 2 1 Overview This document describes the major features associated with the OTD Device Hardware and how to operate them. The operator may need to consult associated system documentation for additional detail. ReliAlert™ Operations Guide SecureAlert, Inc. Copyright © 2011 SecureAlert, Inc. All rights reserved. Page 3 2 Personal Safety and Health Responsibilities of Administrating Agencies The ReliAlert TM device meets the government’s requirements for exposure to radio waves. It is the direct and sole responsibility of all agencies (government or private) that oversee use of ReliAlert TM to assure, and formally document, that wears of ReliAlert TM devices understand the safety and health topics below. It is also the direct and sole responsibility of such parties to assess special individual needs in order to protect the health and well being of those wearing ReliAlert TM devices. This includes identifying any special environmental or personal health needs specific to an individual wearer of the device. 2.1 Personal Hygiene Simple hygiene measures can avoid discomfort and skin irritations. The ReliAlert TM is designed to be worn over a standard sock. This aids in maintaining sanitary conditions. Not wearing over a sock or not changing socks on a daily basis may result in skin irritations or other health concerns. For additional comfort the wearer of a ReliAlert TM may elect to wear a thick-material wrist sweat band just below the main body of the ReliAlert TM . Typically the band would be worn just above the ankle bone but may also be used to elevate the ReliAlert TM to accommodate for special foot wear like work boots. Such a band may be purchased from most any sporting goods store. 2.2 Specific Absorption Rate Data The ReliAlert TM device meets the government’s requirements for exposure to radio waves. Your tracking device is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of ReliAlert™ Operations Guide SecureAlert, Inc. Copyright © 2011 SecureAlert, Inc. All rights reserved. Page 4 comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. The exposure standard for cellular communication devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The tests for SAR have been conducted based on the standard operating position (on the ankle) the tracking device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating is usually well below the maximum value. This is because the cellular device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a cellular device is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. This device has been certified by government regulatory bodies as meeting all associated safety and operational certifications as mandated by these agencies. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web Site: http://www.phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA) Web Site: http://www.cwta.ca 2.3 Safety and General Information Extended Storage Care For optimal operational performance the ReliAlert TM device and batteries should be stored in areas not exceeding 75º F (24º C). Exposure To Radio Frequency (RF) Energy Your ReliAlert TM device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When communicating with this device, the service network handling your call controls the power level at which your device transmits. ReliAlert™ Operations Guide SecureAlert, Inc. Copyright © 2011 SecureAlert, Inc. All rights reserved. Page 5 Your ReliAlert device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. RF Energy Interference/Compatibility Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your mobile device may cause interference with other devices. This device complies with Part 15 of the FCC Rules. 1. Operation is subject to the condition that this device does not cause harmful interference. 2. FCC RF Exposure Warning: This device has been tested at the Cellular and PCS bands and found to comply with FCC RF Exposure rule. Potentially Explosive Atmospheres Areas with potentially explosive atmospheres are often but not always posted, and can include confined fuelling areas such as below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain, dust, or metal powders. When you are required to be in such confined areas, contact your Supervision Officer or the ReliAlert TM Monitoring Center befor…

Text truncated - open the document above for the full version.

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March 23, 2011 Dear FCC Examiner, Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, SecureAlert, Inc requests confidentiality for the following products: FCC ID Number Product Title/Model TPO-OTD36 ReliAlert For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematics 3) Parts List 4) Tune-up procedure 5) Operational Description The above exhibits contain SecureAlert, Inc trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our device. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Bruce Derrick VP Communications, Certification & Testing

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March 23, 2011 Dear FCC Examiner, Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, SecureAlert, Inc requests temporary confidentiality for the following exhibits for 45 days from the date of the Grant of Equipment Authorization : FCC ID Number Product Title/Model TPO-OTD36 ReliAlert For the product stated above, we request that the following information be held confidential: 1) External Photos 2) Internal Photos 3) Users Manual 4) Test Setup Photos The above exhibits contain SecureAlert, Inc trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Bruce Derrick VP Communications, Certification & Testing

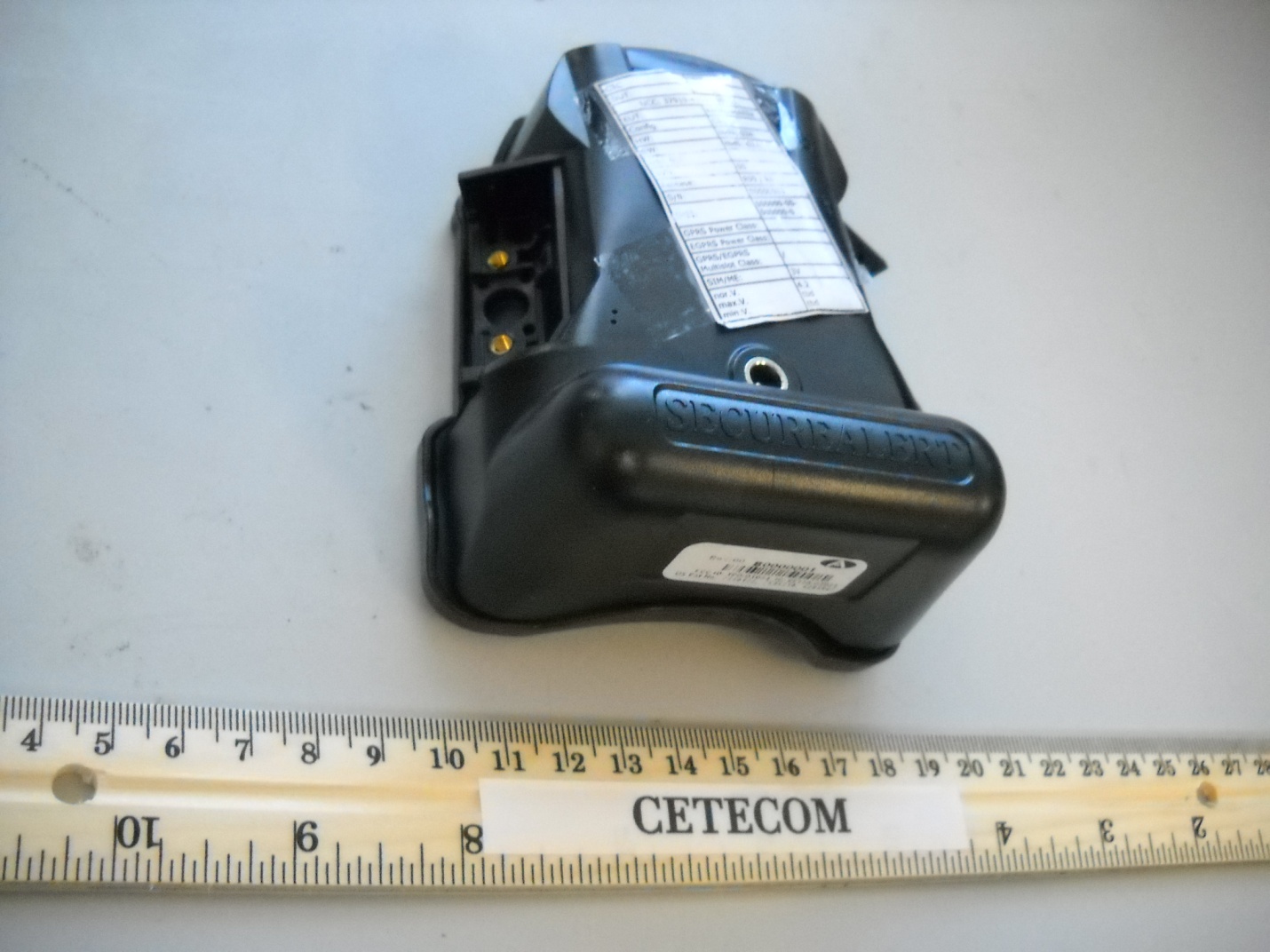

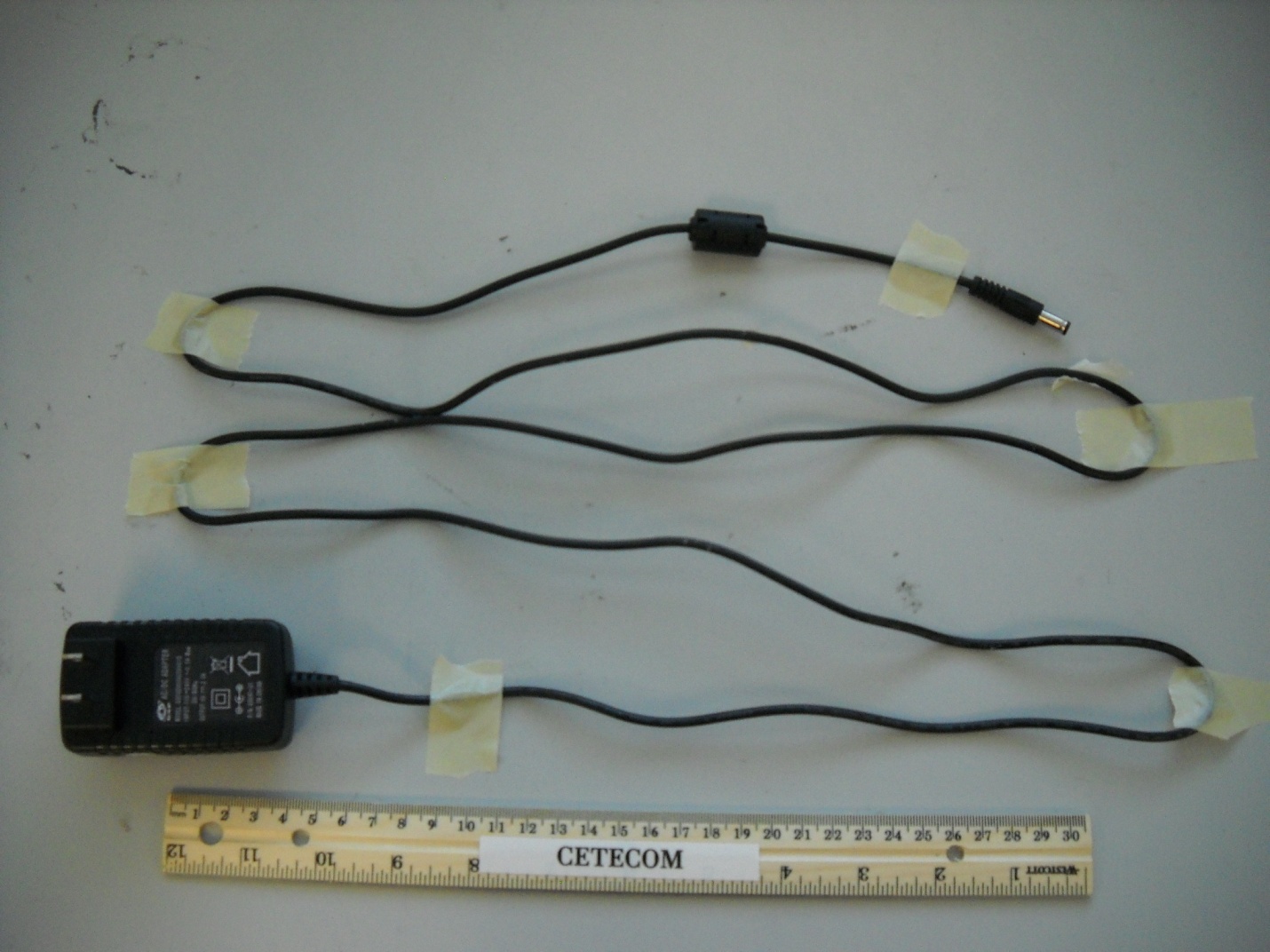

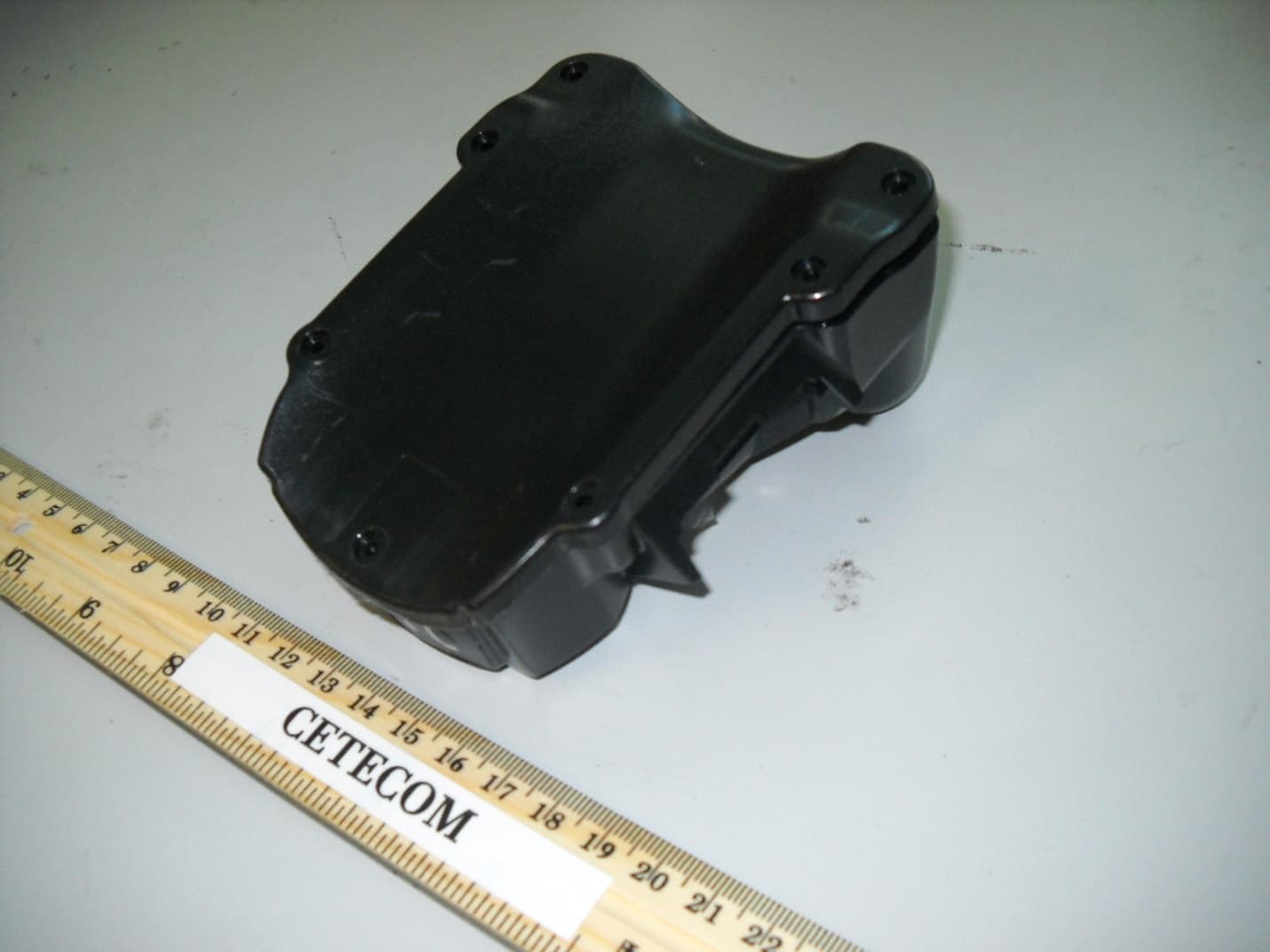

External Photos

.50 R.13 TYP. .32 .38 1.25 .18 .12 .44 .306 .300 .100 .400 PART NUMBER FIELD TEXT HEIGHT APPROX. .110" SERIAL NUMBER FIELD TEST HEIGHT APPROX .056" BAR CODE FEILD HEIGHT APPROX .090" TEXT HEIGHT APPROX. .056" NOTES: FONT: ARIAL UNICODE OR EQUIVALENT, CENTER TEXT AS SHOWN1. BARCODE STYLE: CODE 1282. RAW LABEL: ABLE LABEL P/N 1.25-.5-TC-0 (WHITE POLYESTER, ACRYLIC ADHESIVE)3. PRINT P/N , SERIAL #, AND BARCODE FIELDS PER WORK INSTRUCTIONS4. PRINT FCC AND PATENT INFORMATION AS SHOWN ON THIS DRAWING5. EUROPEAN CERTIFICATION LABEL IS STANDARD AND LOCATED AS DIMENSIONED 6. REV.DESCRIPTIONDATE 00NEW RELEASE1/12/2010 01 CHANGED LAYOUT AND FONT HEIGHTS, ADDED LOGO 7/15/2010 02 ADDED CE LOGO AND MOVED THINGS TO ACCOMODATE 2/7/2011 03 SUPPRESSED CE LOGO AND SA LOGO, ADDED MFG USA 3/18/2011 A B C D 1 2 3 456 7 8 A B C D 12 3 4 5 6 7 8 LABEL, PRINTED CAD GENERATED DRAWING, DO NOT MANUALLY UPDATE SCALE SIZE DWG. NO. A SHEET 1 OF 1 REV. DATE APPROVALS DRAWN ENGINEERING APPROVED UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN INCHES AND TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ± 1/32 .XX ± .02 ± 0° 30' .XXX ± .01 MATERIAL FINISH NA 125 DO NOT SCALE DRAWING THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SECURE ALERT. ANY UNAUTHORIZED USE, REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF SECURE ALERT. IS PROHIBITED. 9736 SOUTH 500 WEST SANDY, UTAH 84070 03 3:1 10075 PCO 02/07/2011 PCO 02/07/2011 LAST SAVED BY coliphant Thursday, May 12, 2011 1:44:26 PM C:\Documents and Settings\coliphant\My Documents\3-4-2 curve assy\

Internal Photos

NCL CALIBRATION LABORATORIES Calibration File No.: 1233 Client.: APREL C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe Record of Calibration Head and Body Manufacturer: APREL Laboratories Model No.: E-020 Serial No.: 225 Calibration Procedure: D01-032-E020-V2, D22-012-Tissue, D28-002-Dipole Project No: Internal Calibrated: 13 th January 2011 Released: 13 th January 2011 NCL CALIBRATION LABORATORIES 17 Bentley Ave Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2E 6T7 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Introduction This Calibration Report reproduces the results of the calibration performed in line with the references listed below. Calibration is performed using accepted methodologies as per the references listed below. Probes are calibrated for air, and tissue and the values reported are the results from the physical quantification of the probe through meteorgical practices. Calibration Method Probes are calibrated using the following methods. <1000MHz TEM Cell for sensitivity in air Standard phantom using temperature transfer method for sensitivity in tissue >1000MHz Waveguide* method to determine sensitivity in air and tissue *Waveguide is numerically (simulation) assessed to determine the field distribution and power The boundary effect for the probe is assessed using a standard flat phantom where the probe output is compared against a numerically simulated series of data points References o IEEE Standard 1528 (2003) including Amendment 1 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques o EN 62209-1 (2006) Human Exposure to RF Fields from hand-held and body-mounted wireless communication devices - Human models. instrumentation, and procedures-Part 1: Procedure to measure the Specific Absorption Rate (SAR) for hand-held mobile wireless devices o IEC 62209-2 Ed. 1.0 (2010-03) Human exposure to RF fields from hand-held and body-mounted wireless devices - Human models, instrumentation, and procedures - Part 2: specific absorption rate (SAR) for wireless communication devices (30 MHz - 6 GHz) o TP-D01-032-E020-V2 E-Field probe calibration procedure o D22-012-Tissue dielectric tissue calibration procedure o D28-002-Dipole procedure for validation of SAR system using a dipole o IEEE 1309 Draft Standard for Calibration of Electromagnetic Field Sensors and Probes, Excluding Antennas, from 9kHz to 40GHz NCL Calibration Laboratories Division of APREL Laboratories. Page 3 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Conditions Probe 225 has been recalibrated and was found to be in good working order. Ambient Temperature of the Laboratory: 22 °C +/- 1.5°C Temperature of the Tissue: 21 °C +/- 1.5°C Relative Humidity: < 60% Primary Measurement Standards Instrument Serial Number Cal due date Power meter Anritsu MA2408A 90025437 Nov.3, 2011 Power Sensor Anritsu MA2481D 103555 Nov 3, 2011 Attenuator HP 8495A (70dB) 1944A10711 Sept. 13, 2011 Network Analyzer Anritsu MT8801C MB11855 Feb. 8, 2011 Secondary Measurement Standards Signal Generator Agilent E4438C -506 MY55182336 June 7, 2011 Attestation The below named signatories have conducted the calibration and review of the data which is presented in this calibration report. NCL Calibration Laboratories Division of APREL Laboratories. Page 4 of 10 This page has been reviewed for content and attested to on Page 2 of this document. NCL Calibration Laboratories Division of APREL Laboratories. Page 5 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration Results Summary Probe Type: E-Field Probe E-020 Serial Number: 225 Sensor Offset: 1.56 mm Sensor Length: 2.5 mm Tip Enclosure: Ertalyte* Tip Diameter: <2.9 mm Tip Length: 60 mm Total Length: 290 mm *Resistive to recommended tissue recipes per IEEE-1528 Sensitivity in Air Channel X: 1.2 μV/(V/m) 2 Channel Y: 1.2 μV/(V/m) 2 Channel Z: 1.2 μV/(V/m) 2 Diode Compression Point: 95 mV NCL Calibration Laboratories Division of APREL Laboratories. Page 6 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Calibration for Tissue (Head H, Body B) Frequency Tissue Type Measured Epsilon Measured Sigma Calibration Uncertainty Tolerance Uncertainty for 5%* Conversion Factor 450 H *FC 450 B *FC 750 H *FC 750 B *FC 835 H 41.830.92 3.5 2.8 7 835 B 57.190.94 3.5 2.8 6.6 900 H 41.630.96 3.5 2.9 6.4 900 B 53.891.02 3.5 2.9 6.3 1450 H *FC 1450 B *FC 1640 H *FC 1640 B *FC 1750 H 39.211.32 3.5 3.1 6 1750 B 52.011.48 3.5 3.1 5.6 1800 H 39.731.4 3.5 3.1 5.5 1800 B 52.891.51 3.5 3.1 5.2 1900 H 38.121.41 3.5 3.1 5.6 1900 B 51.521.57 3.5 3.1 5.6 2000 H 38.431.37 3.5 3.1 5.8 2000 B 52.291.45 3.5 3.1 5.5 2100 H 38.741.47 3.5 3.2 5.3 2100B 51.951.57 3.5 3.2 5.2 2450 H 37.871.82 3.5 3.25 5.2 2450B 50.841.92 3.5 3.25 5.0 2600 H 38.871.91 3.5 3.8 4.7 2600 B 51.952.08 3.5 3.8 4.5 3600 H *FC 3600 B *FC 5200 H 36.094.69 3.5 4.1 3.3 5200 B 49.255.27 3.5 4.1 3 5600 H 34.555.25 3.5 4.1 3 5600 B 47.735.88 3.5 4.1 2.8 5800 H 33.835.52 3.5 4.1 3.1 5800 B 47.126.17 3.5 4.1 2.9 *FC, Future Calibration, as required Boundary Effect: Uncertainty resulting from the boundary effect is less than 2.1% for the distance between the tip of the probe and the tissue boundary, when less than 0.58mm. NCL Calibration Laboratories Division of APREL Laboratories. Page 7 of 10 This page has been reviewed for content and attested to on Page 2 of this document. Spatial Resolution: The spatial resolution uncertaint…

Text truncated - open the document above for the full version.

Project Number: 5594 V2 FCC ID: TPO-OTD36 303 Terry Fox Dr., Suite 102 Kanata ON Canada K2K 3J1 Tel.: +1-613-435-8300 Fax: +1-613-435-8306 Page 1 of 59 www.aprel.com © 2010 APREL Applicant Name: SecureAlert Inc Applicant Address: 150 W. Civic Center Drive, Suite 400, Sandy, Utah 84070 Project Number: SECB-SAR-5594 Test/Analysis Date: May 2011 FCC ID: TPO-OTD36 DUT Type Tracking device with cellular radio and GPS Antenna Type Internal Project Name ReliAlert Version Number 3.6 Received Status Functional final design DUT Serial Number 100702 Experimental/Compliance Compliance Tx Frequency Cellular 850 and PCS 1900 (GSM and GPRS) Max Tx Power 33 dbm / 30 dbm Conservative Averaged SAR (RF Exposure) 850 Channel 128 824MHz GPRS 2 Slots 1g= 1.255 W/kg Extrapolated to 33 dB = 1.305 W/kg 1900 Channel 810 1910MHz GPRS 2 Slots 1g= 0.135 W/kg Extrapolated to 30dB = 0.157 W/kg This report shall not be reproduced, except in full, without written approval of APREL Results relate only to the items tested. We the undersigned of APREL, located at 303 Terry Fox Dr., Ottawa, Ontario, Canada, K2K 3J1, on the date indicated attest that the Device Under Test as detailed within this test report has been tested and found to be compliant with the Uncontrolled Environment RF exposure rules and regulations as defined by the methodologies, procedures, and standards as described in this document. Signed this day 19 th May 2011. NOTE: Below is an electronic copy. Each report is signed upon release This report shall not be reproduced, except in full, without written approval of APREL Results relate only to the items tested. Project Number: 5594 V2 FCC ID: TPO-OTD36 Page 2 of 59 Tel.: +1-613-435-8300 www.aprel.com © 2010 APREL Table of Contents 1.0 Introduction........................................................................................................................ 3 2.0 Applicable Documents ...................................................................................................... 6 3.0 ALSAS-10U System Description ...................................................................................... 7 3.1 Applications ....................................................................................................................... 8 3.2 Visualisation and reporting .............................................................................................. 8 3.3 Field scans ......................................................................................................................... 8 3.3.1 Area Scans ..................................................................................................................... 8 3.3.2 Zoom Scan (Cube Scan Averaging) ............................................................................ 9 3.4 Operator settings .............................................................................................................. 9 3.5 ALSAS-10U Interpolation and Extrapolation Uncertainty ............................................. 9 4.0 ALSAS-10U Hardware ..................................................................................................... 10 4.1 Isotropic E-Field Probe ................................................................................................... 10 4.2 Isotropic E-Field Probe Specification ........................................................................... 11 4.3 Boundary Detection Unit and Probe Mounting Device ............................................... 11 4.4 Daq-Paq (Analog to Digital Electronics) ....................................................................... 11 4.5 Axis Articulated Robot .................................................................................................... 12 4.6 ALSAS Universal Workstation ....................................................................................... 12 4.7 Universal Device Positioner ........................................................................................... 13 4.8 Phantom Types ................................................................................................................ 14 4.8.1 APREL SAM Phantoms .............................................................................................. 14 4.8.2 APREL Universal Phantom ........................................................................................ 15 4.9 Validation Dipoles ........................................................................................................... 16 5.0 Tissue Simulation Fluid .................................................................................................. 17 5.1 Tissue Calibration Procedure Using a Coaxial Probe ................................................. 18 5.2 Tissue Calibration Results ............................................................................................. 18 6.0 System Validation ........................................................................................................... 19 6.1 Experimental Results Summary .................................................................................... 21 6.2 SAR Measurement Procedure ........................................................................................ 21 6.3 SAR Exposure Limits ...................................................................................................... 21 6.4 Equipment List/Duty Cycle ............................................................................................. 22 6.5 SAR Measurement Results ............................................................................................. 23 Appendix A SAR Plots ..................................................................................................................... Revision History Originated May 19, 2011 Revised May 26, June 17, 20, 23 This report shall not be reproduced, except in full, without written approval of APREL Results relate only to the items tested. Pro…

Text truncated - open the document above for the full version.

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 153 Report ID: MOTRAD_FCC.16719_rev1.doc Date of Issue: November 2005 Electrical TEST REPORT ACCORDING TO: FCC parts 22, 24 and part 15 subpart B FOR: Motorola Communications Israel Ltd. QuadBand GSM module 850/1900 MHz Model:G24 FCC ID:IHDT56FV1 This report is in conformity with ISO/ IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: MOTRAD_FCC.16719_rev1.doc Date of Issue: November 2005 Page 2 of 153 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Support and test equipment .......................................................................................................................................... 5 6.3 Operating frequencies ................................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 22 requirements......................................................................................... 7 7.1 Peak output power ........................................................................................................................................................ 7 7.2 Occupied bandwidth test ............................................................................................................................................. 10 7.3 Spurious emissions at RF antenna connector test ...................................................................................................... 17 7.4 Field strength of spurious emissions ........................................................................................................................... 42 7.5 Frequency stability test................................................................................................................................................ 60 8 Transmitter tests according to 47CFR part 24 requirements....................................................................................... 63 8.1 Peak output power ...................................................................................................................................................... 63 8.2 Occupied bandwidth test ............................................................................................................................................. 66 8.3 Spurious emissions at RF antenna connector test ...................................................................................................... 73 8.4 Field strength of spurious emissions ......................................................................................................................... 101 8.5 Frequency stability test.............................................................................................................................................. 122 9 Unintentional radiation tests according to 47CFR part 15 subpart B requirements ................................................... 125 9.1 Conducted emissions ................................................................................................................................................ 125 9.2 Radiated emissions ................................................................................................................................................... 129 10 APPENDIX A Test equipment and ancillaries used for tests..................................................................................... 139 11 APPENDIX B Measurement uncertainties................................................................................................................. 141 12 APPENDIX C Test facility description ....................................................................................................................... 142 13 APPENDIX D Specification references ..................................................................................................................... 142 14 APPENDIX E Abbreviations and acronyms......................................................................…

Text truncated - open the document above for the full version.

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Hans Peter May. V3.0 2010-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC/IC Test Report FOR: Company: SecureAlert Model Name: ReliAlert FCC ID: TPO-OTD36 IC ID: 6512A-OTD36 47 CFR Part 2, 22, 24 RSS-132 Issue 2 RSS-133 Issue 5 TEST REPORT #: EMC_SECRE_003_11001_FCC_22_24_rev1 DATE: 2011-05-10 Test Report #: EMC_SECRE_003_11001_FCC22_24_rev1 Date of Report: 2011-05-10 Page 2 of 30 Table of Contents 1 Assessment .............................................................................................................................. 3 2 Administrative Data ............................................................................................................... 4 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report ......................................... 4 2.2 Identification of the Client ............................................................................................................. 4 2.3 Identification of the Manufacturer ................................................................................................. 4 3 Equipment under Test (EUT) ............................................................................................... 5 3.1 Specification of the Equipment under Test .................................................................................... 5 3.2 Identification of the Equipment Under Test (EUT) ....................................................................... 6 3.3 Identification of Accessory equipment ........................................................................................... 6 4 Subject of Investigation ......................................................................................................... 7 5 Summary of Measurement…

Text truncated - open the document above for the full version.
