TQMDONGLE012.4G WIRELESS DONGLE

-2- -1- -3- -4- JH-BM667-1 Wireless headphone is high end accessories for 2way radio headphone. And it's connected to two way radio headset, two way radio and PTT with wireless dongle. It gets rid of defects for wire two way radio headset which is not so convenient for use, and it is suitable for various of occasion espe- cially firefighting, forest defending, Military field, steeplejack, heavy - industry and so on. Best Talent developed a wireless headphone for 2way radio with good quality for conversation and low rate design, is the best choice for professional communication purchaser. Wireless headphone manual for two way radio Product Introduction Product Components volume + wireless headphone MIC Volume - switch on/ off/ match Charge/ low power/ using Charge/ low power/ using PTT Charge Charge/ low power/ using PTT Dongle Product Features 1. Wireless connection between Wireless headphone, PTT and wireless dongle, more convenient and freedom for using. 2. High frequency2.4G wireless FHSS communication technology, avoid interference from two way radio, more reliable. 3. Voice spring saving power circuit require lowest power and bring longer conversation time. 4. dynamic voice compress technology, it makes voice more verisimilitude, distortion. 5. Automatic search mode, can connect automatically after temporary disconnecting. 6. Simple button operation make more convenient using. 7. Built-in lithium Battery, with charge and low power indicator. 8.Wireless dongle suitble for most two way radio. Operation Important Manual： Wireless PTT, headphone and Wireless dongle are matched ready before ex-factory,please follow up the following operation steps: 一、Preparation: When you use the product for the first time, pls use charger to charge for your wireless headset, wireless PTT and wireless dongle over 6 hours.(with charge indicator),to assure it's working in normal and connect wireless donglewith two way radio. 二、Switch on: Press switch on/off button of wirless dongle for 3s until the green indicator flicker qusickly, and it's in standby mode. Then connecting dongle with connect with the two way radio which is power off . Switch on two way radio power, about 5seconds the green indicator for dongle flicker quickly and step connected mode; ( Pls make sure the distance of wireless dongle and wireless headset is within 10m), After seconds, green indicator of both headset and dongle will flicker slowly,which indicates that the connection successfully, and they are in standby mode;(Diagram2) Press for long time till the blue indicator flicker Charge/ low power/ using wireless headphone Dongle Diagram2 三、 Standby Mode: When headset and dongle are in standby mode(i.e approach point 2),power consumpation is quite low. When the other side get call signal input and press PTT, the circuit automatically transfer to work states, the spring process takes about 200ms. When there's no calling within 2mins, the circuit will transfer to standby mode automatically and this will prolong working life time of the battery. 四、 Conversation: Wear wirless headset and wireless PTT, press wireless PTT, green indicator for wireless PTT and wireless dongle bright for long time, it means PTT works normally, at this moment you start calling , pepole on the other side will hear voice. Release PTT,you can hear response from the other side.Press VOC+VOC- button without grade to adjust volume control for long time. 3.PTT: Press PTT: the green indicator will bright for long time when you press PTT,release PTT, the green went out.Charge:When you charge it, the red indicator will turn bright for long time, after charging fully, the red indicator went out.Low power: Green indicator flicker slowly. . 五、 Switch off： 1. Wireless headset: press swith on/off/ button on wireless headset for long time until the green indicator go out and power off. 2. Wireless Dongle: pull out the connector for dongle or switch off two way radio power,Dongle will be automactically power off automatically within 5seconds. 六、Special function and operation： 1. Auotmatic Search mode: After connecting wireless dongle with wireless headset, when wireless headset is far away Dongle, the effective distance is more than 10 metres, wireless dongle will automatically step into searching mode, if the wireless headset back to effective distance 10metres within 5minutes, the wireless dongle will connect to automatically and working normally, if not, wireless dongle and headset will be both power off auto- matically and reduce the consumpation for energy of battery.(Whatever switch off automatically or manual, pls follow to the 2nd approach when you switch on nex time.) 2.Indicator Instruction: 1. Headphone/dongle: Switch on/login:the green indicator flicker quickly Standby: the green indicator flicker tardily Working: the green indicator flicker slowly Lower power:the green indicator strobe tardily. Charge:Red indicator bright for long time, when it's charge fully, the red indicator went out. Receive the singal from PTT: the green indicator will be bright for long time. Charge: Pls charge for headphone, dongle and PTT above 6hours before using the product. They power off automatically when it's in charging. PTT wireless headphone Dongle Wireless dongle Dimension：45*25*10.5mm Working frequency：wireless2.4GHz Battery Compacity：150mAh Sequence conversation: ＞8hours. Standby time：＞30hours。 Wireless Headset Wireless Headset Dimension：60*23*14.5mm Working frequency：wireless 2.4GHz Battery Compacity：85mAh Continuous coversation：＞8hours. Standby：＞30hours。 Wireless PTT Dimension：40*25*10.5mm Working Frequency：wireless 2.4GHz Battery compacity：85mAh Product Spec It is adopt design waterproof design up to IP54 water proof standard,but pls avoid rain as possible as you can during the using. Also pls avoid threwing and don't use as weapons. Wireless PTT and adapter has been paired before ex-factory, if lose or damage, pls send back to the seller and after-sales service dept for new …

Text truncated - open the document above for the full version.

Block Diagram IC3 NRF24LE1D 3.3V Voltage Power Supply RF filter Circuit MiniUSB8Pin (Only charging port) XTAL 16MHz LED Indicator Ant 2402~2480MHz Jack to Two-way radio

BEST TALENT INDUSTRIAL LIMITED (FCC ID：TQMDONGLE01) POWER OF ATTORNEY DATE: 2010-06-18 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, BEST TALENT INDUSTRIAL LIMITED, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, BEST TALENT INDUSTRIAL LIMITED ------------------------- (Jason Yu) (Manager)

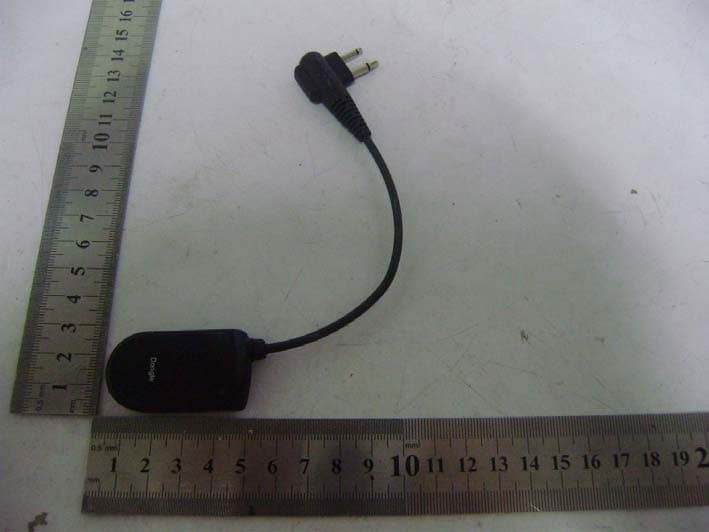

BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I FCC PART 15.249 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TQMDONGLE01 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I FCC PART 15.249 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TQMDONGLE01 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I FCC PART 15.249 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I FCC PART 15.249 Solder Board-Component View 2

Circuit Description a. IC-NRF24LE1D：IC- NRF24LE1D is the wireless RF chip. The wireless signal be received by antenna, and The PTT data signal be encoded ant output to the two-way radio, the LED indicator shall be light. b. This 2.4G wireless chip with a 24MHz clock signal. it will send a signal to the main control device by internal antenna, frequency modulation is 2402 ~ 2480 MHz. c. Supply Voltage: DC 3.3V i-ion Battery, and the li-ion battery can be charging by power charger.

深圳佳骏 对讲机适配器电路图 BM667s 电路图 制图：校核： 对讲机插口 线路输入 _N 充电指示 低电指示对码指示工作指示PTT 指示 100ms 开、 1S 关 100ms 开、 100mS 关 1s 开、 1S 关 PTT 对应 login 中点电压 0.8V LM358 电源控制 注册插座 中点电压 0.8V 独立稳压电源 独立稳压电源 充电 IC 高频部分 对讲机开机检测 对讲机开机检测 复位电路 D/A 转换电路 选频放大 烧录点 烧录点 烧录点 烧录点 烧录点 烧录点 烧录点 1234 5 6 CON1 LED2 红色 R19 39K R21 47K R16 10k C19 223 VDD P0.3 P0.2 PROG L6 磁珠 L2 磁珠 L3 磁珠 C31 33P R14 NA R24 NA R29 100K Q3 8050 R38 10K C35223 L7 8.2N R1 22K C11102 L8 3.9N L9 1.2nH C12 1.5p C13 na 1 L11 磁珠 Q5 9014 R28 100K R37 100K C2104 1 P0.1 2 VDD 3 DEC1 4 DEC2 5 PROG 6 VSS 7 VDD 8 P0.2 9 P0.3 10 P0.4 11 P0.5 12 P0.6 13 RST 14 VDD_PA 15 ANT1 16 ANT2 17 VSS 18 VDD 19 IREF 20 VSS 21 VDD 22 XC2 23 XC1 24 P0.0 IC2 NRF24LE1D R4147K X1 16MHz C14 8p C15 8p C28 104 C29 104 C33 104 C4 104 C5 103 R2 1K C18471 C20 472 R4 33K C24 104 1 CHRG 2 GND 5 PORG 3 BAT 4 VCC IC1 SE9016 R8 4K7 R10 1K LED1 绿色 3.7V BAT D6 1N4002 D7 1N4002 R7 100K R9 100K R11 1K R12 100K R17 47K L1 磁珠 R3 22K C3 103 C17102 R20 10K R23 47K C34104 2 GND 3 EN 1 VIN 4 BYPS 5 VOUT IC3 RT9167A C22 103 2 GND 3 EN 1 VIN 4 BYPS 5 VOUT IC5 RT9167A C27 103 R18 22K R25 10K C7 33P C10 33P C16 33P C25 33P L4 磁珠 C6 103 P0.4 P0.5 RST GND Q1 9014 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 MINIUSBPIN8 SIP8 C9 106 C1 106 R22 22K R26 4K7 E B C Q2 8550 R13 100K C38 105 R5 10K R6 33K C26 105 +- 23 1 IC4-A LM358AH + - 65 7 IC4-B LM358AH R27 3k3 Q49014 R15 100K R30 100K C39 104 C8 105 L5 磁珠 C23 106 C30 106 C37 103 C32 103 C40 N/A T2/MIC VDD VDD2 PTT MIC+ PTT VBAT MIC+ VCC VDD2 VB VB VB

BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I PAGE 1 OF 20 FCC PART 15.249 FCC PART 15.249 MEASUREMENT AND TEST REPORT FOR BEST TALENT INDUSTRIAL LIMITED 3/F, 3 Building, Ji Yi Yuan industrial region, Xinwei, Dalang, Baoan, Shenzhen, China FCC ID: TQMDONGLE01 Report Concerns: Original Report Equipment Type: 2.4G wireless Dongle Model: 2.4G Model Report No.: STR10058251I Test Date: 2010-06-01 to 2010-06-17 Issue Date: 2010-06-21 Test Engineer: Susan Su Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I PAGE 2 OF 20 FCC PART 15.249 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.249 (A)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 6. §15.249(B) OUT OF BAND EMISSIONS .............................................................................................................18 6.1 STANDARD APPLICABLE.......................................................................................................................................18 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................18 6.3 TEST PROCEDURE.................................................................................................................................................18 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................18 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................19 BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I PAGE 3 OF 20 FCC PART 15.249 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: BEST TALENT INDUSTRIAL LIMITED Address of applicant: 3/F, 3 Building, Ji Yi Yuan industrial region, Xinwei, Dalang, Baoan, Shenzhen, China Manufacturer: BEST TALENT INDUSTRIAL LIMITED Address of manufacturer: 3/F, 3 Building, Ji Yi Yuan industrial region, Xinwei, Dalang, Baoan, Shenzhen, China General Description of E.U.T Items Description EUT Description: 2.4G wireless Dongle Trade Name: NIER Model No.: 2.4G Model Rated Voltage: DC 3.3V Output Power: <0dBm Frequency Range: 2402~2480MHz Antenna Type: Inte…

Text truncated - open the document above for the full version.

BEST TALENT INDUSTRIAL LIMITED Model: 2.4G Model REPORT NO.: STR10058251I FCC PART 15.249 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup Below 1GHz Above 1GHz
