TRURC-RF18DRemote Controller

Remote Control Operation Guide RC-RF18D-5-433 IMPORTANT: Read advisory information in the owner’s manual carefully before using this product. The potential for electrical shock exists if electrical components are not installed or operated properly. FOOT UP BUTTON Press and hold to raise the foot section. FOOT DOWN BUTTON Press and hold to lower the foot section. FLAT BUTTON Press and hold to lower the head and foot sections simultaneously. HEAD UP BUTTON Press and hold to raise the head section. HEAD DOWN BUTTON Press and hold to lower the head section. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Ruoey Lung Enterprise Corp. No.17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, Changhua, Taiwan

Ruoey Lung Enterprise Corp. No. 17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, ChangHua, Taiwan. DATE :2015-09-03 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Ms. Yung-Fang Wang of Hong An Technology EMC Laboratory. No. 15-1, Cweishuh Keng, Cweipin Village, Linkou New Taipei City, Taiwan. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Ruoey Lung Enterprise Corp. No. 17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, ChangHua, Taiwan.

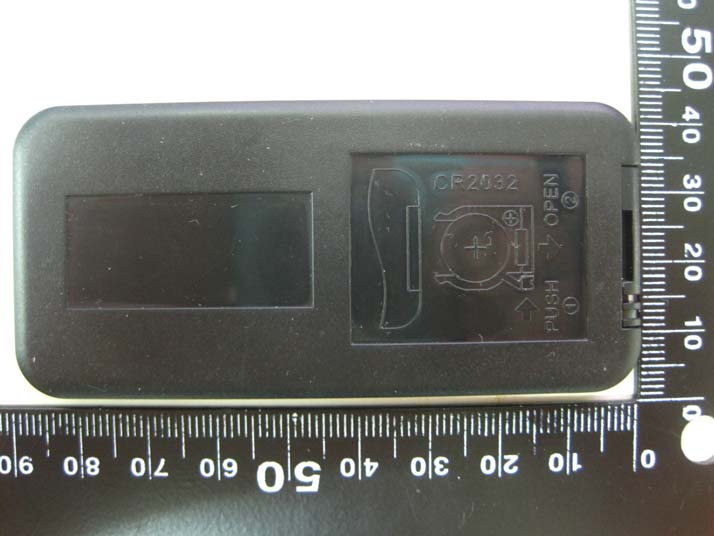

HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 28 of 30 8 Photographs of the EUT Front View of the EUT Rear View of the EUT

LABEL’S LOCATION FCC ID：TRURC-RF18D MODEL NO: RC‐RF18D‐5‐433 RC-RF18D-5-433 FCC ID: TRURC-RF18D S/N: A000001 WARNING: “THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION.” 32mm 20mm

HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 29 of 30 Inside View of the EUT Front View of the PCB HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 30 of 30 Rear View of the PCB Closer view of the PCB antenna (from L2 to L1) PCB antenna (marked by red line)

Ruoey Lung Enterprise Corp No.17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, Changhua, Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Remote Controller Model No: RC-RF18D-5-433 FCC ID: TRURC-RF18D The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Remote Controller will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: HA150643-RA and the accompanying calculations: According to KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances of 50mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)]≦3.0 for 1-g SAR, where Field Strength : 56.42 dBuV/m Ant. Gain : 0 dBi; Ant Numeric Gain : 1 max. power of channel, including tune-up tolerance: { [10 (Field Strength/20) /10 6 x3] 2 /30 x Ant Numeric Gain }x1000 mW = 0.0001351 mW min. test separation distance: 5 mm Frequency: 0.43392 GHz (0.0001351 mW/5mm)x √0.43392GHz= 0.00000177 <3 Result of Calculation: The result of calculation is far below 3 . Therefore, SAR test is not required. Company: Ruoey Lung Enterprise Corp Address: No.17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, Changhua, Taiwan Date: Sep. 03, 2015 By:

HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 1 of 30 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： Remote Controller Model Number ： RC-RF18D-5-433 Product Series ： N/A Report Number ： HA150643-RA Issue Date ： 03-Sep-2015 Test Result ： Compliance is produced by Ruoey Lung Enterprise Corp. No.17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, Changhua, Taiwan HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 2 of 30 Contents 1 General Description 6 1.1 Description of EUT 6 1.2 Test Instruments 7 1.3 Auxiliary Equipments 8 1.4 EUT SETUP 8 1.5 Identifying the Final Test Mode 8 1.6 Final Test Mode 8 1.7 Condition of Power Supply 9 1.8 EUT Configuration 9 1.9 Test Methodology 9 1.10 General Test Procedures 9 1.11 Modification 9 1.12 FCC Part 15.205 restricted bands of operations 10 1.13 Qualification of Test Facility 10 2 Power line Conducted Emission Measurement 11 2.1 Test Instruments 11 2.2 Test Arrangement and Procedure 11 2.3 Limit (§ 15.207) 11 2.4 Test Result 11 3 Radiated Emission Test 12 3.1 Test Instruments 12 3.2 Test Arrangement and Procedure 12 3.3 Limit of Field Strength of Fundamental (§ 15.231(b)) 13 3.4 Limit of Spurious Emission (§ 15.209) 14 3.5 Test Result 14 4 Conditions for intentional radiators to comply with periodic operation 21 4.1 Test Instruments 21 4.2 Test Arrangement and Procedure 21 4.3 Limit (§ 15.231(a)) 21 4.4 Test Result 22 5 Emission Bandwidth 24 5.1 Test Instruments 24 5.2 Test Arrangement and Procedure 24 5.3 Limit (§ 15.231(c)) 24 5.4 Test Result 24 HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 3 of 30 6 Antenna requirement 26 6.1 Limit (§ 15.203) 26 6.2 Test Result 26 7 Photographs of the Tests 27 7.1 Radiated Disturbances Emission Test (Below 1GHz) and (Above 1 GHz) 27 8 Photographs of the EUT 28 HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 4 of 30 Test Result Certification Applicant ： Ruoey Lung Enterprise Corp. Address of Applicant ： No.17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, Changhua, Taiwan Manufacturer ： Ruoey Lung Enterprise Corp. Address of Manufacturer ： No.17, Lu-Kung South 2 Road, Chang-Pin Industrial Park, Lu-Kang, Changhua, Taiwan Trade Name ： Equipment Under Test ： Remote Controller Model Number ： RC-RF18D-5-433 Product Series ： N/A FCC ID ： TRURC-RF18D Filing Type ： Certification Sample Received Date ： 17-Aug-2015 Test Standard ： FCC Part 15 Subpart C §15.231 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.231. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. Documented by: Kay Wang/ ADM. Dept Staff 2015-09-01 Tested by: Eason Hsieh/ ENG. Dept. Staff 2015-08-31 Approved by: Date: 2015-09-03 Peter Chin / Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 5 of 30 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 N/A 3 Radiated emission limits FCC part 15 subpart C §209 Compliance FCC part 15 subpart C §231(a)(1) Compliance FCC part 15 subpart C §231(a)(2) N/A FCC part 15 subpart C §231(a)(3) N/A FCC part 15 subpart C §231(a)(4) N/A 4 Conditions of Intentional radiators to comply with periodic operation FCC part 15 subpart C §231(a)(5) N/A 5 Field Strength FCC part 15 subpart C §231(b) Compliance 6 Emission Bandwidth FCC part 15 subpart C §231(c) Compliance 7 Requirements for devices operating within 40.66~40.70MHz band FCC part 15 subpart C §231(d) N/A 8 Conditions for intentional radiators to comply with periodic operation FCC part 15 subpart C §231(e) N/A HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 6 of 30 1 General Description 1.1 Description of EUT Equipment Under Test : Remote Controller Model Number of EUT : RC-RF18D-5-433 Product Series : N/A Power Supply : DC 3V, Vinnic Lithium Battery (CR2032) x 1 Frequency Range : 433.92MHz Number of Channels : 1 Channel Spacing : N/A (single channel) Antenna Specification : PCB Antenna, 0 dBi Gain Modulation Technique : ASK Specification : Dimensions : 86 mm (L) X 40 mm (W) X 7 mm (H) Weight : 25g Function：The EUT is a remote controller. Its transmitting frequency is 433.92MHz. ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 7 of 30 1.2 Test Instruments 1.2.1. Instruments Used for Measurement HA1 Instrument Name Manufacture Mode Model Number Serial NumberLast Cal. Date Next Cal. Date RF Amplifier AR 15S1G3 306578 11-AUG-2015 11-AUG-2016 EMI Receiver R&S ESCI 100615 03-MAR-2015 03-MAR-2016 Spectrum Analyzer R&S FSL6 100323 11-JUN-2015 11-JUN-2016 Spectrum Analyzer Advantest R3172 101202158 24-JUN-2015 24-JUN-2016 Preamplifier WIRELESS FPA-6592G 060009 09-JUL-2015 09-JUL-2016 Preamplifier HD HD17187 004 04-AUG-2015 04-AUG-2016 Bilog Antenna TESEQ CBL6111D 25769 03-MAR-2015 03-MAR-2016 Bilog…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA150643-RA FCC Test Report Page 27 of 30 7 Photographs of the Tests 7.1 Radiated Disturbances Emission Test (Below 1GHz) and (Above 1 GHz) Front View (X axes) Front View (X axes)
