TSW-LCRFSTUSLUMINAIRE CONTROLL BOARD

User Manual Pub. Date 2014.03.20 Rev. Date 2014.03.20 Rev. No 0.0 Document No. Model Name LCRF-STUS Page 페이지 1 / 5 OEM/Integrators Installation Manual Product Luminaire Controller Model Name LCRF-STUS Manufacture SAMJIN LND Co.,Ltd Ver. V0.0 User Manual Pub. Date 2014.03.20 Rev. Date 2014.03.20 Rev. No 0.0 Document No. Model Name LCRF-STUS Page 페이지 2 / 5 1.Specification Description Material / Finish / Data Model No. LCRF-STUS Luminaire Control Board Encloser non Size / Weight 62.5x 45.5 / 0.03Kg RF Sensing Wall Controller / Radius 25M Network Method RF 900MHz Operating Temp(°C) -10(min) ~25(typical)~45(max) Operating Humidity(°C) -10(min) ~90(max) 2.Operation 1) A device which is connected to an SMPS and modulates color temperature and brightness of luminaires by receiving the signal from Wall Controller. User Manual Pub. Date 2014.03.20 Rev. Date 2014.03.20 Rev. No 0.0 Document No. Model Name LCRF-STUS Page 페이지 3 / 5 3.Installation 1) located in the junction box of the luminaire, and connects the antenna and the SMPS for integrated installation. No Description Detail(Function) 1 Antenna 917.1MHz~923.3MHz Antenna 2 LCRF-STUS LCRF-STUS Board Construct 3 SMPS SMPS to LCRF-STUS Connect . User Manual Pub. Date 2014.03.20 Rev. Date 2014.03.20 Rev. No 0.0 Document No. Model Name LCRF-STUS Page 페이지 4 / 5 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. FCC Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Information to user: The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. USERS MANUAL OF THE END PRODUCT: In the user manual of the end product, the end user has to be informed to keep at least 20 cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: User Manual Pub. Date 2014.03.20 Rev. Date 2014.03.20 Rev. No 0.0 Document No. Model Name LCRF-STUS Page 페이지 5 / 5 This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains FCC ID: TSW-LCRFSTUS ". If the size of the end product is larger than 8 x 10 cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. The RF module limited to OEM installation ONLY: The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or collocation with another transmitter), then the FCC authorization is no longer considered val…

Text truncated - open the document above for the full version.

Date: Mar, 24 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Suk Jin, Ko / Quality Assurance Engineer REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: Mar. 24, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TSW-LCRFSTUS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_LCRF-STUS_Part List.PDF Schematics Diagram(s) CONF APPENDIX_ LCRF-STUS _Schemetics.PDF Block diagram CONF APPENDIX_ LCRF-STUS _Block diagram.PDF Operation description CONF APPENDIX_ LCRF-STUS _Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Suk Jin, Ko Title: Quality Assurance Engineer Company Name: Samjin LND

Applicant / Grantee Samjin LND FCC ID TSW-LCRFSTUS Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to the external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation.. Power supply regulation built into module. Refer to the circuit diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Antenna has glued at the antenna port as permanently on the transceiver module. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters The modular transmitter be tested in a stand-alone configuration. Refer to the test report and setup photo. Y to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A Label is to be placed on back of the EUT, and other label is to be placed in the User Manual. Refer to the FCC ID label format. Y c i a 7 T a t t p t r m e 8 T a i Title: Q Compa Name: copy of these in the applica authorization The modular any specific that ordinaril transmitter an provide adeq the module to requirements must be inclu equipment au The modular any applicab its final conf Quality As any Name : Suk Jin, e instructions ation for equ n. r transmitter rules or ope r ly apply to a nd the manu quate instruct o explain any s. A copy of t uded in the a uthorization. r transmitter le RF expos u figuration. ssurance E e:Samjin L Ko s must be inc uipment must comply rating require complete ufacturer mus tions along w y such these instruc application fo must comply ure requirem Engineer LND cluded y with ements st with ctions or R e y with ments in It c req efer to the Us complies wit quirement. ser manual th RF exposuure Y Y

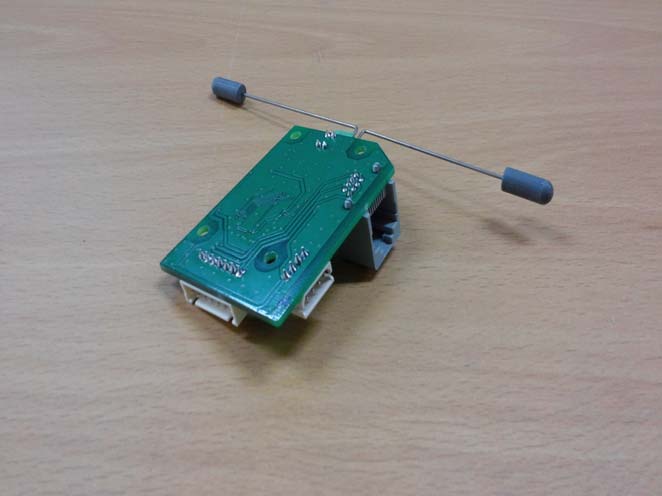

www.kes.co.kr Model No.: LCRF-STUS Page 1 of 1 EUT External photographs

Label and Location Model No.: LCRF-STUS Page 1 of 1

www.kes.co.kr Model No.: LCRF-STUS Page 1 of 1 EUT Internal photographs

Model No.: LCRF-STUS Page 1 of 1 RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Pd = EIRP/4×pi×R 2 EIRP = Field strength+20Log(D)-104.8 Where, Pd = power density in ㎽/㎠ EIRP = Equivalent Isotropic Radiated Power Pi = 3.1416 R = distance between observation point and center of the radiator in cm D = Measured distance in m Results Frequency (㎒) Field strength (㏈uV/m) EIRP (dBm) Pd ㎝(㎽/㎠) Limit (㎽/㎠) 917.1 92.65 -2.61 0.000109 0.6 920.3 92.44 -2.82 0.000103 0.6 923.3 92.45 -2.81 0.000104 0.6 Result: The power density does NOT exceed the limit Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 30 1 500 – 100 000 -- -- 1 30

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (2 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.04.04 KES-RF-14T0014Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (3 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ..................................................................................................... 4 1.1. EUT description.............................................................................................. 4 1.2. Test frequency ............................................................................................... 4 1.3. Information about derivative model ......................................................................... 4 1.4. Device modifications ........................................................................................ 4 1.5 Device information .......................................................................................... 4 1.6. Test facility ................................................................................................... 5 1.7. Laboratory accreditations and listings ...................................................................... 5 2. Summary of tests ........................................................................................................ 6 3. Test results ............................................................................................................... 7 3.1 Field strength of fundamental & Radiated spurious emission & Out-of-band emission .................. 7 3.2 20 ㏈ bandwidth .......................................................................................... 15 3.3. AC conducted emissions .................................................................................. 18 Appendix A. Measurement equipment ..................................................................................... 21 Appendix B. Test setup photo ............................................................................................... 22 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (4 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information 1.1. EUT description Equipment under test Luminaire Controll board Model name LCRF-STUS Serial number N/A Frequency range 917.1 ㎒ ~ 923.3 ㎒ Modulation technique FSK Number of channels 32 Antenna type & gain Connector type(Monopole antenna) // 3 ㏈i Power source DC 5 V 1.2. Test frequency - 802.11b/g/n_HT20 Low channel Middle channel High channel Frequency (㎒) 917.1 920.3 923.3 1.3. Information about derivative model N/A 1.4. Device modifications N/A 1.5 Device information - The device duty cycle ≥ 98 percent KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (5 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1.6. Test facility C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,431-716, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea The open area test site is constructed in conformance with the requirements ANSI C63.4-2003/2009. 1.7. Laboratory accreditations and listings Country Agency Scope of accreditation Certificate No. USA FCC 3 & 10 meter Open Area Test Sites and one conducted site to perform FCC Part 15/18 measurements. 343818 KOREA KC EMI (10 meter Open Area Test Site and two conducted sites) Radio (3 & 10 meter Open Area Test Sites and one conducted site) KR0100 CANADA IC 3 & 10 meter Open Area Test Sites and one conducted site 4769B-1 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (6 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 2. Summary of tests Reference Parameter Test results 15.249(a) Field strength of fundamental Pass 15.205 15.209 15.249(d) Radiated spurious emission, Out-of-band emission Pass 15.215(c) 20 ㏈ bandwidth Pass 15.207 AC conducted emissions Pass Test procedures; The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 ㎑ to 40 ㎓ (ANSI C63.4-2003/2009) were used in the measurement of the EUT. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (7 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 3. Test results…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (22 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Appendix B. Test setup photo Radiated Emission (30MHz~1GHz) Radiated Emission (Above 1GHz) KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0014 Page (23 ) of (23) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 AC conducted Emission
