TTETP017TIRE PRESSURE MONITORING SYSTEM

M-TPMS Sensor Installation FCC ID: TTETP017 1. Press the Sensor onto the Security Lock let them attached together alone the meshing part. 2. Screw on the Sensor together with the Security Lock to the tire valve according to the Tire Position mark on the top of the Sensor housing: -FL -----for Left front wheel -FR----- for Right Front wheel -RL-----for Left Rear wheel -RR---- for Right Rear wheel 3. Fasten the three bolts on each Security Lock with the Special Tool included in the package. 4. Stick the four sets of the counterweights onto the certain position of the four wheel rims according to the picture. Please clean the certain area before sticking the counterweight. 5. After the Sensor installed onto the valve, the pressure value of each tire will be displayed on the LCD within 6 minutes. FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notes: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

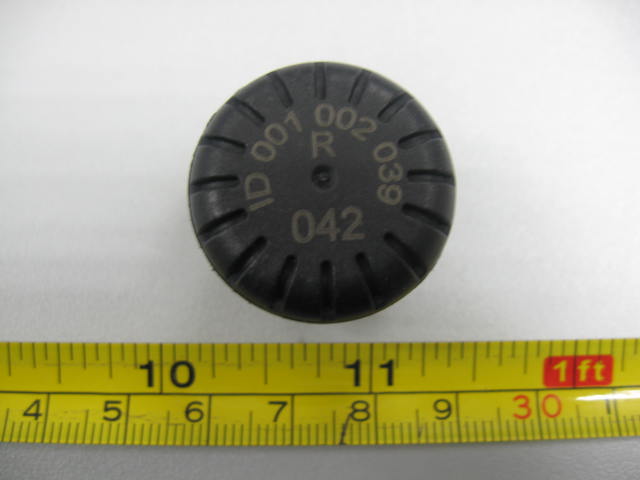

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TTETP017 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TTETP017 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 Solder Board-Component View 2 Solder Board-Component View 3 SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 Solder Board-Component View 4

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I PAGE 1 OF 15 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR Suzhou Sate Auto Electronic Co., Ltd. 6F-138, Qingyun Road, Zhangjiang Hi-Tech Zone, Pudong New Area, Shanghai, 201203, P. R. China FCC ID: TTETP017 Report Concerns: Original Report Equipment Type: Tire Pressure Monitoring System Model: M-TPMS Report No.: STR07128039I Test/Witness Engineer: Lahm Peng Test Date: 2007-12-20 to 2008-01-05 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I PAGE 2 OF 15 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. §15.231(A)-DEACTIVATION TESTING .............................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF T…

Text truncated - open the document above for the full version.

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: M-TPMS REPORT NO.: STR07128039I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
