TTETP027SMART BOOSTER

Installation Manual of Smart Booster FCC ID: TTETP027 1Notice: 1) Please note the power voltage range which is written in the product manual. See Page 4 for details. 2) We suggest you power the repeater without interval. While if you don’t run your car in 15days or more, you’d better power it off lest you cannot start your car after the car power is exhausted. 3) Please pay attention that the trailer’s connecting line should be connected with the power in quick waterproof coupler’s way. 4) This product cannot be used unless it is matched with TPMS1209T03 or Smart Booster. 2Parts of Repeater 1) Picture of Repeater 2) Picture of Cable tie 3 Installation of Repeater 1) Select the proper place\position to install For 10or 14-wheels truck without head separation, we’d better fix the repeater in the center position which is near its rear wheels and under the truck’s chassis transom support. If the support has no screw hole, we have to bore one. As for trailer truck, we suggest customers to fix a quick-connector for the truck head usually separate with its carriage. 2) According to the poles of the electrical wire, connect the right poles of the electrical wire with the power cable. See the connecting line map below for more information. Notice: If the electrical line is not long enough, please lengthen the wire to the power cable according the poles and color of the power. 4Connecting line Map of Repeater 5Mechanical Size Map of Repeater FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notes: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

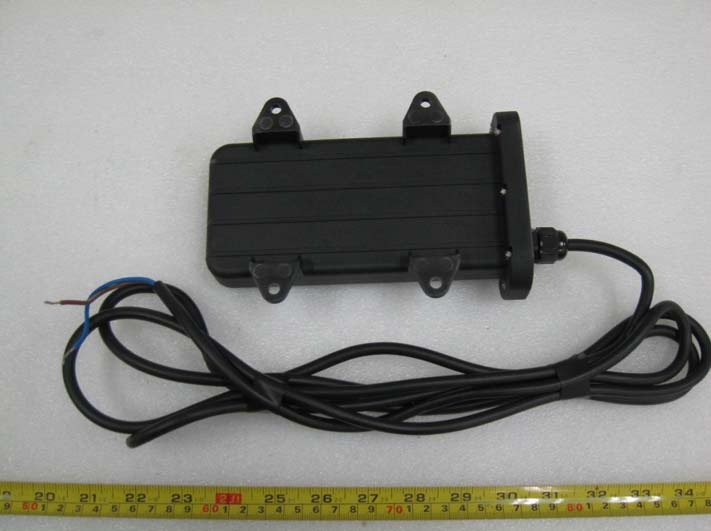

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TTETP027 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I FCC PART 15.231 Solder Board-Component View 2

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I PAGE 1 OF 14 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR SUZHOU SATE AUTO ELECTRONIC CO., LTD. 6F-138, Qingyun Road, Zhangjiang Hi-Tech Zone, Pudong New Area, Shanghai, 201203, P. R. China FCC ID: TTETP027 Report Concerns: Original Report Equipment Type: Smart Booster Model: TPMS1209T03 Report No.: STR07128050I Test/Witness Engineer: Test Date: 2008-01-05-2008-01-17 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I PAGE 2 OF 14 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. §15.231(E)-DEACTIVATION TESTING..............................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF TEST RESULTS/PLOTS…

Text truncated - open the document above for the full version.

SUZHOU SATE AUTO ELECTRONIC CO., LTD. MODEL: TPMS1209T03 REPORT NO.: STR07128050I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
