TTETP079TIRE PRESSURE MONITORING SYSTEM

Installation Guide for Sensor TSB06 1 Installation Guide for Sensor TSB06 Suzhou Sate Auto Electronic Co., Ltd www.sate.com.cn Installation Guide for Sensor TSB06 2 1. System Installation 1.1 Sensor Parts 1.1.1 Installation Instructions: Install the sensor onto the hub by screwing the valve nut with the torque of 4N.m（±0.5）to make sure reliable installation. There should be a gap of 0-0.5mm between the curved face of the sensor and the hub. As shown below: 1.1.2 Installation Steps： ①Unscrew the valve nut of the sensor, get the valve end through the valve socket of the hub; Va l v e P a r t s Va l v e C a p Valve Nut Rubber Washer Valve Stem Installation Guide for Sensor TSB06 3 ② Screw the sensor nut on and tighten it with 12mm sleeve. Torque is 4N.m(±0.5）; ③Mount the rubber tubes; ④Inflate the tire to standard pressure and check whether there is leakage in the connection part of the valve core and locknut with the soap solution; ⑤Screw the valve cap to finish the installation; ⑥Balance the tire and install onto the vehicle; ⑦Activate the sensor. Note： After the installation, the tire must be balanced and adjusted. Installation Guide for Sensor TSB06 4 2. Specifications No Item Specifications 1 Size 63mm*29.5mm*17mm 2 Weight 43g(including the valve parts) 3 Operating Temperature Range -40°C～+125°C 4 Storage Temperature Range -30°C～+85°C（25°C is the best） 5 Mid-frequency 433.92MHz 6 Transmitting Power -20 dBm（e.r.p. effective transmitting Power） 7 Pressure Monitoring Range 0～800kpa 8 Pressure Monitoring Precision ±10kpa 9 Temperature Monitoring Range -40°C～+125°C 10 Temperature Monitoring Precision ±2°C 11 Battery Life 10 year 12 Battery Voltage 3V 13 LF Frequency 125KHz 3. Note ①Please read above Installation Instructions before installation; ②It should be the professionals who do the installation or user can do it under guidance of the professionals; ③TPMS sensor is customized depending on vehicle model, different model have different sensors, so it’s necessary to choose the right sensor before the installation. ④If the sensor can’t be activated, please contact the service center to get correspondent sensor information. Installation Guide for Sensor TSB06 5 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

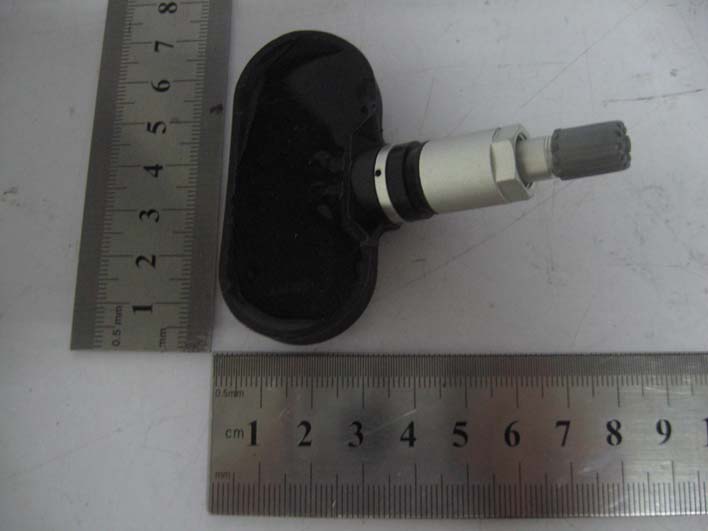

Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TTETP079 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: TTETP079 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I FCC PART 15.231 Solder Board-Component View 2

Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I PAGE 1 OF 17 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR Suzhou Sate Auto Electronic Co., Ltd. 5-6F, No.138, Lane 1505, Zuchongzhi Rd., Zhangjiang Hi-Tech Zone, Pudong New Area, Shanghai, 201203, P.R. China FCC ID: TTETP079 Report Concerns: Original Report Equipment Type: Tire Pressure Monitoring System Model: TPMS1309P Report No.: STR10078180I Test Date: 2010-07-27 to 2010-09-17 Issue Date: 2010-10-12 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I PAGE 2 OF 17 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (E) RADIATED EMISSION .........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. §15.231(E) DEACTIVATION TESTING ..............................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL C…

Text truncated - open the document above for the full version.

Suzhou Sate Auto Electronic Co., Ltd. Model: TPMS1309P REPORT NO.: STR10078180I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
