TTM-105P25PEx-i Series 5.8GHz Radio Module

Exalt Wireless, Inc.
Ex-i Series 5.8GHz Radio Module - FCC ID TTM-105P25P - Exalt Wireless, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 02, 2011
Application Purpose
Original Equipment
Date of Application
Oct 02, 2011
Equipment Note
Ex-i Series 5.8GHz Radio Module
Frequency Range
5741.00000000 - 5834.00000000
Company
Exalt Wireless, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

202675-005 2011-08-30 EX-i Series FDD Digital Microwave Radios Installation and Management Guide Models: EX-5i-DS3-GigE EX-5/6i-DS3-GigE EX-6i-DS3-GigE EX-6i-4DS3-GigE EX-6i-OC3-GigE EX-11i-DS3-GigE EX-11i-4DS3-GigE EX-11i-OC3-GigE Exalt Installation and Management Guide EX-i Series FDD Digital Microwave Radios ii202675-005 2011-08-30 Legal Notice The information contained herein is the property of Exalt Communications, Inc. (β€œExalt”) and is supplied without liability for errors or omissions. No part of this document may be reproduced, in any form, except as authorized by contract or other written permission from the owner. Any brand names and product names included in this manual are trademarks, registered trademarks, or trade names of their respective holders. The contents of this document are current as of the date of publication. Exalt reserves the right to change the contents without prior notice. The publication of information in this document does not imply freedom from patent or other rights of Exalt or others. Β© 2011 Exalt Communications Inc. All rights reserved. The Exalt logo is a trademark of Exalt Communications, Inc. Open-Source License Information Per the terms of your Exalt Limited Hardware Warranty, Software License, and RMA Procedures Agreement with Exalt Communications, Inc. and/or its subsidiaries, certain Third Party Software may be provided with and as part of the Exalt products provided to you, and any such Third Party Software files provided are governed by the terms of their separate Third Party Licenses, which licenses give you at least the license rights licensed to you in the Exalt End User Agreement and may give you additional license rights as to the Third Party Software, but only with respect to the particular Third Party Software to which the Third Party License applies. The Exalt Products may include or be bundled with some or all of the following third party software. Copies of the copyright notices and license agreements for any or all of these may be requested by contacting Exalt support at email: [email protected]. Open Source CodeLicense AgreementWebsite Embedded Linux - OS U-Boot Boot Code. Both licensed under GPL Version 3 www.gnu.org www.sourceforge.net Busy Box Linux Commands. Licensed under GPL Version 2 www.gnu.org and www.busybox.net Scew Expat Wrapper. Licensed under LGPL Version 3 www.gnu.org OpenSSL SSL Web Access. Licensed under dual license www.openssl.org Net-SNMP SNMP Agent. Licensed under NetSNMP (see Copyright Notices) Dropbear SSH 2 Server; Expat - XML Parser; BarelyFitz – Java Script Tabifier; and Flotr – Java Script Plotting Library. All four are licensed under MIT License www.opensource.org/ licenses/mit-license.php GoAhead WebserverLicensed under GoAhead License Agreement www.goahead.com Exalt Installation and Management Guide EX-i Series FDD Digital Microwave Radios 202675-005iii 2011-08-30 Table of Contents Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Open-Source License Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Related Documentation and Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 The EX-i Series FDD Digital Microwave Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Basic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Pre-installation Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Link Engineering and Site Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Familiarization with the EX-i Series FDD Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Shipping Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Initial Configuration and Back-to-Back Bench Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 RF Output Power Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Capacity Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Radio Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Virtual Local Area Network (VLAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Simple Network Management Protocol (SNMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 System Installation and Initiation Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Record Keeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Mechanical Configuration and M…

Text truncated - open the document above for the full version.

External Photos

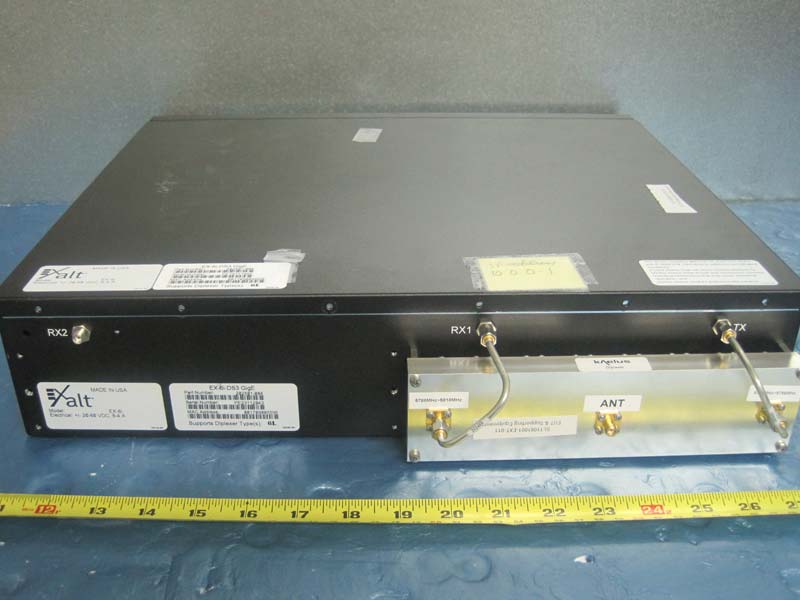

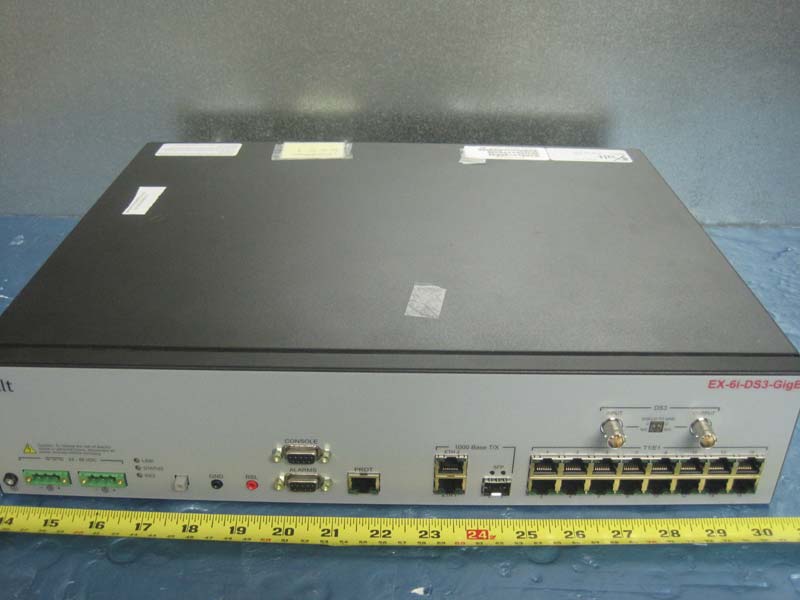

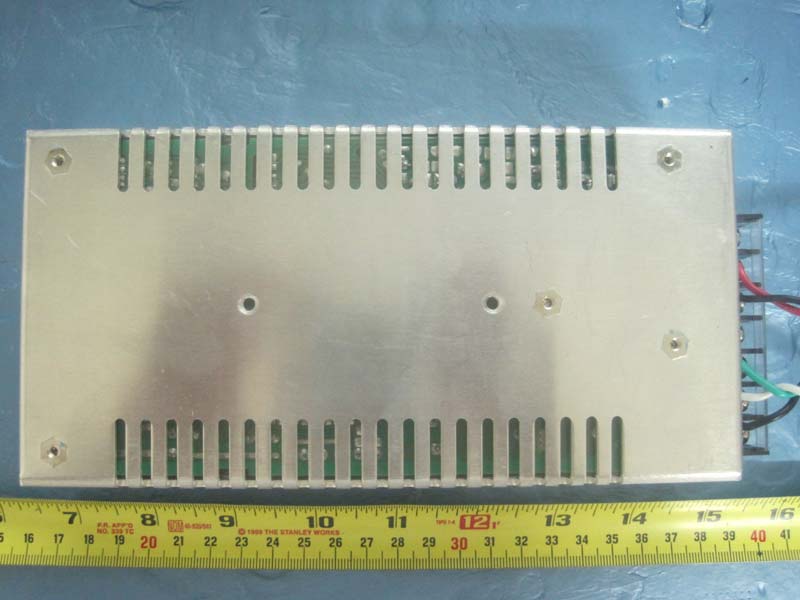

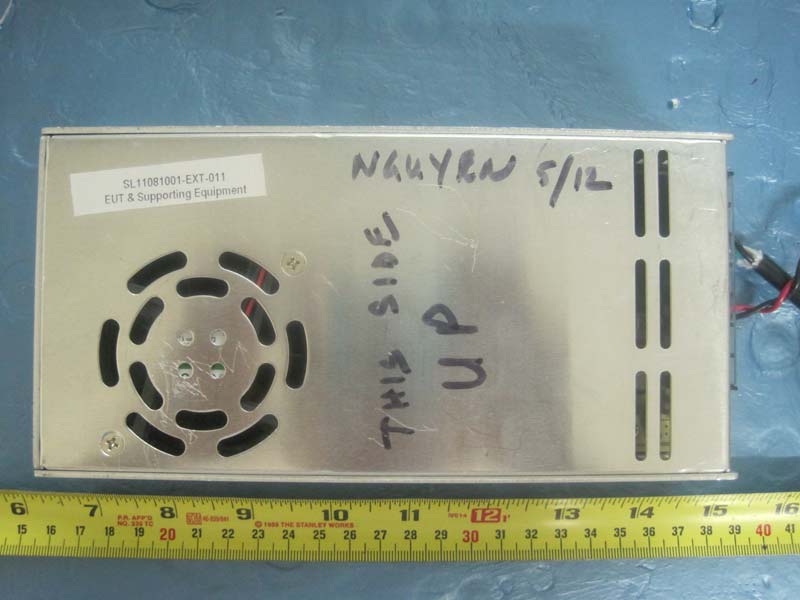

Host Photo Top View Bottom View Host Front View Host Rear View Power supply Top View Power supply Bottom View Antenna Host Label View

ID Label/Location Info

Label Label Location FCC ID: TTM-105P25P IC: 6254A-105P25P Model: EX-i Series 5.8GHz radio module

Internal Photos

EUT Photo EUT PCBA Component View EUT PCBA Solder View

RF Exposure Info

MPE CALCULATION For Exalt Communication, Inc– 5.8GHz Radio Module FCC ID: TTM-105P25P RF Exposure Requirements: 47 CFR Β§1.1307(b) RF Radiation Exposure Limits: 47 CFR Β§1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 5728.5 – 5846.5 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1.5 – 100 GHz Power Density Limit: 1 mW/ cm 2 ; Equation: S = PG / 4Ο€R 2 or R = √PG / 4Ο€S Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Point to point Link 5.8 GHz, Power = 29.70 dBm, Antenna Gain = 37.9dBi, R= 677cm Result The Above Result had shown that Device complied with 1mW/cm 2 Power density requirement for distance with minimum distance of 677cm. Completed By : David Zhang Date : Sep 1st, 2011

Test Report

EXALT COMMUNICATIONS, INC. EX-i Series 5.8GHz Radio Module Model Name: EX-i Series 5.8GHz Radio Module Host Model Numbers: EX-5/6i-DS3 GigE Sep 30th 2011 Report No.: SL11081001-EXT-011(FCC_15.247) Rev1.0 (This report supersedes: SL11081001-EXT-011(FCC_15.247)) Modifications made to the product : None This Test Report is Issued Under the Authority of: David Zhang Compliance Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report Exalt Communications, Inc. Model : EX-i Series 5.8GHz Radio Module To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL11081001-EXT-011(FCC_15.247) Rev1.0 Issue Date Sep 30th 2011 Page 2 of 137 www.siemic.com REDIT SIEMIC SIEM Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China , Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom , SAR Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom , SAR Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety , SAR Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety, SAR Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: RF Test Report Exalt Communications, Inc. Model : EX-i Series 5.8GHz Radio Module To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL11081001-EXT-011(FCC_15.247) Rev1.0 Issue Date Sep 30th 2011 Page 3 of 137 www.siemic.com This page has been left blank intentionally. Title: RF Test Report Exalt Communications, Inc. Model : EX-i Series 5.8GHz Radio Module To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL11081001-EXT-011(FCC_15.247) Rev1.0 Issue Date Sep 30th 2011 Page 4 of 137 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION................................................................................................................6 EUT Information................................................................................................................................................6 2 TECHNICAL DETAILS......................................................................................................................................................7 3 MODIFICATION................................................................................................................................................................8 4 TEST SUMMARY.............................................................................................................................................................9 Test Results Summary...................................................................................................................................................9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................10 5.1 Antenna Requirement........................................................................................................................10 5.2 DC Line Conducted Emission..............................................................................................................11 5.3 6dB & 99% Occupied Bandwidth.........................................................................................................13 5.4 Peak Spectral Density........................................................................................................................39 5.5 Peak Output Power............................................................................................................................53 5.6 Antenna Port Emission.......................................................................................................................67 5.7 Radiated Spurious Emission < 1GHz...................................................................................................76 5.8 Radiated Spurious Emissions > 1GHz & Band Edge.............................................................................78 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................101 Annex A.i. TEST INSTRUMENTATION & GENERAL PROCEDURES..............................................................101 Annex A.ii. CONDUCTED EMISSIONS TEST DESCRIPTION.....................................................................102 Sample Calculation Example..........................................................................................................................102 Annex A. iii RADIATED EMISSIONS TEST DESCRIPTION.........................................................................103 EUT Characterisation....................................................................................................................................103 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS..............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emission 30MHz to 1GHz Front View Rear View Above 1GHz Front View Rear View Conducted Emission Front View Rear View

Contact Information

Applicant

Tuyen Banh
[email protected]469-331-0314Fax: 408-724-9991

Test Firm

Bureau Veritas Consumer Products Services, Inc.Sarb Shelopal
[email protected]+1 925 963 4420

Technical Specifications

#Rule PartsFrequency RangePower OutputEmission
415C5.74 GHz - 5.83 GHz891.00 mW25M9W7D
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular Approval. Output power listed is peak conducted. Professional installation is required. Only those antennas documented in this filing and installed in the manner specified may be used with this device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 677cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating requirements for satisfying RF exposure compliance.
