TTSEFT930SEPayment Terminal

SAGEM Monetel
Payment Terminal - FCC ID TTSEFT930SE - SAGEM Monetel
Click to zoom

Application Details

Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Date of Grant
Jan 25, 2007
Application Purpose
Original Equipment
Date of Application
Jan 25, 2007
Equipment Note
Payment Terminal
Company
SAGEM Monetel
Country
France

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

FCC ID: TTSEFT930SE Page 1/2 1 BLOCK DIAGRAM OF EQUIPMENT 1.1 Clock list of the EFT930SE product Frequency list: 20MHz: Crystal Oscillator 32.768kHz : Crystal Oscillator 50MHz: Ethernet Oscillator 171MHz: ARM9 CPU clock 57MHz: ARM7 CPU clock SDRAM Clock 115200bits/s: RS232C bit rate 1.2 Block Diagram of the EFT930SE product

External Photos

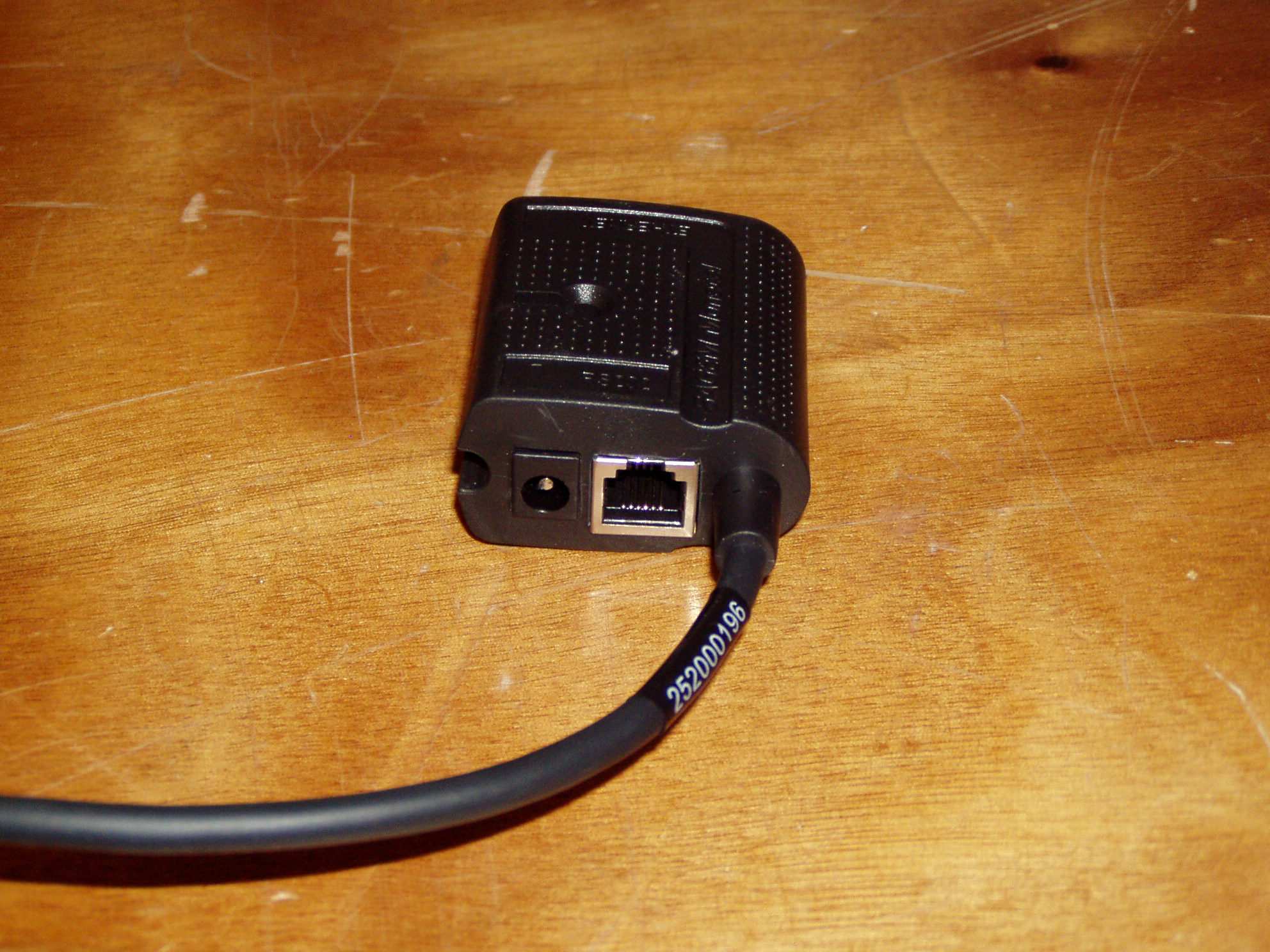

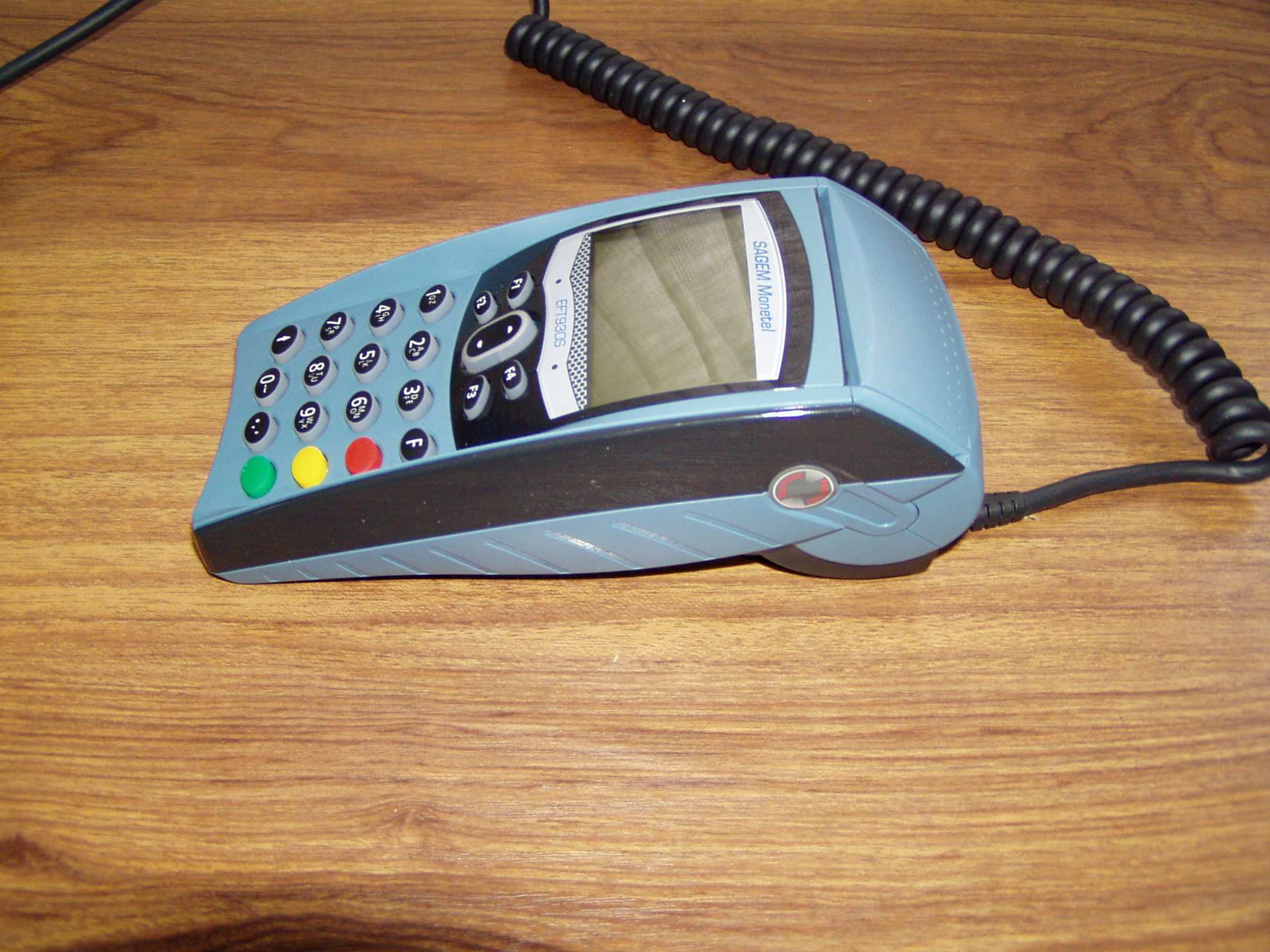

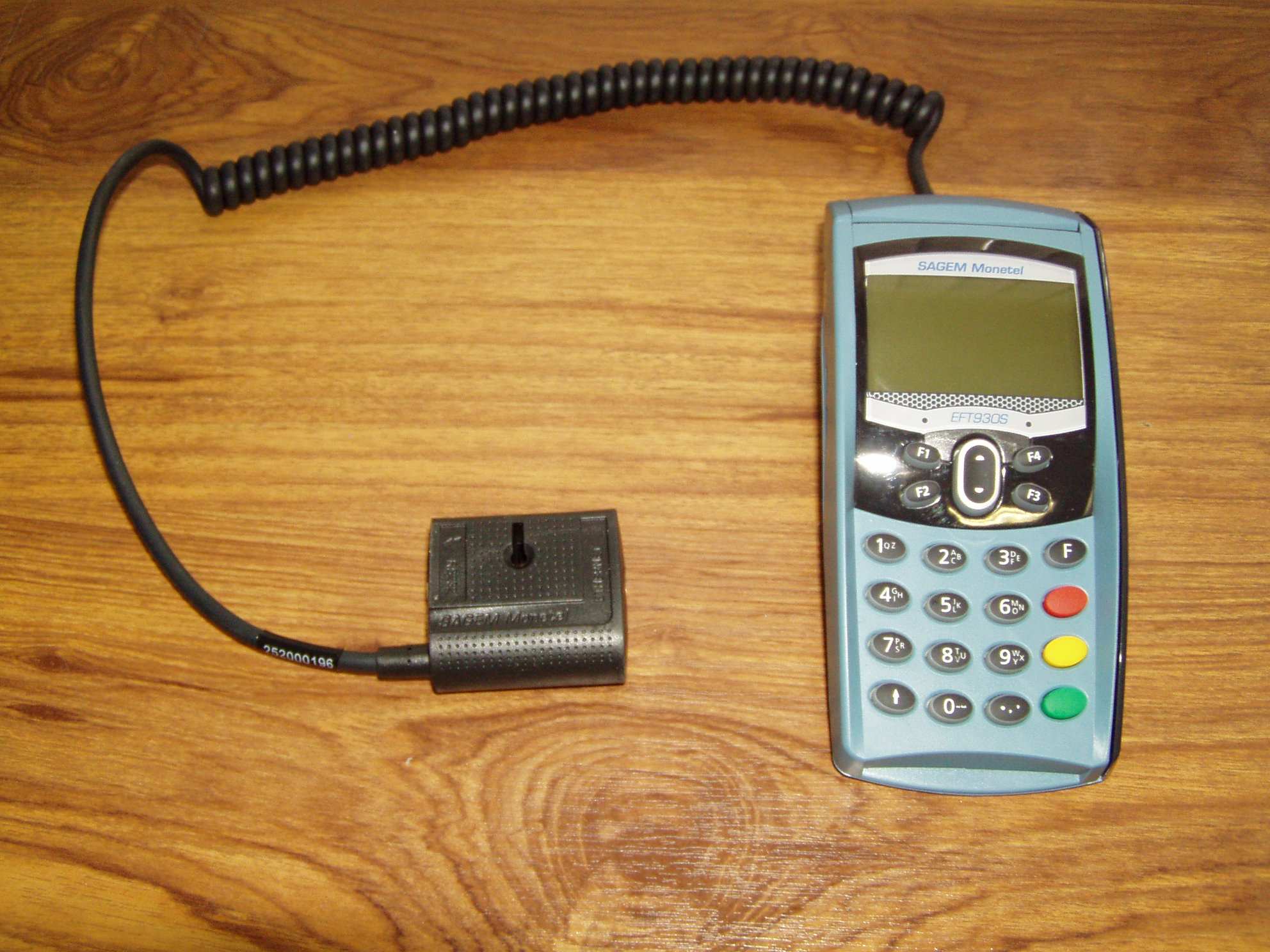

FCC ID: TTSEFT930SE Page 1/5 EXTERNAL PHOTOS OF TESTED EUT 1.1 EFT930-SE General view, front face FCC ID: TTSEFT930SE Page 2/5 FCC ID: TTSEFT930SE Page 3/5 FCC ID: TTSEFT930SE Page 4/5 1.2 Auxiliaries EPA-301DAN-08 AD5632LF Power adapters FCC ID: TTSEFT930SE Page 5/5 Connection cable

ID Label/Location Info

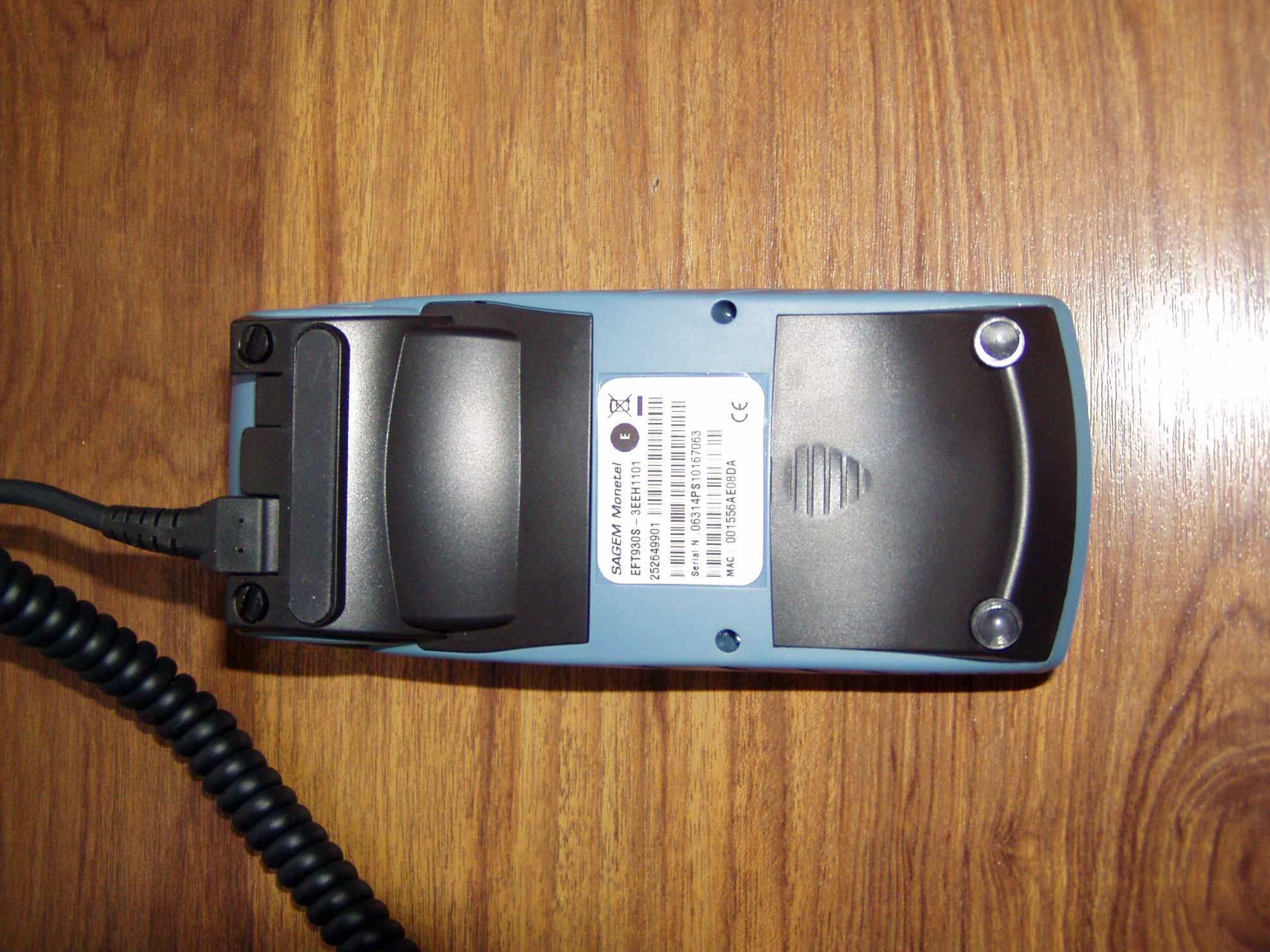

FCC ID: TTSEFT930SE Page 1/1 1 PRODUCT LABELING 1.1 FCC ID Label This is the copy of the label stuck on the product. Size is 50x12mm Material is polyester (Black and white printing) Label for EFT930SE 1.2 Location of label on EUT Label is stuck on the rear face of the product FCC label

Internal Photos

FCC ID: TTSEFT930SE Page 1/4 INTERNAL PHOTOS OF TESTED EUT 1.1 General view General view, cover removed, rear face General view, rear cover Rear face, lower board removed FCC ID: TTSEFT930SE Page 2/4 Internal view, upper board removed Internal view, Keyboard and LCD removed FCC ID: TTSEFT930SE Page 3/4 1.2 PCB view Lower board Lower board Upper board FCC ID: TTSEFT930SE Page 4/4 Upper board

Operational Description

FCC ID: TTSEFT930SE Page 1/3 OPERATIONAL DESCRIPTION 1.1. EFT930-SE description The EFT930-SE is a bank payment terminal. The EFT930-SE equipment is the Ethernet/IP communication version of the product range EFT930-S. Communications type for the EFT930-S: - V32bis modem (EFT 930-S) - Ethernet/IP (EFT 930-SE) - GSM/GPRS + V32 bis modem (EFT 930-SG) - GSM/GPRS + ethernet/IP (EFT 930-SE) FCC ID: TTSEFT930SE Page 2/3 FCC ID: TTSEFT930SE Page 3/3 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Trade Mark – Model Number (Serial number) FCC ID Description Cable description EFT930-SE * P/N: EFT930S-3EEH1101 Sn: 10167063 TTSEFT930SE Bank payment terminal I/O connection, spiraled cable, unshielded TOSHIBA SATELITE S1410-704 (PS141E-04YCM-3V) Sn: 13594938G with its power supply unit (PA3201U- 1ACA SEB100P2-15.0) DOC Laptop PC Power unshielded Ethernet unshielded Ethernet HUB 3COM (Hub TP4) Sn: 7XSV07D8E2 With its power adapter (SLD81408-3) DOC Hub Power unshielded Ethernet unshielded Smartcard (Bank card) Sn: none - - - SAM/SIM cards (x3) Sn: none - - - * : Equipment under test 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B. Radiated testing was performed at an antenna to EUT distance of 3 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed on December 13 th , 2007. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated July 14, 2005 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.
