TTU-HALOTABLEBeoremote Halo Table

Bang & Olufsen a/s
Beoremote Halo Table - FCC ID TTU-HALOTABLE - Bang & Olufsen a/s
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Mar 03, 2020
Application Purpose
Original Equipment
Date of Application
Feb 23, 2020
Equipment Note
Beoremote Halo Table
Frequency Range
5745.00000000 - 5825.00000000
Company
Bang & Olufsen a/s
Country
Denmark

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Beoremote Halo Quick guide Kort vejledning Snabbguide Kurzanleitung Snelgids Guide rapide Guía rápida Guida rapida Guia de consulta rápida Кɪаɬɤɨɟ ɪɭɤɨвɨɞɫɬвɨ クイックガイド 간편 안내서 快㏿指南 快㏿操作指南 For user guide, see: Se betjeningsvejledning på: Användarhandledning finns här: Die Bedienungsanleitung finden Sie unter: Voor de gebruikershandleiding, zie: Pour accéder au manuel de l’utilisateur, consultez le site: Si desea descargar la guía de usuario, visite: Per la guida utente, vedere: Para aceder ao manual do utilizador, visite: Рɭɤɨвɨɞɫɬвɨ ɩɨɥɶɡɨваɬɟɥя ɦɨɠɧɨ ɧаɣɬɢ ɩɨ ɫɫɵɥɤɟ: ユーザーガイドࡣ次ࡢリンク先をࡈ覧くだࡉいࠋ: 사용 설명서는 에서 찾아볼 수 있습니다 : 如要查看用户指南,请访问: 如需使用指南,請參閱: Bang & Olufsen App English Important safety instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • CAUTION: Never replace the battery. Danger of explosion exists if battery is incorrectly replaced or non-equivalent type used. • WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. • Using USB-C chargers of poor quality may trigger false operations during charging. • WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. . The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. Electrical and electronic equipment, parts and batteries marked with this symbol must not be disposed of with normal household wastage, it must be collected and disposed of separately to protect the environment. Your Bang & Olufsen retailer will advise you of the correct way of disposal in your country. Important! • Avoid placing the product in direct sunlight or direct artificial light, such as a spotlight. • Make sure that the product is set up, placed and connected in accordance with the instructions. • Do not place any items on top of your product. • The max ambient temperature should not exceed 45 °C. • WARNING: No naked flame sources, such as lighted candles should be placed on the product. The supplied plug and mains cord are specially designed for the product. Do not change the plug, and if the mains cord is damaged, you must buy a new one from your Bang & Olufsen retailer. • Do not subject the product to high humidity, rain or sources of heat. • The product is intended for indoor use in dry, domestic environments only (not applicable to portable products). • Leave enough space around the product for adequate ventilation. • Do not attempt to open the product. Leave such operations to qualified service personnel. FCC Statement • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: a) This device may not cause harmful interference, and b) This device must accept any interference received, including interference that may cause undesired operation. • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operatin…

Text truncated - open the document above for the full version.

External Photos

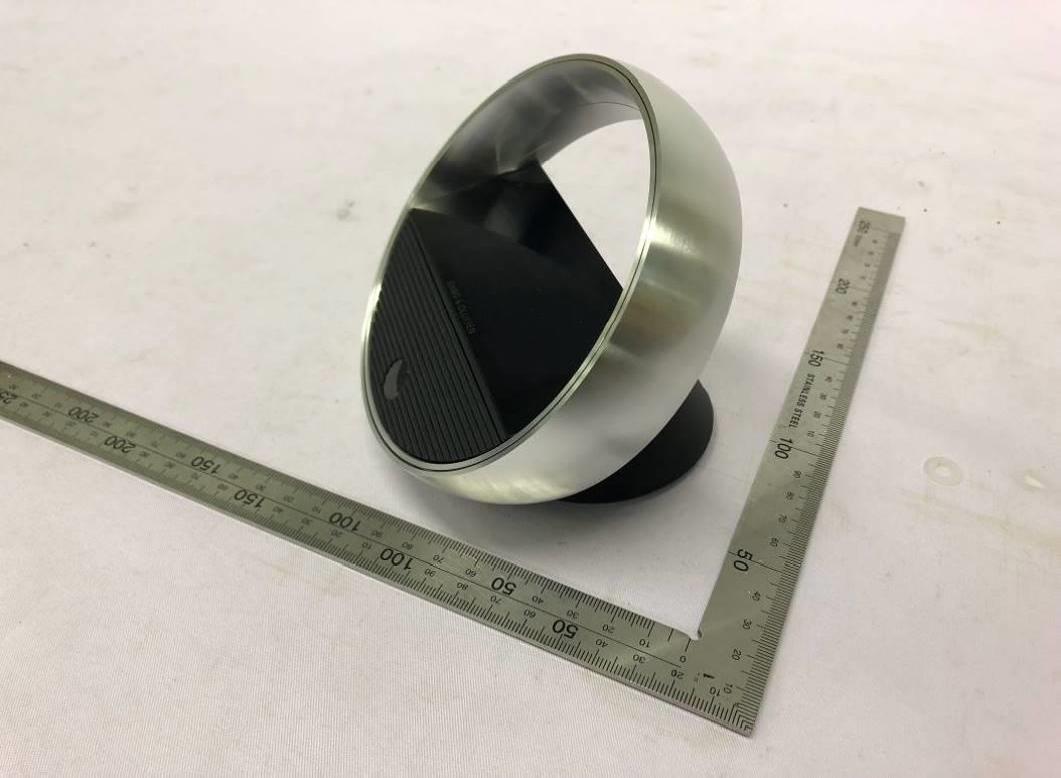

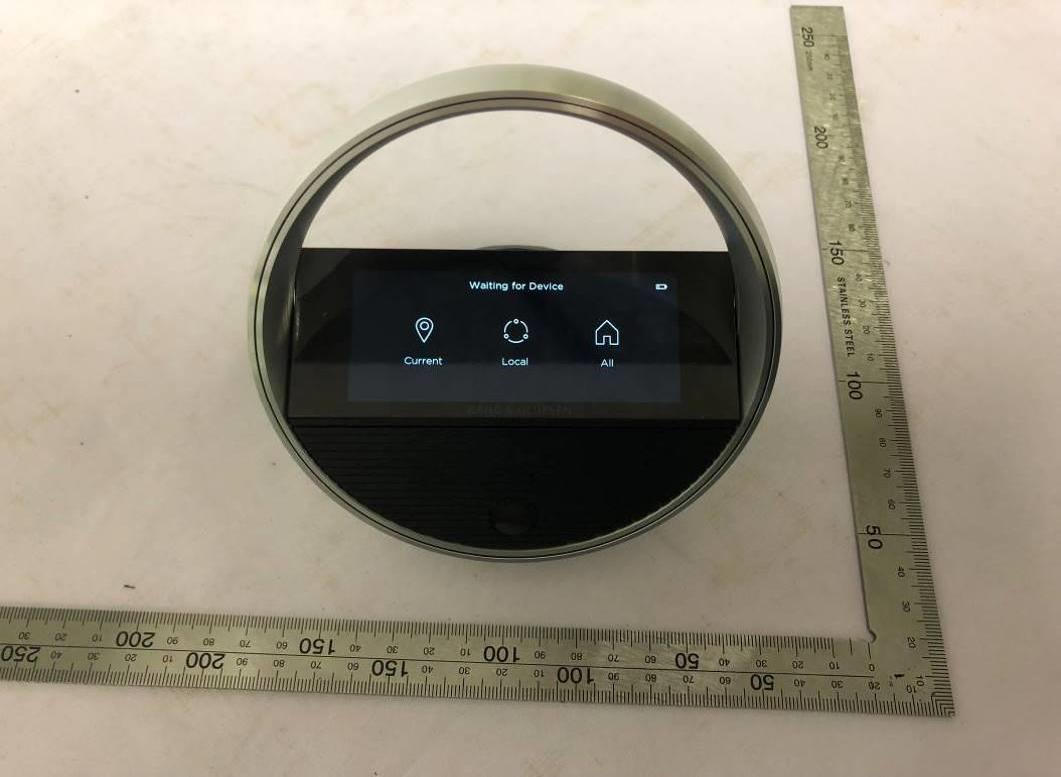

Attachment 3, Page 1 of 22 Report No. 7191219498-EEC19/01-CKY External views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 2 of 22 Report No. 7191219498-EEC19/01-CKY External views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 3 of 22 Report No. 7191219498-EEC19/01-CKY External views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 7191219498

ID Label/Location Info

FCC ID: TTU-HALOTABLE and IC ID: 3775B-HALOTABLE will be shown in product display as e-label Physical label is pasted in the bottom

Internal Photos

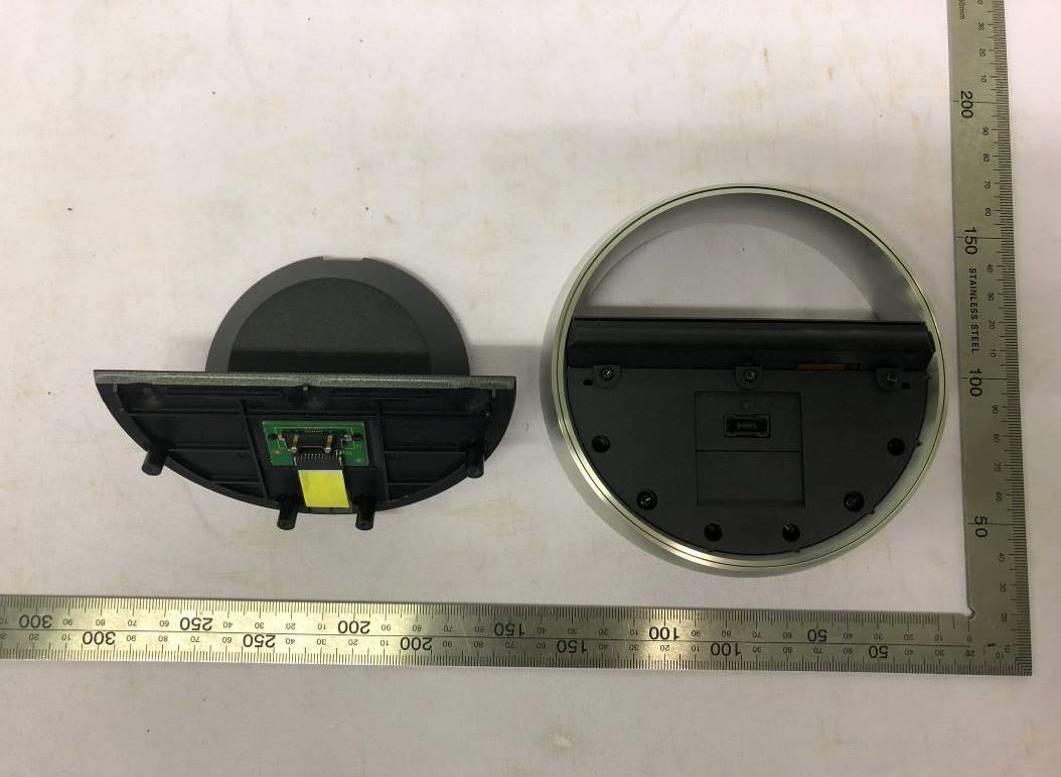

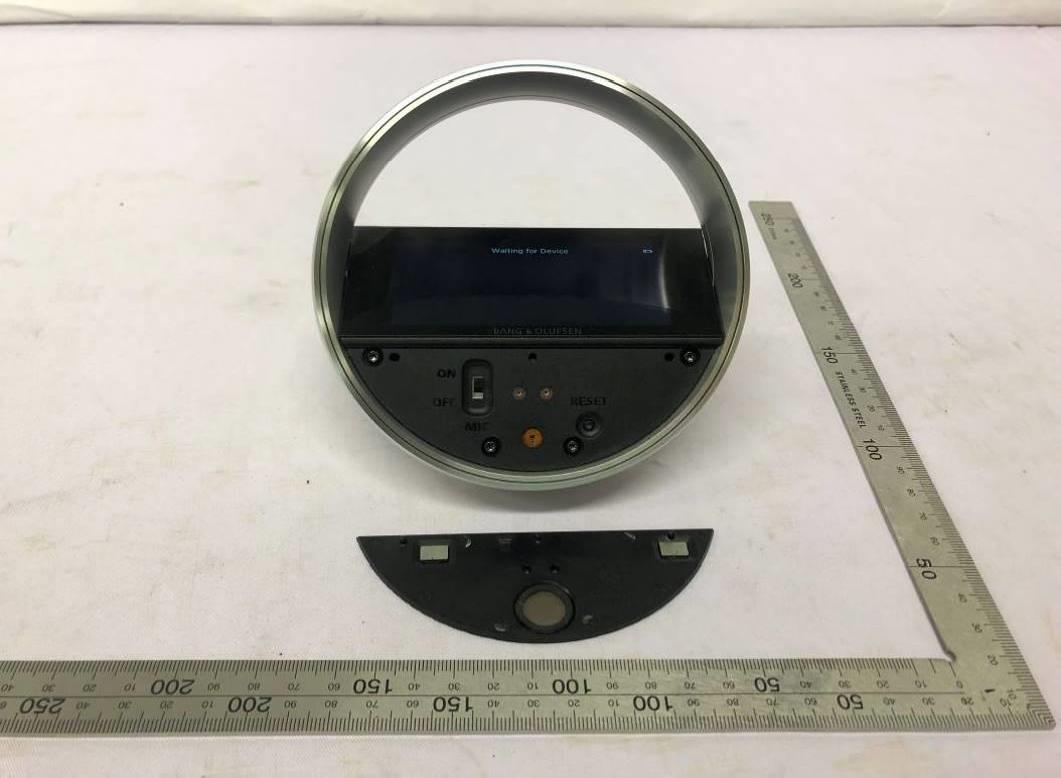

Attachment 3, Page 4 of 22 Report No. 7191219498-EEC19/01-CKY Internal views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 5 of 22 Report No. 7191219498-EEC19/01-CKY Internal views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 6 of 22 Report No. 7191219498-EEC19/01-CKY Internal views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 7 of 22 Report No. 7191219498-EEC19/01-CKY PCB views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 8 of 22 Report No. 7191219498-EEC19/01-CKY Internal views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 9 of 22 Report No. 7191219498-EEC19/01-CKY Internal views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498 Attachment 3, Page 10 of 22 Report No. 7191219498-EEC19/01-CKY Internal views of ‘Beoremote Halo Table’ Model: 3054 7191219498 7191219498

RF Exposure Info

Page 32 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 32 of 51 2.5Maximum Permissible Exposure (MPE) 2.5.1 Test Limits The EUT shows compliance to the requirements of this section, which states the MPE limits for general population / uncontrolled exposure are as shown below: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (min) 0.3 - 1.346141.63100 Note 2 30 1.34 - 30824 / f2.19 / f180 / f 2 Note 2 30 30 - 30027.50.0730.230 300 - 1500--f / 150030 1500 - 100000--1.030 Notes 1.f = frequency in MHz 2.Plane wave equivalent power density Page 33 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 33 of 51 2.5.2 Test Setup 2.5.2.1 The EUT and supporting equipment were set up as shown on the setup photo. 2.5.2.2 The relevant field probe was positioned at least 20cm away from the EUT and supporting equipment boundary. 2.5.3 Test Method 2.5.3.1 . The EUT was switched on and allowed to warm up to its normal operating condition. 2.5.3.2 The test was first carried out at one of the positions / sides of the EUT. 2.5.3.3 Power density measurement (mW/cm 2 ) was made using the field meter set to the required averaging time. 2.5.3.4 Measurements were repeated for the next position and its associate EUT operating mode, until all possible positions and modes were measured. Sample Calculation Example At 2400 MHz, limit = 1.0 mW/cm 2 Power density reading obtained directly from field meter = 0.3 mW/cm 2 averaged over the required 30 minutes. Therefore, margin = 0.3 – 1.0 = -0.7 mW/cm 2 i.e. 0.7 mW/cm 2 below limit Page 34 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 34 of 51 2.5.4 Test Results Test Input Power120V 60HzTemperature24 o C Test Distance20cmRelative Humidity60% Atmospheric Pressure1030mbar Tested ByAnthony Toh Test Date18 Sep 2019 UNII-1 Channel Channel Frequency (GHz) Power Density Value (mW/cm 2 ) Margin (mW/cm 2 ) Averaging Time (min) Limit (mW/cm 2 ) Lower5.1800.360.66301.0 Middle5.2100.350.65301.0 Upper5.2400.360.64301.0 UNII-2A Channel Channel Frequency (GHz) Power Density Value (mW/cm 2 ) Margin (mW/cm 2 ) Averaging Time (min) Limit (mW/cm 2 ) Lower5.2600.380.62301.0 Middle5.3000.370.63301.0 Upper5.3200.360.64301.0 UNII-2C Channel Channel Frequency (GHz) Power Density Value (mW/cm 2 ) Margin (mW/cm 2 ) Averaging Time (min) Limit (mW/cm 2 ) Lower5.5000.400.60301.0 Middle5.6000.410.59301.0 Upper5.7200.400.60301.0 UNII-3 Channel Channel Frequency (GHz) Power Density Value (mW/cm 2 ) Margin (mW/cm 2 ) Averaging Time (min) Limit (mW/cm 2 ) Lower5.7450.440.56301.0 Middle5.7850.430.57301.0 Upper5.8250.420.58301.0 Page 35 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 35 of 51 Notes 1. All possible modes of operation were investigated. Only the worst case highest radiation levels were measured. Measurements were taken at the required averaging time. All other radiation levels were relatively insignificant. 2. A "positive margin” indicates a PASS as it refers to the margin present below the limit line at the particular frequency. Conversely, a “negative margin” indicates a FAIL.

Test Report

LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D LA-2018-0702-B LA-2018-0703-G The results reported herein have been performed in accordance with the terms of accreditation under the Singapore Accreditation Council. Inspections/Calibrations/Tests marked "Not SAC- SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our inspection body/laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 1 Science Park Drive, #02-01 Singapore 118221 Page 1 of 51 TÜV SÜD PSB PTE LTD RESPONSIBLE FORNAMEDATESIGNATURE Project ManagementFoo Kai Maun03 Oct 2019 Authorised SignatoryQuek Keng Huat02 Oct 2019 Signatures in this approval box have checked this document in line with the requirements ofTÜV SÜD PSBdocument control rules. EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with the mentioned standard(s). Report on the Radio Testing of: BEOREMOTE HALO TABLE Model: 3054 In accordance with 47 CFR FCC Part 15E Prepared for: Bang & Olufsen a/s Bang og Olufsen Allé 1, Struer, 7600 Denmark COMMERCIAL-IN-CONFIDENCE Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 2 of 51 Contents 1Report Summary ..................................................................................................................... 3 1.1Report Modification Record ....................................................................................................... 3 1.2Introduction ............................................................................................................................... 4 1.3Brief Summary of Results .......................................................................................................... 5 1.4Product Information ................................................................................................................... 7 1.5Deviations from the Standard .................................................................................................... 9 1.6EUT Modification Record........................................................................................................... 9 1.7Test Location(s) ........................................................................................................................ 9 1.8Test Facilities Registrations ..................................................................................................... 10 1.9Supporting Equipment ............................................................................................................. 11 2Test Details ............................................................................................................................ 12 2.1Conducted Emissions .............................................................................................................. 12 2.2Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) ................ 15 2.3Band Edge Compliance (Radiated) ........................................................................................... 23 2.4Maximum Conducted Output Power ........................................................................................ 28 2.5Maximum Permissible Exposure (MPE) ................................................................................... 32 3Photographs .......................................................................................................................... 36 4Test Equipment ..................................................................................................................... 47 5Measurement Uncertainty ..................................................................................................... 48 6Annex A – FCC Label and Position ...................................................................................... 49 End of the Test Report ......................................................................................................................... 51 Page 3 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 3 of 51 1Report Summary 1.1Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. IssueDescription of ChangeDate of Issue 1First Issue03 Oct 2019 Page 4 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 4 of 51 1.2Introduction Applicant: Bang & Olufsen a/s Bang og Olufsen Allé 1, Struer, 7600 Denmark Manufacturer: Same as applicant Factory: PCI Kunshan Electronics Company Limited Model Number(s): 3054 Serial Number(s): 32587238 Number of Samples Tested: 1 Test Sample(s) Condition: Good Quotation Reference: 5231291 Test Specification/Issue/Date: FCC 47 CFR Part 15E Test Sample(s) Received Date: 20 Aug 2019 Start of Test: 20 Aug 2019 Finish of Test: 02 Oct 2019 Page 5 of 51 Document Number: 7191217919-EEC19/17 | Issue: 01 FCC ID: TTU-HALOTABLE COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 5 of 51 1.3Brief Summary of Results A brief summary of the tests carried out in accordance with specifications as shown below. Specification ClauseTest DescriptionResultComments/Base Standard 47 CFR FCC Part 15 15.107(a), 15.207Conducted EmissionsPassANSI C63.4: 2014 ANSI C63.10: 2013 KDB 789033 D02 General U-NII Test Procedures V02R01: 2017 15.109(a), 15.205, 15.209, 15.407(b)(4), (5), (6), (7) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) PassANSI C63.4…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 27 of 41 Document Number: 7191217919-EEC19/13 | Issue: 01 FCC ID: TTU-HALOTABLE / TTU-HALOWAL L COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 27 of 41 3Photographs TEST SETUP Conducted Emissions TestSetup(Front View) Conducted Emissions TestSetup(Rear View) Page 28 of 41 Document Number: 7191217919-EEC19/13 | Issue: 01 FCC ID: TTU-HALOTABLE / TTU-HALOWAL L COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 28 of 41 TEST SETUP (9kHz to 30MHz) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) Test Setup (Front View) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) Test Setup (Rear View) Page 29 of 41 Document Number: 7191217919-EEC19/13 | Issue: 01 FCC ID: TTU-HALOTABLE / TTU-HALOWAL L COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 29 of 41 TEST SETUP (30MHz to 1GHz) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) Test Setup (Front View) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) Test Setup (Rear View) Page 30 of 41 Document Number: 7191217919-EEC19/13 | Issue: 01 FCC ID: TTU-HALOTABLE / TTU-HALOWAL L COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 30 of 41 TEST SETUP (Above 1GHz – 25GHz) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) Test Setup (Front View) Radiated Emissions (Spurious Emissions Inclusive Restricted Bands Requirement) Test Setup (Rear View) Page 31 of 41 Document Number: 7191217919-EEC19/13 | Issue: 01 FCC ID: TTU-HALOTABLE / TTU-HALOWAL L COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCEPage 31 of 41 TEST SETUP Band Edge Compliance (Radiated)TestSetup Maximum Permissible Exposure (MPE)TestSetup

Contact Information

Applicant

Marlon Schrimpf(Product Compliance Lead)
[email protected]+4915168828926Fax: +4597855950

Test Firm

TUV SUD PSB Pte LtdJunHong Deng
[email protected]65-69736268

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.83 GHz63.20 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. This device contains 5.0G WLAN 802.11a/n/ac transmitters. CC: This device is certified pursuant to two different Part 15 rules sections.
