TTU-WIRELES1BeoLink Wireless 1

BeoLink Wireless 1 Guide WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not expose this equip- ment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment. To completely disconnect this equipment from the AC Mains, disconnect the power supply cord plug from the AC receptacle. The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of un- insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and main- tenance (servicing) instructions in the literature accompanying the product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No User-serviceable parts inside. Refer servicing to qualified service personnel. This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. The internal antennas used for this mobile transmitter must provide a separation distance of at least 20 cm (8") from all persons, and must not be co-located or operating in conjunction with any other antenna or transmitter. Modifications not expressly approved by this company could void the user’s authority to operate the equip- ment. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the retailer or an experienced radio / TV technician for help. The main room is the room in which you have placed the audio and/or video system – complete with their various sources (the main system). Connected to the main system, you will need a BeoLink Wireless 1 set up as transmitter. The link room is where you have set up another BeoLink Wireless 1 as receiver. To complete the link room setup, you will need a pair of active speakers, and an ‘IR-eye’. The ‘IR- eye’ is necessary in order to be able to operate the system – either by close-up operation, or with a Bang & Olufsen remote control. For information about installation of the BeoLink Wireless 1 units and the ‘IR-eye’, refer to ‘Set up BeoLink Wireless 1’ (pp. 7–13) in this Guide. For information about how to set up the main room system and the link room speakers, refer to the Guides enclosed with the products. 3 Main room Link room Close-up operation The small circular ‘IR-eye’ has buttons for close-up operation. You can use the buttons to listen-in on a source currently playing on the main system. You can also use the buttons to adjust the sound volume. The buttons can also be used to include or exclude the link room speakers in a Timer Play programmed on the main audio or video system. The Timer Play function is not avail- able in all Bang & Olufsen systems. Please refer to the Guide for your main system. Listen-in on a main room source > Press PLAY • to listen-in on a source that is currently playing in your main system. If no source is playing when you press PLAY •, the radio in the main system will be switched on. If the main system have no audio sources, it will switch on the TV program that was last playing. > Press PLAY • again, and the link room speakers switch off (a red standby indicator appears in the PLAY • button). If you keep the PLAY • button pressed for more than two seconds, both the link room and your main system switch off. Volume adjustment > Press or to raise or lower the volume level in the loudspeakers. The volume level in the link room speakers is adjusted independently of your main system. Timer Play control If the main system is programmed to start playing automatically (Timer Play), the link room speakers can be included as well. > Press TIMER. A small red light in the TIMER button indicates that the link room speakers will be included. > Press TIMER again to cut out the Timer function for the link room (the red light disappears). TIMER PL AY 4 Beo4 remote control With the Beo4 remote control you can switch on the sources from your main audio or video system you wish to listen to, and you can control functions for those sources – just as if you were operating your main system directly. Functions mentioned here are only available via BeoLink Wireless 1 if the source in question is present in your Bang & Olufsen system and the source supports the function. To switch on an Audio source ... > Press RADIO to listen to a radio programme. > Press CD to listen to a CD. > Press A MEM (A TAPE) to listen to an audio recording. To switch on a Video source ... > Press TV to listen to TV. > Press DTV (SAT) to listen to digital TV. > Press V MEM (V TAPE) to listen to a video recording. > Press DVD to listen to a DVD. To switch on additional sources ... > Press LIST to display additional sources, such as N.MUSIC (music stored on a PC), and then press GO to switch on a source. Refer to the…

Text truncated - open the document above for the full version.

Product name – BeoLink Wireless 1 G. Walder 1 19 th Dec., 2005 ETS is doing the approval measurements for the device with the product name BeoLink Wireless 1. During the development phase a short form of this device with the name BeoLink W1 was used. The short form W1 is fully identical with Wireless 1. Full product name: BeoLink Wireless 1 Short form: BeoLink W1 The full product name BeoLink Wireless 1 is also mentioned on the device label of the product.

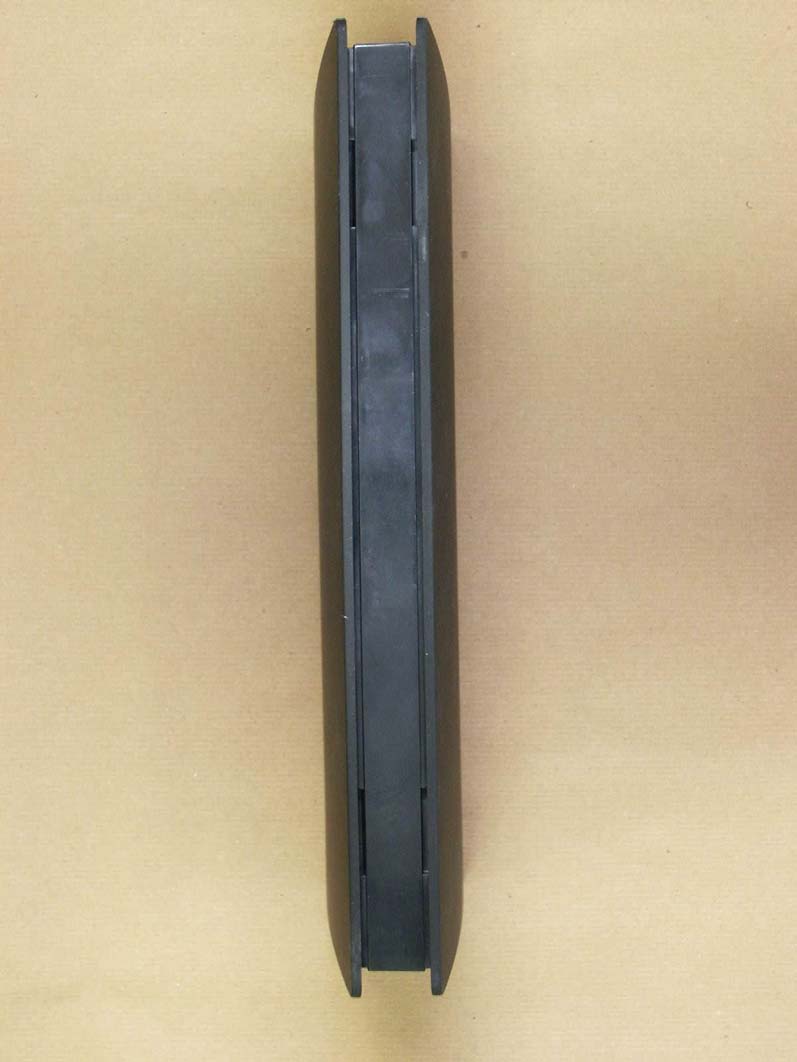

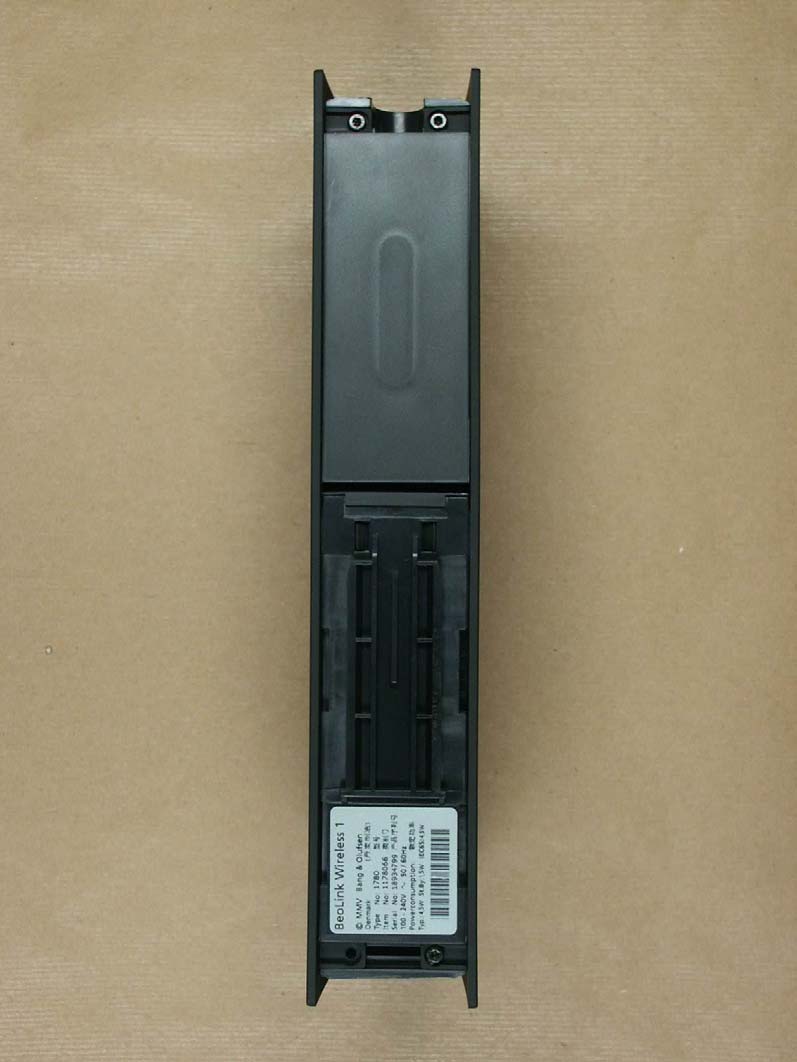

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 1 of 14 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 2 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 3 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 4 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 5 of 14

INITIAL ��������� ����������� � 22-12-2005 ����� � 3185115_00 �������������� NVJ/GPN ��������� � Label BeoLink Wireless 1 US Release level: Creation date: Init. designer: Revision: Date: Designer: Denne tegningen tilh ører Bang & Olufsen a/s, Struer , Danmark og m å ikke afh ændes, udl ånes eller kopieres uden firmaets udtrykkelige skriftlige tilladelse. This drawing is the property of Bang & Olufsen a/s, Struer , Denmark and must not be transferred, lent or reproduced without an explicit written permission from t he company Safety Component! Graphics adhesion: The 'ink' type must be weather -resistant. Ink color: Black Paper & Glue: VE-S445-37 Paper-colorcode: Pantone Grey 443 U 70 30 AVIS Risque de choc electrique ne pas ouvrir This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: TTU-WIRELES1 IC ID: 3775B-WIRELES1 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Testlabel

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 6 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 7 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 8 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 9 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 10 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066-C-1 11 of 14

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC Part 15 C FCC ID: TTU-WIRELES1 Test report no.: G0M20512-0066-C-1 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 1 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Test Procedure 3 Test Results 3.1 Peak Output Power 3.2 De Facto Equivalent Isotropic Radiated Power 3.3 RF Exposure Compliance Requirements 3.4 Transmitter Radiated Emissions in Restricted Bands 3.5 Spurious Emissions 3.6 Minimum 6 dB Bandwidth 3.7 Peak Power Spectral Density 3.8 Conducted Emission at (AC) Power Line ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 2 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 19.12.2005 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 19.12.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 3 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY Accredited by: Bundesamt für Post und Telekommunikation (BAPT) ACCREDITED COMPETENT BODY Accredited by: Bundesamt für Post und Telekommunikation (BAPT) FCC FILED TEST LABORATORY REG. NO. 96970 A2LA Accredited Certification No.1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3 Details of approval holder Name : Bang & Olufsen Street : Peter bangs Vej 15 Town : 7600 Struer Country : Denmark Telephone : +43 4262 2644 1090 Fax : +45 97 85 59 50 Contact : Mr. Jesper Gregersen E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 4 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 12.12.2005 Date of receipt of test item : 12.12.2005 Date of test : 13.12.2005 – 14.12.2005 1.5 Test item Description of test item : Wireless Audio System Type identification : BeoLink Wireless 1 Brand name : Bang & Olufsen Hardware version : ES2 Software version : 0.82a Serial number : Test sample without serial number Photos : See Appendix A Technical data Frequency band : 2400 MHz – 2483.5 MHz Frequency ( ch A) : 2412 MHz Frequency (ch B) : 2438 MHz Frequency (ch C) : 2464 MHz Number of Channels : 3 Operating Modes : duplex Type of modulation : DSSS Fixed point-to-point operation: Yes / No Power supply : 120 V AC/DC Adapter Antenna Rx : PIFA antenna Antenna Tx : PIFA antenna Antenna gain : 1 dBi Host device : none ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 5 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Classification : Fixed Device Mobile Device (Human Body distance > 20cm Portable Device (Human Body distance < 20cm Transmitter Unom Power (ch A) : Conducted: 15.60 dBm Power (ch B) : Conducted: 16.77 dBm Power (ch C) : Conducted: 17.16 dBm Manufacturer: (if applicable) Name : Flextronics TAB Street : Munkas ut 28 Town : HU-8660 Tab Country : Hungary Additional information : The scheme for frequency generation, spectrum spreading, receiver parameters, synchronization procedure, and other parameters are determined by the mentioned standard above. ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 6 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 120 V AC/DC Adapter Extrem conditions parameters: : test voltage - extreme min.: -- V max: -- V ETS Dr. Genz GmbH, Germany Registration number: G0M20512-0066 -C-1 7 of 32 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SMV …

Text truncated - open the document above for the full version.
