TTUBEOLIT15Bluetooth Speaker

Beolit 15 10-100% < 10% EN Press the power button to switch Beolit 15 on. Wait for solid white light in the button. S Tryck på strömknappen för att sätta på Beolit 15. Vänta tills knappen lyser med ett fast, vitt ljus. DA Tryk på tændknappen for at tænde Beolit 15. Vent til knappen lyser hvidt konstant. DE Drücken Sie die Power-Taste, um Beolit 15 einzuschalten. Warten Sie bis das Licht in der Taste durchgehend weiß leuchtet. NL Druk op de aan/uit-knop om de Beolit 15 in te schakelen. Wacht totdat de knop aanhoudend wit oplicht. FR Appuyez sur le bouton d’alimentation pour allumer le Beolit 15. Attendez que le bouton s’allume en blanc. ES Pulse el botón de encendido para encender Beolit 15. Espere a que el botón permanezca iluminado en color blanco. Bluetooth ® pairing ... 4 1 IT Premere il pulsante di accensione/spegnimento per accendere il Beolit 15. Attendere che il pulsante si illumini fisso in bianco. PT Para ligar o Beolit 15, prima o botão de alimentação. Aguarde até acender a luz branca de forma permanente. RU Нажмите кнопку питания, чтобы включить Beolit 15. Подождите, пока она начнет светиться белым цветом. JA 電源ボタンを押して Beolit 15 を起動します。ボタンが白色に 点 灯するまで待ちます。 KO 전원 버튼을 눌러 Beolit 15를 켭니다. 버튼이 흰색으로 켜져있는 동안 기다리십시오. ZH 按下电源按钮，开启 Beolit 15。等待按钮变为白色常亮。 ZHTW 按下電源鍵開啟 Beolit 15。等待按鍵白光持續亮著。 5 EN Press and hold the Bluetooth button for 2 sec. The button starts flashing blue. S Tryck på och håll in Bluetooth-knappen i 2 sekunder. Knappen börjar blinka blått. DA Tryk på knappen Bluetooth, og hold den nede i 2 sek. Knappen begynder at blinke blåt. DE Halten Sie die Bluetooth-Taste für 2 Sek. gedrückt. Die Taste blinkt blau. NL Houd de Bluetooth-knop 2 sec ingedrukt. De knop begint blauw te knipperen. FR Maintenez le bouton du Bluetooth enfoncé pendant 2 secondes. Celui-ci commence à clignoter en bleu. ES Mantenga pulsado el botón de conexión Bluetooth durante 2 segundos. El botón comenzará a parpadear en color azul. ... Bluetooth pairing 6 0:02 2 IT Premere senza rilasciare il pulsante Bluetooth per 2 sec. Il pulsante inizia a lampeggiare in blu. PT Prima o botão Bluetooth durante 2 segundos. O botão começa a piscar a azul. RU Нажмите и удерживайте кнопку Bluetooth в течение 2 с. Кнопка начнет мигать синим цветом. JA Bluetooth ボタンを 2 秒間押し続けます。ボタンが青く点滅 し始めます。 KO Bluetooth 버튼을 2초간 길게 누릅니다. 파란색 표시등이 켜집니다. ZH 按住蓝牙按钮 2 秒。该按钮将开始闪蓝光。 ZHTW 按住藍牙鍵 2 秒。按鍵開始閃爍藍燈。 7 EN When the button flashes blue, make sure Bluetooth is switched on on your device, find the device list and select Beolit 15. S När knappen blinkar blått, se till att Bluetooth är påslaget på din enhet, sök i listan över enheter och välj Beolit 15. DA Kontrollér, når knappen blinker blåt, at Bluetooth er aktiveret på enheden. Find derefter listen over enheder, og vælg Beolit 15. DE Schalten Sie Bluetooth auf Ihrem Gerät ein, wenn die Taste blau blinkt, gehen Sie zu der Geräteliste und wählen Sie Beolit 15 aus. NL Wanneer de knop blauw knippert, controleer dan of Bluetooth ingeschakeld is op uw apparaat, zoek de apparatenlijst en selecteer de Beolit 15. FR Lorsque le bouton clignote en bleu, vérifiez que le Bluetooth est activé sur votre appareil, recherchez la liste d’appareils et sélectionnez Beolit 15. ES Cuando el botón parpadee en color azul, asegúrese de que la interfaz Bluetooth se encuentre activa en el dispositivo, busque la lista de dispositivos y seleccione Beolit 15. ... Bluetooth pairing 8 10:12 Bluetooth Bluetooth CHOOSE Beolit 15 3 IT Quando il pulsante lampeggia in blu, assicurarsi che Bluetooth sia attivato sul proprio dispositivo, richiamare l’elenco dei dispositivi e selezionare Beolit 15. PT Quando o botão piscar a azul, certifique-se de que o Bluetooth está aceso no seu dispositivo, localize a lista de dispositivos e seleccione o Beolit 15. RU Когда кнопка мигает синим цветом, убедитесь, что Bluetooth на вашем устройстве включен, найдите список устройств и выберите Beolit 15. JA ボタンが青く点滅したら、お使いの機器で Bluetooth が起動 していることを確認し、デバイスリストから Beolit 15 を選択 します。 KO 파란색 버튼이 켜지면, 장치의 블루투스 기능을 켜고 장치 목록을 검색하여 Beolit 15를 선택합니다. ZH 按钮闪蓝光时，确保设备上的蓝牙已开启，然后搜寻设备列表 并选择 Beolit 15。 ZHTW 當按鍵閃藍燈時，打開您裝置上的藍牙功能，搜尋裝置清單 並選擇 Beolit 15。 9 EN The button turns solid blue for a moment, a sound prompt is heard and Beolit 15 is ready to play. S Knappen börjar lysa med fast blått sken en kort stund, en ljudsignal hörs och Beolit 15 är redo för uppspelning. DA Knappen lyser blåt i et øjeblik, og der lyder et signal. Beolit 15 er nu klar til at afspille musik. DE Die Taste leuchtet für einen Moment durchgehend blau, es erklingt ein Ton und der Beolit 15 ist einsatzbereit. NL De knop licht een moment blauw op, een geluidssignaal is hoorbaar en de Beolit 15 is klaar voor gebruik. FR Le bouton s’allume en bleu pendant un moment, une alerte sonore retentit et le Beolit 15 est prêt à fonctionner. ES El botón permanecerá iluminado en color azul un momento y el equipo emitirá una confirmación acústica. Beolit 15 estará entonces listo para reproducir. ... Bluetooth pairing 10 IT Il pulsante si illumina fisso in blu per un momento e un segnale acustico viene emesso; Beolit 15 è ora pronto per la riproduzione. PT O botão acende a azul de forma permanente, por um momento, e é emitido um sinal sonoro, o que significa que o Beolit 15 está pronto. RU В течение короткого времени кнопка начинает непрерывно светиться синим цветом, звучит сигнал приглашения, и Beolit 15 готов к воспроизведению. JA ボタンが 1 秒間青に点灯し、お知らせ音が鳴ったら Beolit 15 の再生準備が整った合図です。 KO 파란색 버튼이 켜지고 잠시 후 신호음이 울리면 Beolit 15 를 이용하실 수 있습니다. ZH 按钮变成蓝色常亮，并听到声音提示，便可开始播放 Beolit 15。 ZHTW 按鍵恆亮藍燈持續一段時間，聽見提示音後代表 Beolit 15 已可使用。 11 www.beoplay.com/beolit15/learnmore 3511375 Version 1.0 1501 Beolit 15 Important Vigtigt Viktigt Tärkeää Wichtiger Hinweis Important Importante Importante Belangrijk Importante Σημαντικό Внимание! 중요 重要 重要事項 注意 3511377_1501_Important_Information_Beolit_15.indd 121-10-2014 07:57:41 For additional information, see (link provides content with regulatory conformance guidelines): Se yderligere oplysninger på: …

Text truncated - open the document above for the full version.

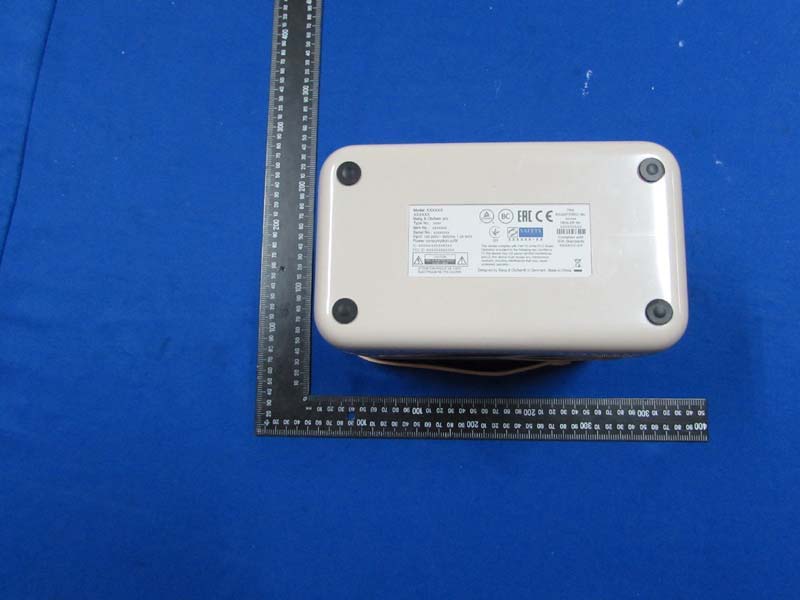

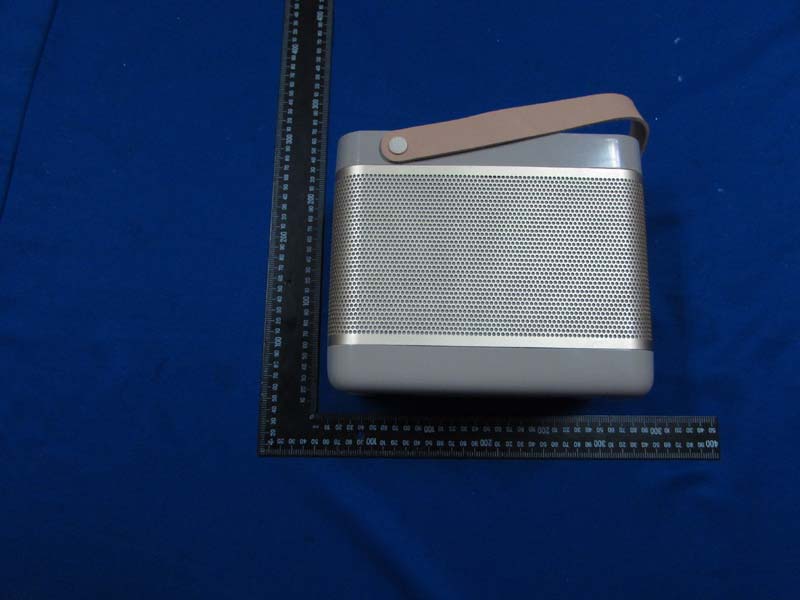

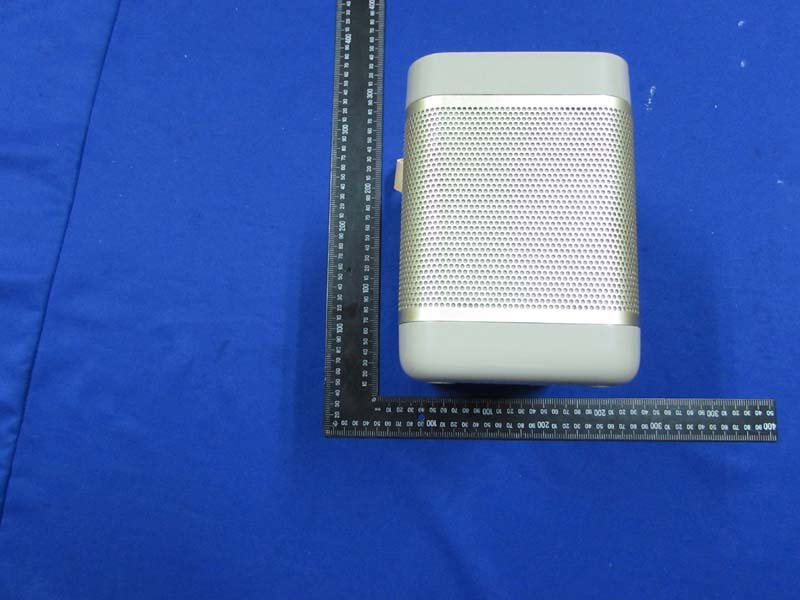

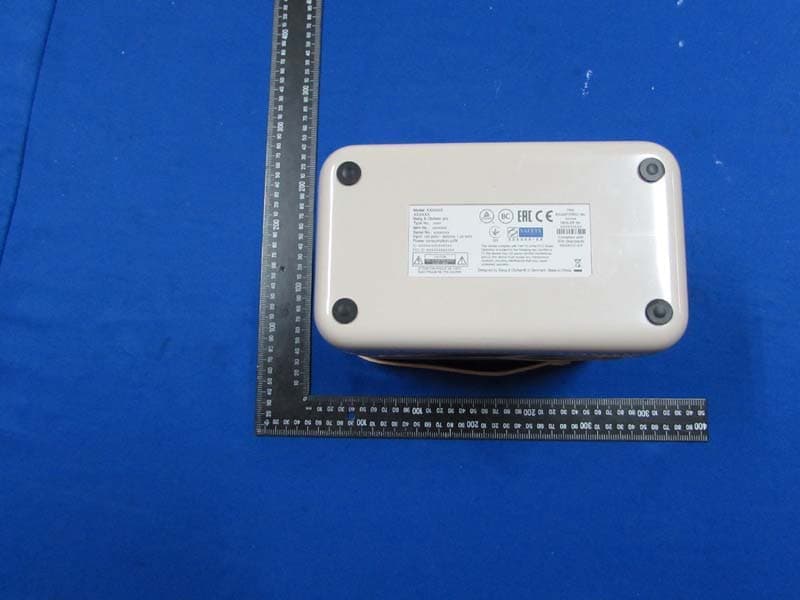

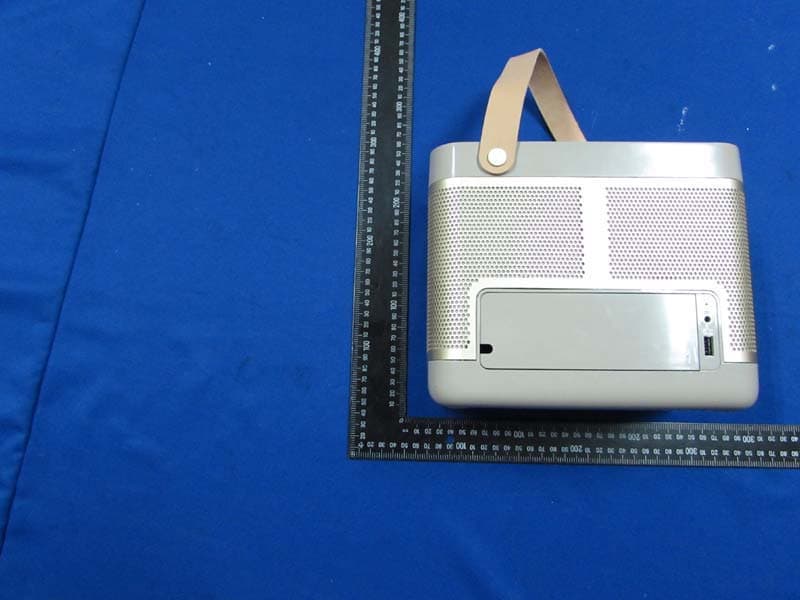

External Photos M/N: Beolit 15 External Photos M/N: Beolit 15 External Photos M/N: Beolit 15

Unit:mm

Label Location

Internal Photos M/N: Beolit 15 Bluetooth Antenna Internal Photos M/N: Beolit 15 Internal Photos M/N: Beolit 15 Internal Photos M/N: Beolit 15 Internal Photos M/N: Beolit 15 Internal Photos

FCC ID: TTUBEOLIT15 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Bang & Olufsen a/s Bluetooth Speaker Model Number: Beolit 15 FCC ID: TTUBEOLIT15 Prepared for : Bang & Olufsen a/s Peter Bangs Vej 15, 7600 Struer, Denmark Prepared By : EST Technology Co., Ltd. San Tun Management Zone, Houjie District, Dongguan, China Tel: 86-769-83081888-808 Report Number: ESTE-R1410004 Date of Test : September 26 ~ October 19, 2014 Date of Report : October 20, 2014 FCC ID: TTUBEOLIT15 1. EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 2．SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and ≤50mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: TTUBEOLIT15 3. EVALUATION RESULTS Maximum measured transmitter power. Mode CH Peak output Power （dBm） Turn-up power tolerance （dB） Max Power of Turn-up power tolerance （mW） Results 2402 1.314 ±0.2 1.417 0.439 2441 3.273 ±0.2 2.225 0.694 GFSK 2480 3.999 ±0.2 2.630 0.826 2402 0.554 ±0.2 1.190 0.369 2441 2.263 ±0.2 1.763 0.550 8-DPSK 2480 3.070 ±0.2 2.123 0.667 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0 SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. ====END====

FCC ID: TTUBEOLIT15 (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 1 of 94 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Bang & Olufsen a/s Bluetooth Speaker Model Number: Beolit 15 FCC ID: TTUBEOLIT15 Prepared for : Bang & Olufsen a/s Peter Bangs Vej 15, 7600 Struer, Denmark Prepared By : EST Technology Co., Ltd. San Tun Management Zone, Houjie District, Dongguan, China Tel: 86-769-83081888-808 Report Number: ESTE-R1410003 Date of Test : September 26 ~ October 19, 2014 Date of Report : October 20, 2014 FCC ID: TTUBEOLIT15 (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 2 of 94 TABLE OF CONTENTS Description Page TESTREPORT VERIFICATION.........................................................................................................................3 1.G ENERAL INFORMATION.................................................................................................................5 1.1.Description of Device (EUT) ........................................................................................................... 5 2.SUMMARY OF TEST.........................................................................................................................6 2.1.Summary of test result...................................................................................................................... 6 2.2.Test Facilities ................................................................................................................................... 7 2.3.Measurement uncertainty ................................................................................................................. 8 2.4.Assistant equipment used for test ..................................................................................................... 8 2.5.Block Diagram ................................................................................................................................. 8 2.6.Test mode ......................................................................................................................................... 9 2.7.Channel List for Bluetooth ............................................................................................................... 9 2.8.Test Equipment............................................................................................................................... 10 3.MAXIMUM PEAKOUTPUT POWER.................................................................................................11 3.1.Limit ............................................................................................................................................... 11 3.2.Test Procedure ................................................................................................................................ 11 3.3.Test Result ...................................................................................................................................... 11 3.4.Test Data ........................................................................................................................................ 12 4.20 DB BANDWIDTH.......................................................................................................................16 4.1.Limit ............................................................................................................................................... 16 4.2.Test Procedure ................................................................................................................................ 16 4.3.Test Result ...................................................................................................................................... 16 4.4.Test Data ........................................................................................................................................ 17 5.CARRIERFREQUENCYSEPARATION..............................................................................................21 5.1.Limit ............................................................................................................................................... 21 5.2.Test Procedure ................................................................................................................................ 21 5.3.Test Result ...................................................................................................................................... 21 5.4.Test Data ........................................................................................................................................ 22 6.NUMBER OFHOPPINGCHANNEL..................................................................................................26 6.1.Limit ............................................................................................................................................... 26 6.2.Test Procedure ................................................................................................................................ 26 6.3.Test Result ...................................................................................................................................... 26 6.4.Test Data ........................................................................................................................................ 27 7.DWELL TIME.................................................................................................................................29 7.1.Limit ............................................................................................................................................... 29 7.2.Test Result ...................................................................................................................................... 29 7.3.Test Data ..........................................................................................................................…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (1000-25000 MHz)
