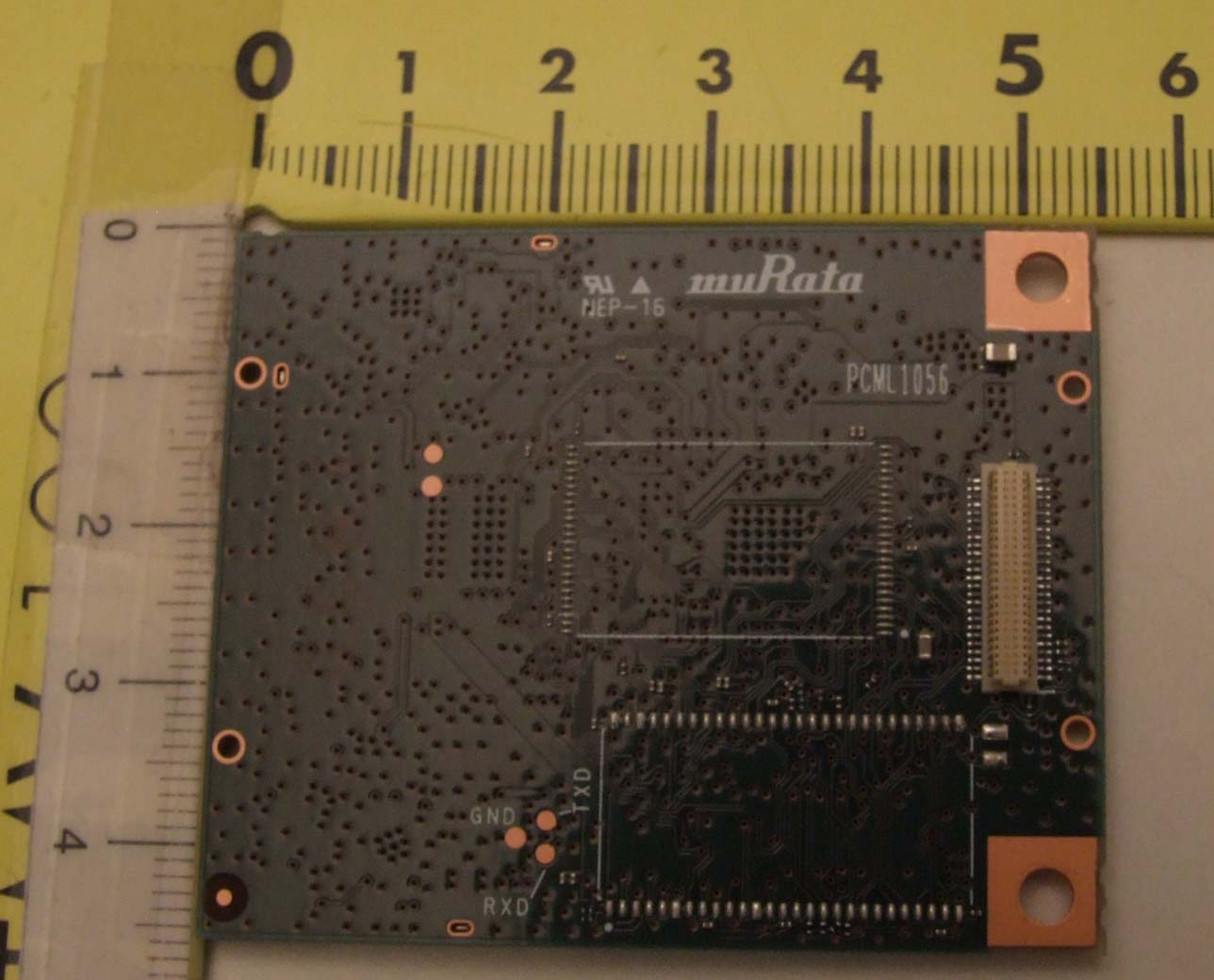

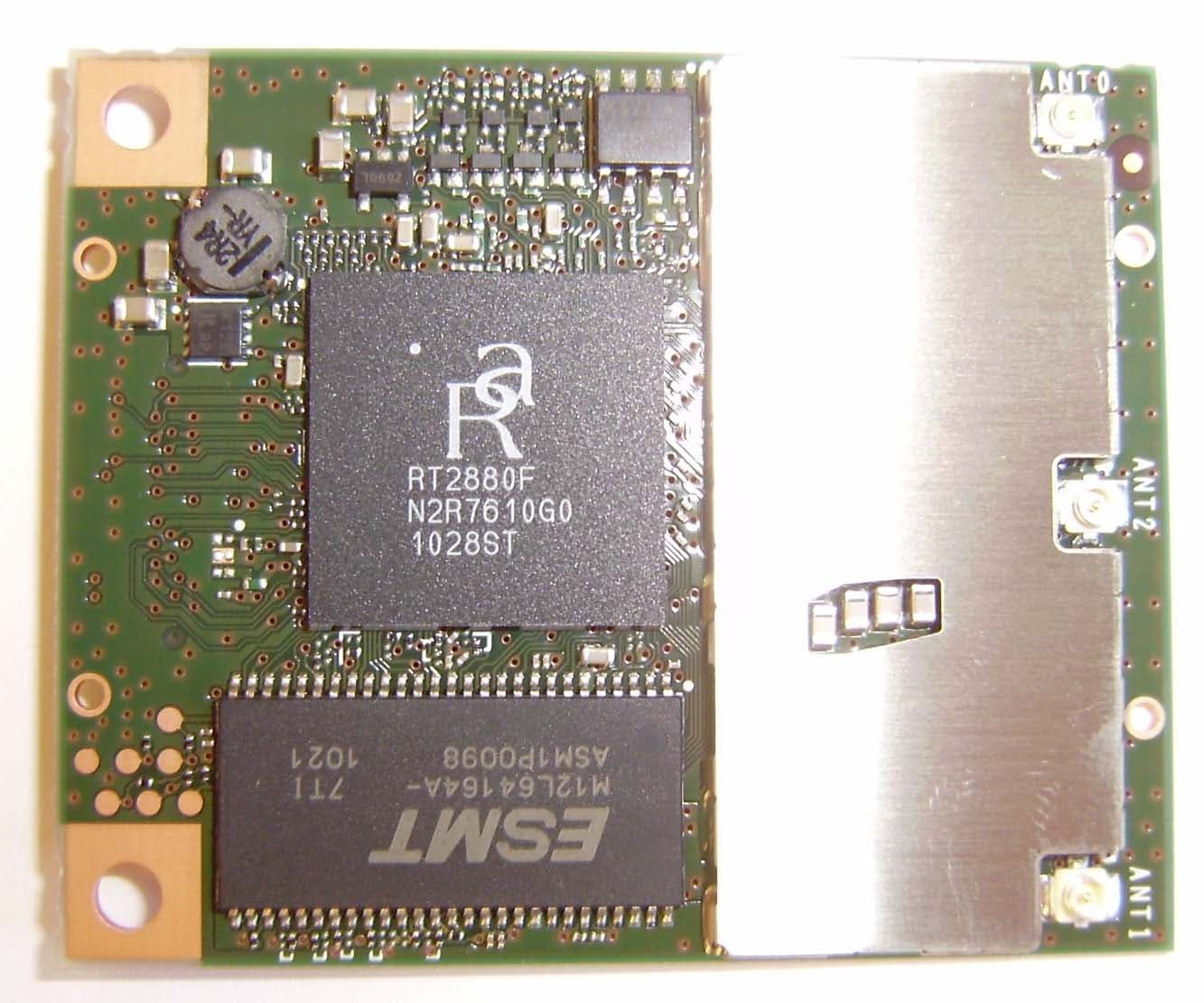

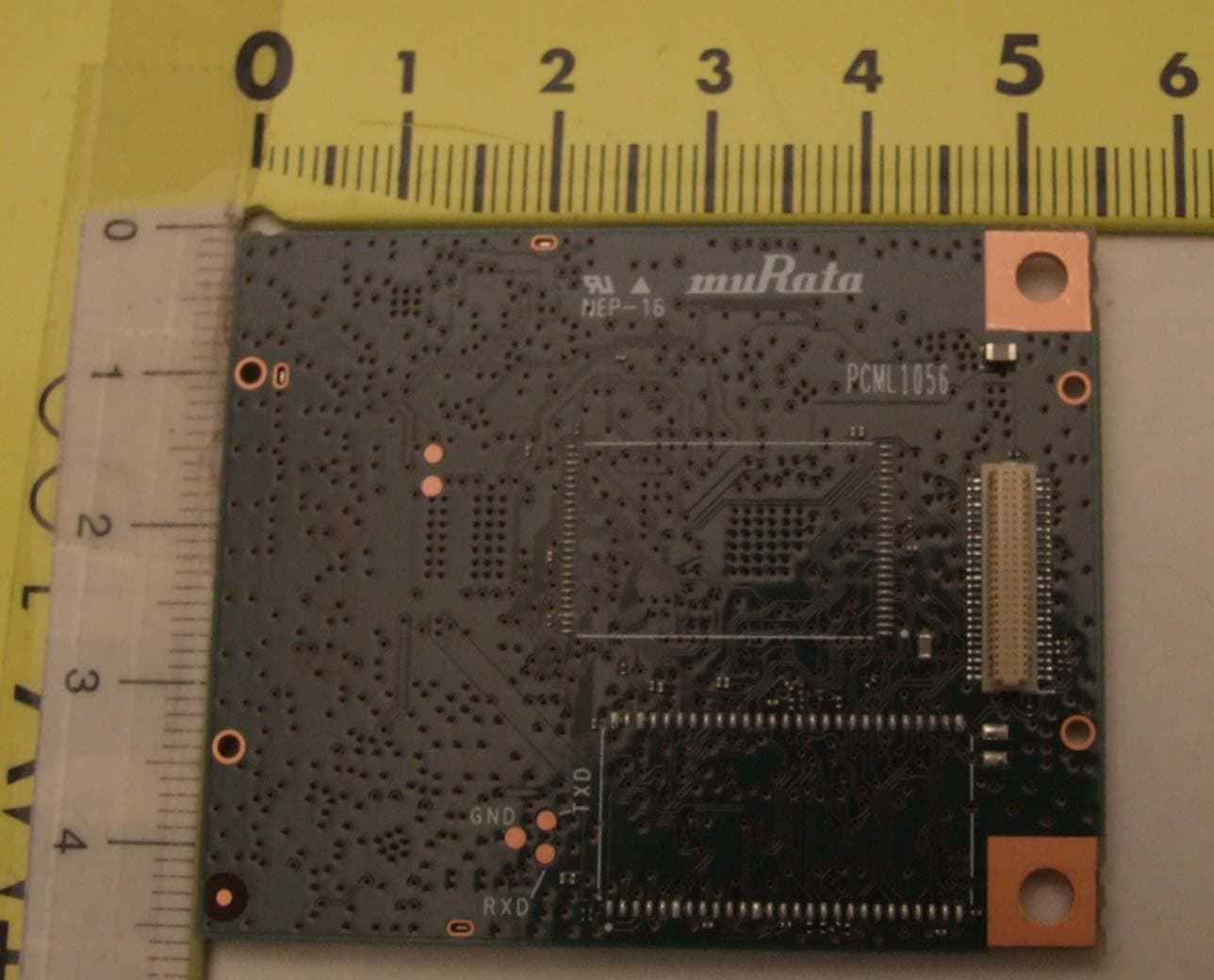

TTULBWA1ZZPDWireless Communication Module

BEOPLAY V1 BeoPlay V1–32 BeoPlay V1–40 Draft 02.05.12 Draft 02.05.12 This Getting Started contains information about the setting up and daily use of your B&O PLAY product and connected equipment. Your television offers more features and functions than described in this Getting Started. Among other things; Sleep Timers, pin code system and network settings. These and other features are described in more detail in the product’s online guide or in the help texts in the television menus. The guides are found on www.beoplay.com/v1/support. The guides and the on-screen help texts are also kept up to date if new software introduces new or modified features and functions in your television. On www.beoplay.com/v1 you can also find more information and relevant FAQs (Frequently Asked Questions) about your product. Your retailer is your first stop for all your service queries. Dear Customer Technical specifications, features and the use thereof are subject to change without notice. 3511018 Version 1.0 1201 Draft 02.05.12 WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of un insulated “dangerous voltage” within the product’s en closure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equi- lateral triangle is intended to alert the user to the presence of important operating and main tenance (servicing) instructions in the literature accompanying the product. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not ope rate normally, or has been dropped. Cautions – E nsure that the television is positioned, set up and connected in accordance with the instructions in this Getting Started. To prevent injury, use Bang & Olufsen approved stands and wall brackets only! – P lace your television on a firm, stable surface. – D o not place any items on top of your television. – D o not subject the television to rain, high humidity or sources of heat. – T he television is intended for indoor use in dry, domestic environments only. Use within a temperature range of 10–40°C (50–105°F). – I f the television has been exposed to temperatures below 5°C (40°F), leave it at room temperature and wait until the television has regained normal room temperature before it is connected to the mains and switched on. – D o not place the television in direct sunlight or direct artificial light, such as a spotlight, as this may reduce the sensitivity of the remote control receiver. Also if the screen is overheated, black spots may appear in the picture. These spots disappear again, once the television cools down to normal temperature. – L eave enough space around the television for adequate ventilation. – N o naked flame sources, such as lighted candles should be placed on the apparatus. – T o prevent the spread of fire, keep candles or other open flames away from this product at all times. – D o not attempt to open the television. Leave such operations to qualified service personnel. – Do not strike the glass with hard or pointed items. – The television can only be switched off completely by disconnecting it from the mains socket. The mains socket must always be accessible. – F ollow instructions to ensure correct and safe installation and interconnection of equipment in multimedia systems. – T he product label is placed behind the connection cover. Draft 02.05.12 Contents Setting up 6 H ow to set up your television 8 C onnection panel – BeoPlay V1–32 10 C onnection panel – BeoPlay V1–40 Daily use 12 H ow to use your remote control 13 H ow to navigate in menus 15 W atch television 16 M edia browser 17 C hange picture or sound settings 18 C leaning 19 H ow do I ... Draft 02.05.12 How to set up your television Important – guides and FAQs are found on www.beoplay.com/v1/support To ensure proper ventilation, allow enough space around the screen. Do not cover the ventilation grill. At over heating (flashing standby indicator and an on-screen warning), switch the TV to standby, not off, in order for the TV to cool down. You cannot operate the TV during this time. Connect your television to the Internet to receive software updates and download Peripheral Unit Controller (PUC) tables. It is recommended that you set the television to update software automatically. For more info…

Text truncated - open the document above for the full version.

Integration Guide for installing LBWA1ZZPD W-LAN module in Video Engine PCB Module is designed to be plugged into the Video Engine PCB. The Video Engine PCB is used in the BeoPlay V1 32/40. Mounting procedure: 1 Mount the 2 standoffs for the WLAN module as shown 2 Mount the 2 plastic support clips in the holes in the Video Engine PCB, must give a click sound in order to be correctly fixed. 3 Route the WLAN cables along the edge of the Video engine from the Connector well to the module, using the existing wire fixation points. 4 Carefully mount the 3 small coaxial connectors on the WLAN module. Be careful not to damage the connectors. 5 Insert the module into the plastic clips and into the board to board connector on the Video Engine PCB. Use the Brass standoffs to guide the module into the connector, press carefully between the 2 guide pins. 5 Fasten the WLAN-module with 2 2.5 mm nuts End of Procedure This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate This module is intended to be professionally installed in host products BeoPlay V1-32 and BeoPlay V1- 32 with external Tyco 1513711-1 antenna, and must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the antenna & user’s body In the United States, operation on channels 36-48 in the 5150-5250 MHz band is restricted to indoor-use only. If the FCCID of the module is not visible when installed in the intended host equipment, then a permanently attached or marked label must be displayed on the exterior of the host equipment referring to the module FCC ID.

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire RG23 8BG Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales. Company number: 2117901 Bang & Olufsen a/s FCC ID: TTULBWA1ZZPD Test Report RP84552JD04A V2.0 Incorrect Carrier Power This is to confirm that Test report RP84552JD04A V2.0 originally submitted for this filing contains an incorrect conducted carrier power measurement. The 15.247 testing performed as detailed in the test report includes an error due to a misunderstanding relating to setting up the EUT for the different modes of operation whilst under test. The device supports MIMO operation with 2 Tx and 1 Rx chains, but MIMO is only operational for 802.11n mode of operation. For the other 801.11 modes of operation only a single transmitter is operational. However for the 15.247 testing the device was tested with two transmitters operational in all operational modes, and the maximum peak output power levels were combined. The resulting measured combined power was listed in the issued grant (0.22W). The device has been re-measured with the correct EUT operating modes, and the maximum listed transmitter power (0.13W), which is lower compared to the value listed in the grant. The results are listed in Report RP84552JD04A V5.0. Additionally new measurements have also been performed for radiated spurious emissions for the EUT worst case operational mode. These emission levels are similar to those previously measured and are still well within the required limits. The results are listed in report RP84552JD04B V4.0. The test reports RP84552JD04A and RP84552JD04B have been superseded with the updated versions, and the correct transmitter power level has been listed in the grant. We confirm all other exhibits relating to this grant are correct and remain unchanged. RFI Global Services Ltd Dated: 15 November 2012

Released 25-04-2012 3187505_00 AGL A Denne tegningen tilhører Bang & Olufsen a/s, Struer, Danmark og må ikke afhændes, udlånes eller kopieres uden firmaets udtrykkelige skriftlige tilladelse. This drawing is the property of Bang & Olufsen a/s, Struer, Denmark and must not be transferred, lent or reproduced without an explicit written permission from the company CIM label Wireless Module V1 RELEASE LEVEL: CREATION DATE: INIT. DESIGNER: VERSION: DATE: DESIGNER: FOR MORE INFO ON CHANGES SEE ECR:SIZE: A4 MUST BE IN ACCORDANCE WITH DIRECTIVE 2011/65/EU (RoHS) _____ SCALE: 1:1 Original label: 3186754 Unreleased copy Un 35 15 FCC ID: TTULBWA1ZZPD IC ID: 3775B-LBWA1ZZPD RXXXXXXXXXXXXX RXXXXXXXXXXXX

Unreleased copy Un 97.00 51.00 Denne tegningen tilhører Bang & Olufsen a/s, Struer, Danmark og må ikkeafhændes, udlånes eller kopieres uden firmaets udtrykkelige skriftlige tilladelse. This drawing is the property of Bang & Olufsen a/s, Struer, Denmark and must notbe transferred, lent or reproduced without an explicit written permission from the company. RELEASE LEVEL: 28-02-2012 _ 3187430_00 CIM label for BeoPlay V1-32 W-LAN US AGL_ CREATION DATE: INIT. DESIGNER: VERSION: DATE: DESIGNER: FOR MORE INFO ON CHANGES SEE ECR:SIZE: A4 MUST BE IN ACCORDANCE WITH DIRECTIVE 2011/65/EU (RoHS) B SCALE: 1:1 _ Released Variable text 7 pt. Safety Component! Original Label: 3186867 Foil: 3186797 Type no: Item no.: Color: Variant 9504 1856110 White W US 9504 1856112 White We US 9504 1856114 Black W US 9504 1856116 Black WE US XXXXXXXXXXXXXXX XXXX XXXXXXXX BeoPlay V1 - 32 100- 240V 50/60Hz Powerco nsu mpti on: 105 W Type No.:Item No.:Serial No.:Acc.: Bang & OlufsenDenmark MMIX Bang & Olufsen A/S CAUTION AVIS Risque de chocelectrique ne pas ouvrir RISK OF ELECTRIC SHOCK DO NOT OPEN Designed by Bang & Olufsen in Denmark. Made in Denmark Designed byBang & Olufsen in Denmark.Made in Denmark 管理号类别号产品序列号 丹麦制造 商 标: 生 产 者: 产品名称: 型号: 额定功 率 液晶电视机 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. C US LR58993 R FCC ID: TTULBWA1ZZPDIC ID: 3775B-LBWA1ZZPD R204XW61100500 R204YW61100600 Bang & Olufsen Japan K.K.

The F C on frequ the calc Where For 2. 4 Values Calcul a MP CC requires uency at a d culation is g S = EI R R = 4GHz band: S = 1.1 3 S = P T = pow G = EIR R = ation: EI R PE Calcu that the cal distance of given in OET Power den RP = Effectiv distance to : 1.0 mW/c m 310 Radiofr 1.0mW/cm = 23.4dBm wer (P 1 + P 2 = Antenna g RP = P 1 G + 20 cm RP = 219 x1 S = 276/12 S = 276/50 ulation fo lculated MP 20 cm from T Bulletin 65 S = nsity ve Isotropic o the centre m 2 for Gene requency ra m 2 (219mW) – 2 ). ain (each a P 2 G = (P 1 + 1.26 = 276m 2.56 x (20) 2 024 S or FCC ID PE be equal m the device 5, page 19 = EIRP/4 π cally Radiate e of radiation eral populat adiation exp – measured antenna) = 1 + P 2 )G = P T mW 2 = 0.055 m W D: TTULB l to or less t e to the body as: π R 2 ed Power n of the ant ion uncont r posure limits maximum c 1.0dBi (x1.2 x G W 2 BWA1ZZ than a given y of the use enna rolled expos s) combined c 26) ZPD n limit depe er. The equa sure (FCC P conducted p endent ation for Part peak For 5G Values . Calcula Concl u This co exposu Hz band: S = 1.1 3 S = P T = pow G = EIR R = ation: EIR usion nfirms com re limit of 1 1.0 mW/c m 310 Radiofr 1.0mW/cm = 21.4dBm wer (P 1 + P 2 = Antenna g RP = P 1 G + 20 cm RP = 138x 1 S = 218/1 2 S = 218/50 pliance to t .0mW/cm 2 m 2 for Gene requency ra m 2 (138mW) - 2 ). ain (each a P 2 G = (P 1 + .58 = 218m 2.56 x (20) 2 024 S he required at 20cm op eral populat adiation exp measured antenna) = 2 + P 2 )G = P T mW = 0.043 mW d FCC Part peration. ion uncontr posure limits maximum c 2.0dBi (x1.5 x G W 2 1.1310 Rad rolled expos s) combined co 58) diofrequenc sure (FCC P onducted p cy radiation Part eak

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: LBWA1ZZPDZ-385 FCC ID: TTULBWA1ZZPD IC Certification Number: 3775B-LBWA1ZZPD To: FCC Part 15.247: 2011 & Industry Canada RSS-210 Issue 8 December 2010, RSS-Gen Issue 3 December 2010 Test Report Serial No.: RFI-RPT-RP84552JD02D V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Sarah Williams Signature: Date of Issue: 06 July 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02D V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 Page 2 of 92 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02D V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 RFI Global Services Ltd Page 3 of 92 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ....................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing ............................................................. 11 4.1. Operating Modes 11 4.2. Configuration and Peripherals 11 5. Measurements, Examinations and Derived Results ................................................................ 12 5.1. General Comments 12 5.2. Test Results 13 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 13 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 16 5.2.3. Transmitter AC Conducted Spurious Emissions 21 5.2.4. Transmitter 6 dB Bandwidth 25 5.2.5. Transmitter 20 dB Bandwidth 34 5.2.6. Transmitter Power Spectral Density 43 5.2.7. Transmitter Maximum Peak Output Power 48 5.2.8. Transmitter Radiated Emissions 73 5.2.9. Transmitter Band Edge Radiated Emissions 79 6. Measurement Uncertainty .......................................................................................................... 88 Appendix 1. Test Equipment Used ................................................................................................ 89 Appendix 2. Test Setup Photographs ........................................................................................... 91 TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02D V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 Page 4 of 92 RFI Global Services Ltd 1. Customer Information Company Name: Bang & Olufsen a/s Address: Peter Bangs Vej 15 7600 Struer Denmark TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02D V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 RFI Global Services Ltd Page 5 of 92 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Specification Reference: RSS-Gen Issue 3 December 2010 Specification Title: General Requirements and Information for the Certification of Radio Apparatus Specification Reference: RSS-210 Issue 8 December 2010 Specification Title: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 07 January 2012 to 09 March 2012 2.2. Summary of Test Results IC Reference Measurement Result Part 15.107(a) RSS-Gen 7.2.4 Receiver/Idle Mode AC Conducted Emissions Part 15.109 RSS-Gen 4.10 Receiver/Idle Mode Radiated Spurious Emissions Part 15.207 RSS-Gen 7.2.4 Transmitter AC Conducted Emissions Part 15.247(a)(2) RSS-Gen 4.6.2 RSS-210 A8.2(a) Transmitter 6 dB Bandwidth Part 2.1049 RSS-Gen 4.6.1/4.6.3 Transmitter 20 dB Bandwidth Part 15.247(e) RSS-210 A8.2(b) Transmitter Power Spectral Density Part 15.247(b)(3) RSS-Gen 4.8 RSS-210 A8.4(4) Transmitter Maximum Peak Output Power Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Radiated Emissions Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02D V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 Page 6 of 92 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices Reference: FCC KDB 558074 D01 v01 1/18/2012 Title: Guidance for Performing Compliance Measu…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Beo Play V1-40” TV containing an LBWA1ZZPDZ-385 Module FCC ID: TTULBWA1ZZPD IC Certification Number: 3775B-LBWA1ZZPD To: FCC Parts 15.247(d), 15.209(a) & Industry Canada RSS-210 A8.5 and RSS-Gen 4.9 Test Report Serial No.: RFI-RPT-RP84552JD02E V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Sarah Williams Signature: Date of Issue: 06 July 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02E V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 Page 2 of 19 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02E V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 RFI Global Services Ltd Page 3 of 19 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ....................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 10 4.1. Operating Modes 10 4.2. Configuration and Peripherals 10 5. Measurements, Examinations and Derived Results ................................................................ 11 5.1. General Comments 11 5.2. Test Results 12 5.2.1. Transmitter Radiated Emissions 12 6. Measurement Uncertainty .......................................................................................................... 18 Appendix 1. Test Equipment Used ................................................................................................ 19 TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02E V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 Page 4 of 19 RFI Global Services Ltd 1. Customer Information Company Name: Bang & Olufsen a/s Address: Peter Bangs Vej 15 7600 Struer Denmark TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02E V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 RFI Global Services Ltd Page 5 of 19 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 15 Subpart C (Intentional Radiators) - Section 15.209 Specification Reference: RSS-Gen Issue 3 December 2010 Specification Title: General Requirements and Information for the Certification of Radio Apparatus Specification Reference: RSS-210 Issue 8 December 2010 Specification Title: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 24 February 2012 to 26 February 2012 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Result Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02E V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 Page 6 of 19 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices Reference: FCC KDB 558074 D01 v01 1/18/2012 Title: Guidance for Performing Compliance Measurements on Digital Transmission System (DTS) devices operating under §15.247 Reference: FCC KDB 662911 D01 v01r01 10/25/2011 Title: Emissions Testing of Transmitters with Multiple Outputs in the Same Band 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD02E V2.0 VERSION 2.0 ISSUE DATE: 06 JULY 2012 RFI Global Services Ltd Page 7 of 19 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Bang & Olufsen Model Name or Number: Beo Play V1-40 40” TV containing a Murata LBWA1ZZPDZ-385 module Serial Number: 22586321 Software Version Number: 0.0.0.23327 FCC ID: TTULBWA1ZZPD IC Certification Number: 3775B-LBWA1ZZPD 3.2. Description of EUT The equipment under test was an IEEE 802.11a/b/g/n WLAN module operating in the 2.4 GHz and 5 GHz bands. The module is incorporated into a 40” television. The EUT has three external antenna ports, two transmit and one receive, MIMO is supported. For 802.11n operation the device uses MIMO (2 transmitters and 3 receivers). Depending on the 802.11 MCS, the device transmits 1 or 2 spatial stream. The device uses spatial multip…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: LBWA1ZZPDZ-385 FCC ID: TTULBWA1ZZPD Industry Canada Certification Number: 3775B-LBWA1ZZPD To: FCC Part 15.247: 2011 & Industry Canada RSS-210 Issue 8 December 2010, RSS-Gen Issue 3 December 2010 Test Report Serial No.: RFI-RPT-RP84552JD04A V5.0 Version 5.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of John Newell, Group Quality Manager: Checked By: Sarah Williams Signature: Date of Issue: 15 November 2012 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD04A V5.0 VERSION 5.0 ISSUE DATE: 15 NOVEMBER 2012 Page 2 of 96 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP84552JD04A V5.0 VERSION 5.0 ISSUE DATE: 15 NOVEMBER 2012 RFI Global Services Ltd Page 3 of 96 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ....................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing ............................................................. 11 4.1. Operating Modes 11 4.2. Configuration and Peripherals 12 5. Measurements, Examinations and Derived Results ................................................................ 13 5.1. General Comments 13 5.2. Test Results 14 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 14 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 17 5.2.3. Transmitter AC Conducted Spurious Emissions 21 5.2.4. Transmitter 6 dB Bandwidth 25 5.2.5. Transmitter 20 dB Bandwidth 36 5.2.6. Transmitter Power Spectral Density 47 5.2.7. Transmitter Maximum Peak Output Power 52 5.2.8. Transmitter Radiated Emissions 83 5.2.9. Transmitter Band Edge Radiated Emissions 89 6. Measurement Uncertainty .......................................................................................................... 93 Appendix 1. Test Equipment Used ................................................................................................ 94 Appendix 2. Test Setup Photographs ........................................................................................... 95 TEST REPORT SERIAL NO: RFI-RPT-RP84552JD04A V5.0 VERSION 5.0 ISSUE DATE: 15 NOVEMBER 2012 Page 4 of 96 RFI Global Services Ltd 1. Customer Information Company Name: Bang & Olufsen a/s Address: Peter Bangs Vej 15 7600 Struer Denmark TEST REPORT SERIAL NO: RFI-RPT-RP84552JD04A V5.0 VERSION 5.0 ISSUE DATE: 15 NOVEMBER 2012 RFI Global Services Ltd Page 5 of 96 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2012: Part 15 Subpart C (Intentional Radiators)…

Text truncated - open the document above for the full version.
