TTURC1BLE Remote Control

BeoRemote One DRAFT 2 Daily use Introduction to BeoRemote One and the guide, 3 Pairing your remote control, 4 Using your BeoRemote One, 6 BeoRemote One in detail, 7 Access your favourite content using MyButtons, 9 Customise your remote control, 10 Make settings for the display, 13 Maintenance, 14 Advanced use Add more products, 15 How to add a product to the BeoRemote One LIST and how to give it a specific Option. Using BeoRemote One for a ‘Beo4’ product, 18 How to use BeoRemote One for operation of a Master Link television or music system which is normally operated with Beo4. Beo4 and BeoRemote One conversion, 21 Find out which button to use on BeoRemote One, if you are used to Beo4. BeoRemote One advanced settings, 22 Make advanced settings for your remote control. You can, for example, change the display language or reset your BeoRemote One to factory settings. BeoLink setup, 24 How to display and listen to sources from another Bang & Olufsen product when your products are connected to the same network. Contents – Click a headline to move to that section This guide contains additional information about your BeoRemote One and describes features and functions in detail. Among other things you can find information about settings. This guide will be updated on a regular basis to make it reflect, for example, new features and functions introduced with software updates. You can find additional information about your product in the Frequently Asked Questions (FAQ) section on www.bang-olufsen.com/ customerservice. Version 1.0 1601 DRAFT a a Beo4’ Beo4’ One for operation of peration of ion or music system or music system y operated with Beo4.y operated with Be BeoRemote One conversion, BeoRemote One conversion, 21 ut which button to use on ut which mote One, if you are used to Beo4.mote One, if you are used to Beo4. ne advanced settings, 2ne advanced settings, 22 2 ettings for your remote ettings for your remote example, change texample, change t t your t your settisetti T product produc ng-olufsen.comng-olufg 3 Introduction to BeoRemote One and the guide The BeoRemote One is a hand-held remote control which gives easy access to remote operation of your Bang & Olufsen television or music system. With BeoRemote One you can operate both Bluetooth and IR based products. The display on BeoRemote One shows you sources or functions, such as TV, RADIO and STAND, or even the lights. The BeoRemote One remote control incorporates more functions than just the actual buttons. Extra sources are brought up on the BeoRemote One display using the TV and MUSIC buttons and additional functions can be obtained using the LIST button. To turn the television on a motorised stand ... Press to bring up SOUND in the BeoRemote One display Select a sound mode Symbols used in this guide Remote control operation – A dark grey button, such as LIST, indicates a physical button you must press. – A light grey display text, such as STAND, indicates a BeoRemote One display text. Press LIST, TV or MUSIC on BeoRemote One to bring it up. The text appears in the BeoRemote One display. You may be able to show or hide display texts for LIST, TV and MUSIC, and also rename texts. For more information see page 10 and page 11. – The centre button is symbolised by which is used in the operation sequences when you must press the centre button. LIST SOUND Daily operations are carried out by pressing a single button on BeoRemote One, or by pressing a few buttons in a logical and straightforward sequence. Example of BeoRemote One operation. d d ay nd mode nd mode DR RA Remote control operation mote control operation –A ddark grey button, such as ark grey button, such LIS indicates a physical button yindicates a physical button press. press. ––A lAight grey display teey display te indicates a BeoRe Press LIST, TV BeoRemoteBe appearsappea You mYou m te DR R LIS RRR SOUND DRDRDRDRDR sing a sing a rby rby l and l and f BeoRemote One operation. f BeoRem 4 Pairing your BeoRemote One You can operate both Bluetooth and IR based products with your BeoRemote One. To operate a Bluetooth product, you must first make sure that your remote control is paired to the product. BeoRemote One then typically synchronises various settings with the paired products and thereby eases recognition and browsing of sources and functions in the display. Pairing is not used for IR based products. Consequently, you should skip the pairing process during first- time setup. For information about Option programming of IR products, see page 16. When pairing BeoRemote One to a Bluetooth product, the product provides a product name to be used in the remote control display. Settings for sources and different functions are then typically set in the Bluetooth product, instead of in the remote control. You can pair your remote control to a number of Bluetooth products, and a Bluetooth product can be paired to a number of Bluetooth remote controls. Pair or unpair a remote control Depending on your setup, different settings are required for interaction to succeed,. However, common to all setups with a Bluetooth product is that you need to pair your remote control with the product to be able to operate it. First-time setup of your remote control Before setting up your remote control, make sure your product is connected to the mains, and if it is already in use, you must also open your Bluetooth product for pairing.* Put in fresh batteries in your remote control** and place yourself in front of the product After timeout of a welcome screen in the display, set the preferred language If a Bluetooth product is opened for pairing, pairing takes place.* Otherwise... ...select Pairing if you have a Bluetooth product and forgot to open it for pairing***, or select Skip pairing if you have an IR product Your remote control is now ready for use *See the guide for your Bluetooth product for information on how to open the product for pairing. **See the Quick guide enclosed with your remote control …

Text truncated - open the document above for the full version.

Date : Jan. 10, 2014 Rev : 2.1 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Bang & Olufsen a/s, Peter Bangs Vej 15, P.O. box 40, DK-7600 Struer Main phone no. [45] 96 84 11 22, Fax [45] 96 84 53 33, CVR-no. 41257½911 www.bang-olufsen.dk DATE : 17 December, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : TTURC1 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Operational Description 4 Tune-Up Procedure SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Company Name : Bang & Olufsen a/s Company Address : Peter Bangs Vej 15, P.O. box 40, DK-7600 Struer Contact Person Name/Title (in print) : Lars Sørensen - Safety & Certification Technician

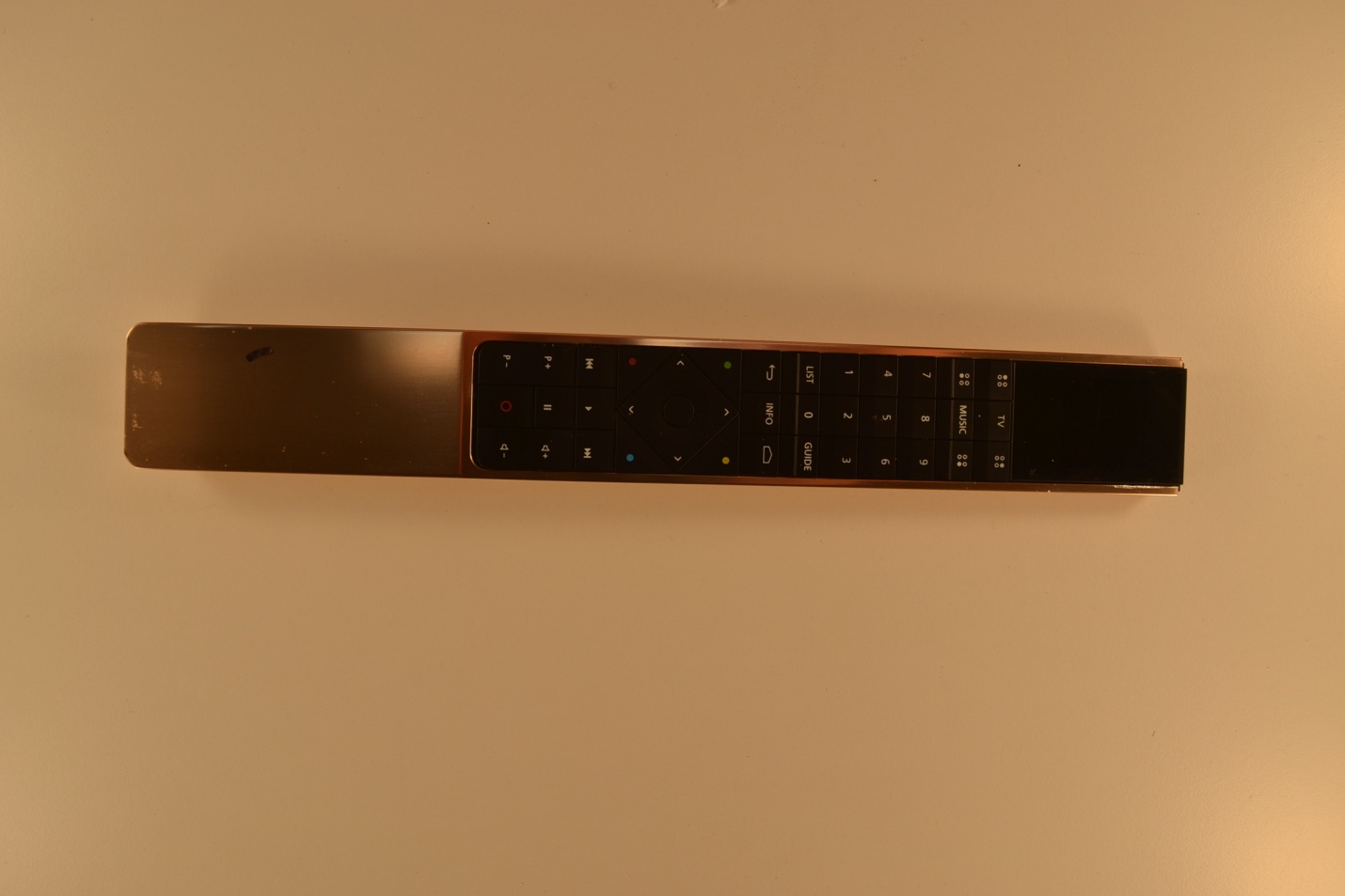

FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT PHOTOS EUT Top View FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT PHOTOS EUT Bottom View

XXXXXXX CCAB06XXXXXXXXX MSIP-XXX-XXX-XXXXXX NER-ETA/RC1 ANATEL xxxx-xx-xxxx Barcode: 2/5 Interleaved 6mm x 34mm Number in barcode: Material Number + Serial Number + calculated check digit. 0000000 + XXXXXXXX + calculated check digit (= 15+1 digits) Unreleased copy Un 07-12-2015 A Label for T30, All 3189115_00 SCALE: 1:1 Denne tegningen tilhører Bang & Olufsen a/s, Struer, Danmark og må ikkeafhændes, udlånes eller kopieres uden firmaets udtrykkelige skriftlige tilladelse. This drawing is the property of Bang & Olufsen a/s, Struer, Denmark and must notbe transferred, lent or reproduced without an explicit written permission from the company. RELEASE LEVEL: CREATION DATE: INIT. DESIGNER: VERSION: DATE: DESIGNER: FOR MORE INFO ON CHANGES SEE ECR:SIZE: A4 MUST BE IN ACCORDANCE WITH DIRECTIVE 2011/65/EU (RoHS) BIR Released - Graphics adhesion: The 'ink' type must be weather-resistant. Label with serial and type no., approvals and cautions etc., must be able to stand the exposure according to the demands stated in test MCR21. Label material: The label paper must always be of a non transparent quality and matt (NOT shiny) paper. Has to be Paper, backside self adhesive. Text type: Arial Label color: White Ink color: Black 50 mm R 1mm Registered Trademark and product name Arial pt. 5 8 digit serialnumber Variable text Arial pt. 5 15 mm These symbols and text must be placed on plastic part R-NZ E1822 Type and Item number Arial pt. 5 ® ® XXXXXXX Serial no.: Bang & Olufsen a/s Type No.: Item No.: 型号 Model: 1717 8050251 IC: 3775B-RC1 FCC ID: TTURC1 123ABCD123456 产地:捷克共和国 BeoRemote One BT Label placement on product Serial no.: Bang & Olufsen a/s Type No.: Item No.: 型号 Model: 1717 8050251 IC: 3775B-RC1 FCC ID: TTURC1 123ABCD123456 产地:捷克共和国 BeoRemote One BT

FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT Photos EUT Control Unit Top View FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT Photos EUT Control Unit Bottom View FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT Photos EUT Control Unit Internal – Top View FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT Photos EUT Control Unit Internal – Bottom View FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT Photos EUT Base – Control Unit Removed

FCC ID:TTURC1 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 Office / 510-490-3441 Fax Page 1 of 1 According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 4.3.1 Frequency range(MHz) Center Frequency (MHz) SAR Limitation (mW) Low frequency High frequency 2402 2480 2440 10 Maximum measured transmitter power: Bluetooth Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mW) 7.55 -1.0 4.52 Threshold at which no SAR required is 10mW. Maximum Tx power is 4.52mW Conclusion: No SAR is required.

FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 1 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 TEST REPORT OF FCC Part 15 Subpart C (§15.247) – DTS Prepared For: Bang & Olufsen A/S Peter Bangs Vej 15 DK-7600 Struer, Denmark Product Name : BLE Remote Control Model Name : T30 FCC ID : TTURC1 Application Purpose : Original Prepared by: EMCE Engineering, Inc. 44366 S. Grimmer Blvd., Fremont, CA 94538 US This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the EMCE Engineering, Inc. FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 2 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 Revision History Rev. Issue Date Description 1 07/28/2015 Initial Issue FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 3 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 TABLE OF CONTENTS 1. GENERAL INFORMATION 4 2. EUT DESCRIPTION 5 3. SUMMARY OF TEST RESULTS 6 4. MODIFICATIONS 7 5. TEST RESULTS 8 6. TEST EQUIPMENT 26 FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 4 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 1.0 GENERAL INFORMATION Test Laboratory: EMCE Engineering 44366 S. Grimmer Blvd. Fremont, CA 94538 USA Tel : 510-490-4307, Fax : 510-490-3441 [email protected] FCC registration number : 743299 Test Site : FCC : US5291, IC : 3324A Applicant Name : Bang & Olufsen A/S Peter Bangs Vej 15 DK-7600 Struer, Denmark Contact Person: Lars Sorensen Application Purpose : Original EUT Description BLE Remote Control - Bluetooth Low Energy Product Name T30 BLE Remote Control Model Name : T30 Applied Standards : FCC 47 CFR §15.209, §15.247 FCC ID : TTURC1 IC : N/A RF Operating Frequency (ies) 2402 – 2480 MHz Modulation GFSK Emission Designator 1M00F1D Receipt of EUT : 12/14/15 Date of Testing : 12/15/15 – 1222/15 Date of Report : 12/23/15 The tests listed in this report have been completed to demonstrated compliance to the CFR 47 Section 15.247. Contents approved: Name: Bob Cole Title: President FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 5 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 2.0 EUT AND ACCESSORY INFORMATION EUT FCC ID TTURC1 Product Name BLE Remote Control Model name T-30 Frequency Range TX : 2402 – 2480 MHz RX : 2402 – 2480 MHz Max. RF Output Power Peak : 7.55 dBm (5.688 mW) Operating Mode Bluetooth Low Energy (BLE) Modulation Type GFSK Number of Channels 40 Channels Manufacturer Bang & Olufsen A/S Power Source Battery Antenna Specification Manufacturer : Bang & Olufsen A/S Antenna Type : Chip Peak Gain : -1.0dBi Support Equipment Description Model Number Serial Number Manufacturer Power Cable Description NONE Cable Description From To Length (Meters) Shielded (Y/N) Ferrite Loaded (Y/N) NONE FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 6 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 3.0 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: Test Standard Description Result (Pass / Fail) FCC 47 CFR Part 15 RSS 210, RSS-Gen, Issue 4 15.205, 15.209 15.247 N/A Radiated Spurious Emissions, Radiated Restricted Bandedge Pass 15.247(a)(2) N/A 6dB Bandwidth Pass 15.247(6)(3) N/A Conducted Maximum Peak Output Power Pass 15.247(e) N/A Power Spectral Density Pass 15.247(d) N/A Conducted Bandedge (Out of Band Emissions) Pass 15.207 N/A AC Power line Conducted Emissions N/A ANSI C63.4: 2009 / FCC KDB 558074 D01 DTS Meas Guidance v03r03 dated June 09, 2015 PS: All measurement uncertainties are not taken into consideration for all presented test result. PASS The EUT passed that particular test. FAIL The EUT failed that particular test. N/A Not Applicable – No IC Application FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 7 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 4.0 MODIFICATIONS There were no modifications. FCC ID: TTURC1 Test Report #: 4186-1 12/23/2015 EMCE Engineering, Inc., 44366 S. Grimmer Blvd., Fremont, CA 94538 Page 8 of 30 Tel:510-490-4307 Fax: 510-490-3441 e-mail: [email protected] Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of Accreditation under Lab Code 200092-0 5.0 TEST RESULTS 5.1 CONDUCTED SPURIOUS EMISSIONS 15.247 (d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional…

Text truncated - open the document above for the full version.

FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT PHOTOS Radiated Emissions – 10 Meters FCC ID: TTURC1 EMCE Project# 4186 EMCE Engineering 44366 S. Grimmer Blvd Fremont, CA 94538 510-490-4307 / 510-490-3441 Fax EUT PHOTOS Radiated Emissions – 3 Meters
