TU6BHRC1Remote Control

CIXI BAIHUANG ELECTRIC APPLIANCES CO., LTD.
Remote Control - FCC ID TU6BHRC1 - CIXI BAIHUANG ELECTRIC APPLIANCES CO., LTD.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Dec 19, 2005
Application Purpose
Original Equipment
Date of Application
Dec 19, 2005
Equipment Note
Remote Control
Frequency Range
433.92000000 - 433.92000000
Company
CIXI BAIHUANG ELECTRIC APPLIANCES CO., LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗
↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BHRC1 User’s manual Functions This is transmit. Made by plastic. Color: white. This transmit only one bottom, worked by battery 9V,6F/22. The LED light will work when battery 9V 6F/22 put in it. Frequency: 433.92MHz Modula: FM Current: ≤ 6mA Voltage: DC9V supply power, RF out power : ≤ 1mW Clean the transmitter with dry cloth. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s autho rity to operate the equipment. Any change to the equipment will void FCC grant. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of t he FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment genera tes, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to ra dio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void users authority to operate this device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operat ion.

External Photos

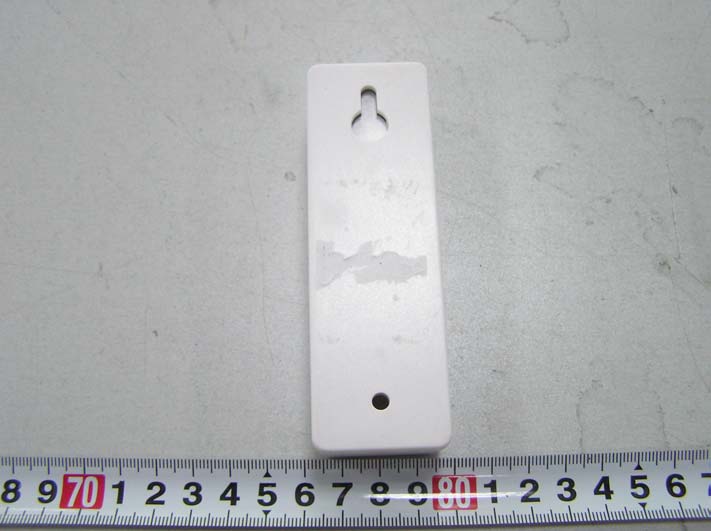

External Photos EUT Front View EUT Rear View

ID Label/Location Info

ID Label Label FCC ID: TU6BHRC1

ID Label/Location Info

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos

Internal Photos EUT – Uncover View EUT – PCB Top View EUT – PCB Bottom View EUT – Uncover of Battery View

Operational Description

BHRC1 Circuit Description Sender BHRC1 use 9V battery power. Push the button to provide power, the product will begin to work. Coding circuit (78P153) transmit signal in 3 seconds through high frequency (SP018). After modulation, frequency: 433.92MHz will be re-amplified and transmit to antenna.

Operational Description

BHRC1 technical data and circuit description: 1. SUPPLY POWER: 9V 2. CURRENT: ≤6mA 3. FREQ RANGE : 433.92MHz±150kHz 4.. RF POWER: <1 mW 5. MODULATION TYPE: FM
