TU6BHRC3Remote Control

CIXI BAIHUANG ELECTRIC APPLIANCES CO., LTD.
Remote Control - FCC ID TU6BHRC3 - CIXI BAIHUANG ELECTRIC APPLIANCES CO., LTD.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Dec 19, 2005
Application Purpose
Original Equipment
Date of Application
Dec 19, 2005
Equipment Note
Remote Control
Frequency Range
433.92000000 - 433.92000000
Company
CIXI BAIHUANG ELECTRIC APPLIANCES CO., LTD.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗
↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BHRC3 User’s manual Functions This is transmit. Made by plastic. Color: white. This transmit has three bottoms, worked by battery 12V/23A The LED light will work when battery 12V/23A put in it. Frequency: 433.92MHz Modula: FM Current: ≤ 8mA Voltage: DC12V Work power: ≤ 1mW Clean the transmit with dry cloth. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compli ance will void the user’s autho rity to operate the equipment. Any change to the equipment will void FCC grant. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of t he FCC Rules. These limits are designed to provide reasonable pr otection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in stalled and used in accordance with the in structions, may cause harmful interferen ce to radio communications. However, there is no guarant ee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recept ion, which can be determined by turning t he equipment off and on, the user is encoura ged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separ ation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienc ed radio/TV technician for help. Modifications not authorized by t he manufacturer may void users aut hority to operate this device. This device complies with part 15 of the F CC Rules. Operation is subject to the fo llowing two conditions: (1) This device may n ot cause harmful interference, and (2) this device must a ccept any interference received, including interference that ma y cause undesired operat ion.

External Photos

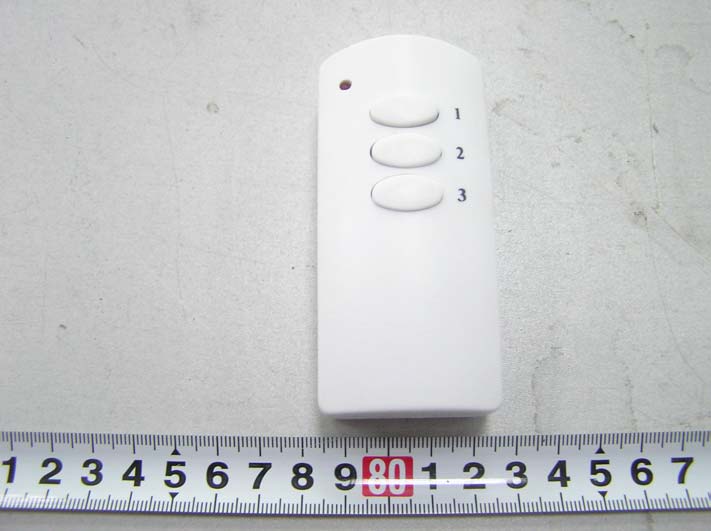

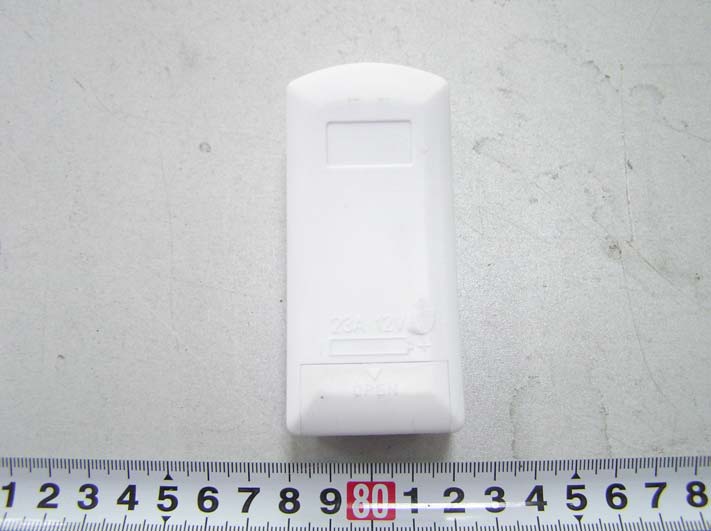

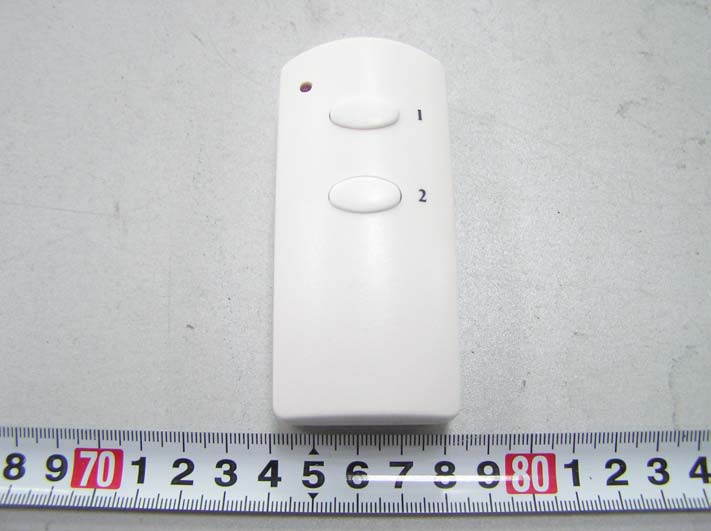

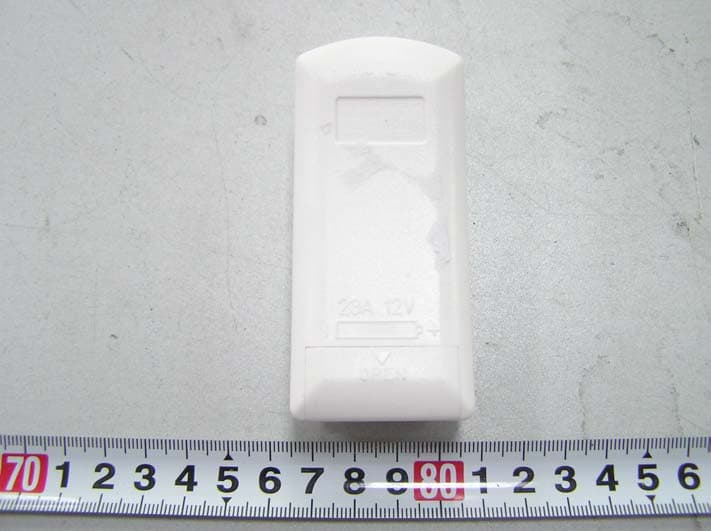

External Photos Model Number: BHRC2 EUT Front View EUT Rear View Model Number: BHRC3 EUT Front View EUT Rear View

ID Label/Location Info

ID Label Label FCC ID: TU6BHRC3

ID Label/Location Info

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos

Internal Photos Model Number:BHRC2 EUT – Uncover of Battery View EUT – Inside (PCB Top) View EUT –Inside (PCB Bottom) View Model Number:BHRC3 EUT – Uncover of Battery View EUT – Inside (PCB Top) View EUT –Inside (PCB Bottom) View

Operational Description

BHRC3 Circuit Description Sender BHRC3 use 12V battery power. Push the button to provide power, the product will begin to work. Coding circuit (78P153) transmit signal in 3 seconds through high frequency (SP018). After modulation, frequency: 433.92MHz will be re-amplified and transmit to antenna.

Operational Description

BHRC3 technical data and circuit description: 1. SUPPLY POWER: 12V 2. CURRENT: ≤8mA 3. FREQ RANGE : 433.92MHz±150kHz 4. RF POWER: <1 mW 5. MODULATION TYPE: FM
