TUCTA17TA20Remote Control

1234 A B C D 4 321 D C B A BATTERY OSC ENCODER ANT 315MHz Block Diagram of Remote Control 315MHz Key ModulationAmplifier PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

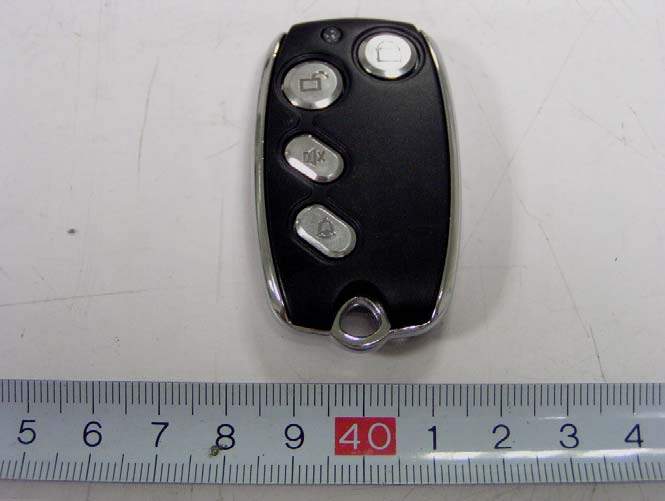

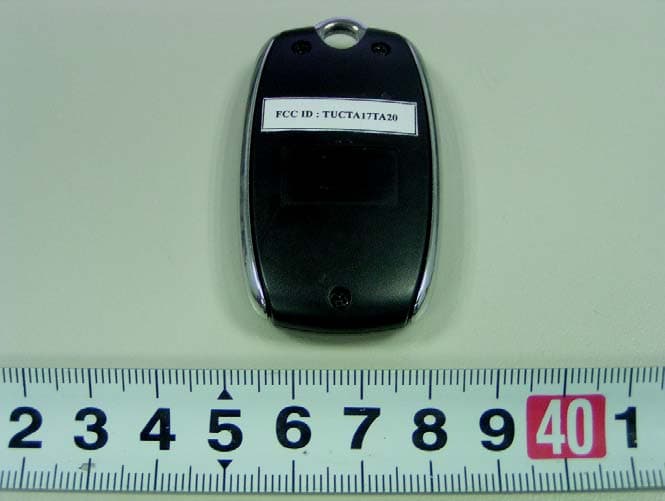

External Photos EUT –Front View EUT –Back View

ID Label Label FCC ID: TUCTA17TA20

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos EUT- Inside View (1) EUT–Inside View (2) EUT–Inside View (3) EUT- PCB View (1) EUT- PCB View (2)

TA20 Circuit Description When any button is pressed, the Coding IC HCS320 wakes up ( It will sleep and output nothing when all buttons are released ), and encode the keying and the build-in address to serial data which are output from DO pin. The data are combination of high pulse and 0 level which will make the surface acoustic wave oscillator SAW1 and triode Q1 to oscillating or not. The oscillating signal will be coupled to the micro-strip line on PCB through which the signal is emitted out. So, this is the typical ASK or OOK modulation circuit. The transmitter uses the micro-strip line on PCB act as the antenna. The transmitting power is very low.

Tech. Specification Rated Voltage: 12V(one 27A type battery) Frequency：315MHz±200KHz Frequency Channel：1 Transmitting power：<10dBm Modulation：ASK Static Current: 0mA Transmitting Current: <15mA Te mper atur e: -20°C～+70°C

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Agilon Technology (Shenzhen) Co., Ltd. C-6F, HuaHan Chuangxin Block, KeYuan Road, Hi-Tech Industry Zone, Shenzhen, China FCC ID: TUCTA17TA20 This Report Concerns: Original Report Equipment Type: Remote Control Test Engineer: William Chen Report No.: RSZ06102655 Test Date: 2006-10-27 to 2006-11-20 Report Date: 2006-11-20 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Agilon Technology (Shenzhen) Co., Ltd FCC ID: TUCTA17TA20 Report # RSZ06102655 Page 2 of 22 FCC Part 15.231 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 §15.205, §15.209, §15.231 (B)- RADIATED EMISSION............................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 STANDARD APPLICABLE............................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................11 §15.231(C) 20DB BANDWIDTH TESTING .............................................................................................................15 REQUIREMENT...........................................................................................................................................................15 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................15 TEST PROCEDURE......................................................................................................................................................15 TEST DATA........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission – Front View (30-1000MHz) Radiated Emission - Rear View (30-1000MHz) Radiated Emission – Front View (Above 1000MHz) Radiated Emission – Rear View (Above 1000MHz)
