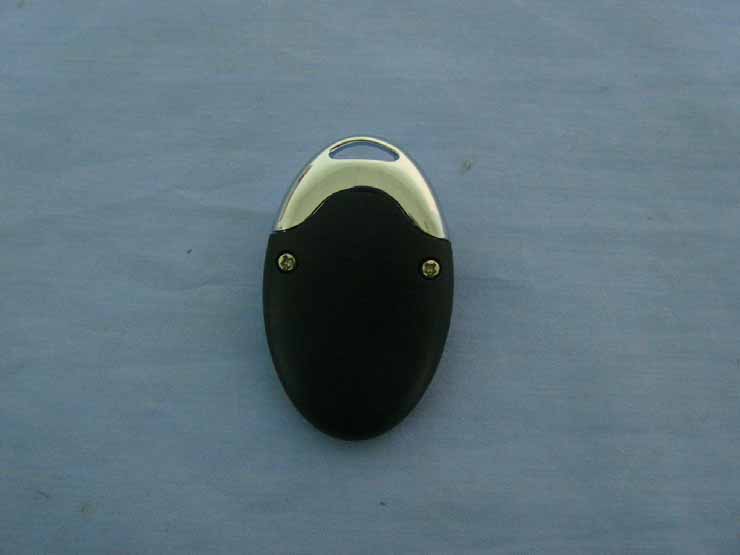

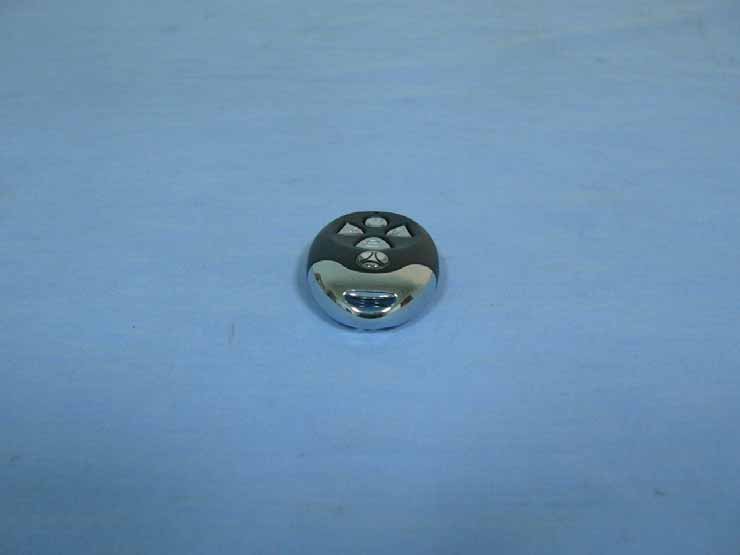

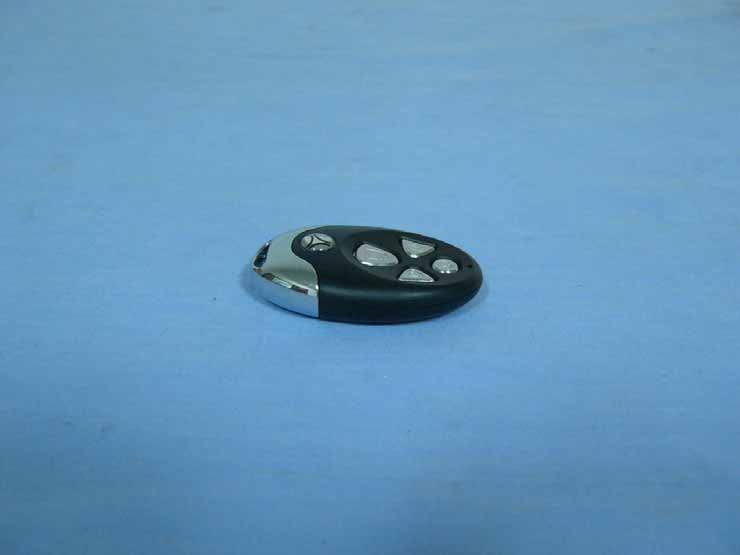

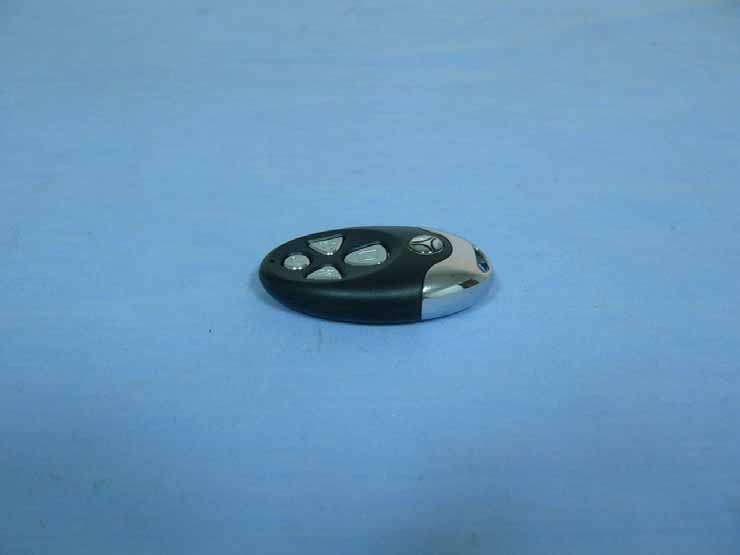

TUCTA3TA4TA6Remote Control

V6 CAR ALARM MANUAL Button Press function Conditions 1 0.5 seconds Arm/door lock Sound Car finding Stop alarm Remote lock doors Alarm is disarmed Alarm is being armed Alarm is sounding While driving 2 0.5 seconds Disarm/door unlock Remote unlock doors Stop alarm from sounding and disarm Alarm is being armed While driving Alarm is sounding 2 seconds Open trunk Any state 1 Within 2 seconds Bypass shock sensor Disarmed state 3 0.5 seconds Silent arming Silent Car finding Stop alarm Alarm is disarmed Alarm is being armed Alarm is sounding 2 seconds Enter ACJ Exit ACJ ACC ON In anti car-hijacking 4 /1+2 + 0.5 seconds panic Anytime BASIC FUNCTIONS 1 Arm Press " " button of remote control for 0.5 second. the turning light will flash one time, and siren will beep one time, car door will be locked automatically, and status indicator LED will flash slowly. If the door is not closed properly, the siren will beep three times, car light will flash three times. Indicator LED will flash rapidly. If the ignition key stays at ON position, there is only locking function. 2 Mute arming Press " " button of remote control for 0.5 second. The turning light flash one time without siren sound, door locked, status indicator LED flash slowly after arming. if the door is not closed prop erly, car light will flash three times, indicator LED will flash r apidly. 3 Disarm Press " " button remote control for 0.5 second. The turning light flash two times, siren sound two times, car door will be unlocked automatically, If the car door is not opened within 40 seconds after disarming, the car will return to arming status. If the ignition key stays at ON position, there is only unlocking function. 4 Sound car finding Under arming status., press " " button of remote control for 0.5 second, Siren sound one time, turning light flash 10 times. Press " " button to stop finding to disarm and unlock. 5. Silent car finding Under arming status , press " " button of remote control for 0.5 second, the turn ing light flash 10 times without siren sound. Press " " button to stop finding to disarm and unlock. 6. Stop alarming Under alarm status, press button " " , or " " of remote contro l for 0.5 second, turning light will stop flashing, siren will stop alarming. 7. Trunk release Under any state, press the button " " of remote control for 2 seconds. Trunk will be released. Note: It is only available for the car equipped with trunk release sw itch. The switch is optional acc ording to customer request. 8. Emergency panic alarm Press the button + or " " of remote control for 0.5 second. Siren continue alarming, turning light continue flashing, indicator LED will flash rapidly, this status will keep for 30 seconds. Press " " ," " or to stop alarming. 9. Anti-hijack ( Use jumper 4 to select it) When ACC ON and the doors are closed, press the button for 2 seconds and open the door within 8 seconds to activate anti car-hijacking mode. If the door is not open ed within 8 sec, th e mode is exit. Close the door to start the 30 seconds countdown. The LED flashes quickly. When the 30 sec is up, siren will chirp every 1 sec. After 20 seconds, siren sounds continuously, also parking lights will continuously flash and engine will stop (if starter killer relay c onnected). Siren will stop to sound & parking lights will stop to flash as long as the ignition turns OFF. After ignition is OFF, engine disable s to start again (if starter killer relay connected). Disarm the anti car-hijacking: Press button for two seconds when ignition is ON. The parking lights and siren will act 2 times for confirmation. Use the emergency disarming way can also exit ACJ. 10. Sensor bypass features When the system is disarmed, Press button 1 then button 3 within 2 seconds, the siren shall chirp once and enter the arming mod e then chirp once again (short chirp). This is indicating sensor of shock is now bypassed and disabled; ALARM STATE DESCRIPTION 1. Shock alarm The system shall begin to detect the shock sensor after 3 seconds of arming, if one light shock is detected, the siren shall so und and parking lights shall flash for 2 seconds (continously sounding). After 3 seconds, if heavy shock is detected, the siren shall keep soun ding (sound 1 second, stop one second), and parking light shall flash fast for 30 seconds; if the alarming trigger stops, the siren and parki ng light shall also stop acting. 2. Door-opened alarm The system shall begin to detect the state of the car door after 3 seconds of arming, if the door is opened, the siren shall so und (continously sounding) and parking light shall flash fast for 30 seconds to warn. It shall stop after 30 seconds or once the alarming trigger is stopp ed. 3. Ignition alarm The system shall begin to detect the state of the ignition key after 3 seconds of arming, if the ignition key is staying on , t he siren shall sound and parking light shall flash fastly continously. It shall stop once the key is turned off. ADDITIONAL FUNCTIONS 1. Auto rearming with door lock (use J2 to select this function) After disarming, if the door was not opened or engine was not st arted, indicator LED flash rapidly, the car will be armed and t he door will be locked automatically after 40 seconds. 2. Passive arming with door lock (use J2 to select this function) After ACC off, close the last door, the LED indicator shall flash rapidly, main module will arm car automatically after 40 seco nds, and the door shall be locked simultaneously. If opening the door and closing it again within 40 seconds, it will re-count the time. If starting the car within 40 seconds, this function will be cancelled. 3. Door-opened warning (use J3 to select this function) If the door is opened when ACC on, the parking lights will flash continuously for 30 seconds to warn the other drivers behind. This feature is programmable by jumpers. 4. Memorize triggered alarm If the alarm is triggered, the system will memorize triggered alarm under arming state, when disarming, turnin…

Text truncated - open the document above for the full version.

SHENZHEN AGILON SCIENCE & TECNNOLOGY CO. LTD. 1 st Building, 2 nd Industrial Zone, Zhangkeng Cun, Longhua, Shenzhen, China Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: TUCTA3TA4TA6 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Part List Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards

LABEL LOCATION

Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B07-RP FCC ID: TUCTA3TA4TA6 Date of Issue: December 13, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 23 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For REMOTE CONTROL Model: TA6 Trade Name: AGILON Prepared for SHENZHEN AGILON SCIENCE&TECHNOLOGY CO., LTD 1ST BUILDING, 2ND INDUSTRIAL ZONE, ZHANGKENG CUN, LONGHUA, SHENZHEN, GUANGDONG, P.R.CHINA Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B07-RP FCC ID: TUCTA3TA4TA6 Date of Issue: December 13, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20 DB BANDWIDTH .......................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE ..................................................................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 17 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 22 Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B07-RP FCC ID: TUCTA3TA4TA6 Date of Issue: December 13, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SHENZHEN AGILON SCIENCE&TECHNOLOGY CO., LTD 1ST BUILDING, 2ND INDUSTRIAL ZONE, ZHANGKENG CUN, LONGHUA, SHENZHEN, GUANGDONG, P.R.CHINA Equipment Under Test: REMOTE CONTROL Tr a d e N a m e : AGILON Model: TA6 Date of Test: December 01-13, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Te s t e d B y : Terry.Yang / Engineer Approved by: Reviewed By: Clinton. Kao / EMC Manager Eric.Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B07-RP FCC ID: TUCTA3TA4TA6 Date of Issue: December 13, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product REMOTE CONTROL Trade Name AGILON Model Number TA6 Model Difference N/A Power Supply Powered by battery (Rating: 12Vdc ) Frequency Range 433 MHz Antenna Designation PCB Antenna Remark: This submittal(s) (test report) is intended for FCC ID: TUCTA3TA4TA6 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B07-RP FCC ID: TUCTA3TA4TA6 Date of Issue: December 13, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.105…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B07-RP FCC ID: TUCTA3TA4TA6 Date of Issue: December 13, 2005 Page 23 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
