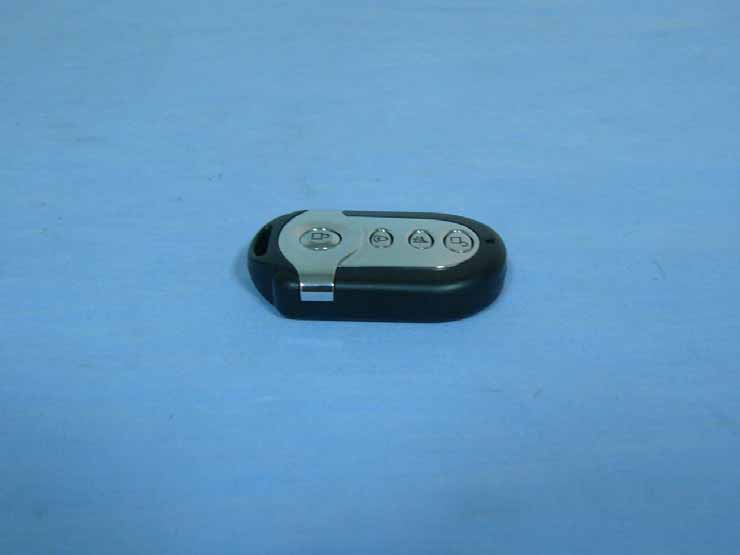

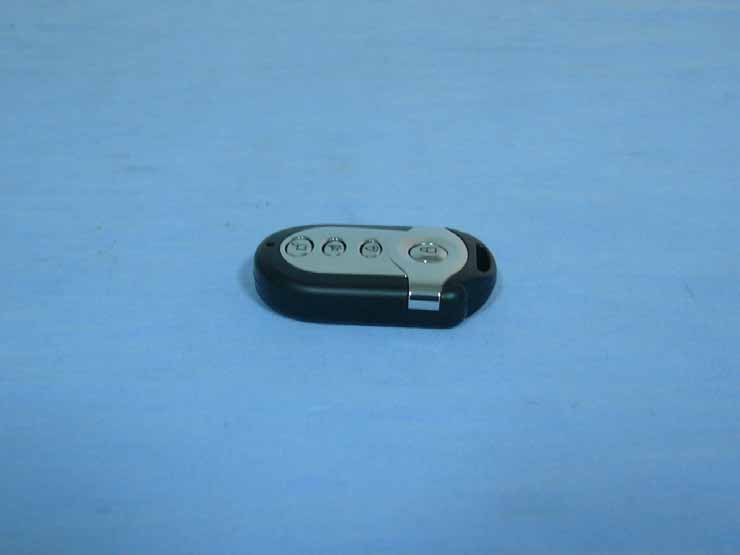

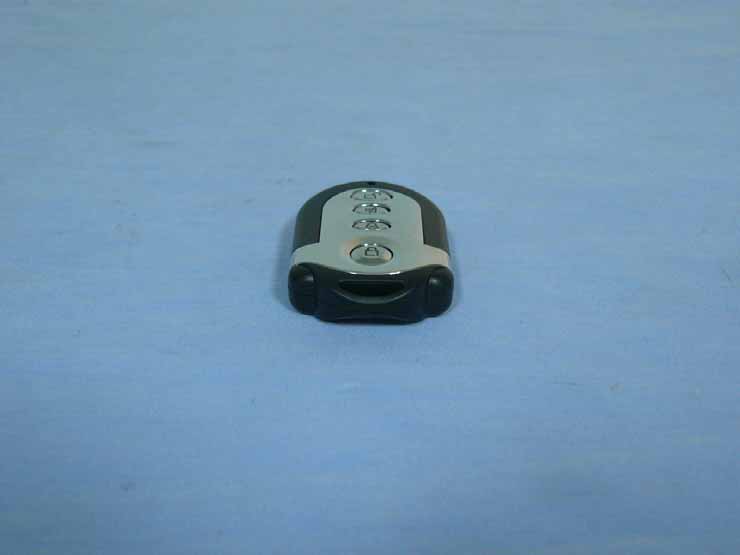

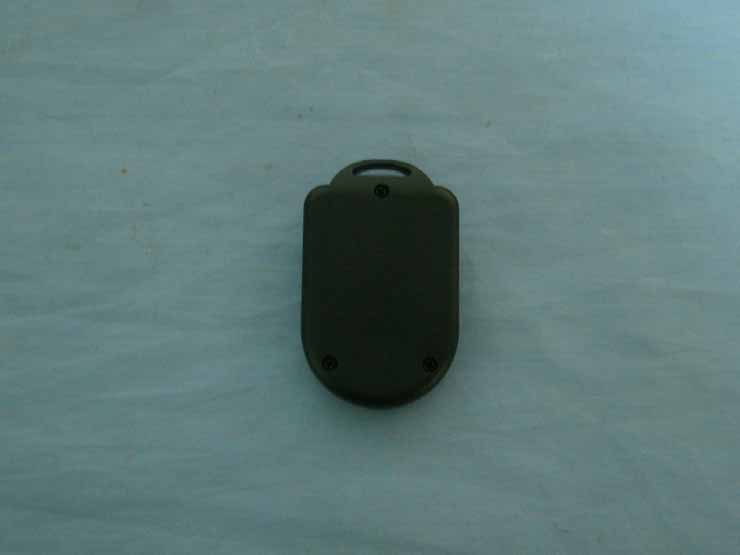

TUCTA5TA7TA9Remote Control

AGILON AL-V5 CAR ALARM MANUAL Button Press function Conditions 1 0.5 seconds Arm/door lock Sound Car finding Stop alarm Remote lock doors Alarm is disarmed Alarm is being armed Alarm is sounding While driving 2 seconds panic Anytime 2 0.5 seconds Disarm/door unlock Remote unlock doors Stop alarm from sounding and disarm Alarm is being armed While driving Alarm is sounding 2 seconds Open trunk Any state 1+2 0.5 seconds Enter ACJ ACC on 3 0.5 Silent arming Silent Car finding Stop alarm Alarm is disarmed Alarm is being armed Alarm is sounding 2 seconds Exit ACJ In anti car-hijacking 1+3 2 seconds Enter/exit vale t mode Disarming mode 4 0.5 seconds panic Anytime BASIC FUNCTIONS 1 Arm Press " " button of remote control for 0.5 second. the turning li ght will flash one time, and siren will beep one time, car door will be locked automatically, and status indicator LED will flash slowly. If the door is not closed properly, the siren will beep three times, car light will flash three times. Indicator LED will flash rapidly. If the ignition key stays at ON position, there is only locking function. 2 Mute arming Press " " button of remote control for 0.5 second. The turni ng light flash one time wit hout siren sound, door locked, status indicator LED flash slowly after ar ming. if the door is not closed properly, car light will flash three times, indicator LED will flash rapidly. 3 Disarm Press " " button remote control for 0.5 second. The turning light flash two times, siren sound tw o times, car door will be unlocked automatically, If the car door is not opened within 40 seconds after disarm ing, the car will return to arming status. If the ignition key stays at ON position, there is only unlocking function. 4 Sound car finding Under arming status., press " " button of remote control for 0.5 second, Siren sound one time, turning light flash 10 times. Press " " button to stop finding to disarm and unlock. 5. Silent car finding Under arming status , press " " button of remote control for 0.5 second, the turning light flash 10 times without siren sound. Press " " button to stop finding to disarm and unlock. 6. Stop alarming Under alarm status, press button " " or " " of remote control for 0.5 second, turning light will stop flashing, siren will stop alarming. 7. Trunk release Under any state, press the button " " of remote control for 2 seconds. Trunk will be released. Note: It is only available for the car equipped with trunk release switch. 8. Emergency panic alarm Press the button " " of remote control for 0.5 second or button for 2 seconds. Siren continue alarming, turning light continue flashing, i ndicator LED will flash rapidly, this st atus will keep for 30 seconds. Press " " or " " to stop alarming. 9. Anti-hijack (Use J3 to select this function) When engine is running, press the button " " & " " of remote control for 0.5 s econd, if the door was opened then closed within 10 seconds, indicator LED will flash rapidly, timing will start, if the door wasn't opened within 10 minutes, anti-hijack function will be cancelled. After 60 seconds, siren will sound, engine will be stopped and alarming, turning i gnition key to OFF position, alarm will be stopped. Turning ignition key to ON positi on, it will alarm again. Press the button " " of remote control for 2 seconds to exit anti-hijacking or exit anti-hijacking through emergency disarming. ALARM STATE DESCRIPTION 1. Shock alarm The system shall begin to detect the shock sensor after 3 sec onds of arming, if one light shock is detected, the siren shall sound and parking lights shall flash for 2 seconds the siren sound is contiously 2 seconds, not 2 times . If heavy shock is detected, the siren shall keep sounding immediately but wit hout the 3 seconds bypass time, the siren sound is continously sounding same as door-open/ACC trigger, and parking light shall flash fast for 30 seconds; if the alarming trigger stops, the siren and parking light shall also stop acting. 2. Door-opened alarm The system shall begin to detect the state of the car door after 3 seconds of arming, if the door is opened, the siren shall so und and parking light shall flash fast for 30 seconds to warn. It shall stop after 30 seconds or once the alarming trigger is stopped. 3. Ignition alarm The system shall begin to detect the state of the ignition key after 3 seconds of arming, if the ignition key is staying on , t he siren shall sound and parking light shall flash fastly c ontinously. It shall stop once the key is turned off. ADDITIONAL FUNCTIONS 1. Auto rearming After disarming, if the door was not opened or engine was not started, indicator LED flash rapidly, the car will be armed and the door will be locked automatically after 40 seconds, the siren shall chirp one time and the parking light shall flash one time to indicate the entry of arming. 2. Passive arming (use J2 to select this function) After ACC off, open then close the last door, main module w ill arm the car automatically after 40 seconds, the siren shall chirp one time and the parking light shall flash one time to indicate the entry of arming. If opening the door and closing it again within 40 seconds, it will re-count the time. If starting the car within 40 seconds, this function will be cancelled. 3. Automatic central door lock When driving, doors will be automatically locked upon first brake Turn ignition OFF to unlock doors. 4. Door-opened warning If the door is opened after the car is disarmed, the parking li ghts will flash continuously for 30 seconds to warn the other drivers behind. 5. Memorize triggered alarm If the alarm is triggered, the system will memorize triggere d alarm under arming state, when disarming, turning lights will flash four times, siren will beep four tim es, reminding the driver to check the car. 6. State memory The alarm system will memory the condition before the power is cut off. 7. Emergency disarming If car can't be disarmed owing to the lo sing of the remote control, invalidat…

Text truncated - open the document above for the full version.

LABEL LOCATION

Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B06-RP FCC ID: TUCTA5TA7TA9 Date of Issue: December 13, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For REMOTE CONTROL Model: TA9 Trade Name: AGILON Prepared for SHENZHEN AGILON SCIENCE&TECHNOLOGY CO., LTD 1ST BUILDING, 2ND INDUSTRIAL ZONE, ZHANGKENG CUN, LONGHUA, SHENZHEN, GUANGDONG, P.R.CHINA Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 6, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B06-RP FCC ID: TUCTA5TA7TA9 Date of Issue: December 13, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20 DB BANDWIDTH .......................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE ..................................................................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 18 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 23 Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B06-RP FCC ID: TUCTA5TA7TA9 Date of Issue: December 13, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SHENZHEN AGILON SCIENCE&TECHNOLOGY CO., LTD 1ST BUILDING, 2ND INDUSTRIAL ZONE, ZHANGKENG CUN, LONGHUA, SHENZHEN, GUANGDONG, P.R.CHINA Equipment Under Test: REMOTE CONTROL Tr a d e N a m e : AGILON Model: TA9 Date of Test: December 01-13, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Te s t e d B y : Terry.Yang / Engineer Approved by: Reviewed By: Clinton. Kao / EMC Manager Eric.Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B06-RP FCC ID: TUCTA5TA7TA9 Date of Issue: December 13, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product REMOTE CONTROL Trade Name AGILON Model Number TA9 Model Difference N/A Power Supply Powered by lithium battery (Rating: 2 x 3Vdc ) Frequency Range 433 MHz Antenna Designation PCB Antenna Remark: This submittal(s) (test report) is intended for FCC ID: TUCTA5TA7TA9 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B06-RP FCC ID: TUCTA5TA7TA9 Date of Issue: December 13, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 2.1046, 2.1047, 2.…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ051201B06-RP FCC ID: TUCTA5TA7TA9 Date of Issue: December 13, 2005 Page 24 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
