TVE-0120201802.11 abgn RF Module Card

V1.0 (2011-07-14) Atheros 2T2R PCIe Module EMP7618 2.4 / 5 GHz 802.11a/b/g/n 300Mbps EMP7618 is a 2.4 / 5Ghz Dual Band 2T2R PCIe Half-Card Module based on the Atheros AR9382 solution which features improved transmission power and sensitivity by Senao Networks. Using the AR9382 internal FEM, it is the ideal cost effective solution for platform integration. With enhanced technologies such as advanced power management and receiver boost, it makes the EMP7618 the ideal 2.4 or 5Ghz 2T2R module. Features Benefits Advanced Power Management Unscheduled Automatic Power Save Delivery (UAPSD), it allows the RF module to spend more time in “sleep” state. Dynamic MIMO Power Save allows radios to downshift to less intensive Tx configurations when traffic is light. Receiver Boost Utilizing Maximum Likelihood Demodulation (MLD) and Maximal Ratio Combining (MRC) to optimize signal receiving. V1.0 (2011-07-14) General information Chipset Atheros AR9382 PA Internal Front End Module Interface PCIe Operating voltage PCIe Slot : DC 3.3 V ± 5% with Advanced DC Power management support Antenna connectors 2x I-PEX connectors PCB Dimensions 30 x 27mm (W x L) – Half Card Temperature range 0°C to + 55 °C (Operating temperature) -45°C to + 85°C (Storage temperature) Security WPA, WPA2, 64/128 bit WEP, TKIP, and AES. hardware-based IEEE 802.11i encryption engine Data rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b:1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: 20MHz channel:  1Nss: 65Mbps @ 800ns GI; 72.2Mbps @ 400ns GI (Max);  2Nss: 130Mbps @ 800ns GI; 144.44Mbps @ 400ns GI (Max); 802.11n: 40MHz channel:  1Nss: 135Mbps @ 800ns GI; 157.5Mbps @ 400ns GI (Max.);  2Nss: 270Mbps @ 800ns GI; 300Mbps @ 400ns GI (Max.); Tx channel width support 20MHz / 40MHz Standard/Compliance WECA (Wi-Fi & Wi-Fi5 compliance), IEEE802.11,b/g/n, RoHS and WEEE Regulation Certifications FCC Part 15 V1.0 (2011-07-14) Radio Frequency Band Channel Data rate Tx AVG. Power (2TX) (dBm) Tolerance Sensitivity (2RX) (dBm) Frequency Band: 2.412 ~ 2.482GHz 802.11b (2.412~2.482GHz) 1 Mbps 12 +2/-2 dB ≦-96 2 Mbps 12 +2/-2 dB ≦-94 5.5 Mbps 12 +2/-2 dB ≦-94 11 Mbps 12 +2/-2 dB ≦-91 802.11g (2.412~2.482GHz) 6 Mbps 12 +2/-2 dB ≦-93 54 Mbps 12 +2/-2 dB ≦-77 802.11n_HT20 (2.412~2.472GHz) MCS 0/MCS 8 12 +2/-2 dB ≦-92 MCS 1/MCS 9 12 +2/-2 dB ≦-91 MCS 2/MCS 10 12 +2/-2 dB ≦-89 MCS 3/MCS 11 12 +2/-2 dB ≦-84 MCS 4/MCS 12 12 +2/-2 dB ≦-81 MCS 5/MCS 13 12 +2/-2 dB ≦-77 MCS 6/MCS 14 11 +2/-2 dB ≦-75 MCS 7/MCS 15 11 +2/-2 dB ≦-73 Operating Frequency: 2.422~2.462GHz 802.11n_HT40 MCS 0/MCS 8 12 +2/-2 dB ≦-89 MCS 1/MCS 9 12 +2/-2 dB ≦-88 MCS 2/MCS 10 12 +2/-2 dB ≦-86 MCS 3/MCS 11 12 +2/-2 dB ≦-82 MCS 4/MCS 12 12 +2/-2 dB ≦-79 MCS 5/MCS 13 12 +2/-2 dB ≦-75 MCS 6/MCS 14 11 +2/-2 dB ≦-73 MCS 7/MCS 15 11 +2/-2 dB ≦-70 V1.0 (2011-07-14) Frequency Band 5.18~5.825GHz 802.11a (5.18~5.825GHz) 6 Mbps 11 +2/-2 dB ≦-91 54 Mbps 11 +2/-2 dB ≦-74 802.11n_HT20 MCS 0/MCS 8 11 +2/-2 dB ≦-91 MCS 1/MCS 9 11 +2/-2 dB ≦-89 MCS 2/MCS 10 11 +2/-2 dB ≦-87 MCS 3/MCS 11 11 +2/-2 dB ≦-84 MCS 4/MCS 12 11 +2/-2 dB ≦-81 MCS 5/MCS 13 11 +2/-2 dB ≦-77 MCS 6/MCS 14 10 +2/-2 dB ≦-75 MCS 7/MCS 15 10 +2/-2 dB ≦-71 Operating Frequency: 5.190~5.795GHz 802.11n_HT40 MCS 0/MCS 8 11 +2/-2 dB ≦-88 MCS 1/MCS 9 11 +2/-2 dB ≦-86 MCS 2/MCS 10 11 +2/-2 dB ≦-83 MCS 3/MCS 11 11 +2/-2 dB ≦-79 MCS 4/MCS 12 11 +2/-2 dB ≦-76 MCS 5/MCS 13 11 +2/-2 dB ≦-71 MCS 6/MCS 14 10 +2/-2 dB ≦-70 MCS 7/MCS 15 10 +2/-2 dB ≦-68 Current Consumption Information Tx current consumption (without Jump wire) Continuous TX (99% duty) ≦ 3.0 W Sleep Current Sleep mode ≦ 100 mA OS support Windows 2000/XP/Vista, Linux V1.0 (2011-07-14)

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: TVE-0120201”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour utilisation de dispositif module) 1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre l'antenne et les utilisateurs, et 2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produit final pour toutes exigences de conformité supplémentaires requis po…

Text truncated - open the document above for the full version.

FCC ID: TVE-0120201 Report No.: RF111005C22 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch December 19, 2011 Dear Application Examiner, Fortinet, Inc., It’s an 802.11 abgn RF Module Card. FCC ID: TVE-0120201 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9382. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RT8010. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: TVE-0120201 Report No.: RF111005C22 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Gary Chang Technical Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

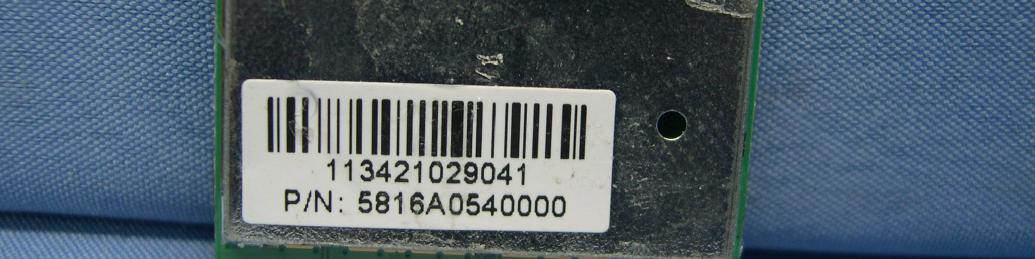

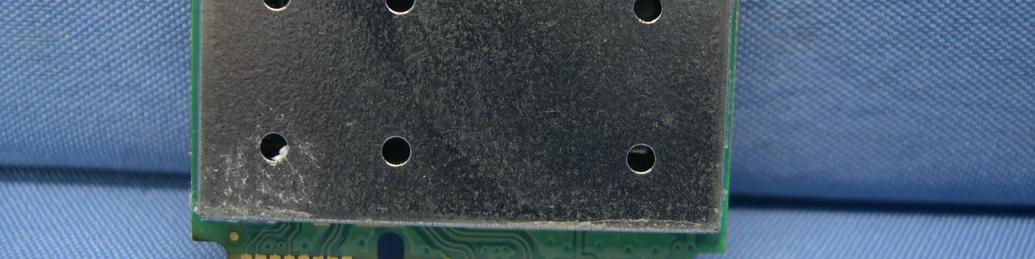

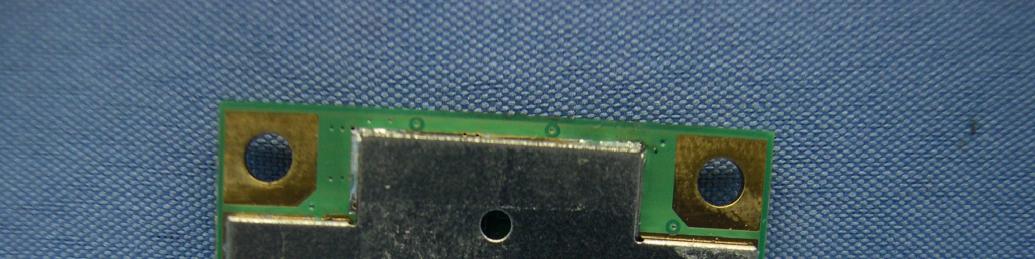

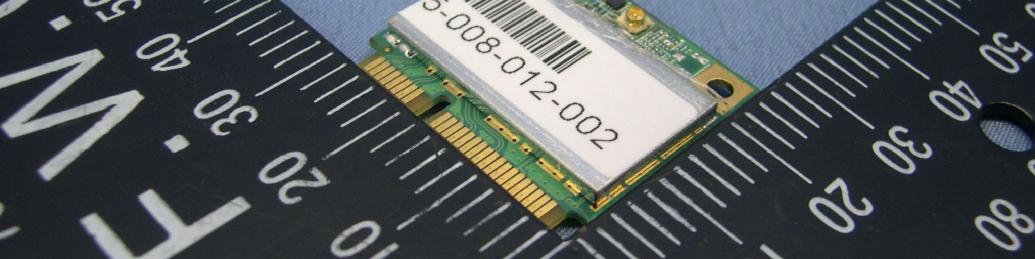

Report No.: 111005C22 1 CONSTRUCTION PHOTOS OF EUT Report No.: 111005C22 2

1Page 1/1

Report No.: 111005C22 3 Report No.: 111005C22 4 Set 1 antenna Set 2 antenna Report No.: 111005C22 5 Set 3 antenna Report No.: 111005C22 6

Report No.: SA111005C22 Report Format Version 4.0.0 1 RF EXPOSURE REPORT APPLICANT: Fortinet, Inc. ADDRESS: 1090 Kifer Road Sunnyvale, CA 94086, USA, 94086 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. REPORT NO.: SA111005C22 MODEL NO.: EMP7618-FT, EMP7618 FCC ID: TVE-0120201 RECEIVED: Oct. 05, 2011 TESTED: Nov. 10, 2011 ISSUED: Nov. 30, 2011 Report No.: SA111005C22 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA111005C22 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA111005C22 Original release Nov. 30, 2011 Report No.: SA111005C22 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: 802.11 abgn RF Module Card BRAND NAME: Fortinet MODEL NO.: EMP7618-FT, EMP7618 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Fortinet, Inc. TESTED: Nov. 10, 2011 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: EMP7618-FT) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Nov. 10, 2011 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: Nov. 10, 2011 ( May Chen, Deputy Manager ) Report No.: SA111005C22 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN There are three sets antennas provided to this EUT, please refer to the following table: GAIN (dBi) Set Transmitter Circuit ANTENNA TYPE ANTENNA CONNECTOR 2.4GHz BAND 5.0GHz BAND Chain (0) Dipole RSMA 2 4.5 1 Chain (1) Dipole RSMA 2 4.5 Chain (0) Dipole RSMA 2 1 2 Chain (1) Dipole RSMA 2 1 Chain (0) Dipole RSMA 2 2 3 Chain (1) Dipole RSMA 2 2 From above antennas, Set 1 was chosen for final test. The EUT incorporates CDD function with 802.11a, 802.11b, 802.11g. Report No.: SA111005C22 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 41.6 5 20 0.026 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] Effective Legacy Gain (dBi) = 5 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 423.0 5 20 0.266 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] Effective Legacy Gain (dBi) = 5 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 390.4 2 20 0.123 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 135.3 2 20 0.043 1.00 Report No.: SA111005C22 Report Format Version 4.0.0 7 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 219.3 7.5 20 0.245 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] Effective Legacy Gain (dBi) = 7.5 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 234.5 4.5 20 0.131 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5755 ~ 5795 290.9 4.5 20 0.163 1.00 Report No.: SA111005C22 Report Format Version 4.0.0 8 For 15.407(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 21.9 7.5 20 0.025 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 ) 2 / 2] Effective Legacy Gain (dBi) = 7.5 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) D…
