TVE-120757PCIEV1.0-FRT01 WLAN 802.11AC 3x3 PCIE Module

DATASHEET | All specifications are subject to change without notice. P25037-01ConfidentialPage1 Product Specification P25037-01 V1.4 DATASHEET | All specifications are subject to change without notice. P25037-01ConfidentialPage2 PRODUCT DESCRIPTION P25037-01, a three-channel PCIemodule, designed with IEEE 802.11 ac Wave2 technology, supports MU-MIMO, utilizes radio frequency backup design and could switch working modes freely between 2.4GHz and 5GHz, which is compatible with IEEE 802.11 a/b/g/n/ac standards and achieves wireless performance of up to 450 Mbps and 1300 Mbps @ 2.4GHz and 5GHz respectively. It is suitable for enterprise and carrier application. KEY FEATURES: Main Chip: Qualcomm QCA9986 Data Rate at 1300 Mbps @ 5GHz Date Rate at 450 Mbps @ 2.4GHz 3 x 3 SU-/MU-MIMO technology improves throughput and range DATASHEET | All specifications are subject to change without notice. P25037-01ConfidentialPage3 PRODUCT SPECIFICATION HardwareSpecification StandardIEEE802.11a/b/g/n/ac RFQCA9986 InterfacePCI-E OperatingVoltage3.3v AntennaConnectorsI-PEX*3 RadioSpecification 2.4GHzBand Datarate1-450Mbps Band20MHz/40MHz 5GHzBand Datarate6-1300Mbps Band20MHz/40MHz/80MHz DATASHEET | All specifications are subject to change without notice. P25037-01ConfidentialPage4 PackagecontentBulkpack Environment&Mechanical PowerConsumption5.065W WorkingTemperatureRange0°C-40°C StorageTemperatureRange-40°C-70°C WorkingHumidity(non-condensing)10%-90% StorageHumidity(non-condensing)5%-90% Dimensions50.8*44.85*6.5mm Weight0.022 kg ComplianceStandard RadioApprovalsPrescanonly(FCC,CE,IC) MTBF337,015hours DATASHEET | All specifications are subject to change without notice. P25037-01ConfidentialPage5 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter modulemust not be co-located or operating in conjunction with any other antenna or transmitter. The module must be installed in Network Security Gateway products. This End equipment should be installed and operated with a minimum distance of 25 centimetersbetween the radiator and your body. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeledin a visible area with the following: “Contains FCC ID:TVE-120757 Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. DATASHEET | All specifications are subject to change without notice. P25037-01ConfidentialPage6 Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution Exposure: This device meets the exemption from the routine evaluation limits in section 2.5 of RSS102 and users can obtain Canadian information on RF exposure and compliance. Le dispositif répond à l'exemption des limites d'évaluation de routine dans la section 2.5 de RSS102 et les utilisateurs peuventobtenir des renseignements canadiens sur l'exposition aux RF et le respect. The final end product must be labelled in a visible area with the following: The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labelled to display the Industry Canada certification number of the module, preceded by the words “Co…

Text truncated - open the document above for the full version.

Tel: +1-408-235-7700 Fax:+1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Power of Attorney Date: December 26, 2019 To whom it may concern, We, the undersigned, Fortinet, Inc., hereby authorize Mandy Wang of BTL Inc., No.3 Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, and the signing of documents relating to these matters. Any documents submitted by Mandy Wang of BTL Inc., No.3 Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan of China within the scope of this authorization shall have the same effects as if submitted by Fortinet, Inc., provided, in all events, (a) Mandy Wang of BTL Inc., No.3 Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan of China has acted legally, in good faith and properly in furtherance of obtaining the FCC approval of our products, (b) the only documents submitted by Mandy Wang of BTL Inc., No.3 Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan of China on our behalf have been reviewed and approved by an authorized representative of Fortinet, Inc. in advance of Mandy Wang of BTL Inc., No.3 Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan of China submittal, and (c) Mandy Wang of BTL Inc., No.3 Jinshagang 1st Road, Shixia, Dalang Town, Dong Guan of China provides to the Fortinet Legal team a copy of the document submitted at the same time as submittal. Product Description: PCIEV1.0-FRT01 WLAN 802.11AC 3x3 PCIE Module Type Designation: P25037-01 Trademark: FORTINET FCC ID : TVE-120757 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely yours, ________________________ Andrew Ji Sr. Director Operations Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected]

Tel: +1-408-235-7700 Fax:+1-408-235-7737 www.fortinet.com 899 Kifer Road Sunnyvale, CA 94086 Confidentiality Request Date: December 26, 2019 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: TVE-120757 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description ● Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ________________________ Andrew Ji Sr. Operations Director Fortinet, Inc. Tel: 408-235-7700 ext. 81340 Fax: 408-235-7737 E-mail: [email protected]

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: TVE-120757 Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. YES, Please refer to External Photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. YES, U1 QCA9986 is used for the function. 3. The modular transmitter must have its own power supply regulation. YES, the modular has its own power supply regulation. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). YES, it is Dipole antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, the module is tested in a stand-alone configuration as the test photos show. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). YES, please refer to the exhibition label sample for this module. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES, please refer to the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. YES, RF exposure statement is attached in the user manual. RF_734_02 04 April 16 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): _ Andrew Ji_____ Date: 2019-12-26 Signature: ___________________________

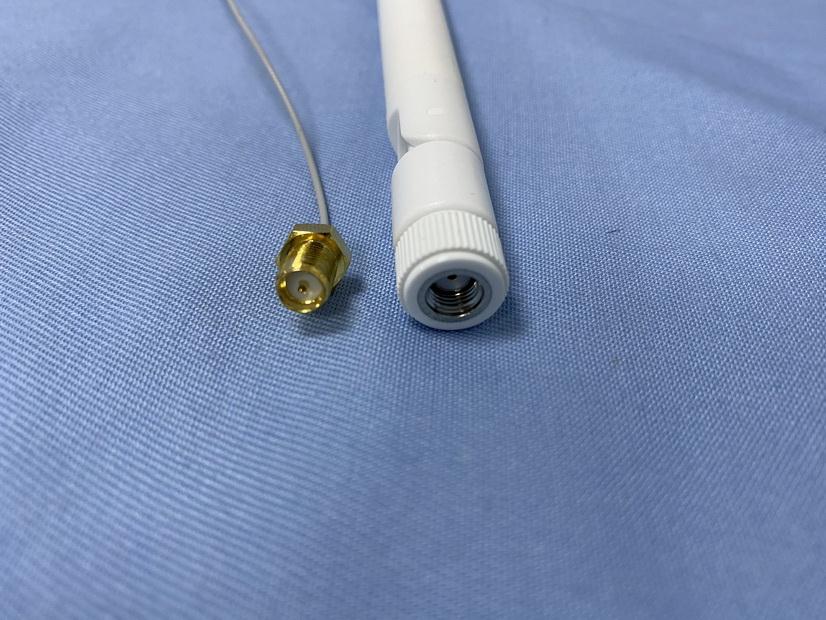

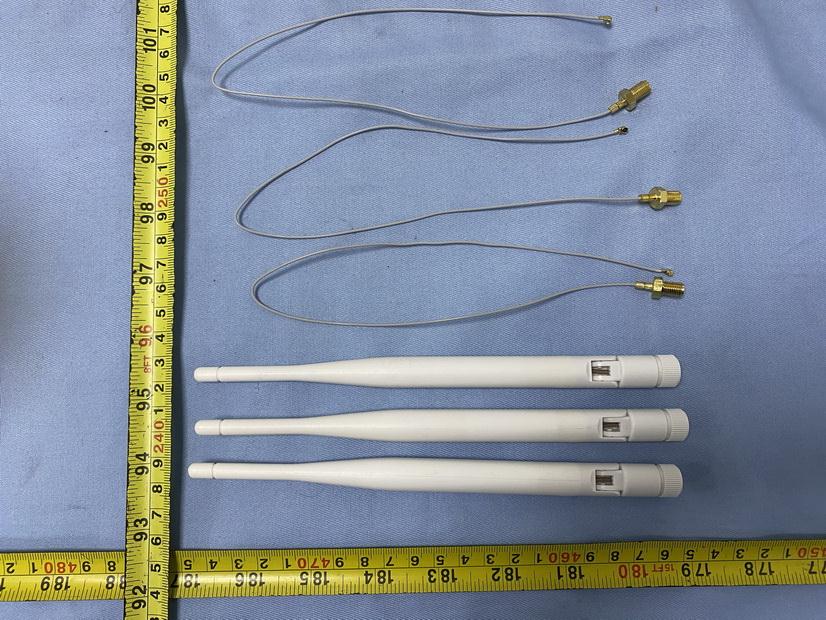

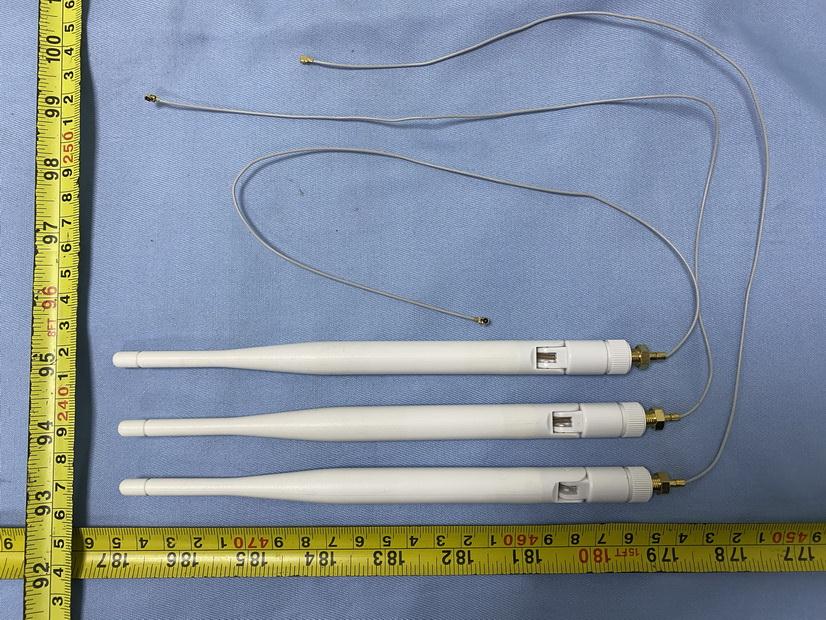

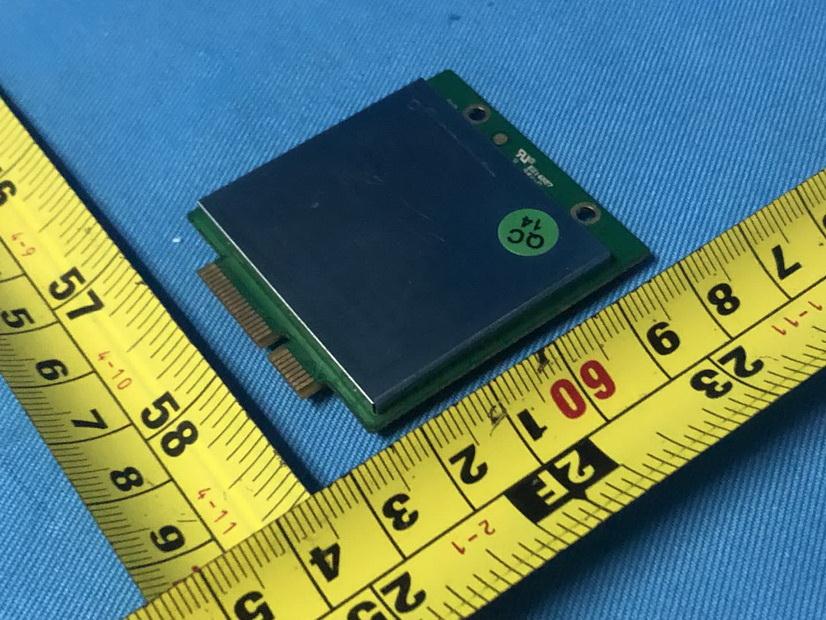

Project No.: 1909C046 Page 1 of 7 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 1909C046 Page 2 of 7 Project No.: 1909C046 Page 6 of 7 Project No.: 1909C046 Page 7 of 7

PCIEV1.0-FRT01 WLAN 802.11AC 3x3 PCIE Module Fortinet P/N: P25037-01 S/N: FCC ID: TVE-120757 IC: 7280B-120757 Fortinet, Inc. Date: 899 Kifer Road, Sunnyvale, CA 94086, USA Assembled in China Label location

Project No.: 1909C046 Page 3 of 7 Project No.: 1909C046 Page 4 of 7 Project No.: 1909C046 Page 5 of 7

Report No.: BTL-FCCP-3-1909C046 Page 1 of 6 FCC RF EXPOSURE REPORT FCC ID: TVE-120757 Project No. : 1909C046 Equipment : PCIEV1.0-FRT01 WLAN 802.11AC 3x3 PCIE Module Brand Name : FORTINET Test Model : P25037-01 Series Model : N/A Applicant : Fortinet, Inc. Address : 899 Kifer Road, Sunnyvale, CA 94086 USA Manufacturer : Fortinet, Inc. Address : 899 Kifer Road, Sunnyvale, CA 94086 USA Date of Receipt : Sep. 11, 2019 Date of Test : Sep. 12, 2019 ~ Nov. 07, 2019 Issued Date : Dec. 13, 2019 Report Version : R00 Test Sample : Engineering Sample No.: DG2019091147 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-1909C046 Page 2 of 6 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Dec. 13, 2019 Report No.: BTL-FCCP-3-1909C046 Page 3 of 6 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 W1800R Dipole SMA Male Reverse 4.16 2 W1800R Dipole SMA Male Reverse 4.16 3 W1800R Dipole SMA Male Reverse 4.16 Note: This EUT supports CDD, and all antennas have the same gain, (1) For Non Beamforming function, Directional gain=G ANT +Array Gain, For output power measurements, Array Gain=0 (N ANT ≤ 4), so the Directional gain=4.16. For power spectral density measurements, Array Gain=10log(N ANT /N SS ) dB, so the Directional gain=4.16+10log(3/1)=8.93. So, the power density limit is 8-8.93+6=5.07. (2) For Beamforming function, Beamforming gain: 4.5dB, so the Directional gain=4.16+4.5=8.66, Then, the output Power limit is 30-8.66+6=27.34. Report No.: BTL-FCCP-3-1909C046 Page 4 of 6 For 5G: For UNII-1: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 W1800R Dipole SMA Male Reverse 3.06 2 W1800R Dipole SMA Male Reverse 3.06 3 W1800R Dipole SMA Male Reverse 3.06 Note: This EUT supports CDD, and all antennas have the same gain, (1) For Non Beamforming function, Directional gain=G ANT +Array Gain, For output power measurements, Array Gain=0 (N ANT ≤4), so, Directional gain=3.06 For power spectral density measurements, Array Gain=10log(N ANT /N SS ) dB Directional gain=3.06+10log(3/1)=7.83. So, the UNII-1 power density limit is 17-7.83+6=15.17 (2) For Beamforming function, Beamforming gain: 4.5dB, so the Directional gain=3.06+4.5=7.56, Then, the UNII-1 output Power limit is 30-7.56+6=28.44. For UNII-3: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 W1800R Dipole SMA Male Reverse 3.58 2 W1800R Dipole SMA Male Reverse 3.58 3 W1800R Dipole SMA Male Reverse 3.58 Note: This EUT supports CDD, and all antennas have the same gain, (1) For Non Beamforming function, Directional gain=G ANT +Array Gain, For output power measurements, Array Gain=0 (N ANT ≤4), so, Directional gain=3.58 For power spectral density measurements, Array Gain=10log(N ANT /N SS ) dB Directional gain=3.58+10log(3/1)=8.35. So, the UNII-3 power density limit is 30-8.35+6=27.65. (2) For Beamforming function, Beamforming gain: 4.5dB, so the Directional gain=3.58+4.5=8.08, Then, the UNII-3 output Power limit is 30-8.08+6=27.92 Report No.: BTL-FCCP-3-1909C046 Page 5 of 6 The worst case for 3TX as follow: For 2.4G: For Non Beamforming: Operating Mode TX Mode 3TX IEEE 802.11b V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11g V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2+Ant. 3) For Beamforming: Operating Mode TX Mode 3TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2+Ant. 3) For 5G: For Non Beamforming: Operating Mode TX Mode 3TX IEEE 802.11a V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n (HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n (HT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2+Ant. 3) For Beamforming: Operating Mode TX Mode 3TX IEEE 802.11n (HT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11n (HT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2+Ant. 3) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2+Ant. 3) Report No.: BTL-FCCP-3-1909C046 Page 6 of 6 2. TEST RESULTS For 2.4GHz_Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.16 2.6062 29.67 926.8298 0.30770 1 Complies For 2.4GHz_With Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.66 7.3451 26.33 429.5364 0.40191 1 Complies For 5GHz UNII-1_Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.06 2.0230 26.58 454.9881 0.11725 1 Complies For 5GHz UNII-1_Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.56 5.7016 26.39 435.5119 0.31632 1 Complies For 5GHz UNII-3_Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3.58 2.2803 29.24 839.4600 0.24385 …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1909C046 Page 1 of 169 FCC Radio Test Report FCC ID: TVE-120757 This report concerns: Original Grant Project No. : 1909C046 Equipment : PCIEV1.0-FRT01 WLAN 802.11AC 3x3 PCIE Module Brand Name : FORTINET Test Model : P25037-01 Series Model : N/A Applicant : Fortinet, Inc. Address : 899 Kifer Road, Sunnyvale, CA 94086 USA Manufacturer : Fortinet, Inc. Address : 899 Kifer Road, Sunnyvale, CA 94086 USA Date of Receipt : Sep. 11, 2019 Date of Test : Sep. 12, 2019 ~ Nov. 07, 2019 Issued Date : Dec. 13, 2019 Report Version : R00 Test Sample : Engineering Sample No.: DG2019091147 Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-1909C046 Page 2 of 169 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/I EC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-1909C046 Page 3 of 169 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 16 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 18 2.6 SUPPORT UNITS 18 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 19 3.1 LIMIT 19 3.2 TEST PROCEDURE 19 3.3 DEVIATION FROM TEST STANDARD 19 3.4 TEST SETUP 20 3.5 EUT OPERATION CONDITIONS 20 3.6 TEST RESULTS 20 4 . RADIATED EMISSIONS TEST 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 22 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 24 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 24 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 24 4.8 TEST RESULTS - ABOVE 1000 MHz 24 5 . BANDWIDTH TEST 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 TEST PROCEDURE 25 Report No.: BTL-FCCP-2-1909C046 Page 4 of 169 Table of Contents Page 5.4 TEST SETUP 25 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM OUTPUT POWER TEST 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 DEVIATION FROM STANDARD 26 6.4 TEST SETUP 26 6.5 EUT OPERATION CONDITIONS 26 6.6 TEST RESULTS 26 7 . POWER SPECTRAL DENSITY TEST 27 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 DEVIATION FROM STANDARD 27 7.4 TEST SETUP 27 7.5 EUT OPERATION CONDITIONS 27 7.6 TEST RESULTS 27 8 . FREQUENCY STABILITY MEASUREMENT 28 8.1 LIMIT 28 8.2 TEST PROCEDURE 28 8.3 DEVIATION FROM STANDARD 28 8.4 TEST SETUP 28 8.5 EUT OPERATION CONDITIONS 28 8.6 TEST RESULTS 28 9 . MEASUREMENT INSTRUMENTS LIST 29 10 . EUT TEST PHOTOS 31 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 35 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 38 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 43 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 46 APPENDIX E - BANDWIDTH 119 APPENDIX F - CONDUCTED OUTPUT POWER 127 Report No.: BTL-FCCP-2-1909C046 Page 5 of 169 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 150 APPENDIX H - FREQUENCY STABILITY 167 Report No.: BTL-FCCP-2-1909C046 Page 6 of 169 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Dec. 13, 2019 Report No.: BTL-FCCP-2-1909C046 Page 7 of 169 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PASS ------ 15.407(a) Maximum Output Power APPENDIX F PASS ------ 15.407(a) Power Spectral Density APPENDIX G PASS ------ 15.407(g) Frequency Stability APPENDIX H PASS ------ 15.203 Antenna Requirements ------ PASS NOTE (2) 15.407(c) Automatically Discontinue Transmission ------…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-1909C046 Page 123 of 169 Test Mode UNII-1_TX AC (VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 36 5180 20.65 17.80 40 5200 22.75 17.80 48 5240 24.50 17.90 CH36 CH40 CH48 Test Mode UNII-1_TX AC (VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 38 5190 41.20 36.40 46 5230 40.79 36.40 CH38 CH46 Report No.: BTL-FCCP-2-1909C046 Page 124 of 169 Test Mode UNII-1_TX AC (VHT80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 42 5210 85.00 76.00 CH42 Report No.: BTL-FCCP-2-1909C046 Page 125 of 169 Test Mode UNII-3_TX AC (VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 149 5745 17.55 21.50 500 Complies 157 5785 17.55 17.80 500 Complies 165 5825 17.65 17.80 500 Complies CH149 CH157 CH165 Test Mode UNII-3_TX AC (VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.70 36.60 500 Complies 159 5795 35.19 43.80 500 Complies CH151 CH159 Report No.: BTL-FCCP-2-1909C046 Page 126 of 169 Test Mode UNII-3_TX AC (VHT80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 76.60 76.00 500 Complies CH155 Report No.: BTL-FCCP-2-1909C046 Page 127 of 169 APPENDIX F - CONDUCTED OUTPUT POWER Report No.: BTL-FCCP-2-1909C046 Page 128 of 169 Non Beamforming Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 19.49 0.13 19.62 30.00 1.00 Complies 40 5200 20.49 0.13 20.62 30.00 1.00 Complies 48 5240 21.62 0.13 21.75 30.00 1.00 Complies Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.87 0.13 19.00 30.00 1.00 Complies 40 5200 20.12 0.13 20.25 30.00 1.00 Complies 48 5240 21.03 0.13 21.16 30.00 1.00 Complies Test Mode UNII-1_TX A Mode_Ant. 3 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.67 0.13 18.80 30.00 1.00 Complies 40 5200 19.72 0.13 19.85 30.00 1.00 Complies 48 5240 20.52 0.13 20.65 30.00 1.00 Complies Test Mode UNII-1_TX A Mode_Total Channel Frequency (MHz) Conducted Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 23.93 30.00 1.00 Complies 40 5200 25.03 30.00 1.00 Complies 48 5240 25.99 30.00 1.00 Complies Report No.: BTL-FCCP-2-1909C046 Page 129 of 169 Test Mode UNII-1_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 19.18 0.00 19.18 30.00 1.00 Complies 40 5200 21.41 0.00 21.41 30.00 1.00 Complies 48 5240 21.38 0.00 21.38 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.54 0.00 18.54 30.00 1.00 Complies 40 5200 20.76 0.00 20.76 30.00 1.00 Complies 48 5240 20.79 0.00 20.79 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Ant. 3 Channel Frequency (MHz) Conducted Output Power (dBm) Duty Factor Conducted Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. …

Text truncated - open the document above for the full version.
