TVE-122203Secured Wireless Access Point w/ IP Camera

FortiAPCam-214B QuickStart Guide June 30, 2014 1st Edition Copyright © 2014 Fortinet, Inc. All rights reserved. Fortinet ® , FortiGate ® , FortiCare ® and FortiGuard ® , and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable. Technical Documentation http://docs.fortinet.com Knowledge Base http://kb.fortinet.com Forums https://support.fortinet.com/forum Customer Service & Support https://support.fortinet.com Training Services http://training.fortinet.com FortiGuard Threat Research & Response http://www.fortiguard.com Document Feedback Email: [email protected] Package Contents 4 Hardware Installation 5 Connecting your Unit 6 Configuring your Unit 7 Front and Back Views 10 Technical Specifications 12 Register for Support 14 Cautions and Warnings 15 Regulatory Notices 16 Agreement / EULA and Warranty Terms 17 Table of Contents Page 4 Package Contents Your box should contain: • FortiAPCam-214B camera • This QuickStart Guide • RJ45 Ethernet cable • 1x 3.5mm male to 3.5mm female cable for audio-in • 1x 3.5mm male to RCA/3.5mm cable for AV-out • 1x Allen wrench for security case removal/installation • 4x screws and 4x anchors for ceiling mounting Ethernet cable LRCA AV-out cable, anchors, screws, and audio-in cable FortiAPCam-214B unit Allen wrench Page 5 Hardware Installation Using the provided hardware, the FortiAPCam unit can be attached to a ceiling. To connect 1. Fasten a single screw to the desired location on a ceiling and position the unit so that the screw fits securely into the slot located in the centre of the flat bottom of the unit. 2. Secure unit to the ceiling by inserting screws through the three tabs located along the edge of the unit. 3. Attach the dome over the unit and secure it in place using the two screws located on either side of the dome. To reboot • Press and hold the Reset button for less than 5 seconds to reboot both the camera and AP part of the system. To reset to factory default settings • Press and hold the Reset button for more than 5 seconds to reset both the camera and AP part of the system to factory default. Page 6 Connecting your Unit Using the provided mounting hardware, attach the FortiAPCam unit to a ceiling, as described in the previous section. Adequate grounding must be provided to the unit and the PoE injector, in compliance with your local electrical code or regulations. Caution: This device complies with IEEE 802.3af PoE specification. Do not use any PoE injectors that are not IEEE 802.3af compliant as they may damage your device. To connect the FortiAPCam unit 1. Connect the unit to a PoE switch. 2. Connect your FortiGate or FortiWiFi unit to the switch to use the access point function. 3. Connect your FortiRecorder to the switch to use the video surveillance function. Note: For FortiWiFi units, the wireless controller feature is only supported on units running FortiOS 4.0 MR3 and higher. Caution: This equipment is to be connected only to PoE networks without routing to the outside plant. Page 7 Configuring your Unit For the camera part of the unit, configuration is done through the connected FortiRecorder NVR. For details, see the FortiRecorder Administration Guide at http://docs.fortinet.com. For the access point part, no configuration is required if the unit is directly connected to the FortiGate or FortiWiFi performing the Wireless LAN Controller (WLC) functions, or on the same layer-2 network and subnet as the FortiGate or FortiWiFi unit. If the FortiAPCam wireless controller’s IP address cannot be determined using Zero Configuration mode, or if the network uses static IP addresses, it can be configured to use a static IP address. To enable the FortiAPCam using Zero Configuration 1. After connecting the FortiAPCam unit, the unit goes through its boot procedure and requests an IP address from the DHCP server. 2. If the IP address is retrieved successfully, the FortiAPCam enters discovery mode to locate a FortiGate or FortiWiFi wireless controller. The discovery modes are: • Broadcast • Multicast • DHCP option 138 3. Verify that the FortiAPCam has successfully connected to the controller. Page 8 In the FortiGate Web-based Manager, go to WiFi & Switch Controller > Managed Devices > Managed FortiAPs. A successfully discovered unit displays an orange circle with a question mark. 4. Select the access point and click the Authorize button. The configuration is downloaded from the wireless controller to the FortiAP and the WiFi LED lights up. To enable the FortiAPCam with a static IP address 1. Connect the FortiAPCam device to a separate private switch or hub, or directl…

Text truncated - open the document above for the full version.

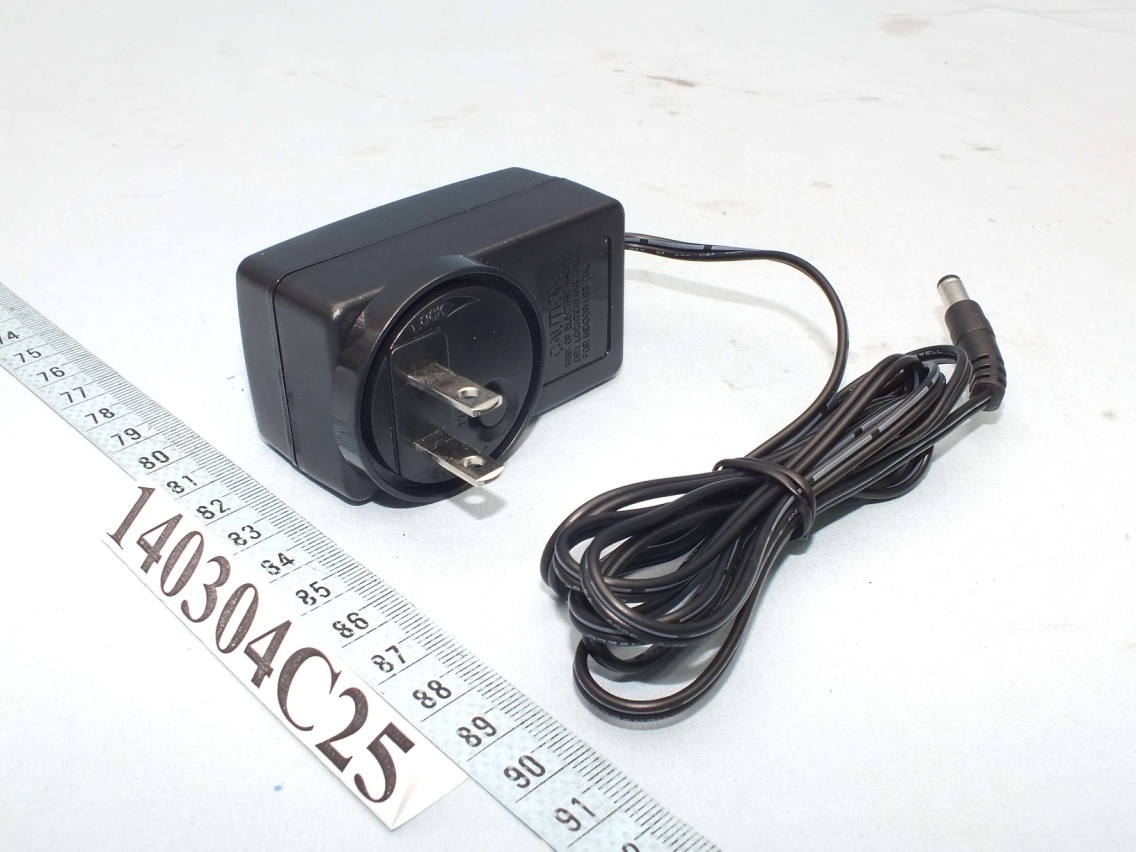

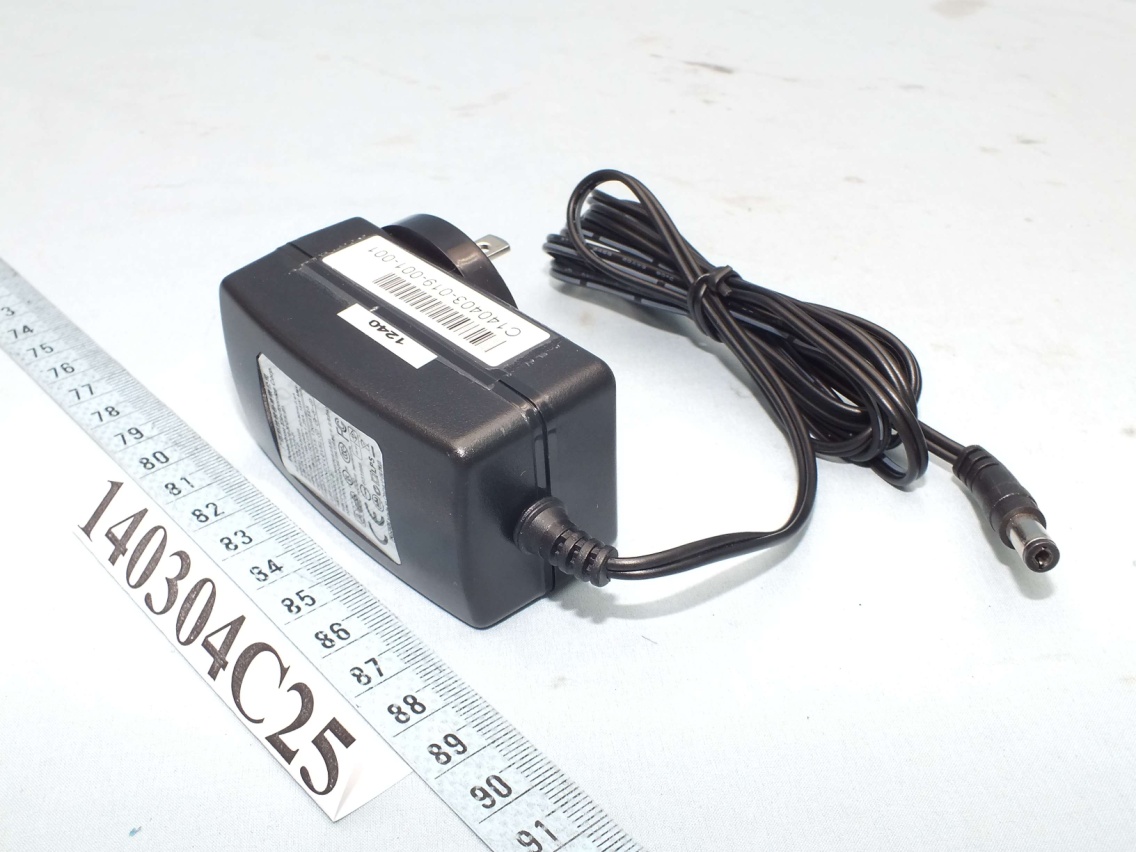

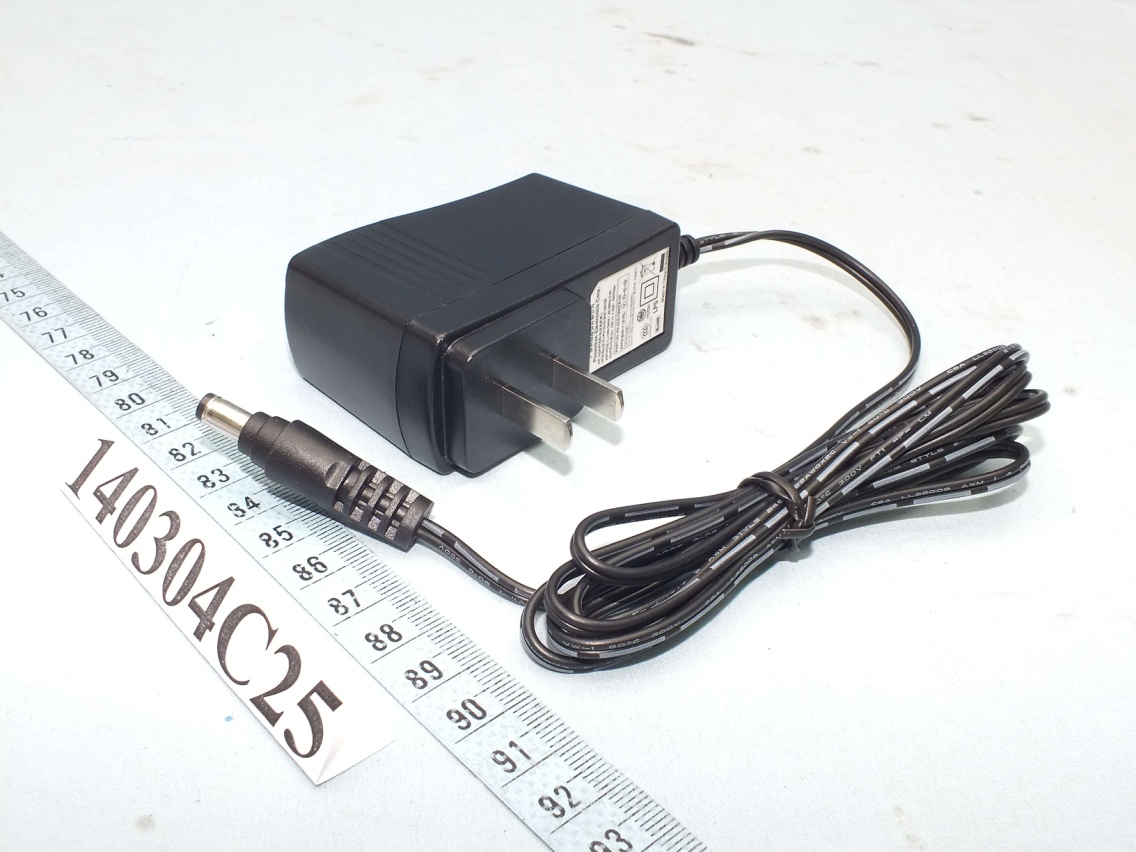

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

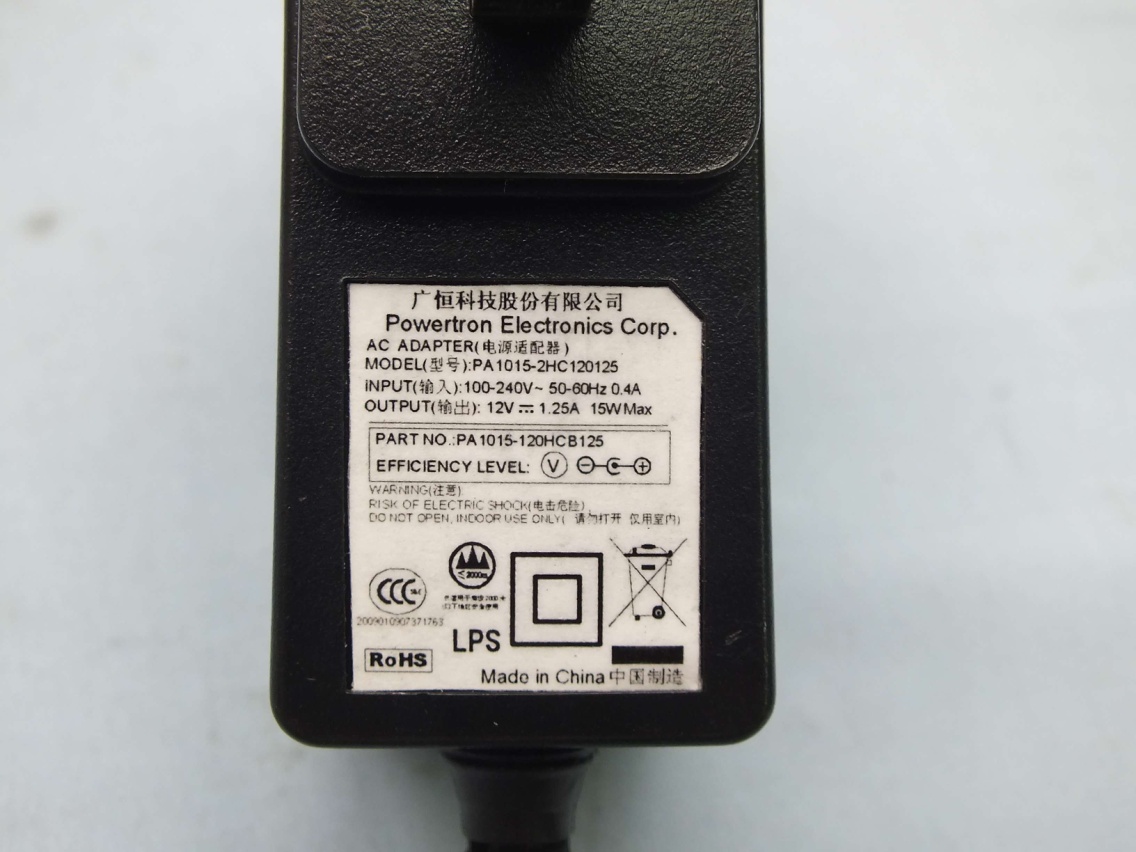

Label Location

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

Report No.: SA140304C25 1 of 7 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140304C25 MODEL NO.: FORTIAPCAM-214Bxxxxxx, FAPCM-214Bxxxxxx, FORTICAM-AP214Bxxxxxx, FCMAP-214xxxxxx, FORTIAP-CAM214Bxxxxxx, FAP-CM214Bxxxxxx, FORTIAPCAM-214Bxxxxxx, FCM-AP214Bxxxxxx (where “x” can be used as “A-Z”, or “0-9”, or “-”, or blank for software changes or marketing purposes only) FCC ID: TVE-122203 IC: 7280B-122203 RECEIVED: Mar. 04, 2014 TESTED: Mar. 15 ~ Apr. 10, 2014 ISSUED: May 19, 2014 APPLICANT: Fortinet Inc. ADDRESS: 899 Kifer Road Sunnyvale, CA 94086, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA140304C25 2 of 7 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 3 1. CERTIFICATION ........................................................................................................... 4 2. RF EXPOSURE ............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................. 6 2.3 CLASSIFICATION ......................................................................................................... 6 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................ 7 Report No.: SA140304C25 3 of 7 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140304C25 Original release May 19, 2014 Report No.: SA140304C25 4 of 7 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Secured Wireless Access Point w/ IP Camera MODEL: FORTIAPCAM-214Bxxxxxx, FAPCM-214Bxxxxxx, FORTICAM-AP214Bxxxxxx, FCMAP-214xxxxxx, FORTIAP-CAM214Bxxxxxx, FAP-CM214Bxxxxxx, FORTIAPCAM-214Bxxxxxx, FCM-AP214Bxxxxxx (where “x” can be used as “A-Z”, or “0-9”, or “-”, or blank for software changes or marketing purposes only) BRAND: Fortinet APPLICANT: Fortinet Inc. TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 RSS-102 Issue 4 (2010-12) The above equipment (Model: FORTIAPCAM-214B) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :May 19, 2014 Celine Chou / Specialist APPROVED BY : , DATE :May 19, 2014 Ken Liu / Senior Manager Report No.: SA140304C25 5 of 7 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) For FCC Part 2 (Section 2.1091) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz For RSS-102 Issue 4 (2010-12) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (W/m 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/150 6 1500-100,000 ... ... 10 6 F = Frequency in MHz Report No.: SA140304C25 6 of 7 Report Format Version 5.0.0 2.2 MPE CALCULATION FORMULA For FCC Part 2 (Section 2.1091) Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm For RSS-102 Issue 4 (2010-12) Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in W/m 2 Pout = output power to antenna in W G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in meter 2.3 CLASSIFICATION For FCC Part 2 (Section 2.1091) The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. For RSS-102 Issue 4 (2010-12) The antenna of this product, under normal use condition, is at least 0.20m away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA1403…

Text truncated - open the document above for the full version.

Report No.: RF140304C25 1 of 113 Report Format Version 5.2.0 FCC TEST REPORT (15.247) IC TEST REPORT (RSS-210 Issue 8 (2010-12)) REPORT NO.: RF140304C25 MODEL NO.: FCM-AP214Bxxxxxx (Refer to item 3.1 for more details) FCC ID: TVE-122203 IC: 7280B-122203 RECEIVED: Mar. 04, 2014 TESTED: Mar. 15 ~ Jun. 12, 2014 ISSUED: Jun. 19, 2014 APPLICANT: Fortinet Inc. ADDRESS: 899 Kifer Road Sunnyvale, CA 94086, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140304C25 2 of 113 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DUTY CYCLE OF TEST SIGNAL .............................................................................. 16 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................... 18 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 19 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 20 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 21 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 21 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 21 4.1.2 TEST INSTRUMENTS ............................................................................................... 22 4.1.3 TEST PROCEDURES ............................................................................................... 23 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 23 4.1.5 TEST SETUP ............................................................................................................. 24 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 25 4.1.7 TEST RESULTS ........................................................................................................ 26 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 41 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 41 4.2.2 TEST INSTRUMENTS ............................................................................................... 41 4.2.3 TEST PROCEDURES ............................................................................................... 42 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 42 4.2.5 TEST SETUP ............................................................................................................. 42 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 42 4.2.7 TEST RESULTS ........................................................................................................ 43 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 49 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 49 4.3.2 TEST SETUP ............................................................................................................. 49 4.3.3 TEST INSTRUMENTS ............................................................................................... 49 4.3.4 TEST PROCEDURE .................................................................................................. 49 4.3.5 DEVIATION FROM TEST STANDARD................…

Text truncated - open the document above for the full version.

Report No.: RF140304C25-1 1 of 65 Report Format Version 5.2.0 FCC TEST REPORT (15.407) IC TEST REPORT (RSS-210 Issue 8 (2010-12)) REPORT NO.: RF140304C25-1 MODEL NO.: FCM-AP214Bxxxxxx (Refer to item 3.1 for more details) FCC ID: TVE-122203 IC: 7280B-122203 RECEIVED: Mar. 04, 2014 TESTED: Mar. 18 ~ Jun. 12, 2014 ISSUED: Jun. 19, 2014 APPLICANT: Fortinet Inc. ADDRESS: 899 Kifer Road Sunnyvale, CA 94086, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140304C25-1 2 of 65 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................. 4 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 DUTY CYCLE OF TEST SIGNAL ............................................................................... 12 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 16 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 17 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 18 4. TEST TYPES AND RESULTS .................................................................................... 19 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................... 19 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .................. 19 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 19 4.1.3 TEST INSTRUMENTS ................................................................................................ 20 4.1.4 TEST PROCEDURES ................................................................................................ 21 4.1.5 DEVIATION FROM TEST STANDARD ...................................................................... 21 4.1.6 TEST SETUP .............................................................................................................. 22 4.1.7 EUT OPERATING CONDITION .................................................................................. 23 4.1.8 TEST RESULTS ......................................................................................................... 24 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 35 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 35 4.2.2 TEST INSTRUMENTS ................................................................................................ 35 4.2.3 TEST PROCEDURES ................................................................................................ 36 4.2.4 DEVIATION FROM TEST STANDARD ...................................................................... 36 4.2.5 TEST SETUP .............................................................................................................. 36 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 36 4.2.7 TEST RESULTS ......................................................................................................... 37 4.3 PEAK TRANSMIT POWER MEASUREMENT ........................................................... 43 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ......................................... 43 4.3.2 TEST SETUP .............................................................................................................. 44 4.3.3 TEST INSTRUMENTS ................................................................................................ 44 4.3.4 TEST PROCEDURE .................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) 2 CONDUCTED EMISSION TEST (TEST MODE B) 3 CONDUCTED EMISSION TEST (TEST MODE C) 4 RADIATED EMISSION TEST (TEST MODE A) 5 RADIATED EMISSION TEST (TEST MODE B) 6 RADIATED EMISSION TEST (TEST MODE C)
